TP-580RD 4K60 4:2:0 DVI HDCP 2.2 Receiver with RS-232 & IR over Long-Reach HDBaseT
Please sign in so that we can notify you about a reply
TP−580RD is a high−performance, long−reach HDBaseT receiver for 4K@60Hz (4:2:0) DVI/HDMI, RS−232 and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Features
- High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. TP–580RD is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
- Secured Operation — Highly–secured operation is ensured by lockable wiring connectivity with protection against unintentional cable disconnection.
- HDMI Signal Extension — HDCP 2.2 compliant, via single–link DVI–I connection. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the display.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
- Cost–effective Maintenance — Status LED indicators for DVI and HDBT ports facilitate easy local maintenance and troubleshooting.

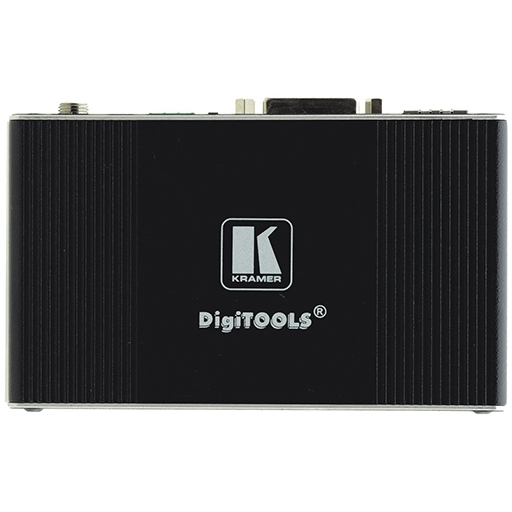

- Easy Installation — Compact DigiTOOLS® fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
50-8048801090
Product Type:
4K60 4:2:0 DVI HDCP 2.2 Receiver
Specifications
Maximum Operating Temperature:
+40°C
Number of Channels:
32
Special Features:
HDBaseT 1.0 Receiver, Lockable Wiring Connection, Up to 70m (230ft) at 1080pixels, Control Extension
Applications:
Highly Reliable, Long Distance Extension of High-Quality Professional AV Signals Via Lockable Cable Connections, Medical Operation Rooms and Other Critical AV Extension, Governmental High-Reliability AV Extension, Rental, Staging Events
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply Unit
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Video Bandwidth:
10.2Gbps
Baud Rate:
115200bps
Maximum Resolution:
4K@60Hz (4:2:0) 24bpp
Inputs and Ports
Input Port Type:
1xHDBaseT: on an RJ45 Connector
Output Port Type:
1xDVI-D/HDMI: on a Female DVI-I Connector
Power
Current Rating:
2A
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.3kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
