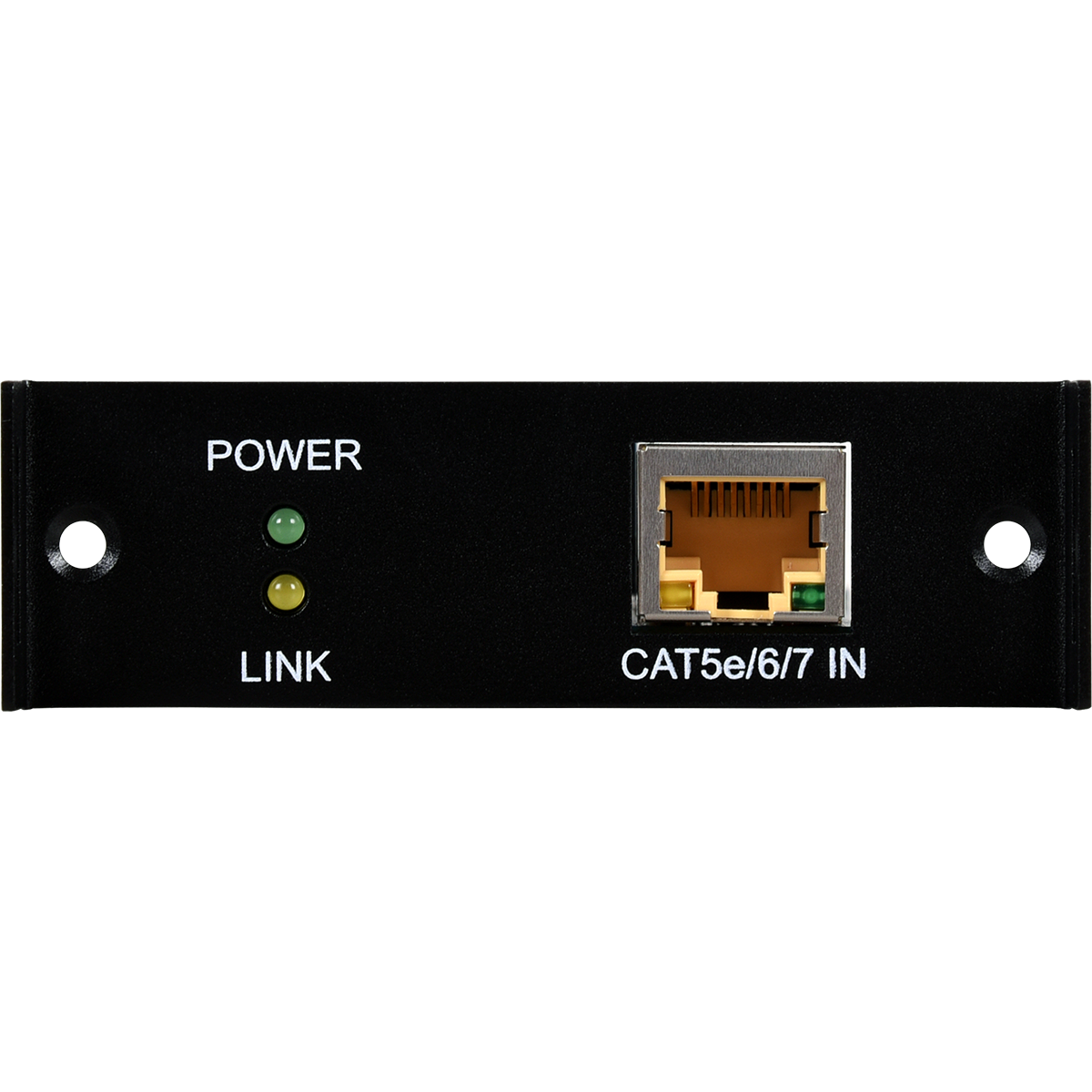

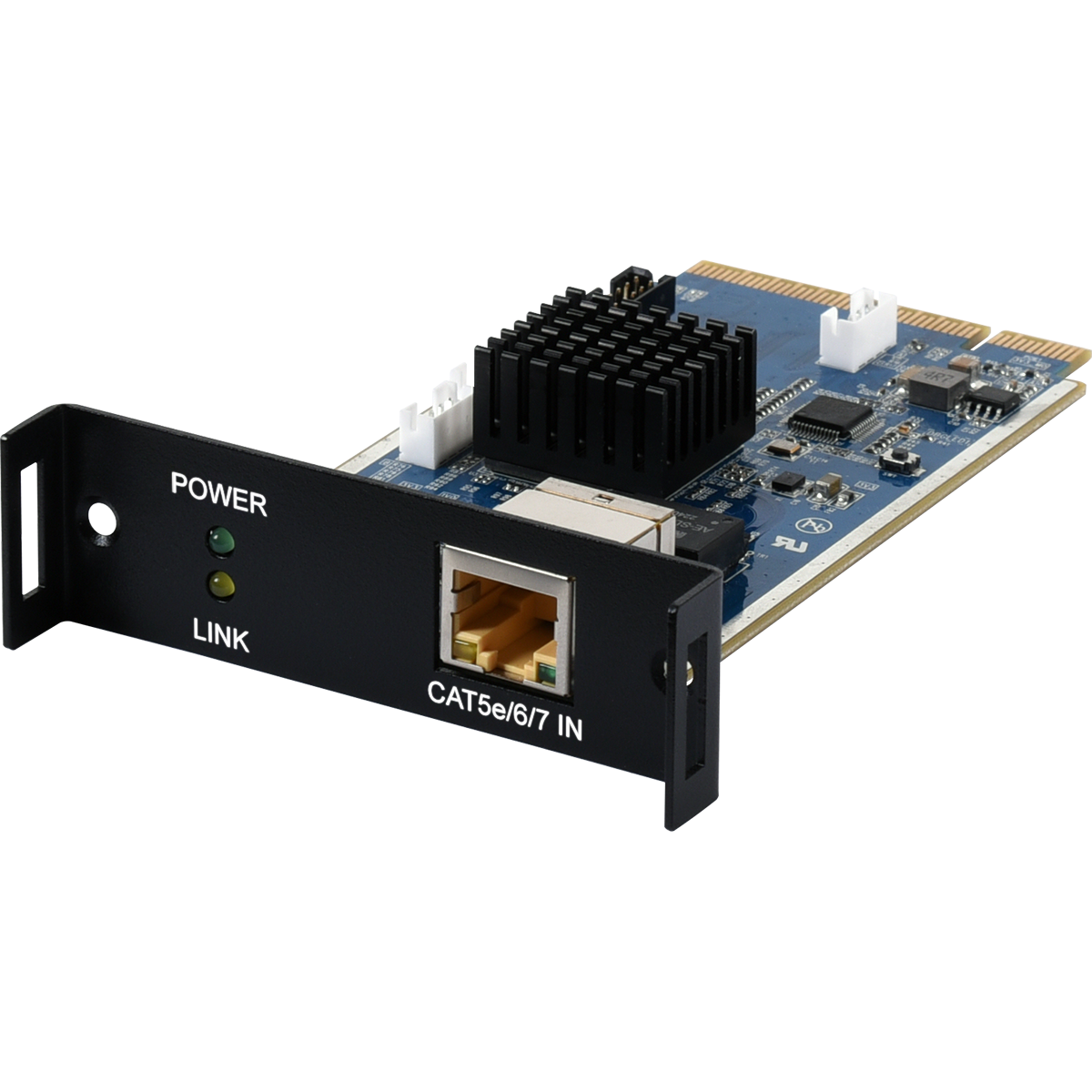

SDM-E201R HDBaseT Receiver Module, For Module Slot CPLUS-V32SDM
Please sign in so that we can notify you about a reply
The HDBT Module Card is able to receive signals from compatible transmitter via Category cable, with resolutions up to 4K@60. The module card is compatible with CYP module slot, CPLUS-V32SDM. It can be combined with transmitters that have category interface. This module card offers flexible options to customers.
Features- Signal extension for compatible module slot
- Supports point to point extension for audio and video
- CAT.6A/7 cable can reach up to 40 meters
Brand:
Cypress Technology
Product Type:
Receiver Module
Specifications
Special Features:
Signal Extension for Module Slot, Support Point to Point Extension
Applications:
Module Slot
Includes:
1xHDBaseT Module Receiver, 1xMounting Screw (2 Set), 1xOperational Manual
Performance
HDMI Compliance Type:
2.0
Output Signal Type:
4K@60 (YUV 4:2:0)
Maximum Resolution:
4096×2160pixel@60 (YUV 4:2:0)
Inputs and Ports
Input Port Type:
1xHDBaseT (RJ-45)
Output Port Type:
1xCYP Module Edge Connector
I/O Interface Type:
HDMI, HDBaseT
Input Signal Type:
4K@60 (YUV 4:2:0)
Dimensions
Width:
12.2cm
Depth:
8.2cm
Height:
2.5cm
Weight:
60g
