PT-572HDCP+ DVI over Twisted Pair Receiver
Please sign in so that we can notify you about a reply

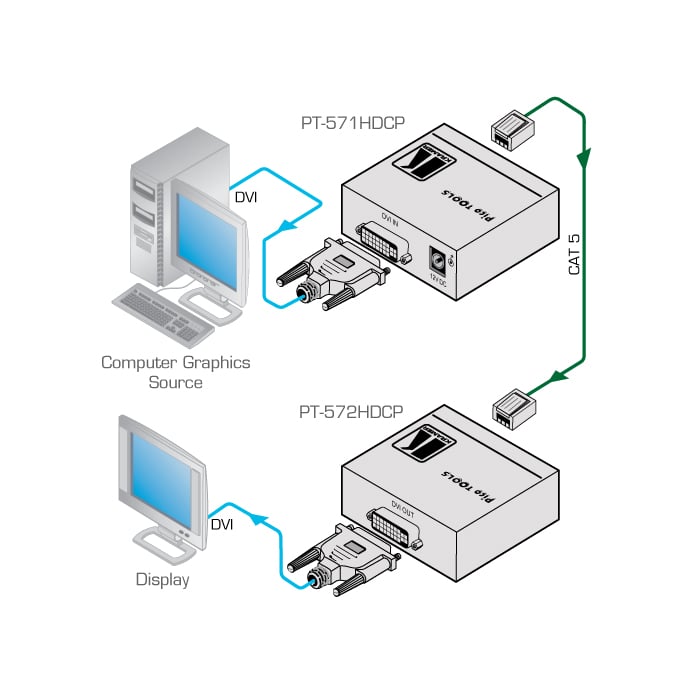

The PT−572HDCP+ is a DGKat™ twisted−pair receiver for DVI signals. The PT−571HDCP converts the DVI to twisted pair signal and the PT−572HDCP+ converts the twisted pair signal back to a DVI signal. The PT−572HDCP+−MD is certified for medical applications.
Features
- Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
- Certified for Medical Applications — According to IEC 60601–1–2 (Electromagnetic Compatibility), (PT–572HDCP+–MD).
- HDTV Compatible.
- HDCP Compliant.
- DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
- System Range — Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables
- Note: Transmission range depends on the signal resolution, graphics card and display used. If using third–party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
- EDID PassThru — Passes EDID signals between the source and display.
- Power Connect™ System — A single connection to the transmitter or the receiver powers the system when the devices are within 270ft (90m) of each other.
- Ultra–Compact PicoTOOLS™ — 4 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-70985090
Specifications
Product Type:
DVI HDCP 2.2 Compact Receiver
Special Features:
DGKat™ Signal Integration-Kramer’s Unique Technology for Converting TMDS as Well as Control and Communication to Signals that Run Over Twisted Pair Cables, EDID PassThru-Passes EDID Signals Between the Source and Display, Power Connect™ System-a Sin
Applications:
Board/Sharing and Training Rooms, Presentation Systems, Signal Distribution and Home Theatre
Includes:
Power Supply, Mounting Bracket
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Video Bandwidth:
4.95Gbps
Inputs and Ports
Input Port Type:
1xDGKat Twisted Pair on an RJ45 Connector
Output Port Type:
1xDVI, 1.2Vpp on a DVI Molex 24-Pin Female Connector, DDC Signal 5Vpp (TTL)
I/O Interface Type:
Indicator, Control
Power
Current Rating:
250mA
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
