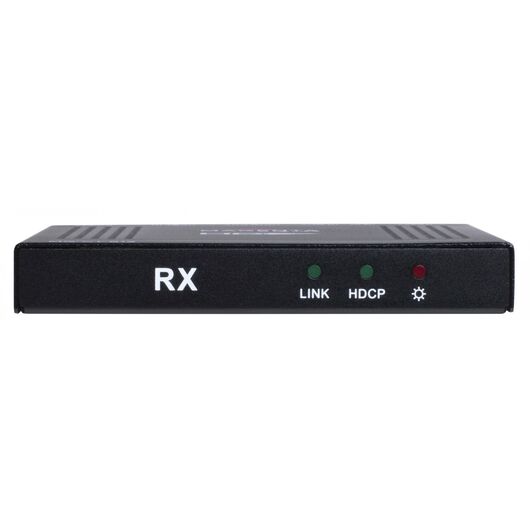

MG-CT-612 Ultra Slim HDBT Receiver, POH for MG-WP-61x Wall Plates

The MG-CT-612 HD-One ultra-thin Receiver provides HDMI 4K extension up to 40 meters (130ft) and HD extension up to 70 meters (230ft).

The MG-CT-612 Receiver offers a seamless PoH installation with the MG-WP-611 series wall plates and its ultra-thin form factor allows the unit to be mounted easily behind any monitor.

The MG-CT-612 is compatible with all Magenta HD-One TX's and tvONE CORIO products providing extra flexibility and reliability.

Features

  • HDMI, Bidirectional RS-232 and IR
  • Provides PoH (Power over HDBaseT), which is fully compatible with HD-One MG-WP-611 series wall plates
  • HDMI 1.4 HDCP 2.2 compliant
  • Delivers full HD video, 3D, and 4Kx2K, RS-232 and IR
  • HD extension up to 70 meters (230ft) and 4K extension up to 40m (130ft)
  • Ultra-thin design easily fits behind monitors
Brand:
tvONE
Product Type:
Ultra-Thin PoH Receiver
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
HDMI, Bidirectional RS-232 and IR, HDMI 1.4 HDCP 2.2 Compliant
Humidity:
10 to 90%
Minimum Operating Temperature:
-10°C
Performance
HDMI Compliance Type:
1.4
HDCP Compliance Type:
2.2
Maximum Resolution:
640x480pixels
Inputs and Ports
Output Port Type:
HDMI Connector
I/O Interface Type:
RJ45, RS-232
Dimensions
Width:
11.5cm
Depth:
10.9cm
Height:
1.6cm
Weight:
196g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC

MG-CT-612 1 (signal-extension-systems.pdf, 1,066 Kb) [Download]

MG-CT-612 2 (Manual-MG-CT-612__2_.pdf, 495 Kb) [Download]

MG-CT-612 3 (Broc_Extend_Distribute_EU_Web.pdf, 24,051 Kb) [Download]
