KW-14R/US Wireless HD Receiver, US
Please sign in so that we can notify you about a reply

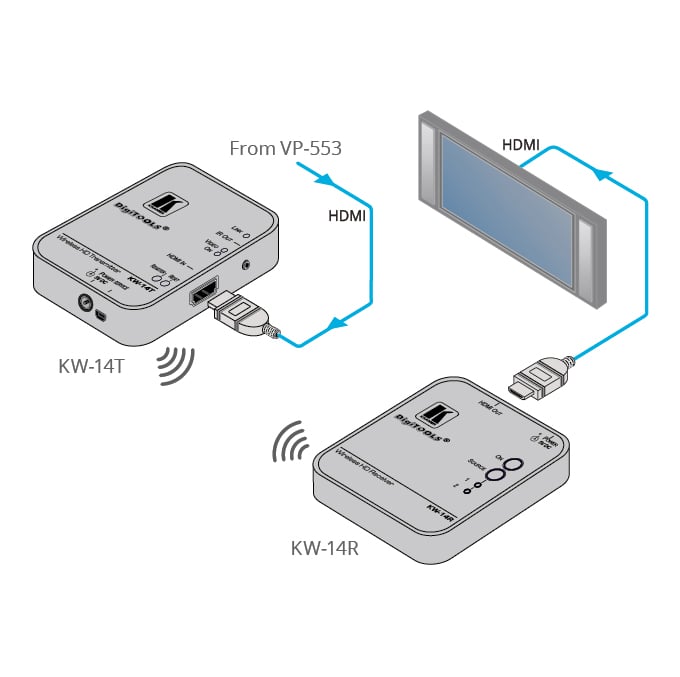

The KW−14R is a high−definition, wireless, HDMI receiver for indoor use. Up to four KW−14R receivers can receive from one KW−14T transmitter and up to three KW−14T transmitters can be paired with one KW−14R receiver.
Features
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel), Deep Color up to 12–bit.
- Secure Link — Uses AES–128 bit encryption.
- Connection Capacity — Up to four receivers can receive from one transmitter simultaneously;up to three transmitters associated with one receiver at any given time.
- Transmission Range — Up to 30m (100ft) including through walls and furniture.
- Automatic Frequency Selection — Selects the most suitable frequencies to prevent RF interference.
- Auto EDID Adjustment — To allow multi–screen support.
- IR Remote Control — Enables the OSD menu to be displayed on the output display.
- OSD (On Screen Display) — For simplified setup and configuration.
- HDCP Compliant — HDCP sources are supported only when all connected displays support HDCP.
- Zero Latency.
- Automatic Sleep Mode — After three minutes when no input or link is detected.
Brand:
Kramer
Part number:
60-0000195
Product Type:
Wireless HD Receiver
Specifications
Maximum Operating Temperature:
+40°C
Number of Channels:
Version:
US Version
Special Features:
Deep Color Up to 12bits, Receivers Pair with Multiple Transmitters, Secure Link-Uses AES-128bits Encryption, Range-Up to 30m (100ft), IR Remote Control with On-Screen Display
Applications:
Meeting Rooms, Presentation and Multimedia, Short Range Video and Audio Distribution
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
MM SFP+ Transceiver, Power Adapter
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.0
Inputs and Ports
Input Port Type:
1xInternal Antenna
Output Port Type:
HDMI
Connectivity
Ethernet Speed:
6Mbps
Power
Current Rating:
1.2A
Dimensions
Width:
9.5cm
Depth:
9.5cm
Height:
3.4cm
Weight:
0.1kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE, FCC Compliant
