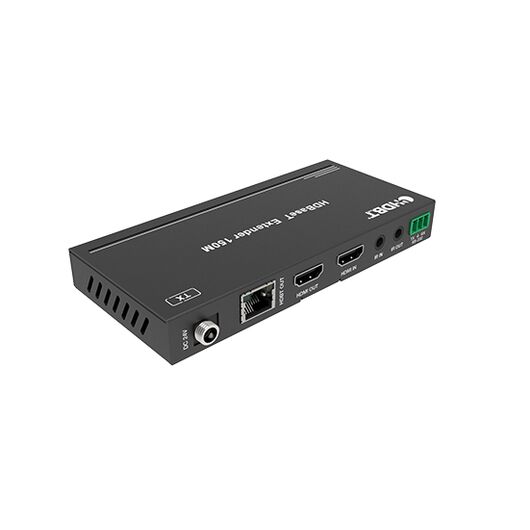

iTrans E150CG-R HDMI 4K60 over HDBaseT Receiver, for iMatrix MO2K-HBT150 output card
Please sign in so that we can notify you about a reply
This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embedeed audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.
Features- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable
- 394ft / 120 meters for 4K2K signal
- 492ft / 150 meters for 1080P signal
- Support one HDMI loop output on the transmitter
- De-embeded audio to analog stereo output on receiver
- With bi-directional IR, RS-232 and CEC pass-through
- HDR, HDR10+, Dolby Vision and HLG function supported
- Support PoC (Power over Cable) function
- Compact design for easy and flexible installation
- Support CEC and EDID pass-through
Brand:
Infobit
Product Type:
HDBaseT Receiver
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Compact Design for Easy and Flexible Installation
IR Frequency:
20 to 60kHz
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0b
HDCP Compliance Type:
1.4, 2.2
Video Bandwidth:
18Gbps
Output Signal Type:
RGB/YCbCr (4:4:4), YCbCr (4:2:2), YCbCr (4:2:0), LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X, PCM 2.0
Maximum Resolution:
4K2K 50/60Hz (4:4:4), 4K2K 50/60Hz (4:2:2), 4K2K 50/60Hz (4:2:0), 4K2K 30Hz (4:4:4), 1080p, 1080i, 720p, 720i, 480p, 480i, 1920x1200
Inputs and Ports
Input Port Type:
1x HDBT
Output Port Type:
1×HDMI, 1xAudio
I/O Interface Type:
RS232, RJ45
Input Signal Type:
RGB/YCbCr (4:4:4), YCbCr (4:2:2), YCbCr (4:2:0), LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X, PCM 2.0
Power
Current Rating:
1A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
14cm
Depth:
6.5cm
Height:
1.8cm
Weight:
155g
Other
Voltage Rating:
100 to 240V AC (Input), 12V DC (Output)
Standards Met:
US/EU Standards, CE/FCC/UL Certified, RoHs Complaint
