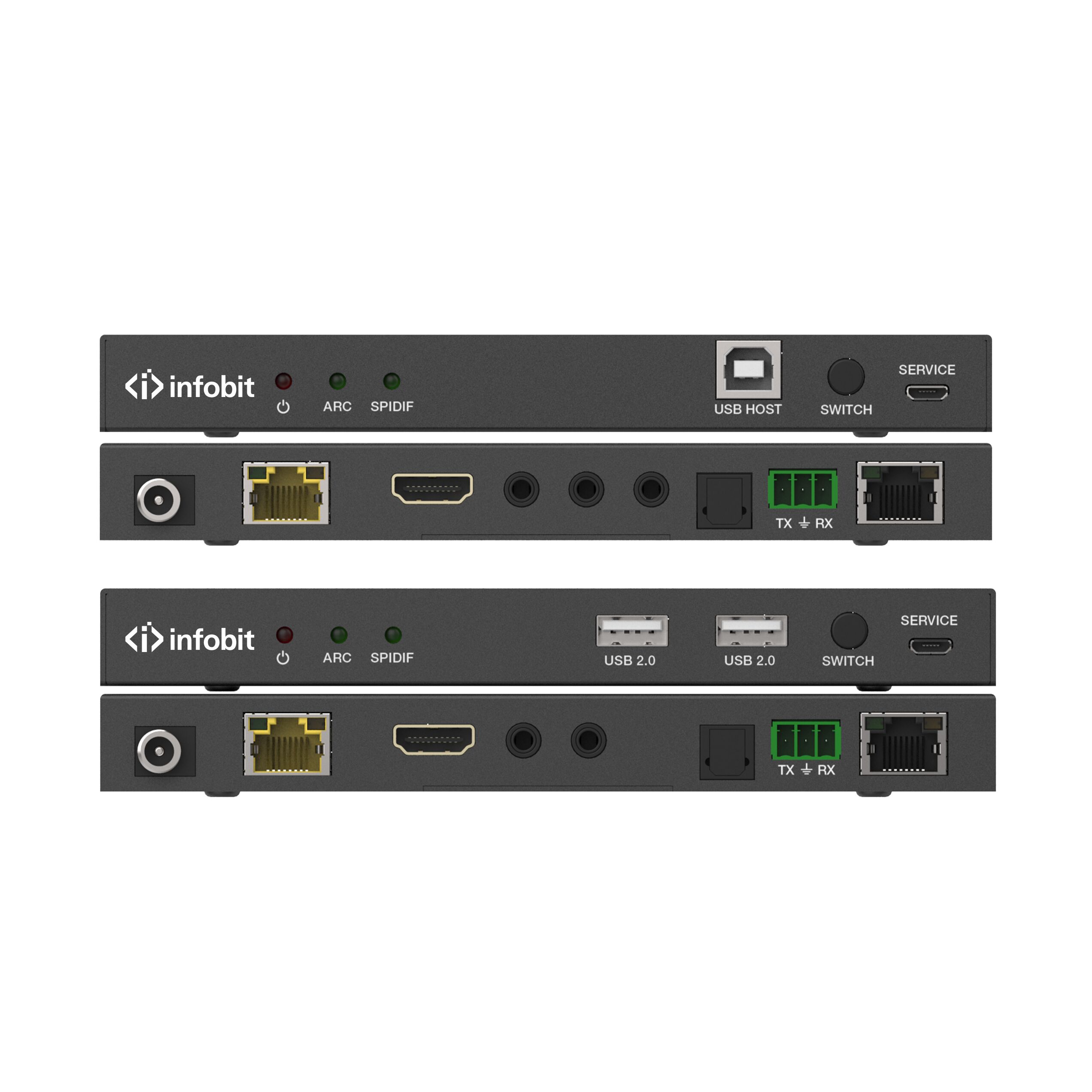

iTrans E100K-R HDMI 4K60 over HDBaseT Receiver, for iMatrix MO2K-HBT100 output card.
Please sign in so that we can notify you about a reply
Features
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Video resolution is up to 4k2k@60Hz YUV 4:4:4
- The maximum transmission distance is 328ft / 100 meters via a single CAT6a/7 cable
- Support ARC (Audio Return Channel) function
- With bi-directional IR, RS-232 and CEC pass-through
- Support USB KVM function
- HDR, HDR10+, Dolby Vision and HLG function supported
- Support PoC (Power over Cable) function
- Compact design for easy and flexible installation
Brand:
Infobit
Product Type:
HDBaseT Receiver
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Compact Design for Easy and Flexible Installation
IR Frequency:
20 to 60kHz
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDCP Compliance Type:
2.2, 1.4
Video Bandwidth:
18Gbps
Output Signal Type:
RGB/YCbCr (4:4:4), YCbCr (4:2:2), YCbCr (4:2:0), LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X, PCM 2.0, LPCM2.0, Dolby Digital, Dolby Digital Plus, DTS
Maximum Resolution:
4K2K 50/60Hz (4:4:4), 4K2K 50/60Hz (4:2:2), 4K2K 50/60Hz (4:2:0), 4K2K 30Hz (4:4:4), 1080p, 1080i, 720p, 720i, 480p, 480i, 1920x1200
Inputs and Ports
Input Port Type:
1xHDBT, 1xSPDIF
Output Port Type:
1xHDMI, 1xLAN, 1x IR, 2×USB
I/O Interface Type:
RS232, RJ45
Input Signal Type:
RGB/YCbCr (4:4:4), YCbCr (4:2:2), YCbCr (4:2:0), LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X, PCM 2.0, LPCM2.0, Dolby Digital, Dolby Digital Plus, DTS
Power
Current Rating:
1A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
16.5cm
Depth:
8.8cm
Height:
1.8cm
Weight:
165g
Other
Voltage Rating:
100 to 240V AC (Input), 12V DC (Output)
Standards Met:
US/EU Standards, CE/FCC/UL Certified
