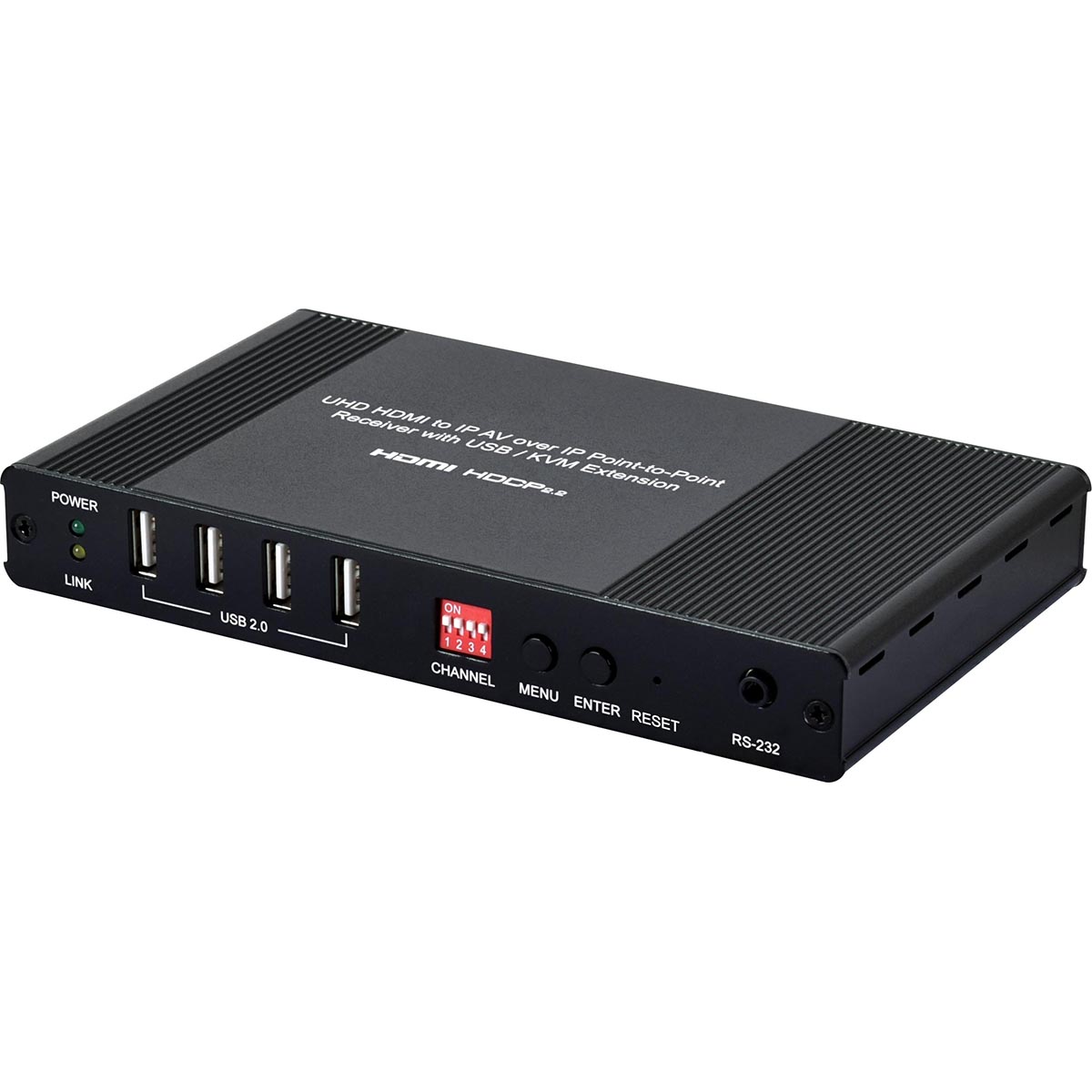

CH-U360RX UHD HDMI to IP AV over IP Point-to-Point Receiver
Please sign in so that we can notify you about a reply

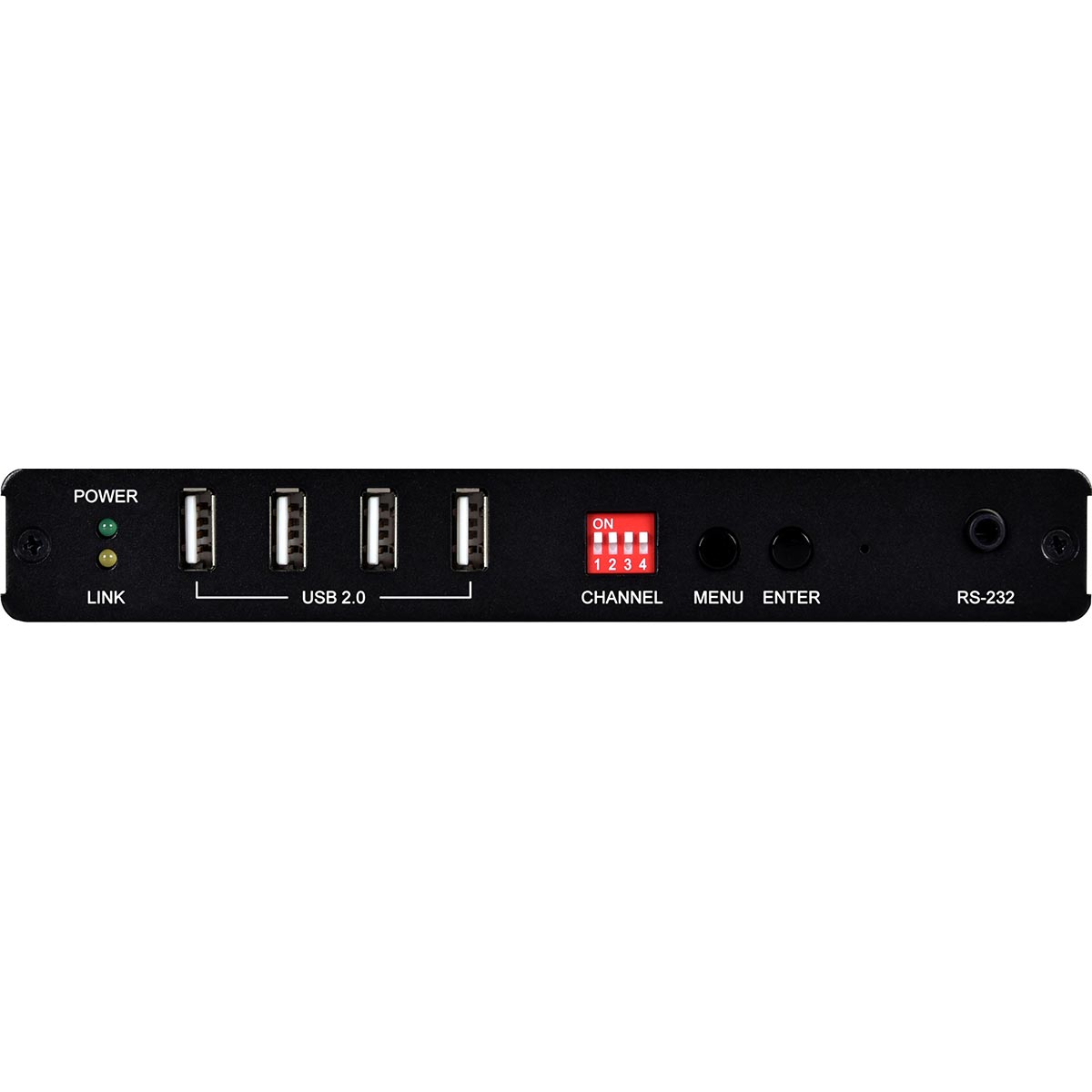

The Single over IP solution is designed to control and switch between KVM, PCs/laptops and monitors to any connected devices to controlled single monitor cross-transmit with KVM. It is point-to-point application by setting identical channel number with dip-switch for both Transmitter and Receiver. It is a cost effective ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms, classrooms or gaming usage. This KVM Extender allows you to control your PC using a keyboard, mouse and monitor with a maximum resolution of 4K or 2K at distances of up to 100musing one Cat.6 cables. The USB functionality allows the system to act like a remote USB hub which provides a flexible remote KVM platform. Basic USB keyboard, mouse functions are supported. It is compatible with USB 2.0 devices with high power demands, storage or hubs. USB touch screens or other advanced interface devices/HIDs are supported also. It is isochronous equipped to achieve web cam real-time transmission. It supports 4K, audio and HDCP. Analogue stereo audio, IR and RS-232 signal bypass are also supported.
Features- HDCP 1.4 & 2.2 compliant
- Support USB 2.0 high-speed devices
- Operate with USB 2.0 high speed host controllers
- The Mic In on a connected Receiver will send audio directly to the analog Line Out on Transmitter
- Supports resolutions up to 3840 x 2160 RGB, DVI supports compatible to 2560 x 1440
- Simultaneous transmission of video, audio, data over a single Cat.5e/6/7 cable up to 100m (328ft)
- Supports IR and RS-232 bypass
Brand:
Cypress Technology
Product Type:
UHD HDMI to IP AV over IP Point-to-Point Receiver
Specifications
Number of Channels:
Special Features:
Support USB 2.0 High-Speed Devices, Supports IR and RS-232 Bypass
Applications:
Control Rooms, Conference Rooms, Classrooms or Gaming Usage
Performance
HDMI Compliance Type:
1.4
HDCP Compliance Type:
2.2
Maximum Resolution:
3840×2160Pixel
Inputs and Ports
Input Port Type:
1xAnalog Stereo (3.5mm), 1xGbE LAN (RJ-45)

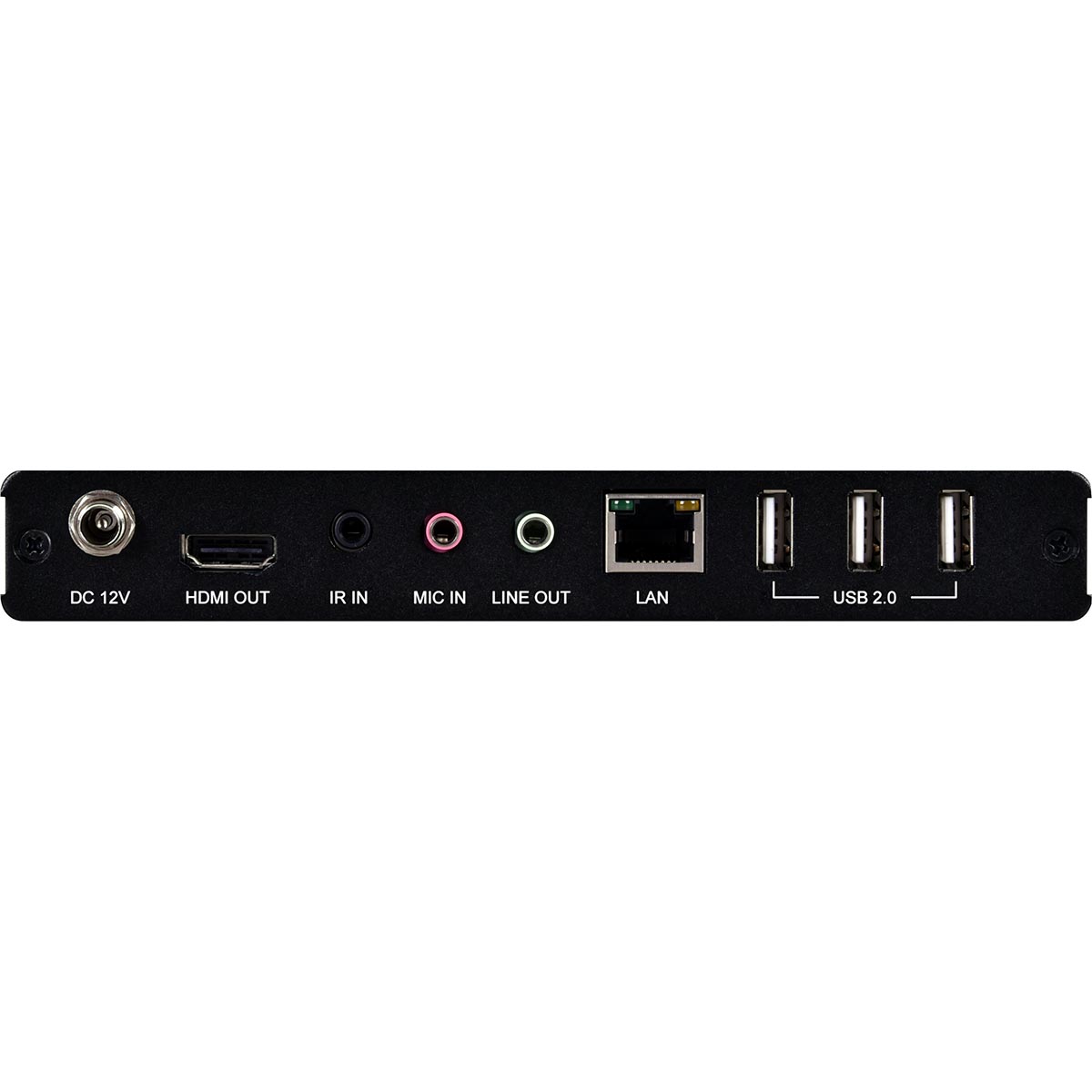

Output Port Type:
1xHDMI, 1xAnalog Stereo (3.5mm)
Power
Current Rating:
3A
Dimensions
Width:
18cm
Depth:
2.5cm
Height:
11.1cm
Weight:
368g
Other
Voltage Rating:
12V DC
