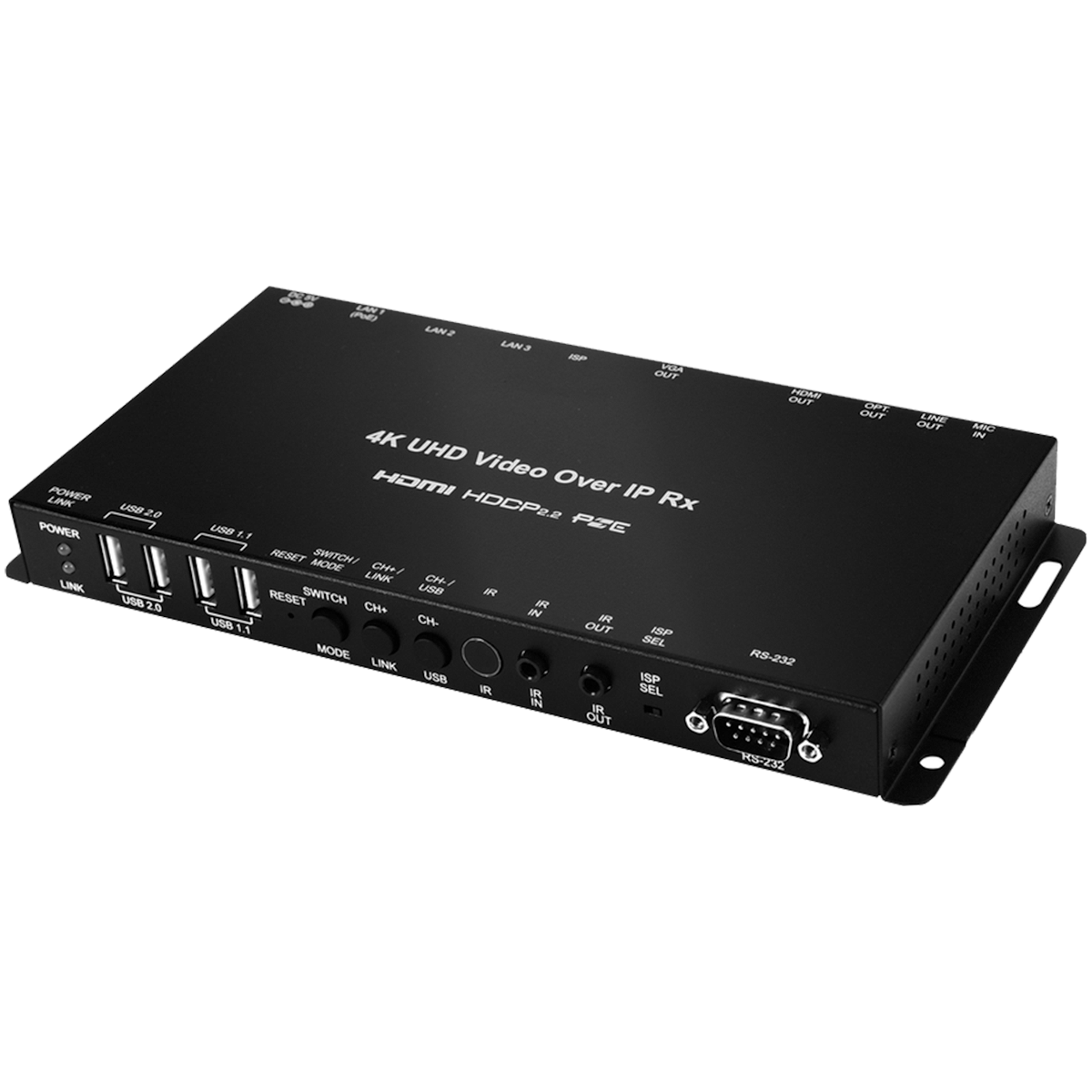

CH-U331RX 4K UHD HDMI/VGA over IP Receiver with USB/KVM Extension

Write a review
CH-U331RX
Cypress Technology
Log in to see price Add to wish list

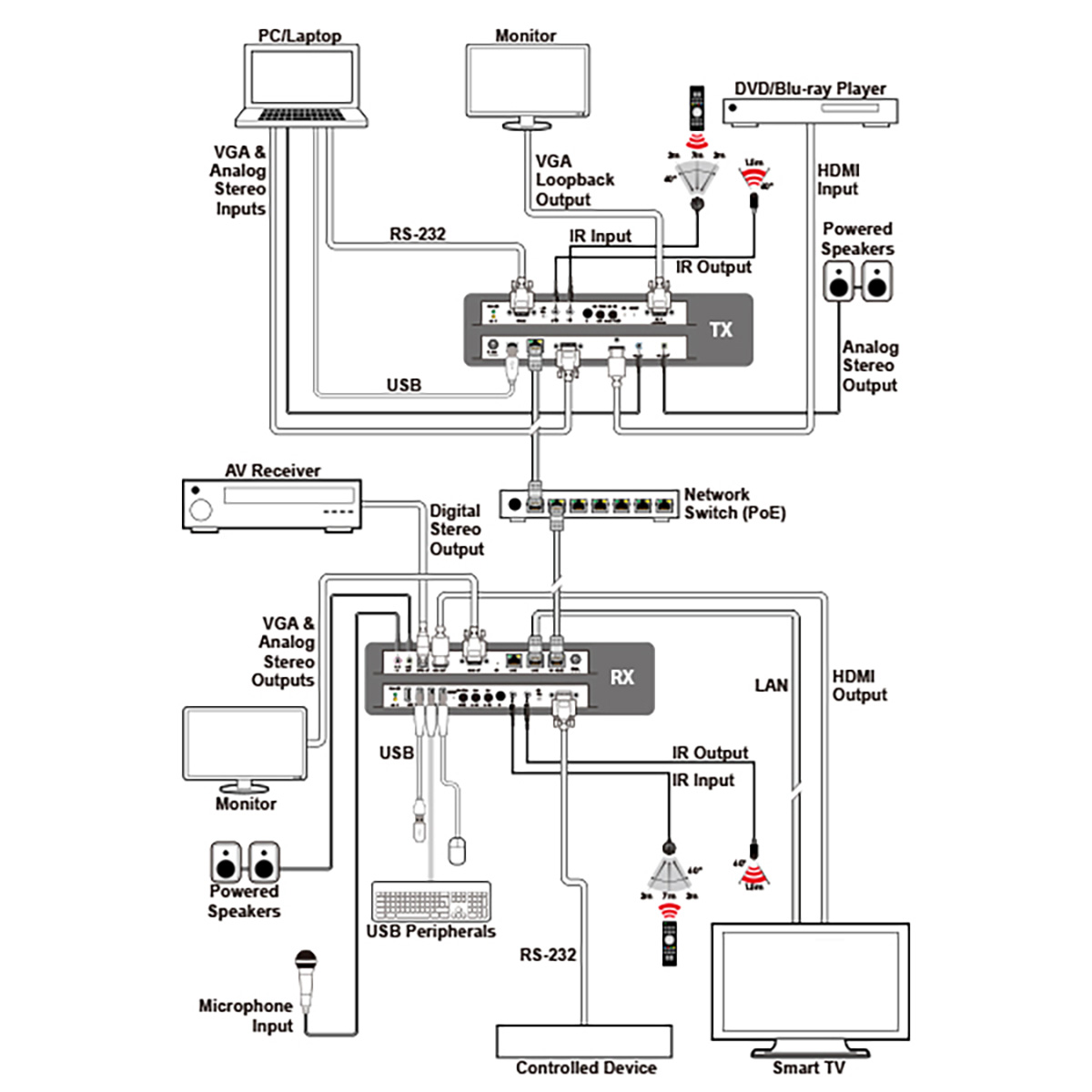

The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.CH-U331RX also allows you to send a single AV signal to a large number of Receivers within the same local network. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. This system is perfect for both residential and commercial installation environments.The USB functionality allows the system to act like a remote USB hub which, when combined with the video extension feature, provides a fl exible remote KVM platform. Confi guration information is provided via the On-Screen Display (OSD) on the Receivers and both unit types can be controlled via front panel buttons, WebGUI, Telnet, and the AV over IP Master Controller.

Features

  • Video, audio and control reception over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many, many-to-many) modes
  • Support video wall with 180° and 270° rotation
  • Video output can be scaled to a selected resolution, or left unscaled
  • The analog Line In on a connected Transmitter will send audio directly to this Receiver’s analog Line Out as well as being embedded into the HDMI output signal
  • The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter
  • May be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
  • Includes 3 LAN ports, allowing multiple Receivers to be daisy chained without the need for an external Gigabit Ethernet switch
  • Supports USB keyboard, mouse and storage extension
Brand:
Cypress Technology
Specifications
Product Type:
UHD HDMI/VGA Over IP Receiver
Maximum Operating Temperature:
+40°C
Number of Channels:
IR Frequency:
1kHz
Applications:
Video, Audio, Control Reception
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Audio Level:
2VRMS
Output Signal Type:
4096x2160pixels@30Hz 8bits RGB
Signal-to-Noise Ratio:
80dB
Maximum Resolution:
4096x2160pixels@30Hz
Inputs and Ports
Input Port Type:
1x3.5mm Analog Mono
Output Port Type:

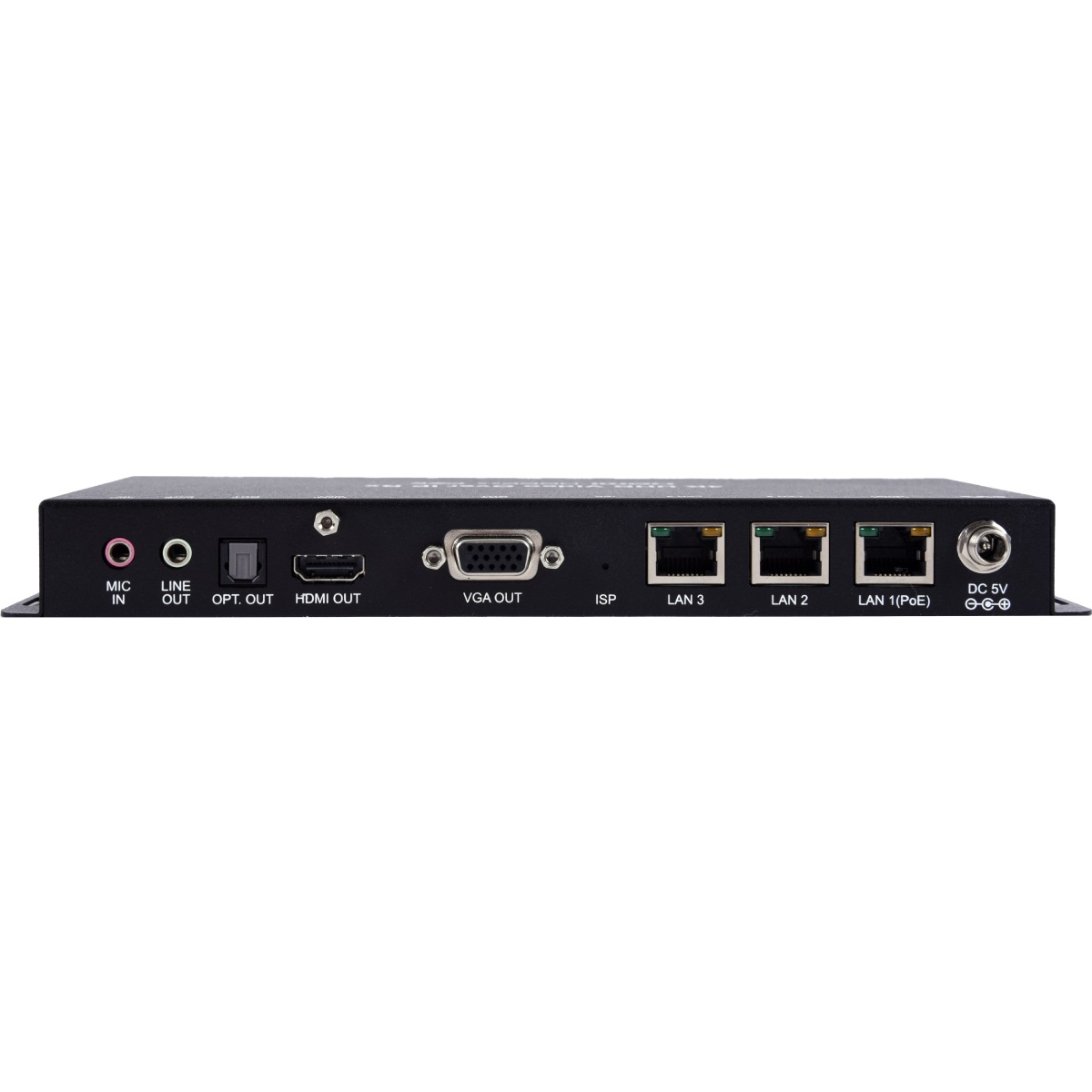

1xHDMI-Type A, 1xVGA (HD-15), 1xS/PDIF (TOSLINK), 1x3.5mm Analog Stereo
I/O Interface Type:

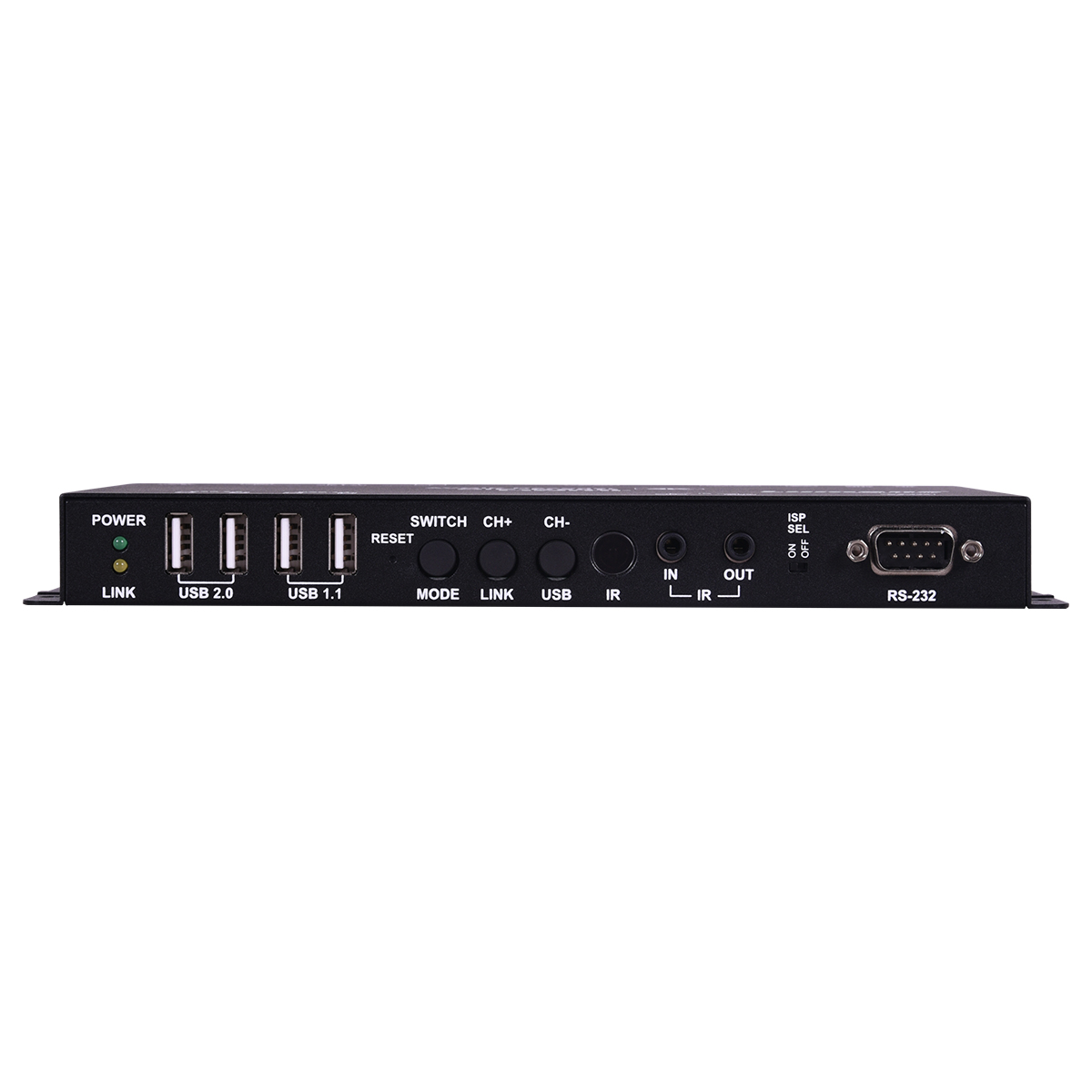

1xIR 3.5mm Extender, 1xIR 3.5mm Blaster, 1xRS-232 (DB-9), 4xUSB Type A
Input Signal Type:
4096x2160p@60Hz 8bits YUV4:2:0
Power
Current Rating:
4A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
12cm
Height:
2.5cm
Weight:
666g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
