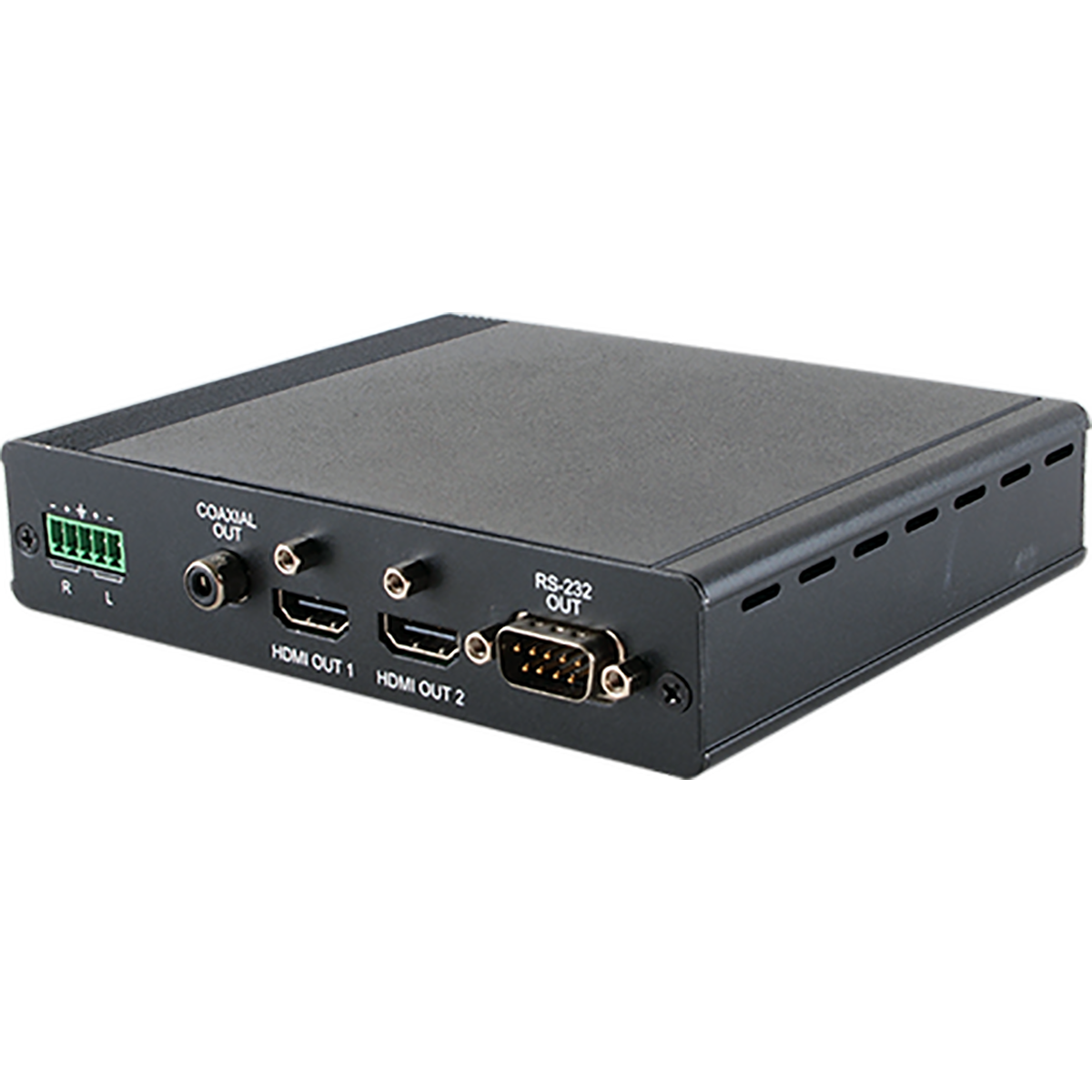

CH-526RXPL HDBaseT to Dual HDMI Receiver with Bi-directional 24V PoC and Audio De-embedding
Please sign in so that we can notify you about a reply
The HDMI and Audio over Single CAT5e/6/7 Receiver/Splitter can receive uncompressed audio/video over a single run of CAT5e/6/7 cable up to 60m. It has the added benefit of simultaneouse dual HDMI outputs with audio de-embedding to a balanced or digital coaxial audio output and IR control function The unit has a bidirectional PoC (Power over Cable) function that can power or be powered by a compatible transmitter allowing for greater flexibility in installations.
Features
- Supports full range HDTV and PC output resolutions up to 4K2K and WUXGA (RB)
- Receive uncompressed data over a single 60m CAT5e/6/7 cable
- 4Play™ convergence: Video, Audio, Bidirectional PoC & Control (IR & RS-232 bypass)
- upports bidirectional IR, Remote control and RS-232 (bypass)
- Provide with 24V DC power to or received from compatible PoC transmitter through CAT5e/6/7
- Supports Balanced analog audio output (R/L) and HDMI input audio sampling rate up to 192kHz
- Support coaxial digital audio up to 192kHz
Brand:
Cypress Technology
Product Type:
HDBaseT to Dual HDMI Receiver with Bidirectional 24V PoC
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Supports Full Range HDTV and PC Output Resolutions Up to 4K2K and WUXGA (RB), Receive Uncompressed Data Over a Single 60m CAT5e/6/7 Cable, Provide with 24V DC Power to or Received From Compatible PoC Transmitter Through CAT5e/6/7, Supports Balanced Analog
IR Frequency:
30 to 50kHz
Applications:
Extending Incoming Signal From CAT5e/6/7 to HDMI Output, Extending Incoming Signal From CAT5e/6/7 to both analog and Digital Audio Output, Lecture Room/ShowRoom/Meeting Room/ClassRoom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Bandwidth:
10.2Gbps
Maximum Resolution:
Up to 4K2K@24Hz/25/30 and 4K2K@50Hz/60 (YUV 420)
Inputs and Ports
Input Port Type:

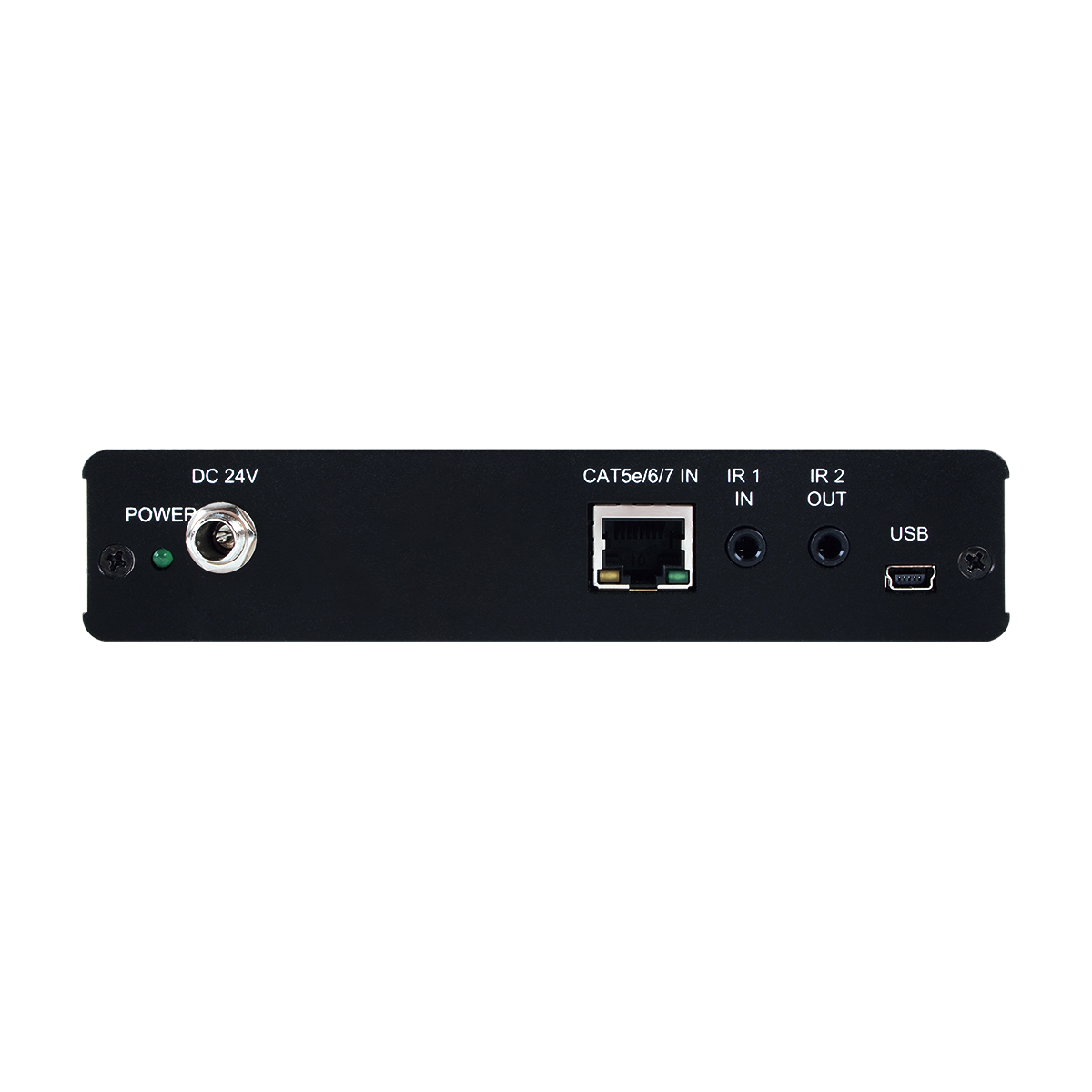

1xCAT5e/6/7, 1xIR Extender
Output Port Type:

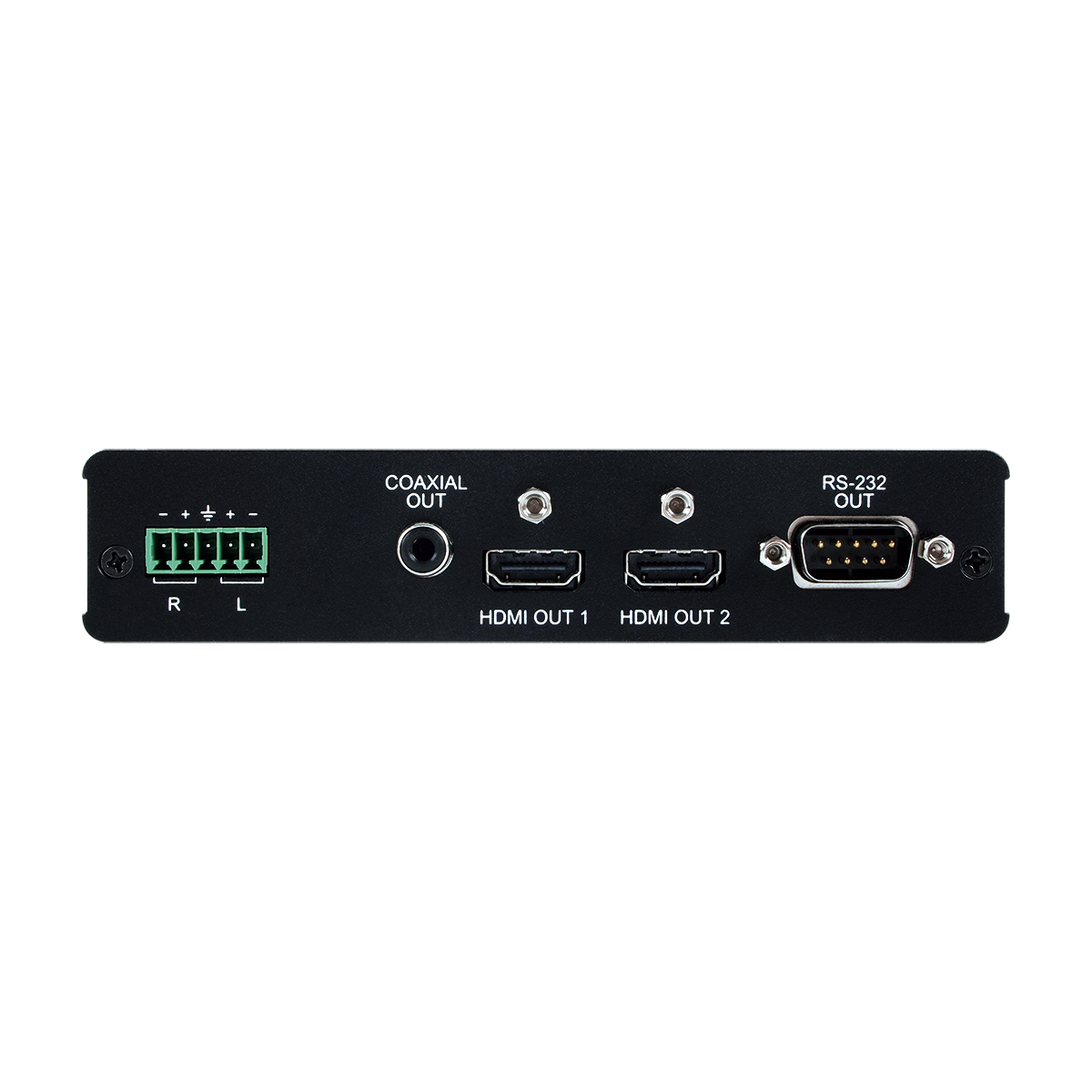

2xHDMI, 1xCoaxial, 1xBalanced Analog (R/L), 1xIR Blaster, 1xRS-232
I/O Interface Type:
IR/RS-232
Input Signal Type:
YUV 420
Power
Current Rating:
1.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
14.5cm
Depth:
12.8cm
Height:
3cm
Weight:
375g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
