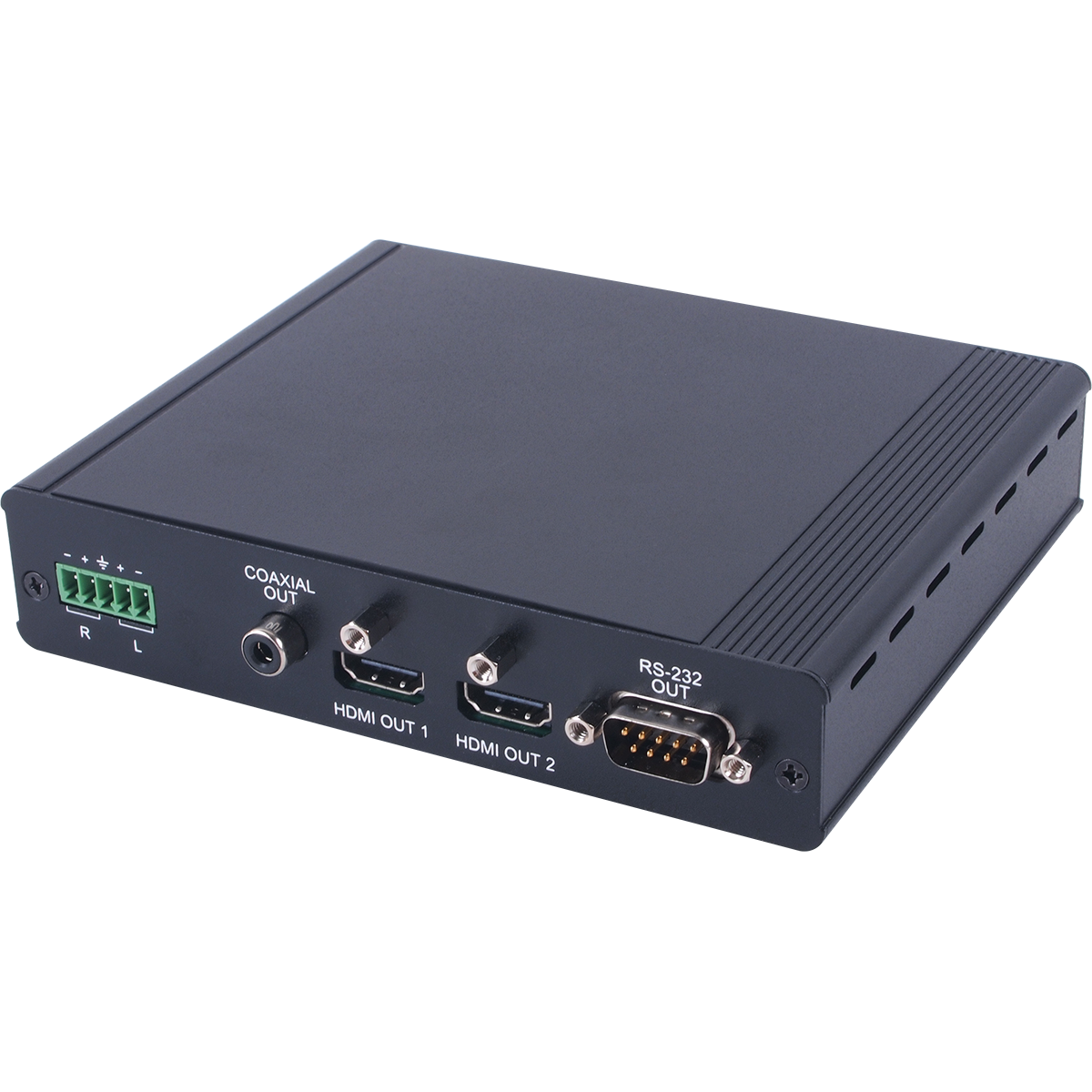

CH-526RX HDBaseT to Dual HDMI Receiver with Bi-directional 24V PoC, LAN Serving, and Audio De-embedding
Please sign in so that we can notify you about a reply
This splitter can receive uncompressed audio/video and data over a single run of CAT5e/6/7 cable, from a Transmitter, up to distances of 100m. It has the added benefit of simultaneous dual HDMI outputs with audio de-embedding to a balanced or digital coaxial audio output and 2 bidirectional LAN serving connections, allowing devices such as Smart TVs or games consoles to share a Internet connection. The unit has a bidirectional PoC (Power over Cable) function that can power or be powered by a compatible transmitter allowing for greater flexibility in installations.
Features
- Supports a wide range of HDTV and PC output resolutions up to 4K2K and WUXGA@60Hz (RB)
- Receive uncompressed data over a single 100 m/328 ft CAT5e/6/7 cable from a compatible matrix/transmitter
- HDBaseT 5Play™ convergence: High-Definition Video and Audio, 100BaseT Ethernet, Bidirectional PoC and Control (Bidirectional IR/RS-232 passthrough)
- Dual LAN connections
- Supports powering or being powered by 24V DC power from compatible PoC Transmitter through CAT5e/6/7 cable
- Supports Ethernet transmission rates up to 100Mbps
- Supports Balanced analog audio output (R/L) and HDMI audio input sampling rates up to 192kHz
- Supports coaxial digital audio output up to 192kHz sampling rate
Brand:
Cypress Technology
Product Type:
HDBaseT to Dual HDMI Receiver with Bidirectional 24V PoC
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Supports a Wide Range of HDTV and PC Output Resolutions Up to 4K2K and WUXGA@60Hz (RB), Receive Uncompressed Data Over a Single 100m/328ft CAT5e/6/7 Cable From a Compatible matrix/transmitter, Dual LAN Connections, Supports Powering or Being Powered by 24
IR Frequency:
30 to 50kHz
Applications:
Extending Incoming Signal From CAT5e/6/7 to HDMI Output, Extending Incoming Signal From CAT5e/6/7 to both analog and Digital Audio Output, Lecture Room/ShowRoom/Meeting Room/ClassRoom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Bandwidth:
10.2Gbps
Maximum Resolution:
Up to 4K2K@24Hz/25/30 and 4K2K@50Hz/60 (YUV 420)
Inputs and Ports
Input Port Type:

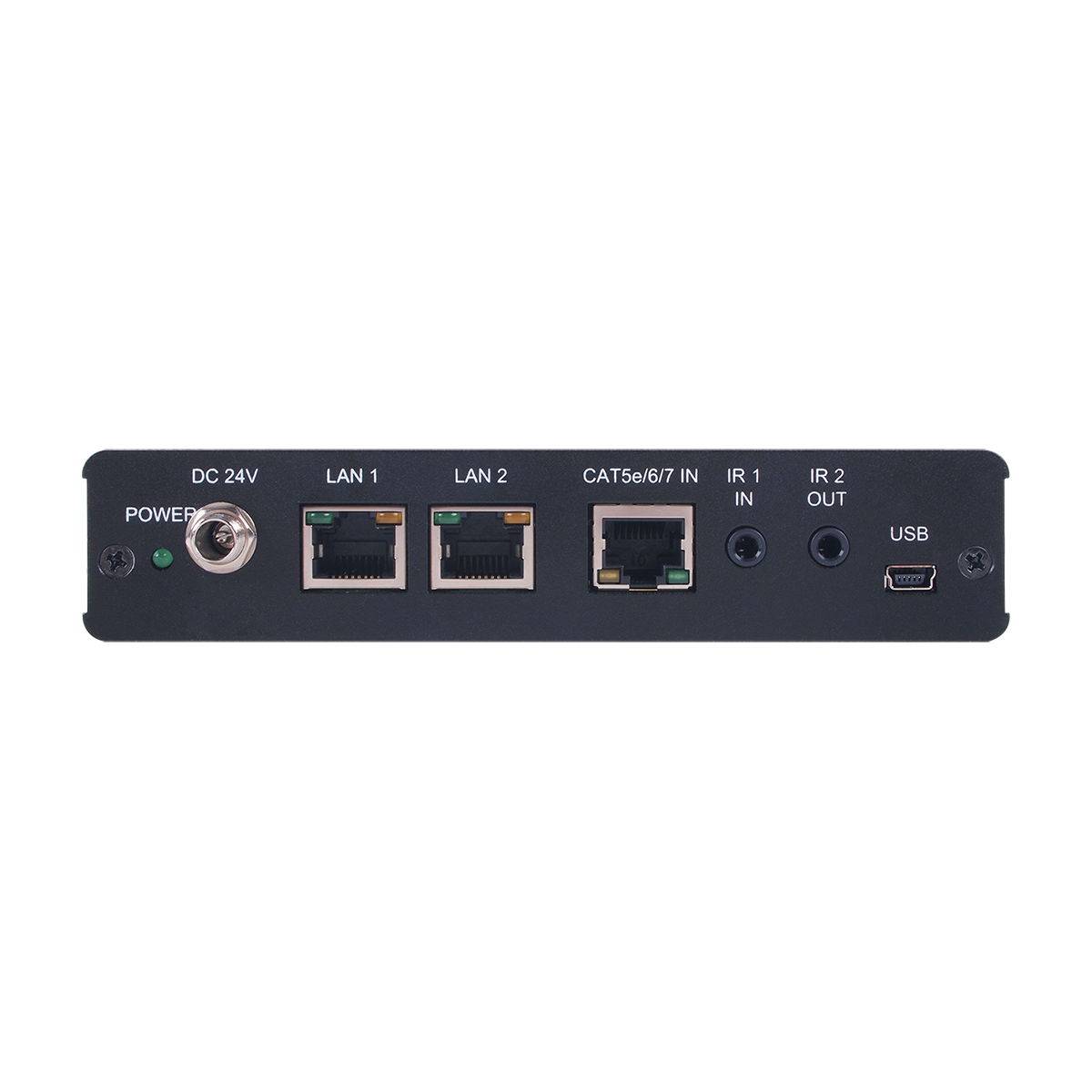

1xCAT5e/6/7, 1xIR Extender
Output Port Type:

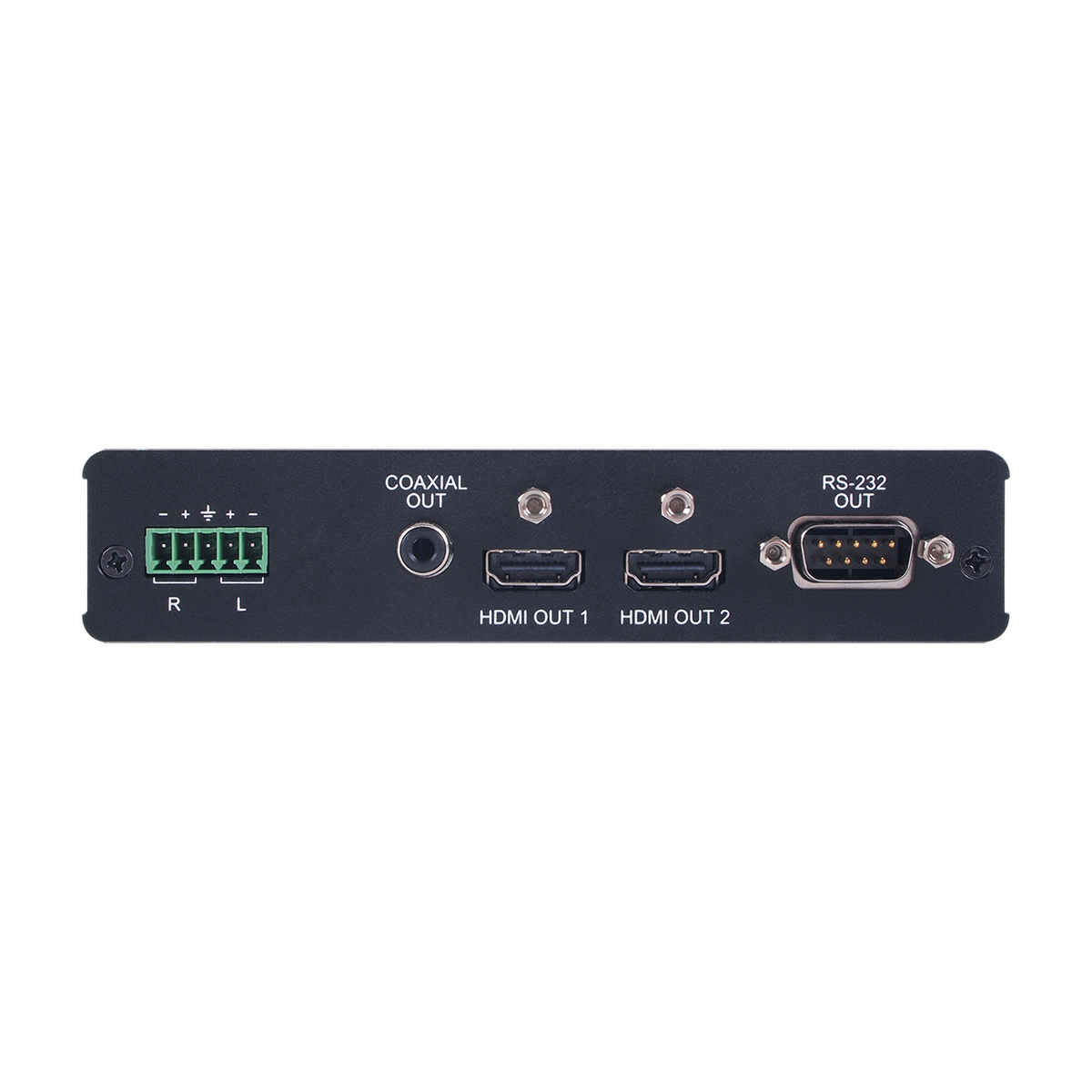

2xHDMI, 1xCoaxial, 1xBalanced Analog (R/L), 1xIR Blaster, 1xRS-232, 2xLAN
I/O Interface Type:
IR/RS-232
Input Signal Type:
YUV 420
Connectivity
Ethernet Speed:
100Mbps
Power
Current Rating:
1.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
14.5cm
Depth:
12.8cm
Height:
3cm
Weight:
394g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
