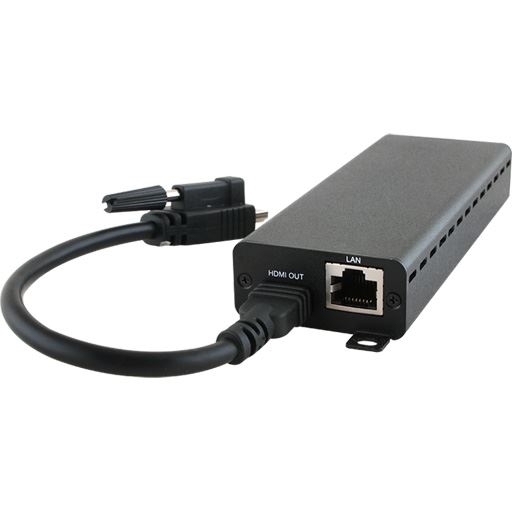

CH-515RXPT HDMI over CAT5e/6/7 Receiver with 24V PoC and LAN Serving
Please sign in so that we can notify you about a reply
The CH-515RXPT Receiver can receive uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable up to distances of 100m. It has the added benefit of a bi-directional LAN serving, allowing devices such as a Smart TV or games consoles to share an Internet connection. The unit can be powered by PoC (Power over Cable) from a compatible transmitter, allowing for greater flexibility in installations.
- HDMI with 3D, 4K×2K support, HDCP and DVI compliant
- Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft
- Uncompressed video support up to 1080p@60 Hz/12-bit
- High definition audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Supports HDCP repeater and CEC function
- Installation friendly
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over CAT5e/6/7 Receiver
Maximum Operating Temperature:
+40°C
Special Features:
HDMI with 3D, 4Kx2K Support, HDCP and DVI Compliant, Simultaneous Transmission of uncompressed data Over a single CAT5e/6/7 Cable Up to 100m/328ft, Uncompressed Video Support Up to 1080pixels@60Hz/12bits, High Definition Audio Support Up to LPCM 7.1CH, Do
Applications:
Household Entertainment and LAN Sharing, Lecture Room Display and LAN Sharing, Show Room Display and LAN Sharing, Meeting Room Presentation and LAN Sharing, Classroom Display and LAN Sharing
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Bandwidth:
10.2Gbps
Maximum Resolution:
480i 1080pixels@50Hz/60Hz, 1080pixels@24Hz, 4K2K and VGA WUxGA
Inputs and Ports
Input Port Type:
1xCAT5e/6/7
Output Port Type:
1xHDMI, 1xLAN (RJ45)
Connectivity
Ethernet Speed:
100Mbps
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
5cm
Depth:
3cm
Height:
2.3cm
Other
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
