CH-507RXWPBD 4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver (2 Gang UK)
Please sign in so that we can notify you about a reply
CH-507RXWPBD is a wall panel receiver for HDMI signals with a resolution of up to 4Kx2K, Ethernet, bidirectional RS-232 interface and infrared control from twisted pair cable. Supports resolutions up to 4Kx2K and 3D, multi-channel audio formats with a receiving line length over one CAT5e, 6 or 7 twisted pair cable up to 100 m. HDBaseT technology.
Features- Compatible with HDMI (3D and 4Kx2K supported), DVI, HDCP compliant
- Supports resolutions up to 4K: 3840x2160 at 30Hz or 4096x2160 at 24Hz
- Transparent to CEC control signals, supports transmission of HDCP protected signals
- Receive uncompressed video and audio over a single CAT5e, 6 or 7 twisted pair cable
- HDBaseT 5Play technology: transmission of high-definition video and audio, Ethernet and control signals (bidirectional IR and RS-232) over a single twisted pair cable, power over a twisted pair cable
- Transmission distance: 100m - up to 1080p/60, 36-bit (≤5.3 Gbps or 225 MHz) over CAT5e/6/7 cable; 70m - 4K/30 (>5.3 Gbps or 225 MHz) over CAT5e/6/7 cable
- Supported audio formats: LPCM 2/5.1/7.1, Dolby Digital 2-5.1, DTS 2-5.1, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio
- Supports bidirectional power over twisted pair cable when connected to a compatible transmitter

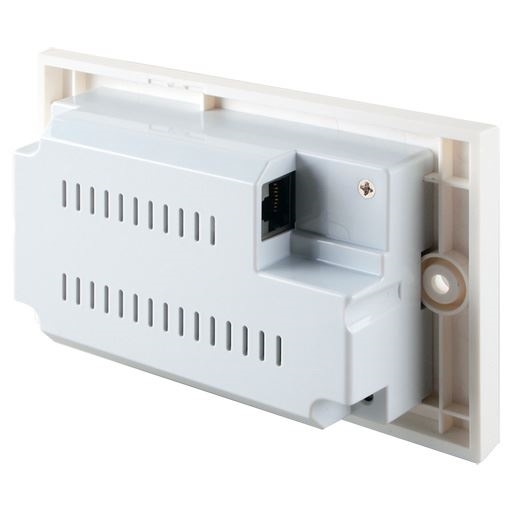

- The receiver is designed as a wall panel, which ensures ease of installation and use. Material: plastic, color: white
Brand:
Cypress Technology
Product Type:
Wall Plate Receiver
Specifications
Maximum Operating Temperature:
40°C
Special Features:
Supports HDCP Repeater and CEC Bypass Function
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment, Lecture Room Display, Showroom Display, Meeting Room, Classroom Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
IR Blaster, IR Extender, 24V/1.25A DC Power Adaptor, Operation Manual
Performance
Video Bandwidth:
10.2Gbps
Maximum Resolution:
4K2K (3840×2160@30Hz/4096×2160@24Hz)
Inputs and Ports
Input Port Type:
1×CAT5e/6/7, 1×IR Extender
Output Port Type:

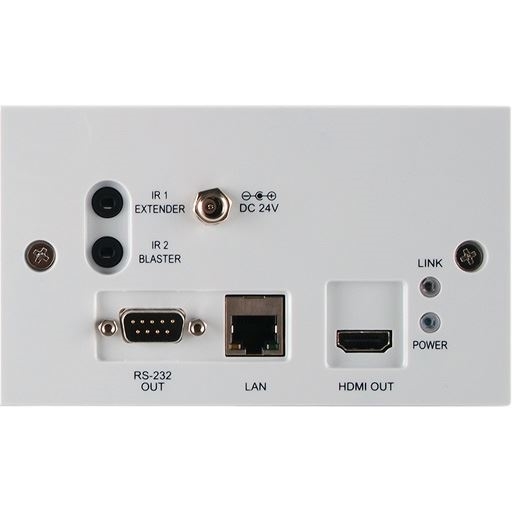

1×HDMI, 1×LAN, 1×IR Blaster, 1×RS-232
Power
Current Rating:
1.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
14.6cm
Depth:
8.6cm
Height:
4.8cm
Weight:
160g
Other
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified, US/EU Standards
