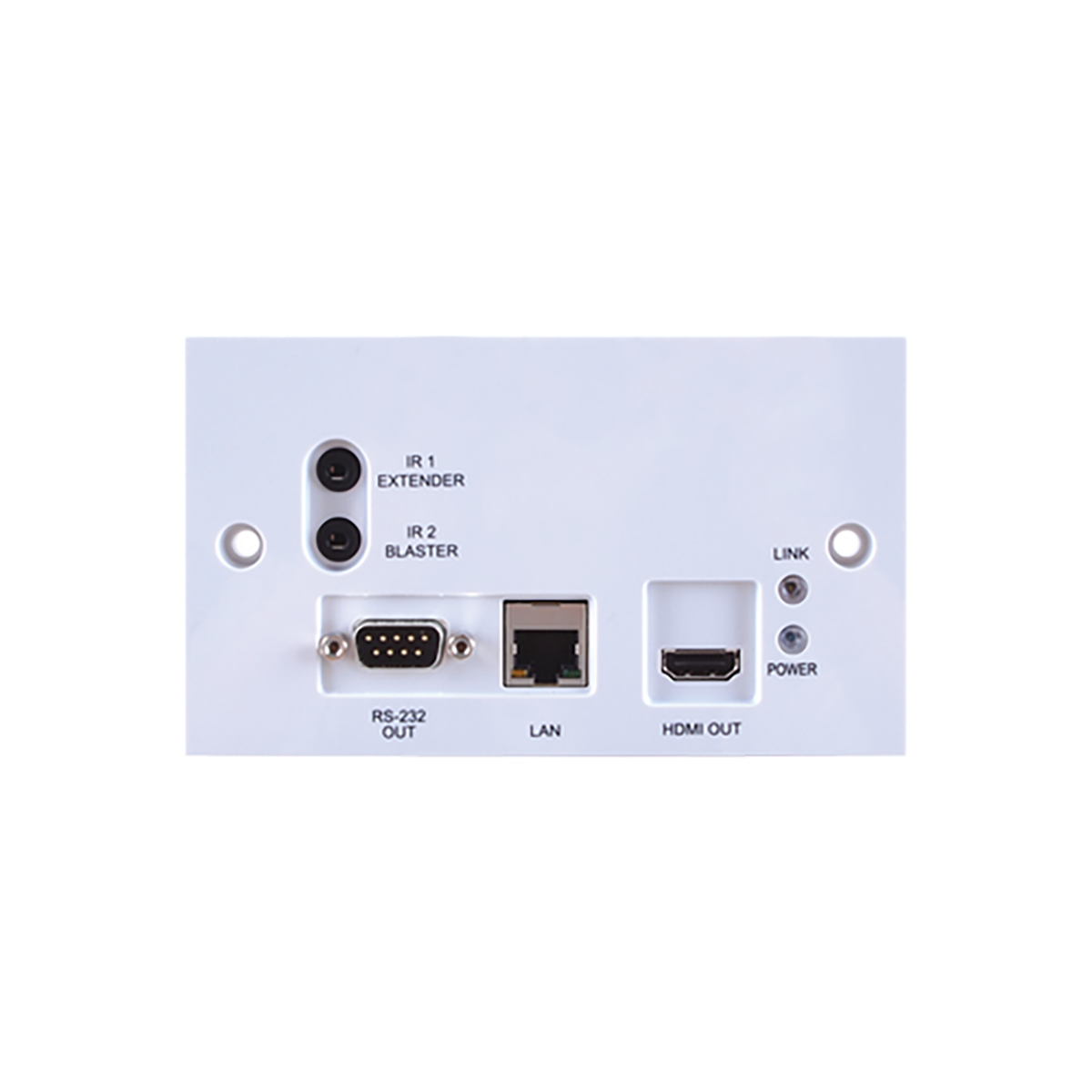

CH-507RXWP 4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR, RS-232, PoC (PD) & LAN (2 Gang UK)
Please sign in so that we can notify you about a reply
The HDMI over Single CAT5e/6/7 Wall-plate Receiver is designed to receive uncompressed video, audio and IR control data from a compatible transmitter over a single run of CAT5e/6/7 cable at a distance of up to 100 meters. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. Additionally, it can be powered by a compatible transmitter unit via the Power over Cable (PoC) functionality allowing for greater flexibility in installations.
Features
- HDMI with 3D, 4K2K support, HDCP and DVI compliant
- Simultaneous tranmisson of uncompressed data over a single 100m CAT5e/6/7 cable (70m for 4K2K signals)
- Uncompressed video support up to 1080p@60 Hz/36-bit
- High definition audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- HDBaseT™ 5PlayT™ convergence: uncompressed high definition Video and Audio, LAN serving, Power over Cable (PoC) and RS-232/IR control
- Supports HDCP repeater and CEC bypass functions
- Easy to install wall plate design
Brand:
Cypress Technology
Specifications
Product Type:
4K60 (4:2:0) HDMI Over HDBaseT WallPlate Receiver
Maximum Operating Temperature:
+40°C
IR Frequency:
30 to 50kHz
Applications:
Extend an HDMI Signal to a Remote Location, Household Entertainment Sharing and Control, Showroom Display and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Bandwidth:
10.2Gbps
Baud Rate:
Up to 115200bps
Inputs and Ports
Input Port Type:
1xCAT5e/6/7, 1xLAN, 1xIR Extender
Output Port Type:
1xHDMI, 1xRS-232, 1xIR Blaster
I/O Interface Type:
IR/RS-232
Input Signal Type:
4K60 (4:2:0)
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
14.57cm
Depth:
3.9cm
Height:
3.6cm
Weight:
160g
Other
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
