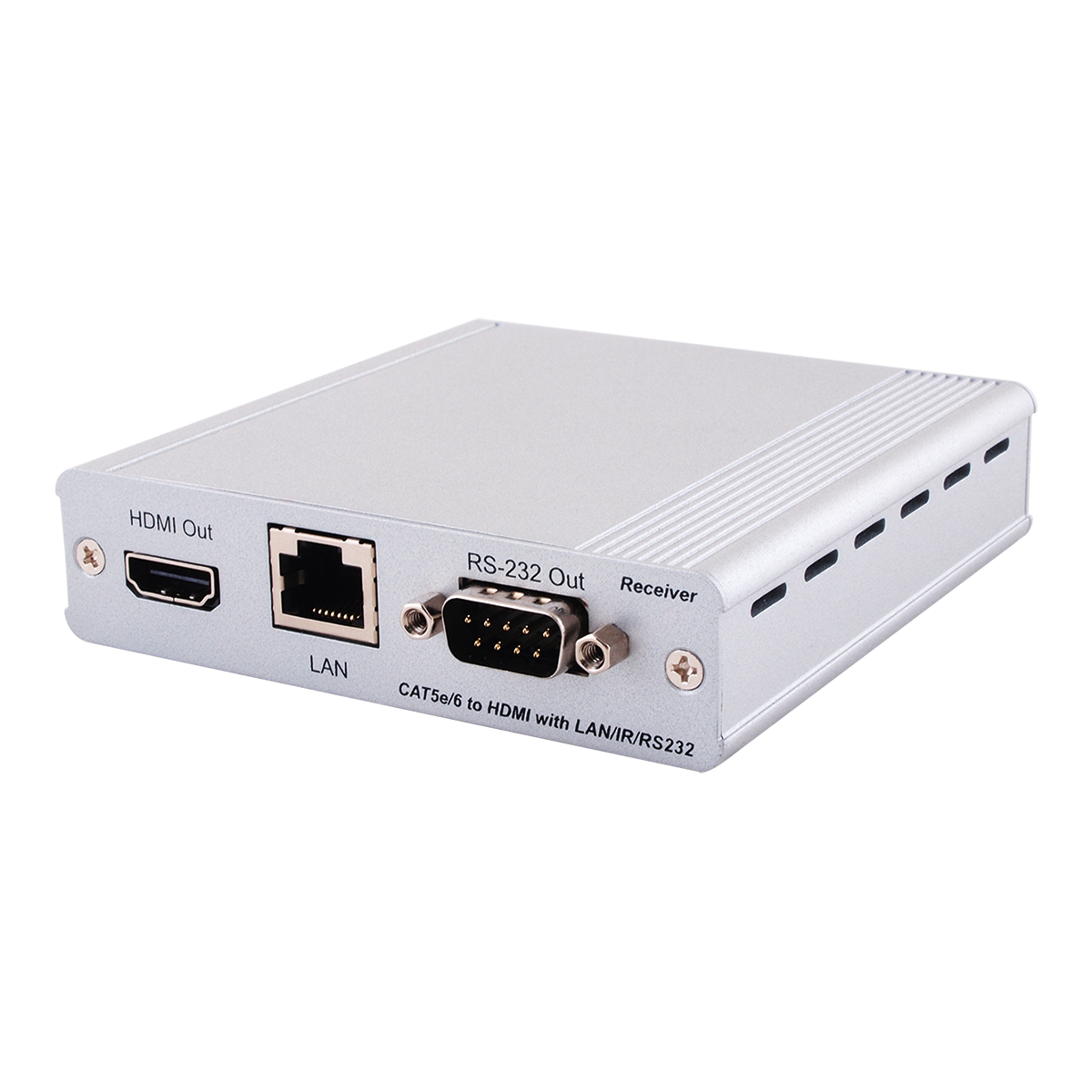

CH-507RX HDMI over CAT5e/6/7 Receiver with 24V PoC and LAN Serving
Please sign in so that we can notify you about a reply

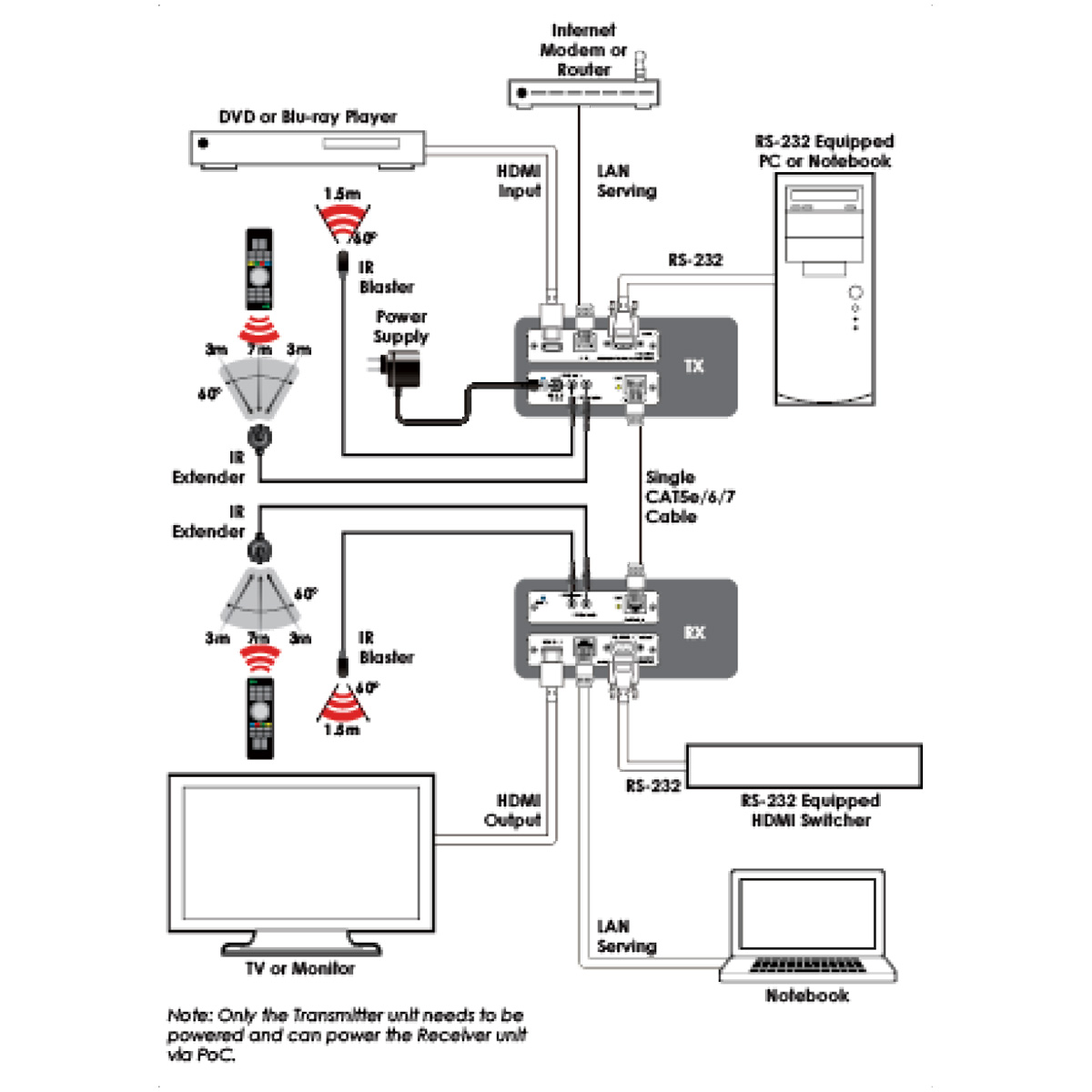

The CH-507TX & RX set allows uncompressed HDMI™ signals and IP data to be transmitted over a single CAT5e/6/7 cable. This solution has the added features of built-in RS-232, 2-way IR control and Power over Ethernet all over the single CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 meters.
Features
- HDMI 1.4 with 3D, 4k2k support, HDCP & DVI Compliant
- Supports CEC bypass
- Simultaneous transmission of uncompressed data over a single 100m/328ft CAT5e/6 cable
- Uncompressed video 1080p, 60Hz, 36-bit
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio
- HDBaseT 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-232)
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over CAT5e/6/7 Receiver with 24V PoC and LAN Serving
Maximum Operating Temperature:
+40°C
Number of Channels:
Special Features:
HDMI 1.4 with 3D, 4K2k Support, HDCP and DVI Compliant, Supports CEC Bypass, Simultaneous Transmission of Uncompressed Data Over a Single 100m/328ft CAT5e/6 Cable, Uncompressed Video 1080pixels, 60Hz, 36bits, Audio Support Up to 7.1CH and Dolby TrueHD, DT
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control for Projector, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
1.x
HDCP Compliance Type:
1.x
Video Bandwidth:
10.2Gbps
Output Signal Type:
HDBT 4K@60Hz 8bits YUV 4:2:0
Baud Rate:
Up to 115200bps
Maximum Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Inputs and Ports
Input Port Type:

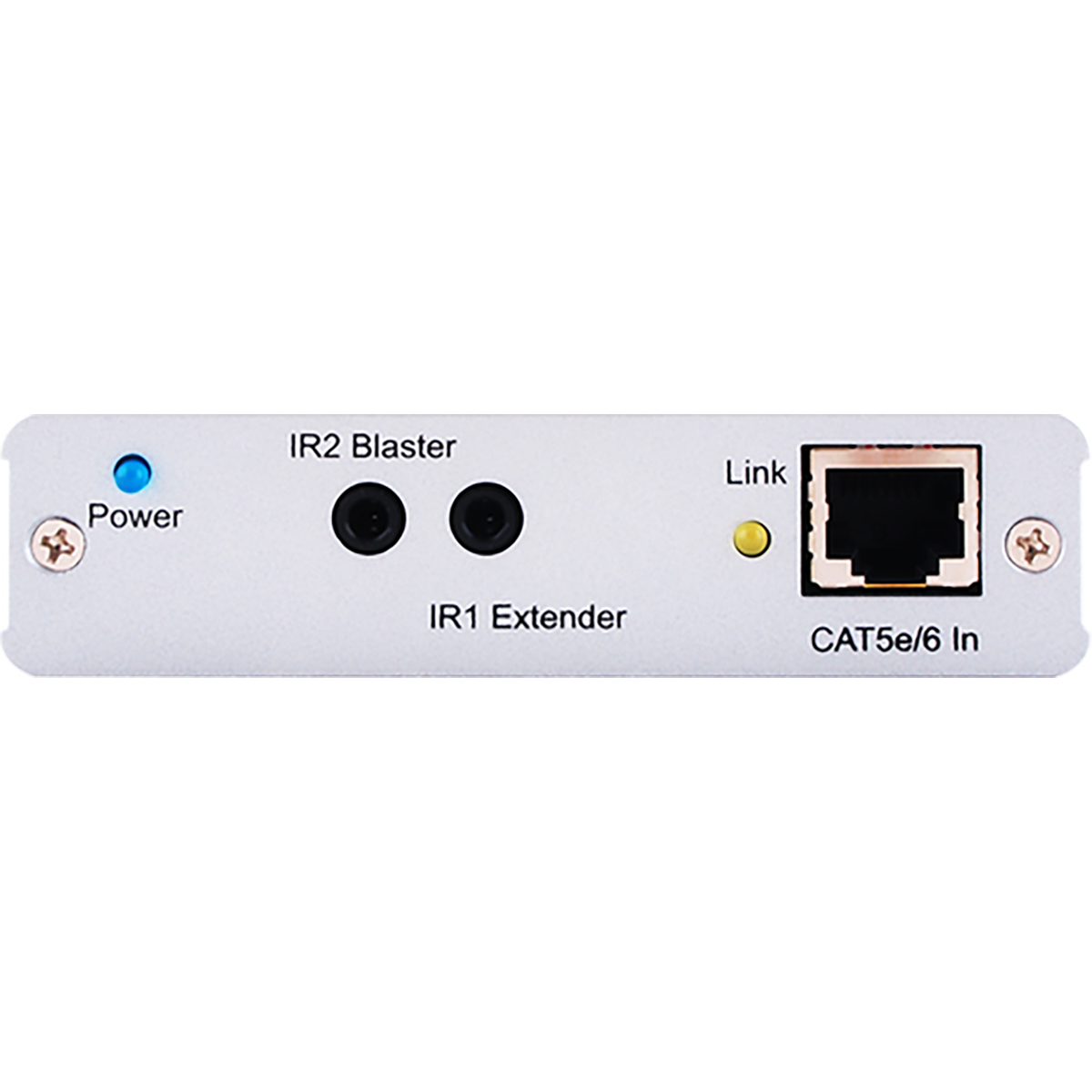

1xCAT5e/6/7, 1xIR Extender
Output Port Type:

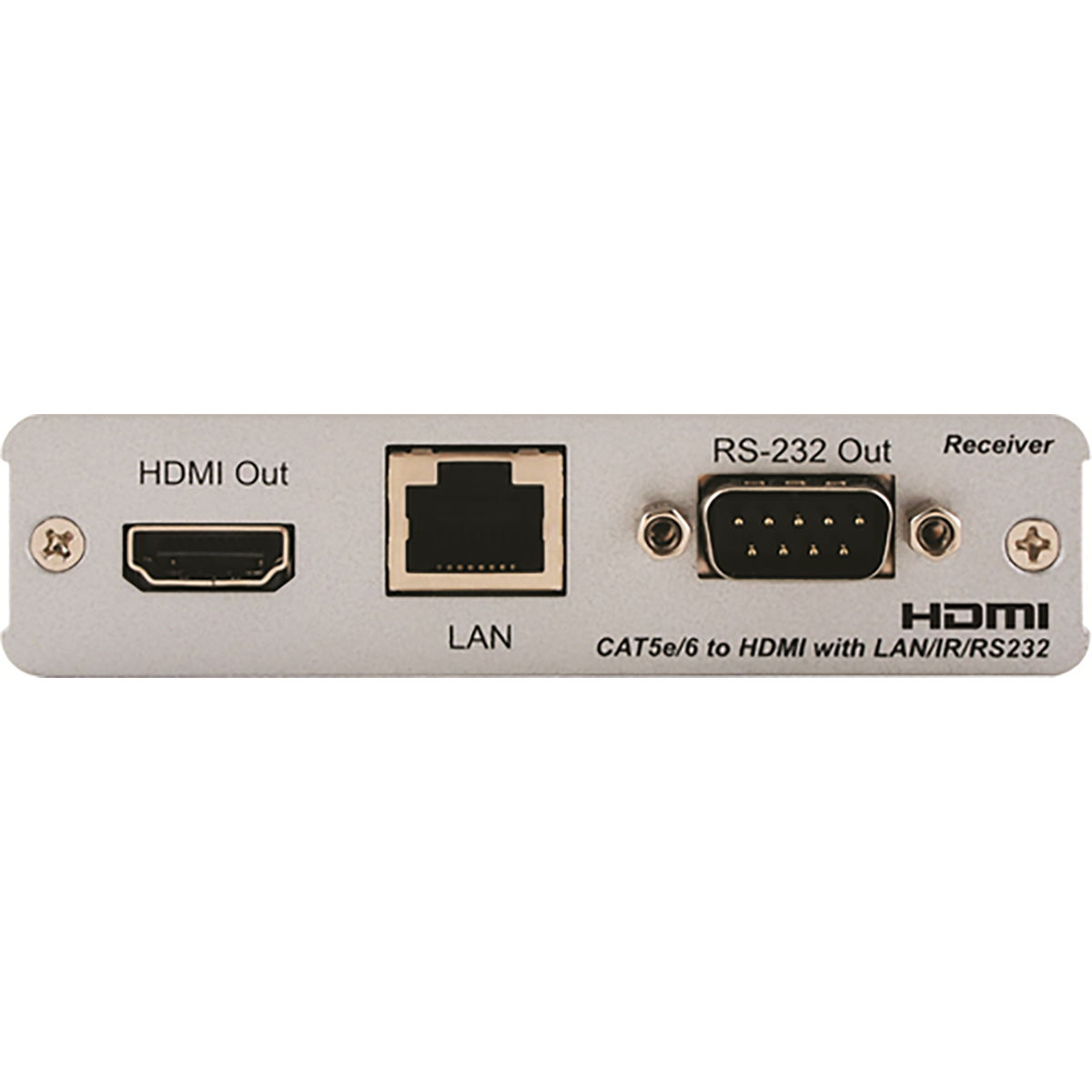

1xHDMI, 1xLAN, 1xRS-232, 1xIR Blaster
I/O Interface Type:
1 IR Extender (3.5mm) (Both Tx and Rx), 1 IR Blaster (3.5mm) (Both Tx and Rx), 1 RS-232 DE-9 (Female on Tx/Male on Rx), 1 LAN (RJ45) (Both Tx and Rx)
Input Signal Type:
HDMI 4K@60Hz 8bits YUV 4:2:0
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
10.2cm
Depth:
10.7cm
Height:
2.5cm
Weight:
256g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
