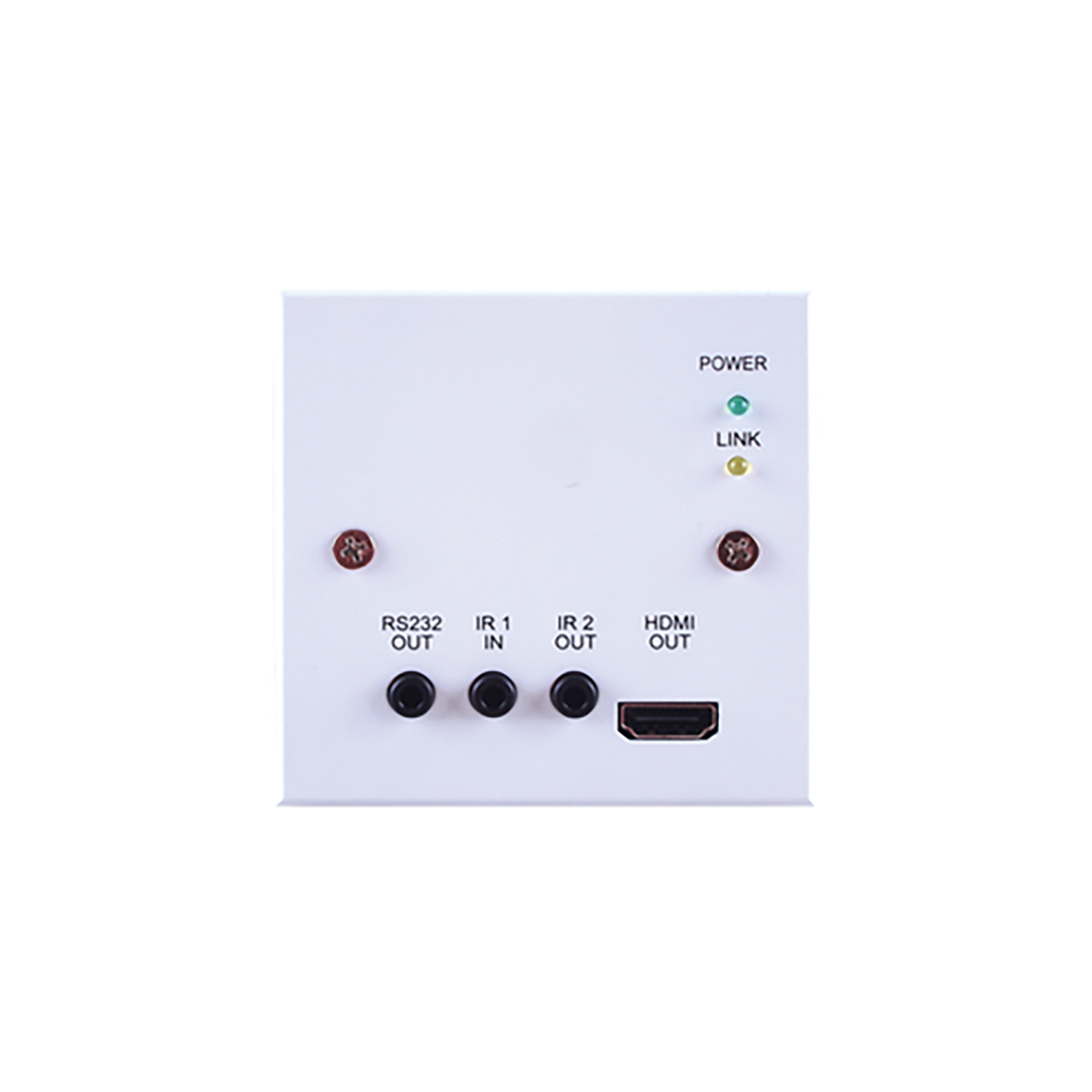

CH-506RXWP 4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR, RS-232 & PoC (PD) (1 gang UK)
Please sign in so that we can notify you about a reply
The device that can make your home or office more efficient, this unit of HDMI over Single CAT5e/6 can transmit and receive uncompressed audio/video, control through the built-in RS-232 and IR ports and 24V PoC (Power over Cable) over 100m with wall plate design. This is a true HDBaseT solution which can greatly increase the efficiency and convenience of your home or office A/V system.
Features
- HDMI with 3D, 4k x 2k support, HDCP & DVI Compliant
- Supports HDCP repeater and CEC bypass
- Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
- Supports uncompressed video of 36/30/24-bit Deep Color up to 1080p@60Hz
- Supports audio pass-through up to LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

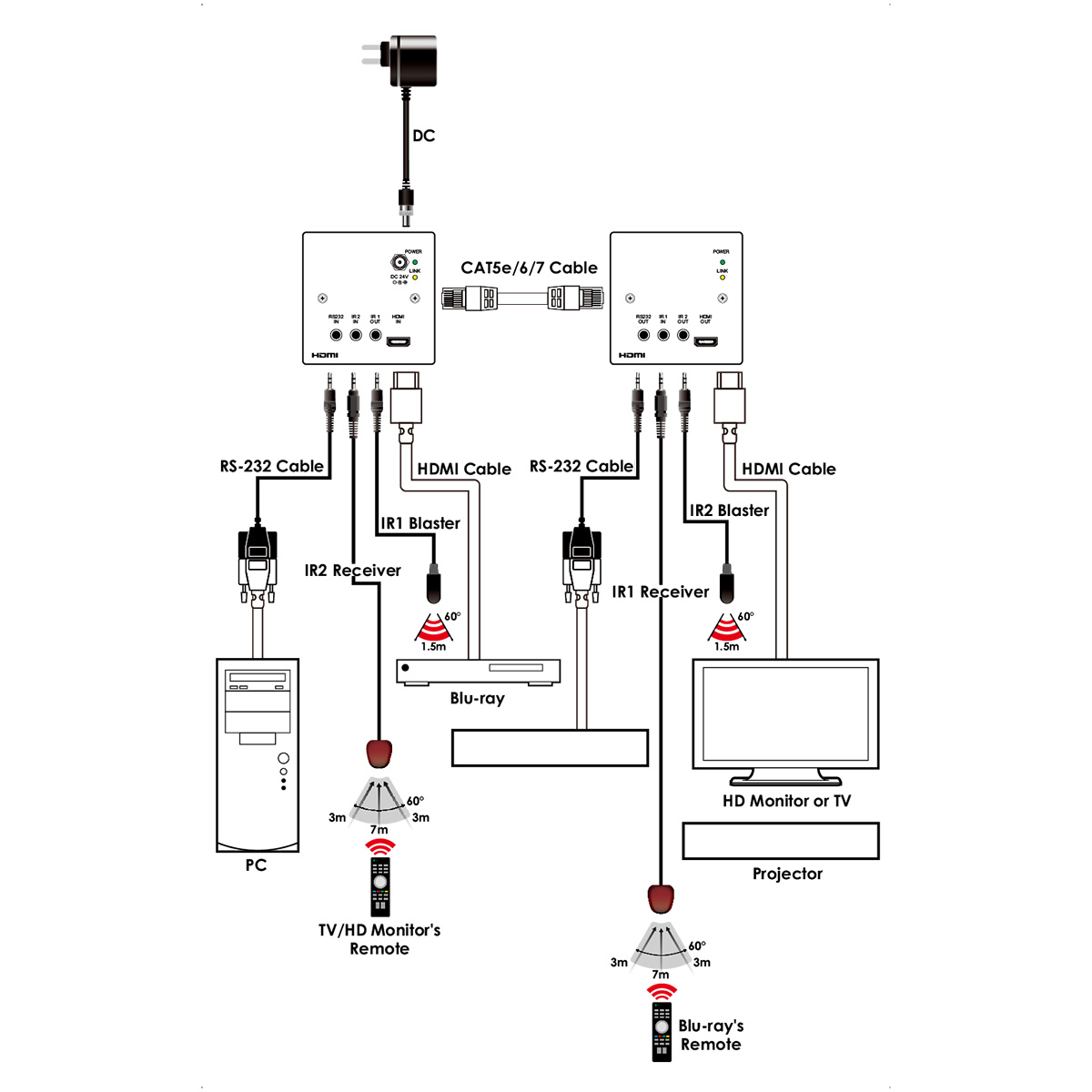

- HDBaseT convergence: HDMI, 24V PoC & Control (IR & RS-232)
- Wall plate design and installation friendly
Note: This system was tested with CAT6/23AWG cable, so if using cables of another type, results may vary.
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseT Wallplate Receiver with IR, RS-232 and PoC
Maximum Operating Temperature:
+40°C
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control for Projector, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Bandwidth:
10.2Gbps
Baud Rate:
Up to 115200bps
Inputs and Ports
Input Port Type:
1xCAT5e/6/7, 1xIR Extender
Output Port Type:
1xHDMI, 1xRS-232, 1xIR Blaster
I/O Interface Type:
IR/RS-232
Input Signal Type:
4K60 (4:2:0)
Power
Current Rating:
1.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
8.7cm
Depth:
8.7cm
Height:
2.9cm
Weight:
200g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
