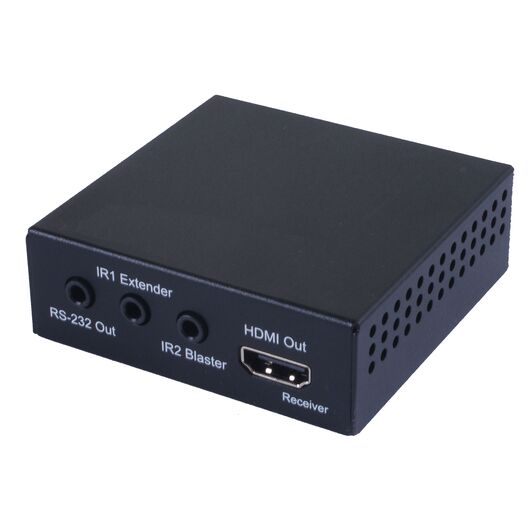

CH-506RXPLBD HDMI to CAT5e/6/7 Receiver
Please sign in so that we can notify you about a reply
The HDBaseT-LiteTM HDMI over single CAT5e/6/7 with bidirectional IR, RS-232 & bidirectional PoC Transmitter and Receiver set can make your home or offi ce set-up more effi cient and easy to use. Uncompressed video and audio can be transmitted up to 70 meters at 1080p or 40 meters at 4K. with the PoC function and added benefi t of controls through the builtin RS-232 and IR ports. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6/7 cable.
Features
- Supports HDMI 3D and 4K x 2K features
- Supports HDCP repeater and CEC bypass
- Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K through CAT5e/6/7 cable
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- Supports bidirectional IR and PoC
- Supports HDBaseT Lite Technology
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over Single CAT5e/6/7 with Bidirectional IR, RS-232 and Bidirectional PoC Transmitter and Receiver
Maximum Operating Temperature:
+40°C
Special Features:
Supports HDMI 3D and 4Kx2K Features, Supports HDCP Repeater and CEC Bypass, Supports Distance Up to 70m/229ft at 1080p and 40m/131ft at 4K Through CAT5e/6/7 Cable, Supports Pass-Through of Audio Formats Including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstre
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control for Projector, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
Output Signal Type:
4K@60Hz YUV 4:2:0
Baud Rate:
Up to 115200bps
Maximum Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Inputs and Ports
Input Port Type:

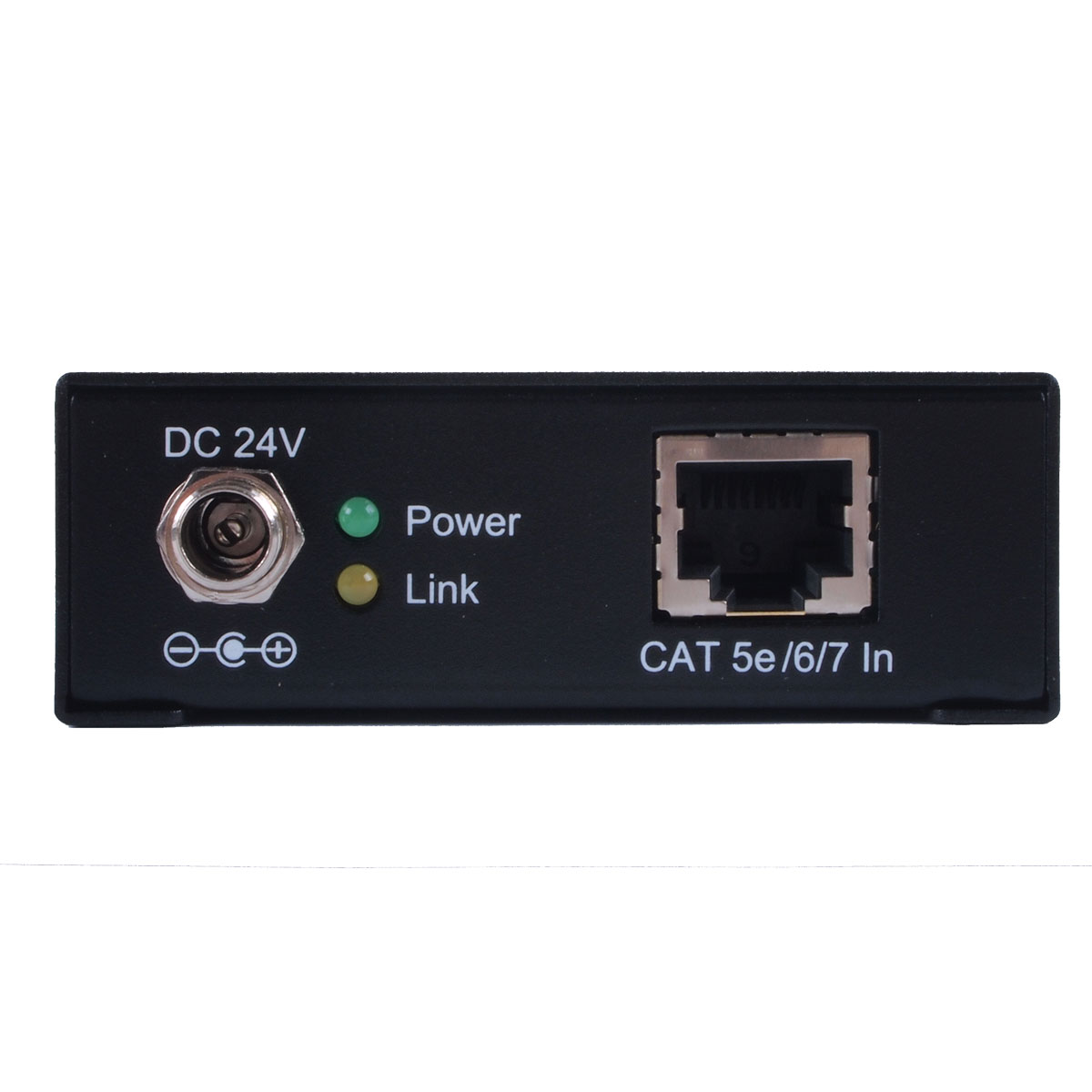

HDBaseT (RJ45), IR 3.5mm Extender
Output Port Type:

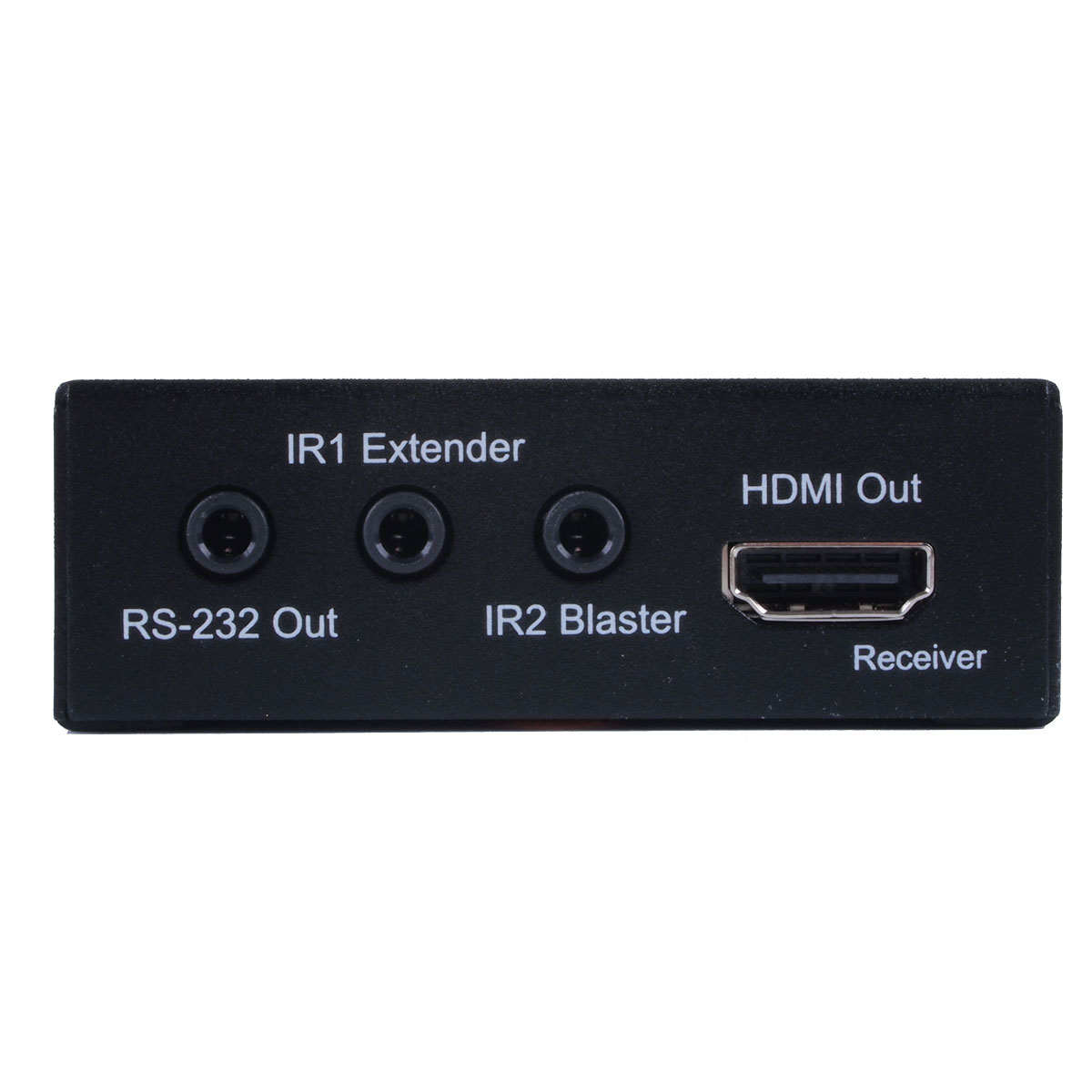

1xHDMI-Type A, RS-232 (3.5mm), IR 3.5mm Blaster
Input Signal Type:
4K@60Hz YUV 4:2:0
Connectivity
Ethernet Speed:
100Mbps
Power
Current Rating:
1.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
7.1cm
Depth:
7.9cm
Height:
2.3cm
Weight:
126g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
