CH-506RXPL HDMI to CAT5e/6 Receiver
Please sign in so that we can notify you about a reply

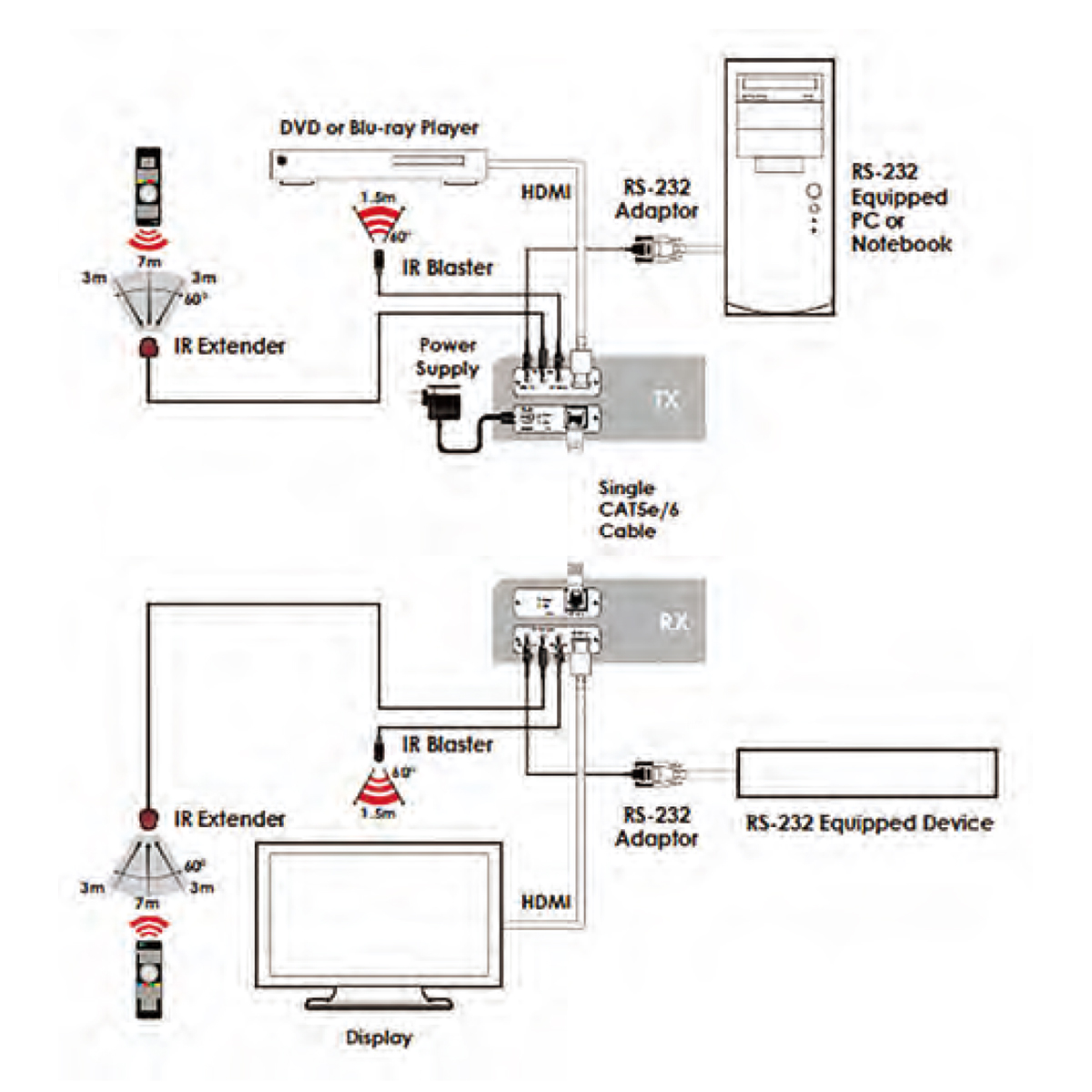

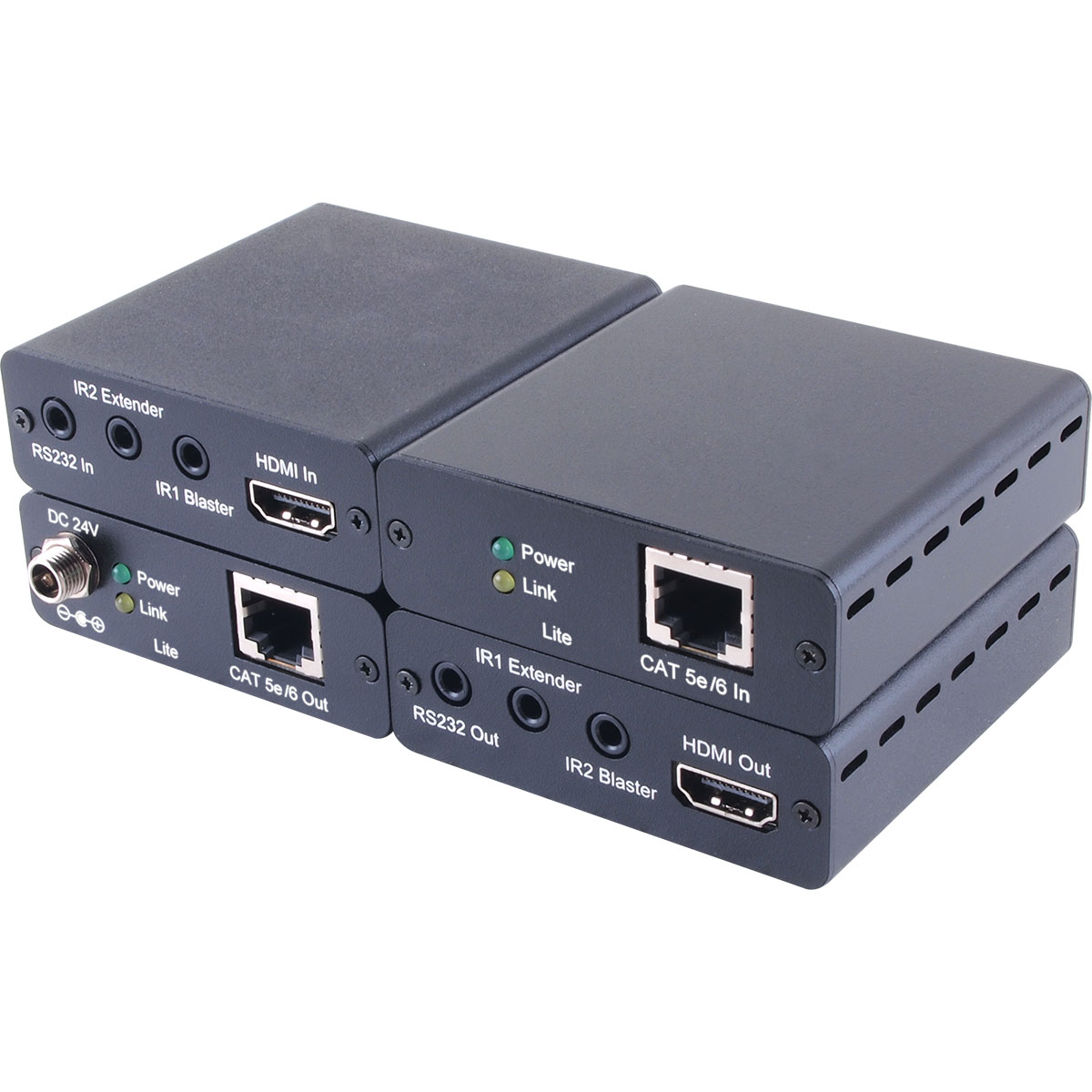

This HDMI over HDBaseTTM with bidirectional IR, RS-232 & PoC Transmitter and Receiver set can make your home or office setup more efficient and easy to use. Uncompressed video and audio can be transmitted up to 60 meters with the PoC function and added benefit of controls through the built-in RS-232 and IR ports. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6/7 cable.
Features
- Supports HDMI 3D and 4K x 2K features
- Supports HDBaseT-Lite Technology
- Supports HD resolutions up to 1080p@60Hz/12-bit
- Supports distance up to 60 meters through CAT5e/6/7 cable
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- Supports RS-232 bypass with baud rate up to 115200/sec
- Supports wide range of IR frequency from 30~50kHz
- Supports HDCP repeater and CEC bypass
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseTTM with Bidirectional IR, RS-232 & PoC Transmitter and Receiver
Maximum Operating Temperature:
+40°C
Special Features:
Supports HDMI 3D and 4Kx2K Features, Supports HDBaseT-Lite Technology, Supports Distance Up to 60m Through CAT5e/6/7 Cable, Supports HDCP Repeater and CEC Bypass, Supports Pass-Through of Audio Formats Including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstrea
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control for Projector, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Video Bandwidth:
10.2Gbps
Output Signal Type:
4K@60Hz YUV 4:2:0
Baud Rate:
Up to 115200bps
Maximum Resolution:
1080pixels@60Hz/12bits
Inputs and Ports
Input Port Type:

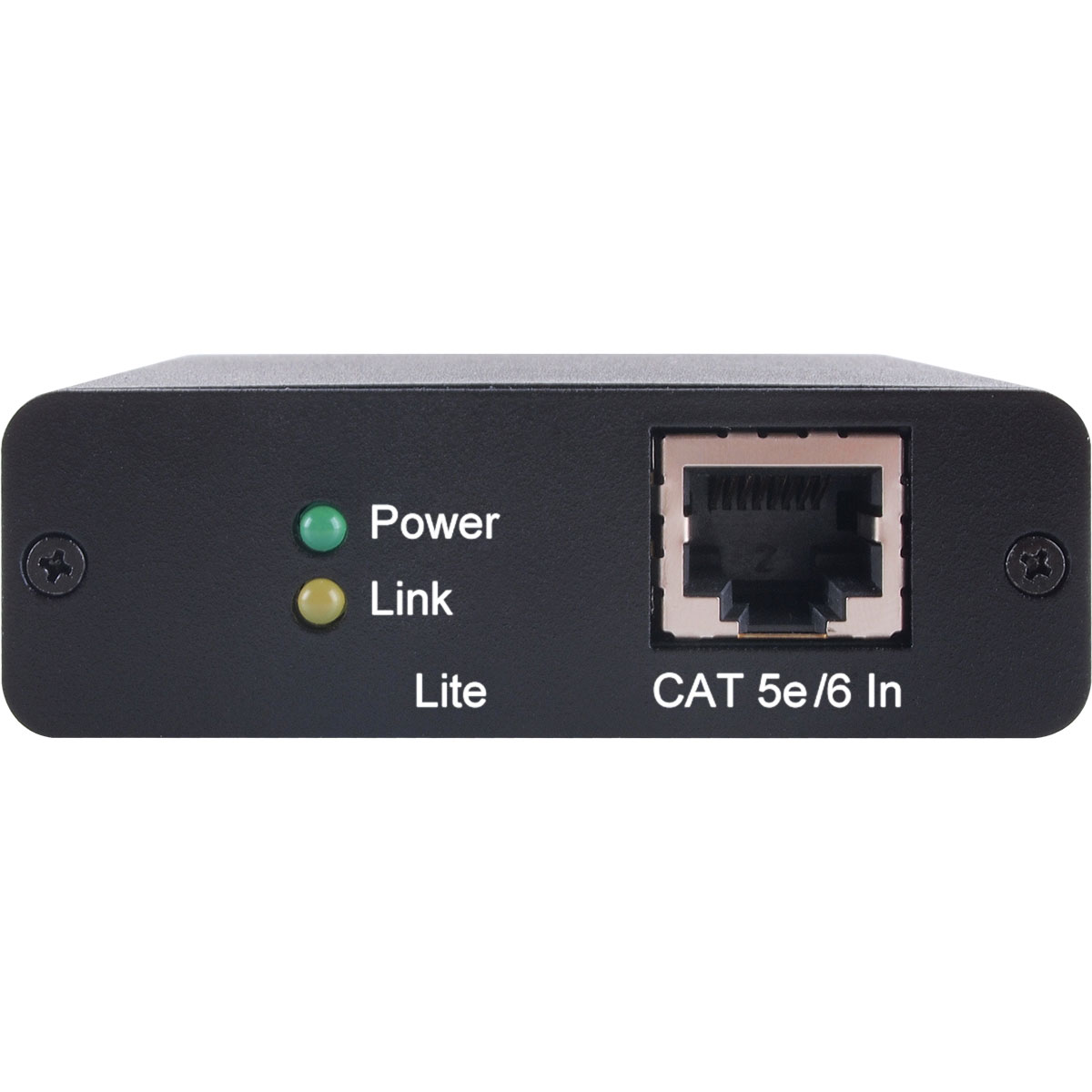

1xHDBase T (RJ45), 1xIR 3.5mm Blaster
Output Port Type:

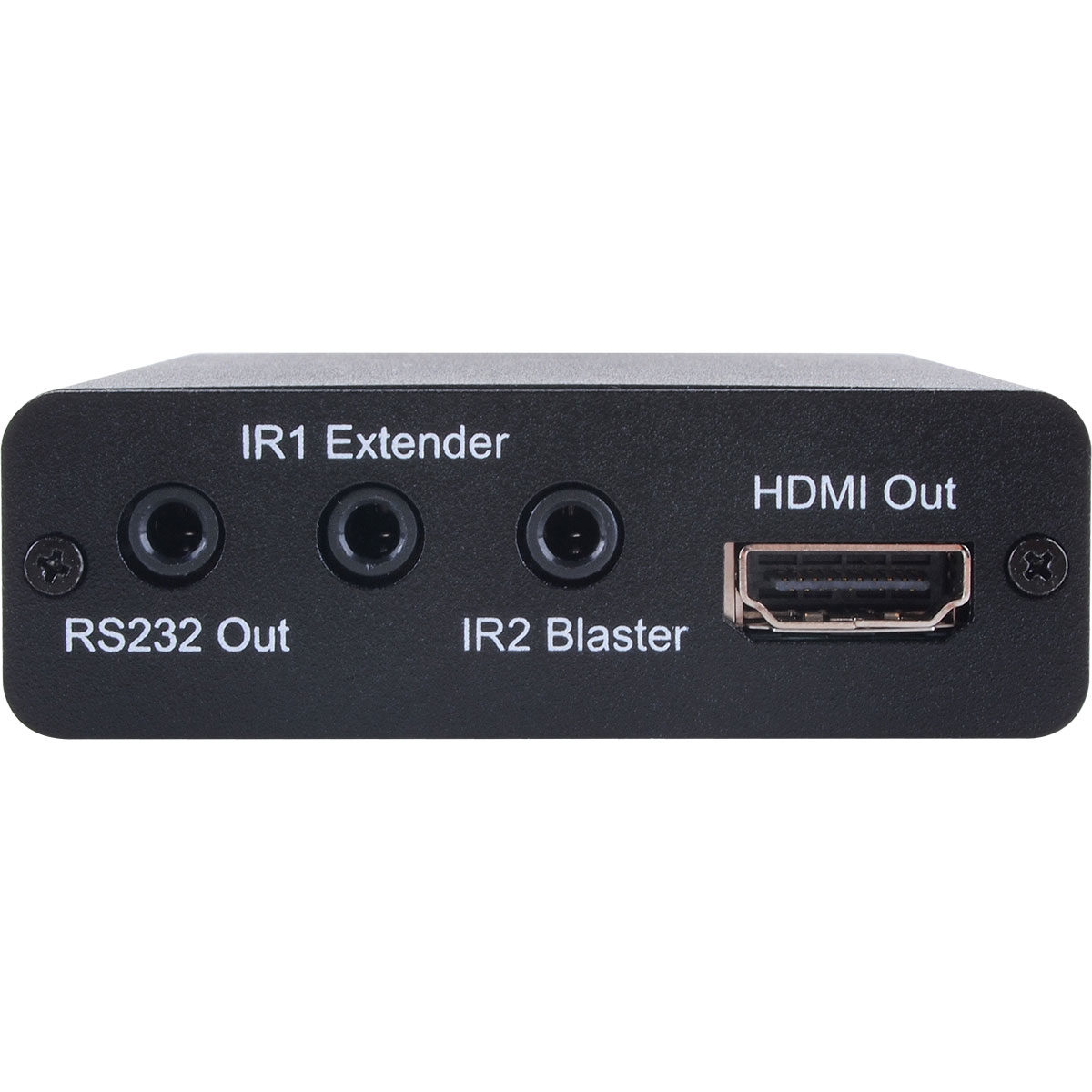

1xHDMI-Type A, 1xIR 3.5mm Blaster, 1xRS-232 (3.5mm)
Input Signal Type:
4K@60Hz YUV 4:2:0
Power
Current Rating:
1.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
7.1cm
Depth:
7.9cm
Height:
2.3cm
Weight:
126g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
