CH-506RXL HDMI over CAT5e/6/7 Receiver
Please sign in so that we can notify you about a reply
This HDBaseT (Lite version of technology) HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 60m (1080p) and has the added benefit of control through the built-in RS-232 and 2-way IR.
Features
- HDMI wit 3D and 4K2K (Ultra HD) support, HDCP and DVI compliant
- Supports HDCP repeater and CEC functions
- Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 70m/230ft at 1080p and 35m/115ft at 4K
- Supports HD resolutions up to 1080p@60Hz/36-bit and Ultra HD (4K2K)
- Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
- Supports HDBaseT Lite Technology including 2-Way IR and RS-232
- Installation friendly
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over Single CAT5e/6/7 Transmitter and Receiver
Maximum Operating Temperature:
+40°C
Special Features:
HDMI with 3D and 4K2K (Ultra HD) Support, HDCP and DVI Compliant, Supports HDCP Repeater and CEC Functions, Supports HD Resolutions Up to 1080pixels@60Hz/36bits and Ultra HD (4K2K), Audio Support Up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio, Sup
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control for Projector, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Bandwidth:
10.2Gbps
Baud Rate:
Up to 115200bps
Maximum Resolution:
1080pixels@60Hz/36bits and Ultra HD (4K2K)
Inputs and Ports

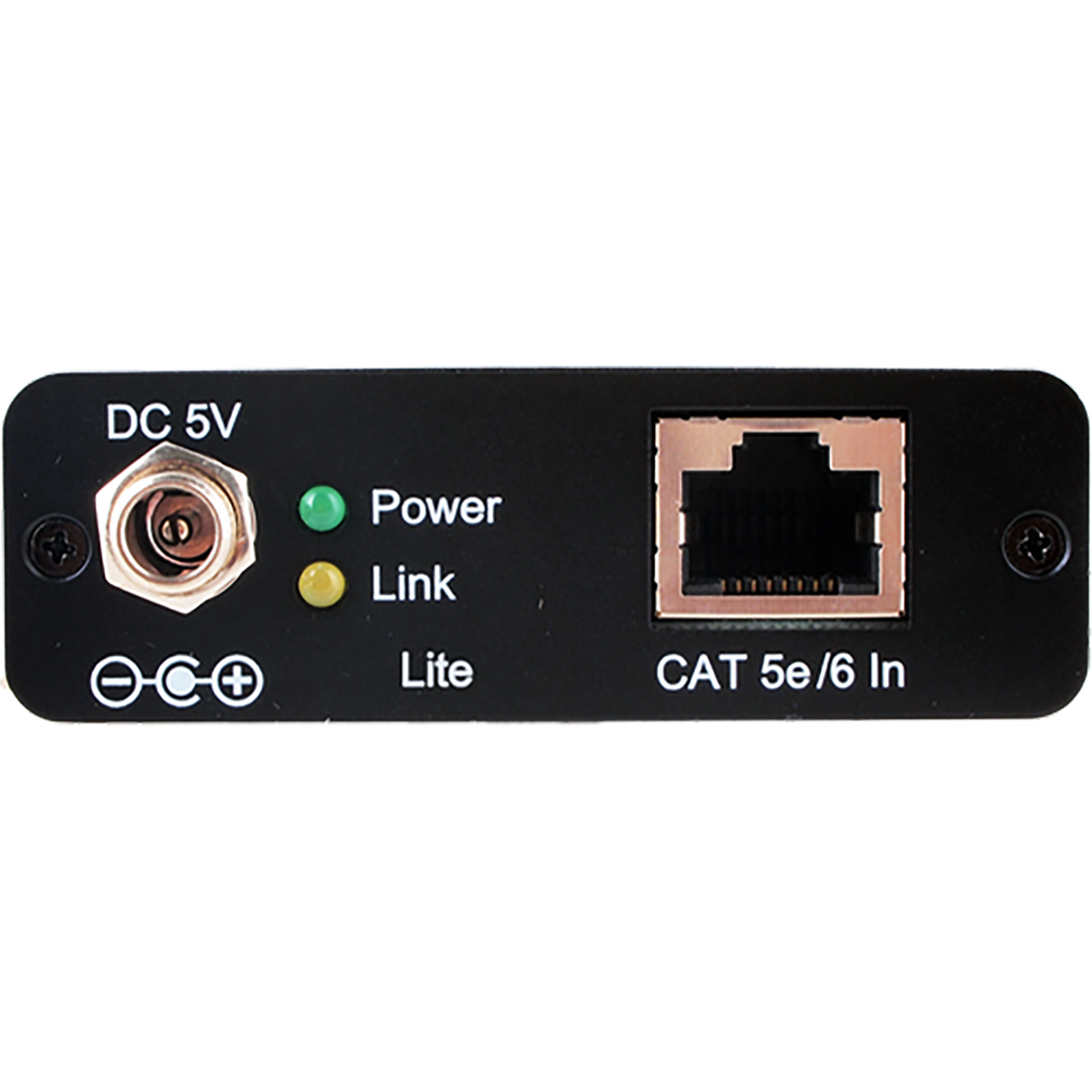

Input Port Type:
1xCAT5e/6/7, 1xIR Extender

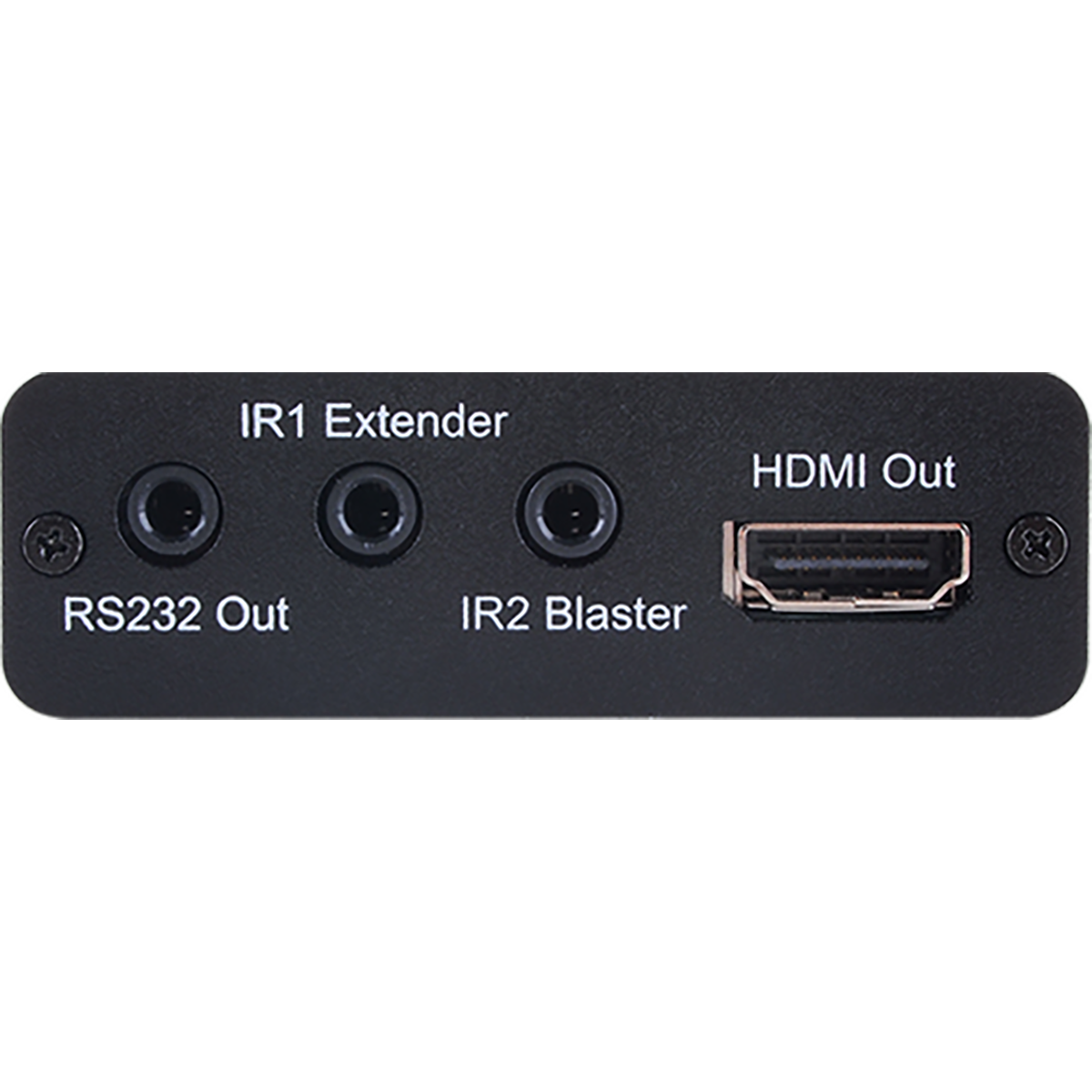

Output Port Type:
1xHDMI, 1xRS-232, 1xIR Blaster
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
7.1cm
Depth:
7.9cm
Height:
7.9cm
Weight:
245g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
