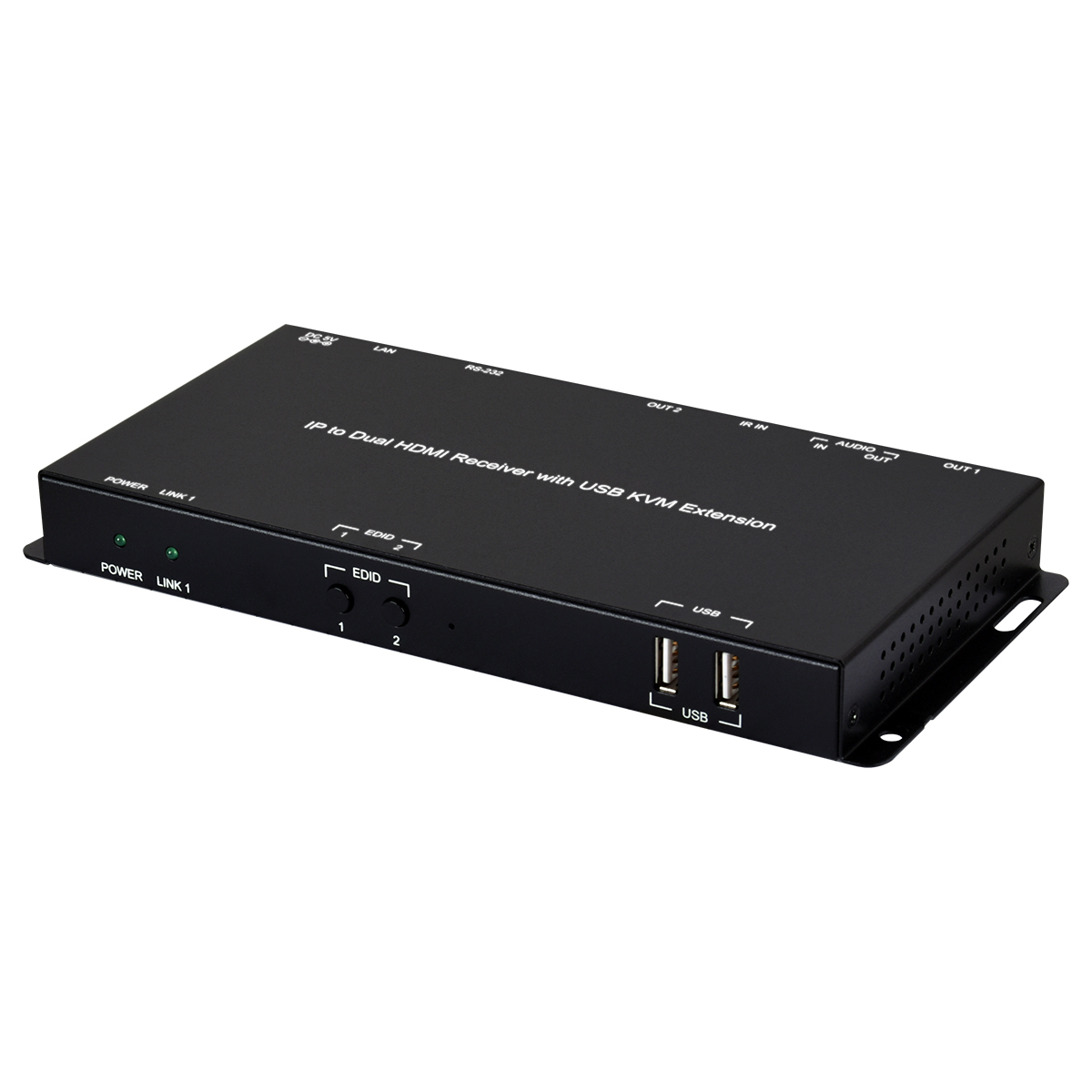

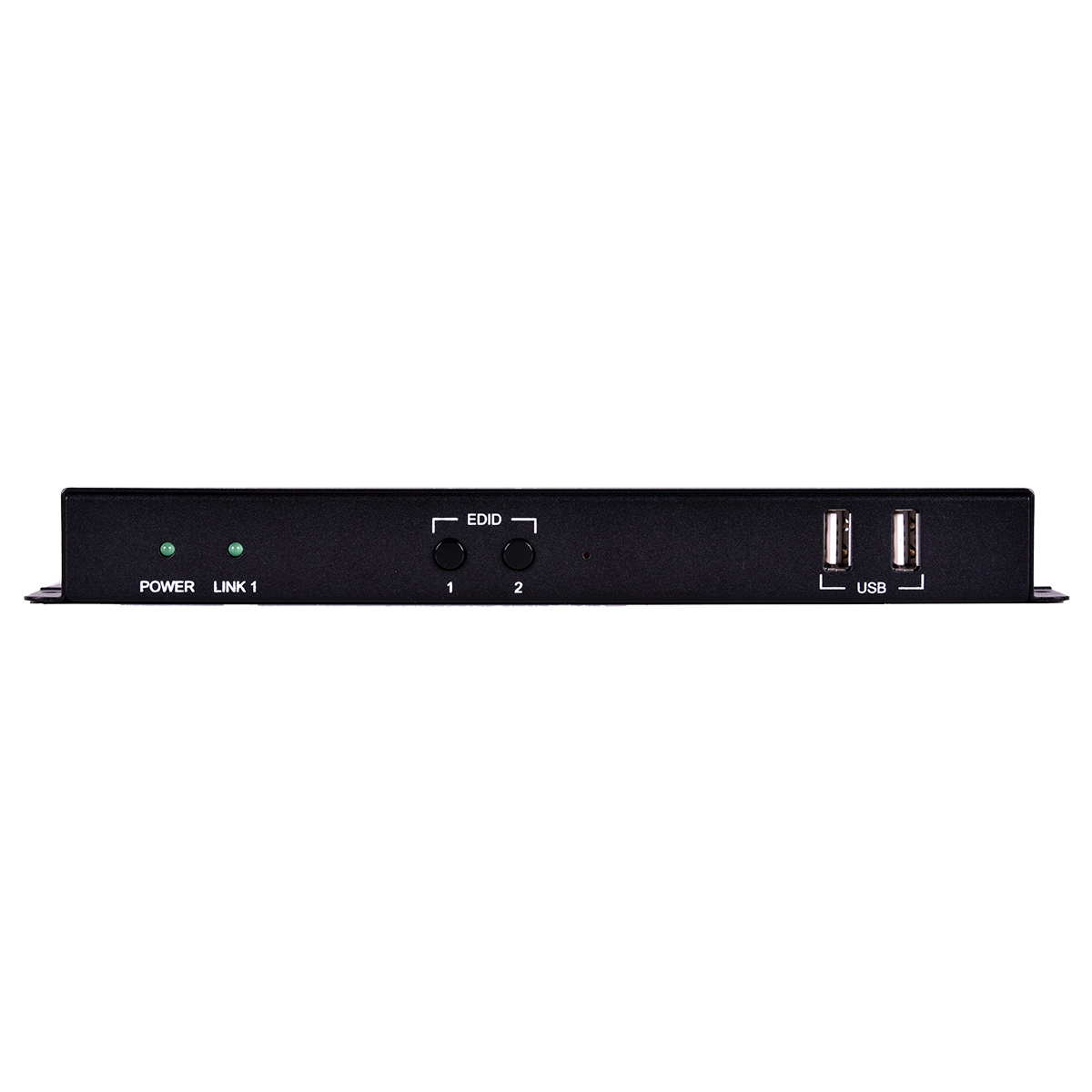

CH-352RX IP to Dual HDMI Receiver with USB KVM Extension

Write a review
CH-352RX
Cypress Technology
Out of stock
Log in to see price Add to wish list

The Dual over IP solution is designed to control and switch between KVM, PCs/ laptops and monitors to any connected devices to controlled dual monitor cross-transmit with single pair of KVM.Ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms, classrooms or gaming usage.This KVM Extender allows you to control your PC using a keyboard, mouse and monitor with a maximum resolution of Full HD 1080p or 1920x1200 at distances of up to 100m using one Cat.6 cables.Effortless MULTI-computer workflow. Move your mouse, keyboard cursor across to 2 computers and Display.It supports HDMI 1080@60, audio and HDCP. Analogue stereo audio, IR and RS-232 signals are also supported.

Features

  • Supports resolutions up to 1920x1080, DVI supports compatible to 1920x1200
  • Supports basic USB keyboard & mouse functions, not compatible with USB 2.0 devices with high power demands, storage or hubs. USB touch screens or other advanced interface devices/HIDs are not supported
  • Simultaneous transmission of video, audio, data over a single Cat.5e/6/7 cable up to 100m (328ft)
  • Supports USB keyboard, mouse and storage extension
  • Supports IR and RS-232 bypass
  • Advanced EDID Supports Internal, External, User mode
  • Cross-transmit by move your mouse cursor across up to 2 computers and even copy/paste text, images and fi les from one computer to another
  • Effortless Multi-computer workflow
Brand:
Cypress Technology
Specifications
Product Type:
IP to Dual HDMI Receiver with USB KVM Extension
Maximum Operating Temperature:
+40°C
Number of Channels:
Special Features:
Simultaneous Transmission of Video, Audio, Data Over a Single CAT.5e/6/7 Cable Up to 100m (328ft), Supports USB Keyboard, Mouse and Storage Extension, Supports IR and RS-232 Bypass, Advanced EDID Supports Internal, External, User Mode, Cross-Transmit by M
IR Frequency:
1kHz
Applications:
Video, Audio, KVM Extension, Control Rooms, Sharing Rooms, Classroom, Gaming
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
3 LAN Ports
Performance
HDMI Compliance Type:
1.4 (DVI 1.0)
HDCP Compliance Type:
1.x
Maximum Audio Level:
2VRMS
Output Signal Type:
1920x1080pixels@60Hz 12bits
Signal-to-Noise Ratio:
80dB
Maximum Resolution:
1920x1080pixels@60Hz
Inputs and Ports

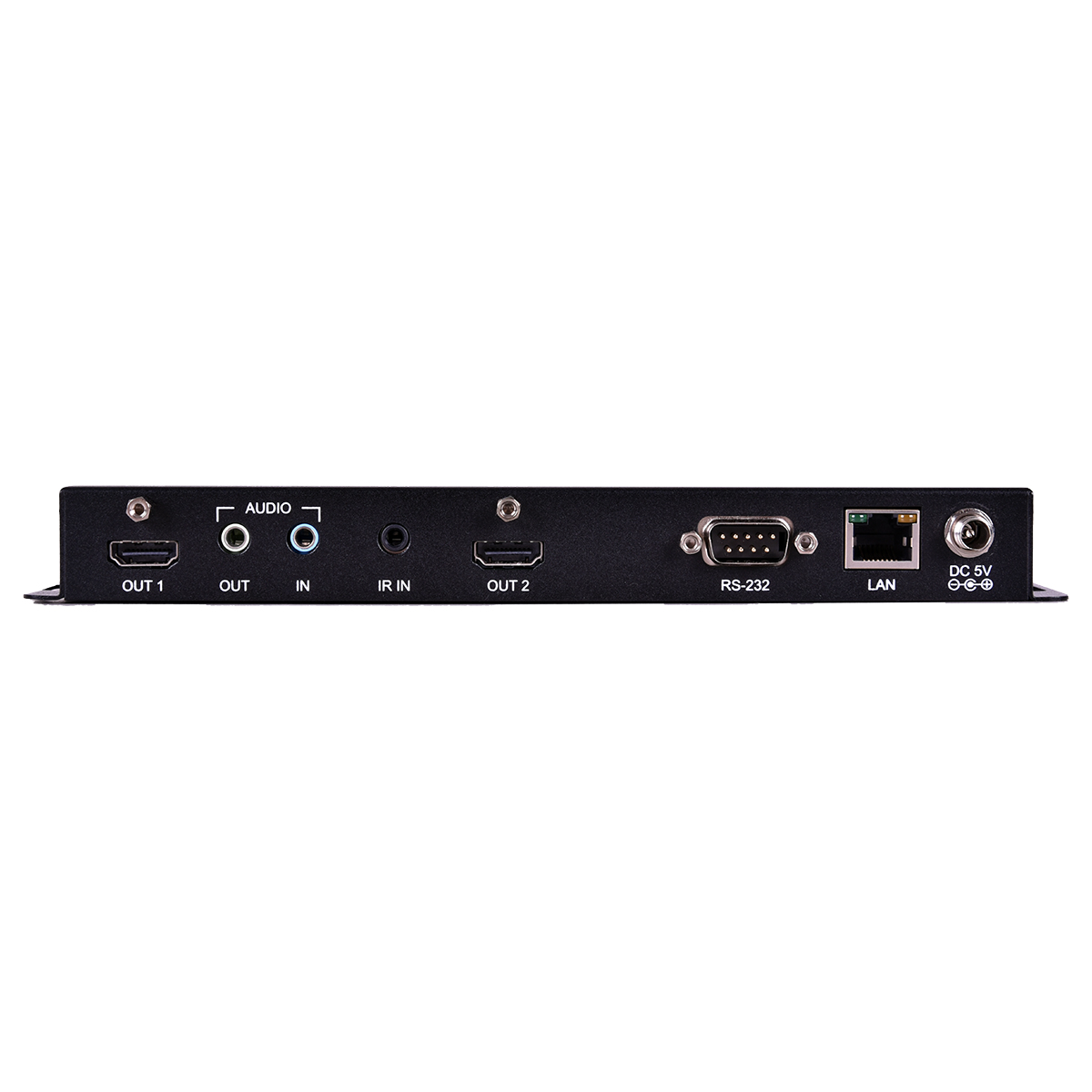

Input Port Type:
1xGbE LAN (RJ45), 1x3.5mm Analog Stereo
Output Port Type:
2xHDMI-Type A, 1x3.5mm Analog Stereo
I/O Interface Type:
1xIR 3.5mm Blaster, 1xRS-232 (DB-9), 2xUSB Type A
Input Signal Type:
1920x1080p@60Hz 12bits
Power
Current Rating:
4A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
12cm
Height:
2.5cm
Weight:
636g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
