CH-331H-RX HDMI over IP Receiver
Please sign in so that we can notify you about a reply

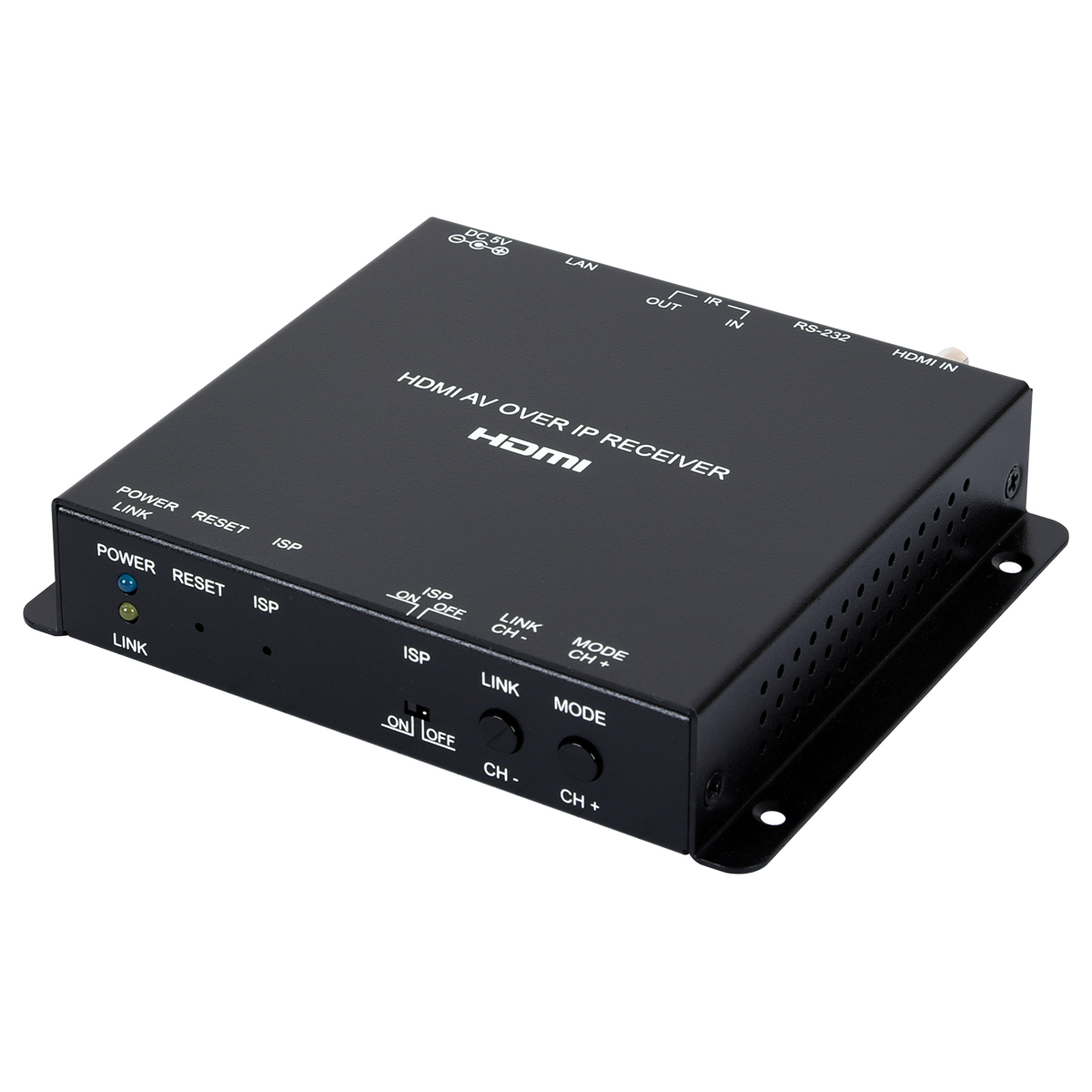

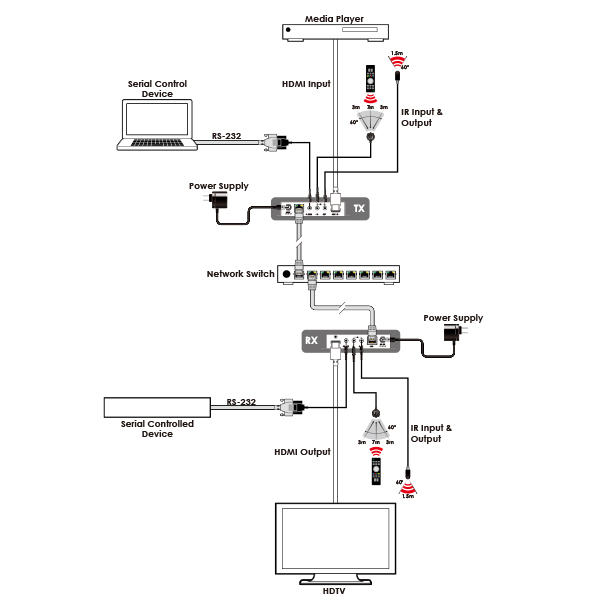

This unit is an HDMI over IP Receiver that allows you to receive extended HDMI signals using the TCP/IP protocol over regular Cat.5e network cable. This extender supports the reception of High-Definition signals (up to 1080p@60Hz) with audio up to 100m over a single cable. The distance can be further extended (up to 100m per segment) by using Gigabit Ethernet network switches, allowing the user to cascade the system without signal loss or introducing delay. This Receiver also features bi-directional IR and RS-232 pass-through. It is also possible to for this Receiver to operate in multicast mode, allowing large groups of Receivers within the same local network to receive the same AV signal with no additional bandwidth cost. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. This Video over IP system is perfect for both residential and commercial installation environments. Configuration information is provided via the On-Screen Display (OSD) when the unit is unlinked and control is via front panel buttons, WebGUI, Telnet, or the AV over IP Master Controller.
Features
- Video, audio and control reception over TCP/IP in Unicast (point- to-point) or Multicast (single-to-many, many-to-many) modes
- Multi-monitor video wall support with 180° and 270° rotation options
- Video output can be scaled to a selected resolution, or left unscaled
- HDMI output supports resolutions up to 1080p@60Hz/WUXGA
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
- Supports IR and RS-232 bypass

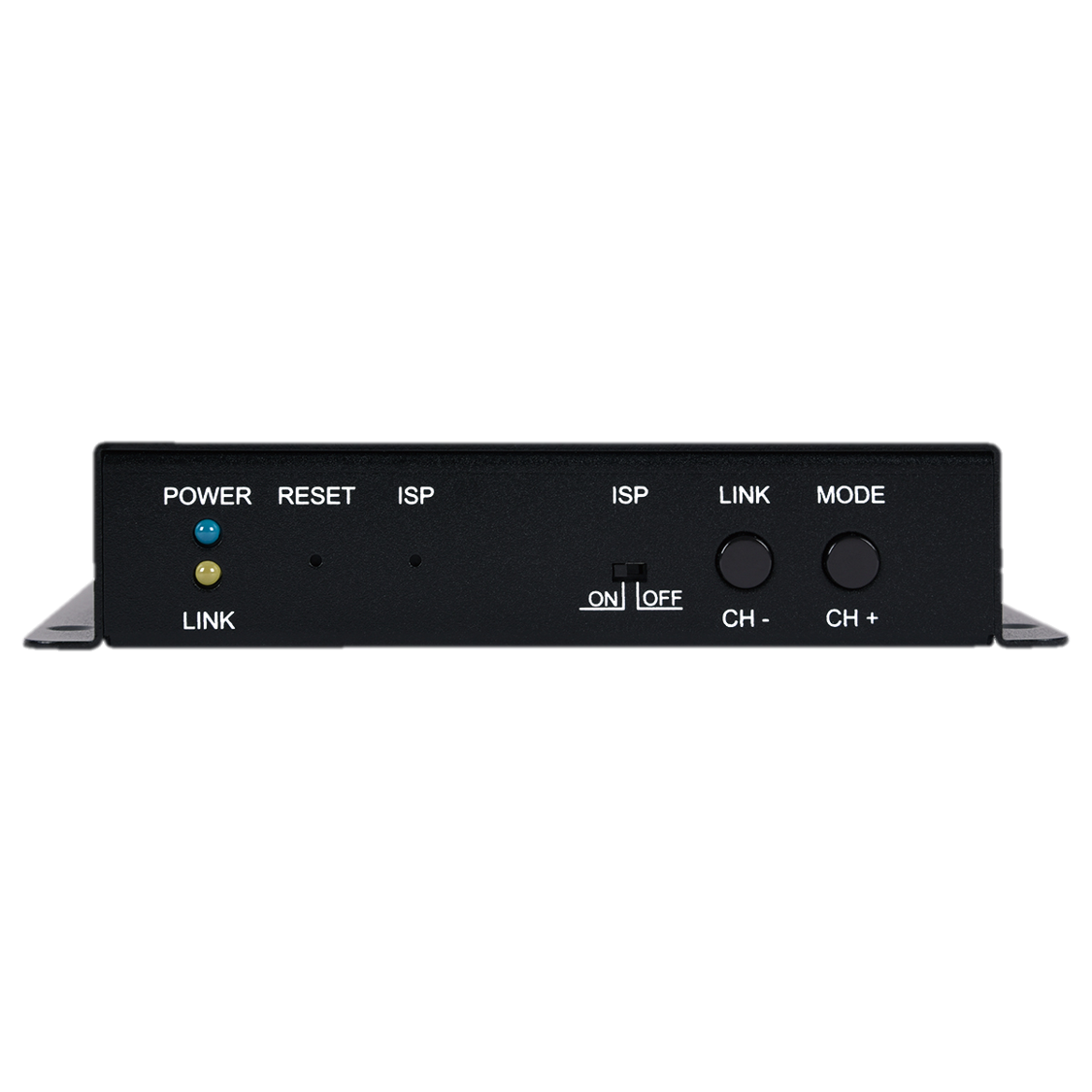

- Unit has an info OSD (when unlinked) and can be controlled via front panel buttons, WebGUI, Telnet, and the AV over IP Master Controller
Brand:
Cypress Technology
Product Type:
HDMI Over IP Receiver
Specifications
Maximum Operating Temperature:
+40°C
Number of Channels:
Special Features:
Multi-Monitor Video Wall Support with 180° and 270° Rotation Options, Video Output can be Scaled to a Selected Resolution, or Left Unscaled, Video Output can be Scaled to a Selected Resolution, or Left Unscaled, Supports Pass-Through of Audio Formats In
IR Frequency:
30 to 50kHz
Applications:
Video, Audio, LAN, IR, Point- To-Point, Multi-monitor
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
1.4 (DVI 1.0)
HDCP Compliance Type:
1.4
Video Bandwidth:
10.2Gbps
Output Signal Type:
1920x1080pixels@60Hz 12bit RGB
Maximum Resolution:
1920x1080pixels@60Hz, 1920x1200pixels@60HzRB
Inputs and Ports
Input Port Type:
HDMI-Type A
I/O Interface Type:

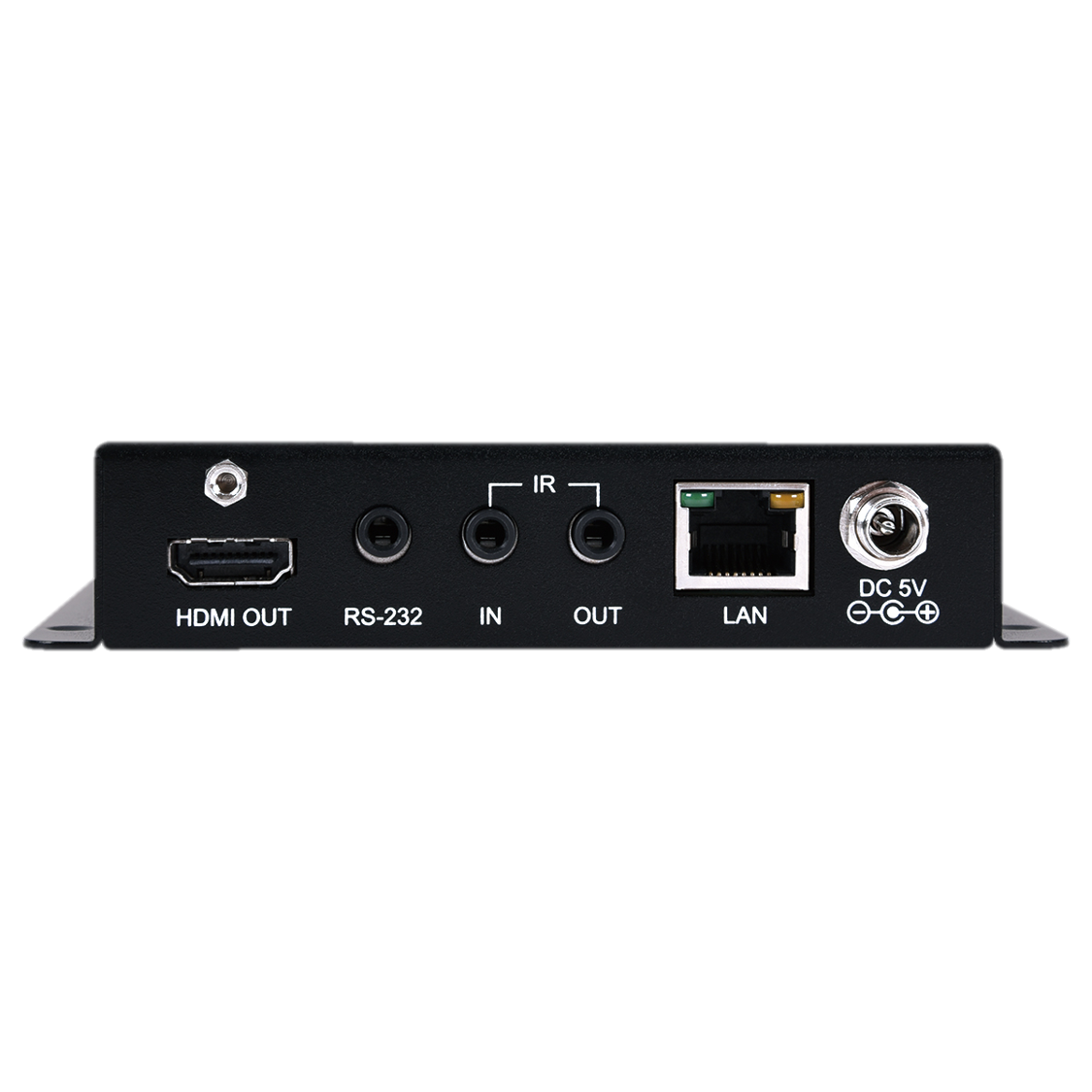

1 IR Extender (3.5mm), 1 IR Blaster (3.5mm), 1 RS-232 (DB-9)
Input Signal Type:
1920x1080p@60Hz 12bits
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.8cm
Depth:
11.6cm
Height:
2.5cm
Weight:
364g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
