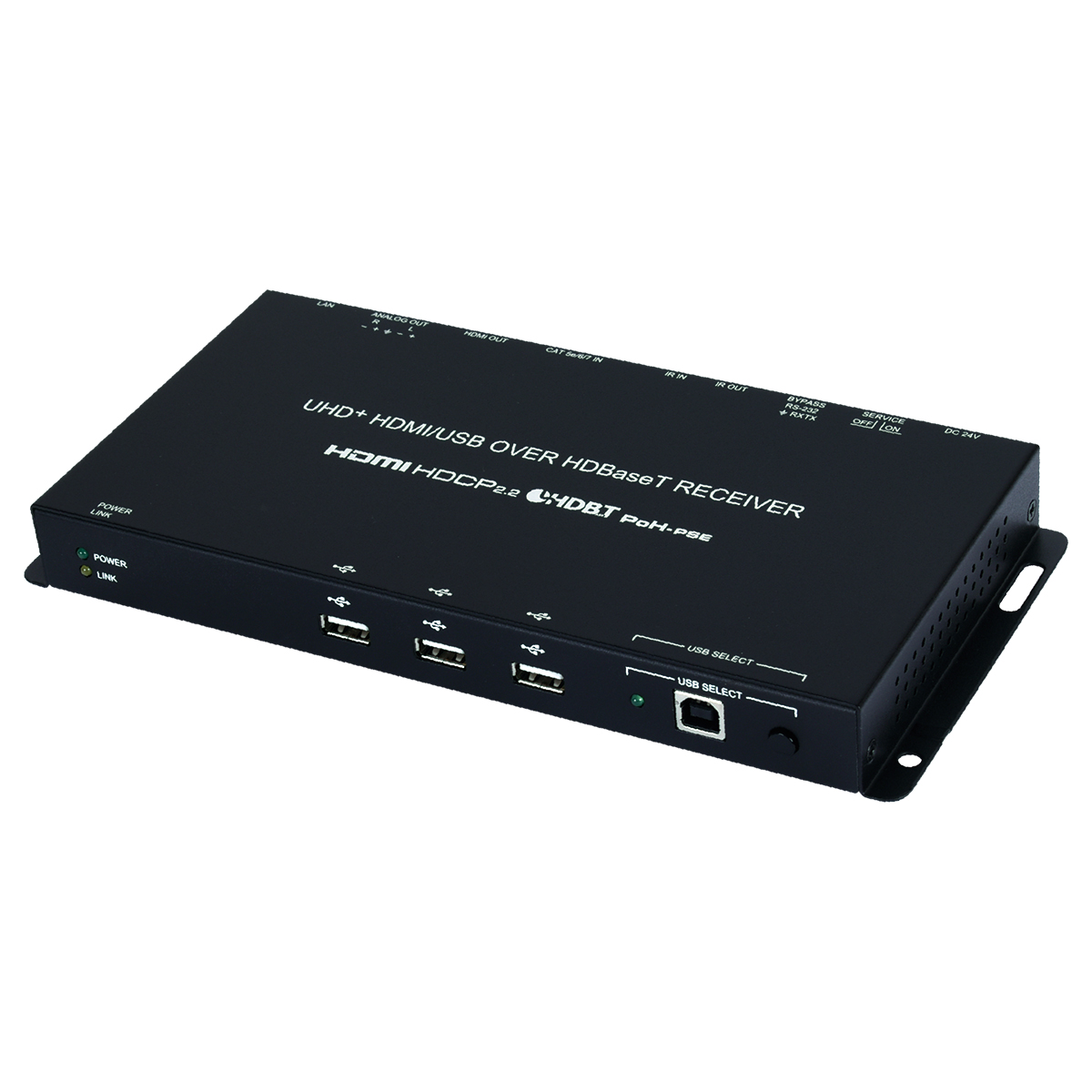

CH-2606RX UHD+ HDBaseT to HDMI Receiver with USB
Please sign in so that we can notify you about a reply

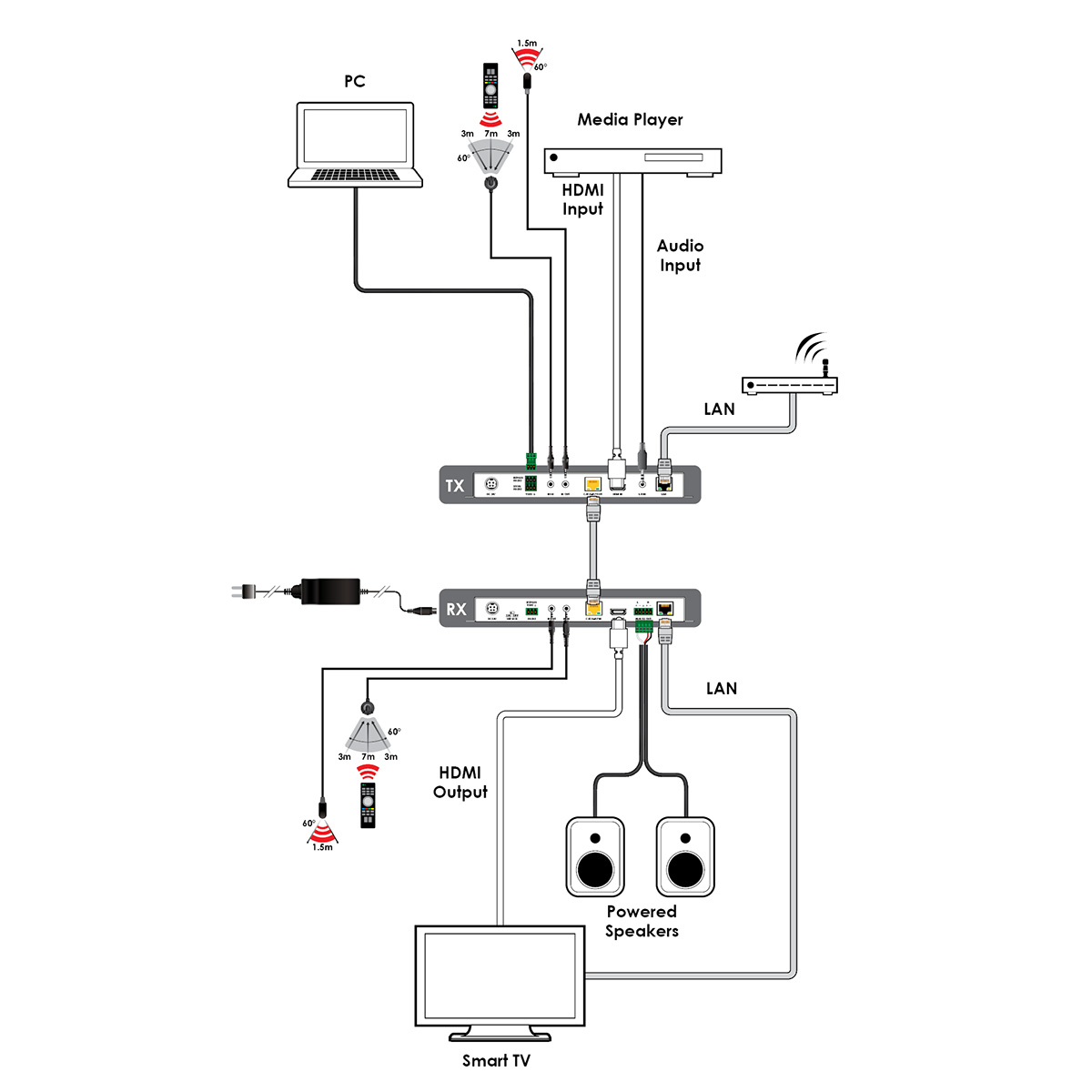

CH-2606RX adopts HDBaseT 2.0 technology for extending uncompressed 4k and HD video, audio, Ethernet, control and power along a single Cate 5e/6/7 cable up to 100 meters. When paired with this unit’s standard Transmitter, 2 switchable USB 2.0 host (Type B) connections are available (1 on the Transmitter, 1 on the Receiver) which can connect to devices on up to 6 USB 2.0 (Type A) ports (3 on the Transmitter, 3 on the Receiver) forming a highly flexible KVM extension configuration (Note: Only 1 USB host may be active at a time). This Receiver (PSE) can provide PoH (Power over HDBaseT) power to the connected HDBaseT Transmitter (PD) (compatible Transmitters only), This unit is controllable via front panel button.
Features

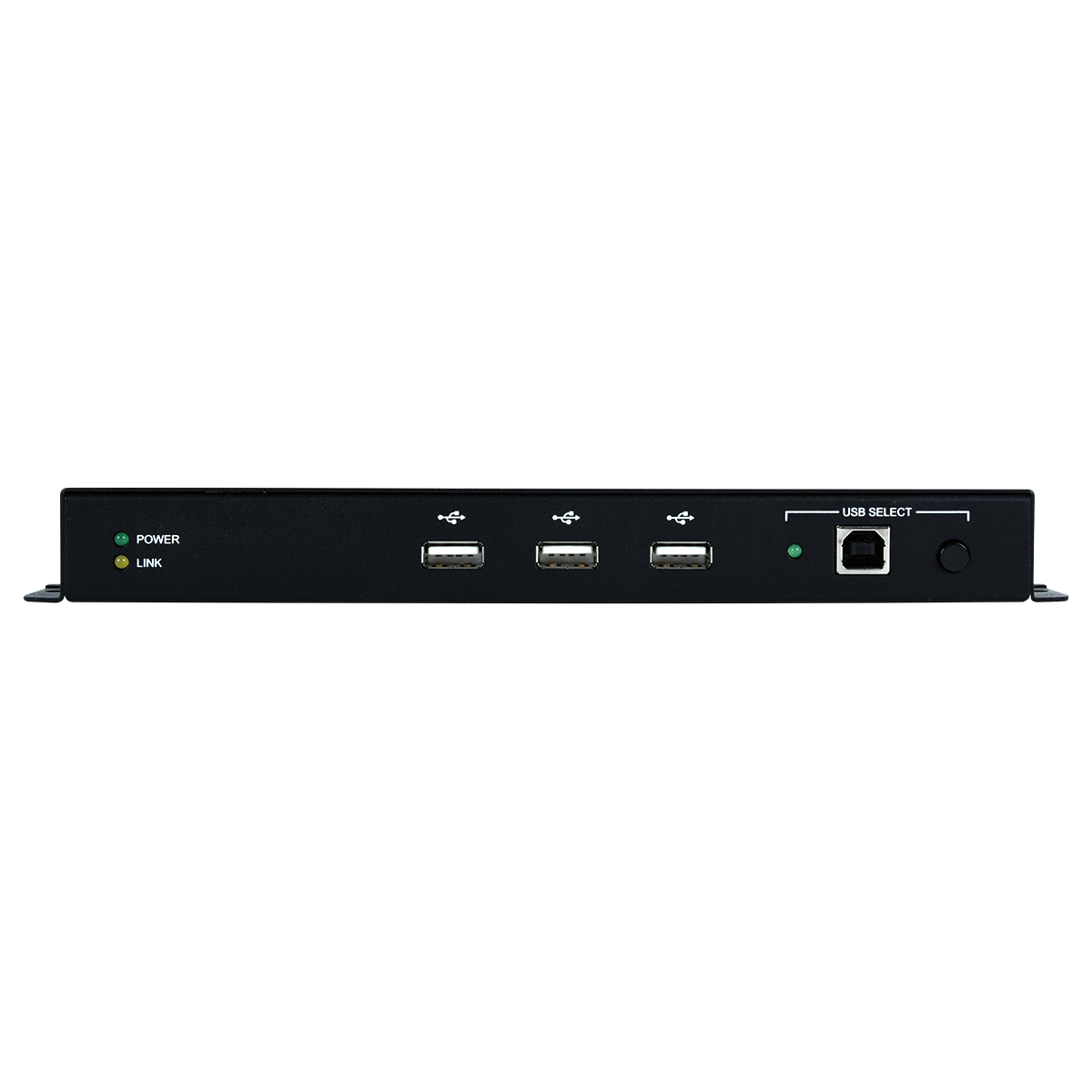

- 3 USB 2.0 Type A ports and 1 USB 2.0 Type B port
- HDBaseT input receives video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/230ft at 4K when using Cat.6a/7
- HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, PoH (PSE), and control (bi-directional IR/RS-232/USB 2.0)
- Supports CEC bypass
- Reception of independent analog stereo audio extension
- Flexible USB host selection using the front panel button
- Supports local power, or power via PoH from Receiver (PSE) to Transmitter (PD) (compatible Receivers only)
Brand:
Cypress Technology
Product Type:
UHD+ HDBaseT to HDMI Receiver with USB
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
3 USB 2.0 Type a Ports and 1 USB 2.0 Type B Port, HDBaseT Feature Support: HD Video and Audio, 100BaseT Ethernet, PoH (PSE), and Control (Bidirectional IR/RS-232/USB 2.0), Supports CEC Bypass, Reception of Independent Analog Stereo Audio Extension, Flexib
Applications:
Video, Audio
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Output Signal Type:
4K@60Hz YUV 4:4:0
Maximum Resolution:
4096x2160pixels@60Hz
Inputs and Ports
Input Port Type:
1xHDBT (RJ45)
Output Port Type:
1xHDMI-Type A, 1xTerminal Block
I/O Interface Type:

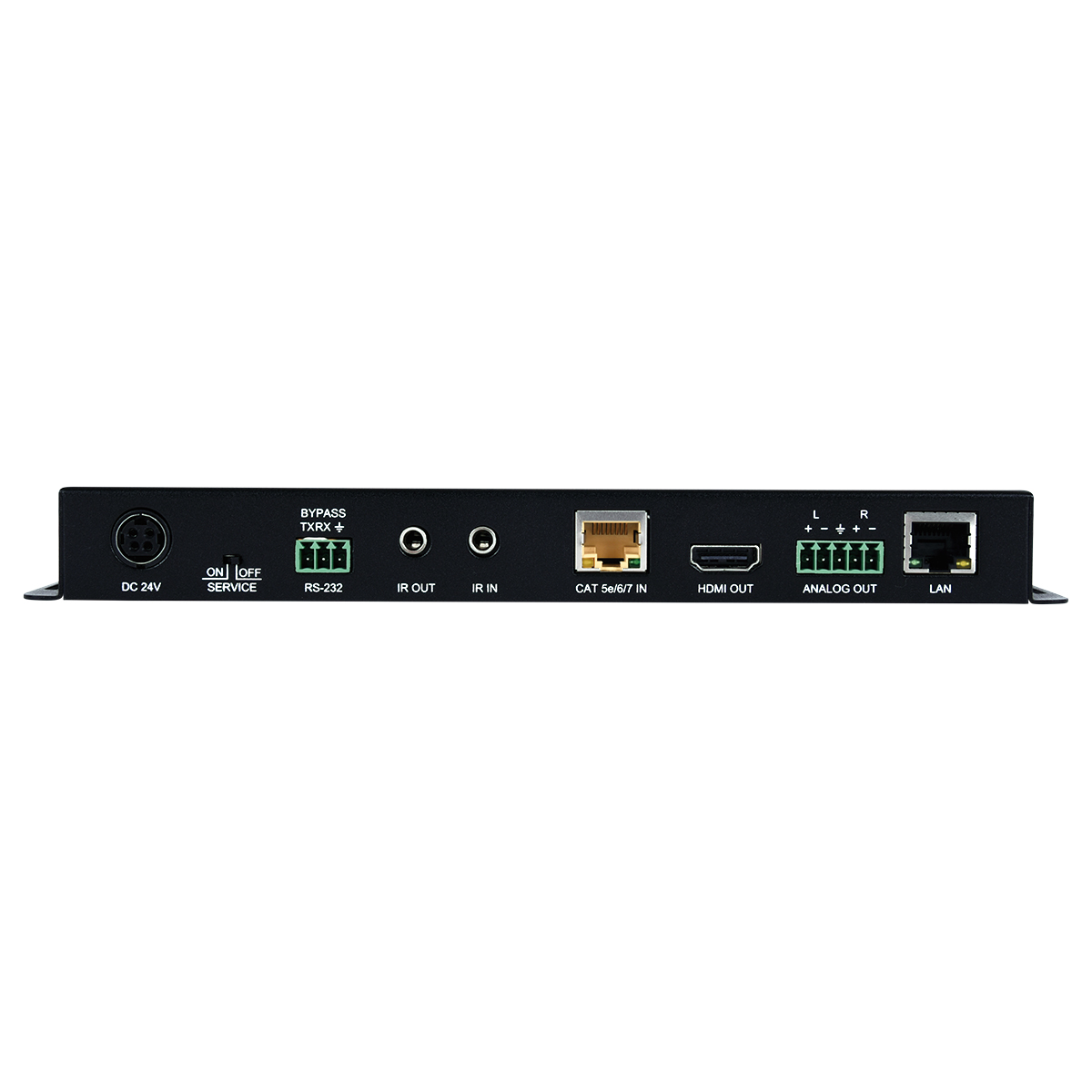

3xUSB Type A, 1xUSB Type B, 1xIR 3.5mm Extender, 1xIR 3.5mm Blaster, 1xRS-232 (3-Pin Terminal Block), 1xLAN (RJ45)
Input Signal Type:
4K@60Hz YUV 4:2:0
Power
Current Rating:
2.7A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
11cm
Height:
10.8cm
Weight:
647g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
