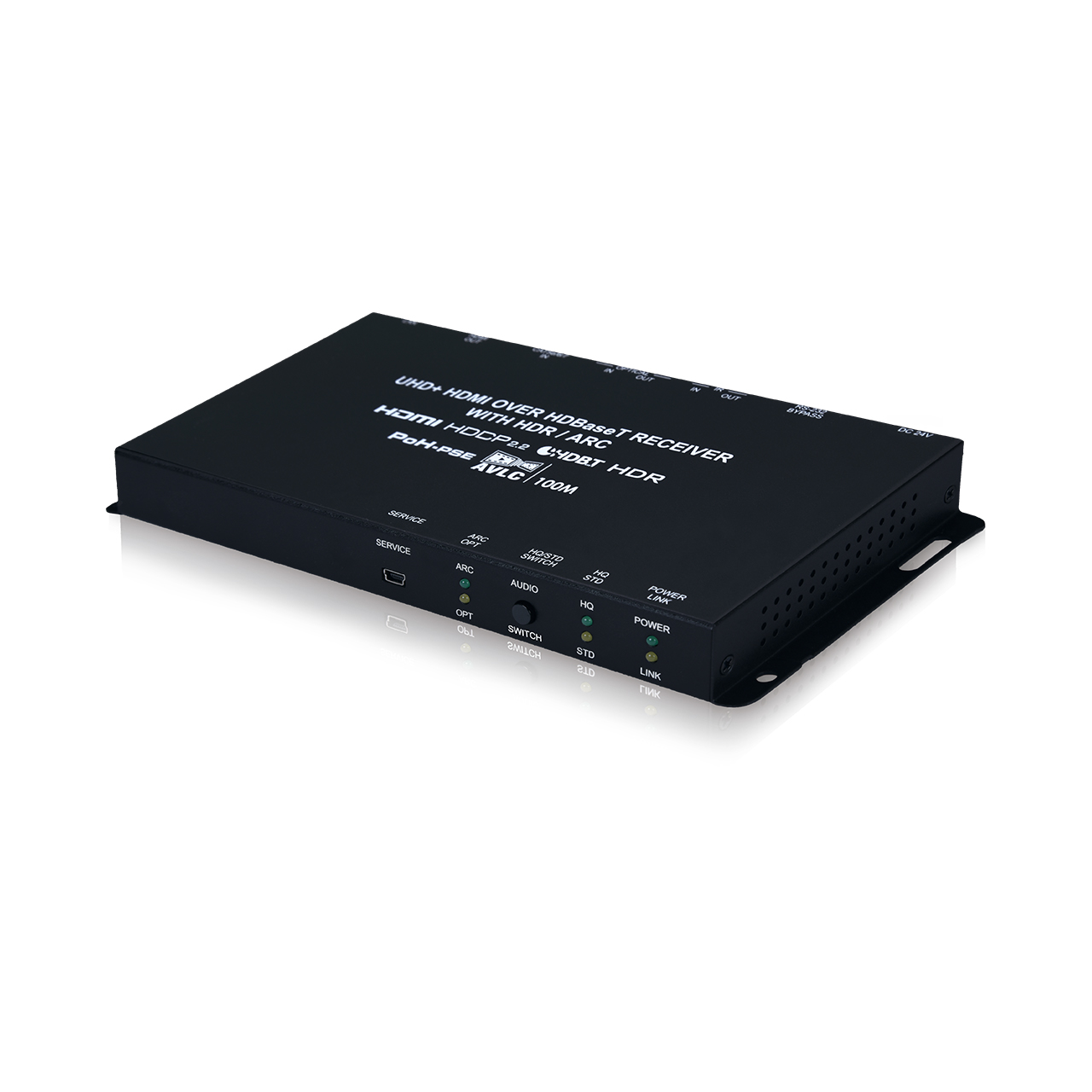

CH-2605RXV UHD+ HDMI over HDBaseT Receiver with HDR/ARC
Please sign in so that we can notify you about a reply
This HDBaseT 2.0 Receiver provides for the reception of 4K video with HDR and high bitrate audio over a single Cat.6a/7 cable at distances of up to 100m (328 feet). This Receiver complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be received and processed by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Transmitter. This Receiver can also pass RS-232, IR, Ethernet, and multiple audio streams across the same cable that carries the video signal. The selectable Audio Return Channel (ARC)/bi-directional optical audio feature allows audio generated by an ARC-enabled TV to be to be sent back to the Transmitter and output over the optical output for local playback, or for optical audio to be exchanged bi-directionally between the Transmitter and Receiver. The 48V PoH (Power over HDBaseT) feature allows a compatible connected Transmitter to be powered directly by the Receiver, eliminating the need for a separate power supply for the Transmitter.
Features
- Supports CEC bypass
- HDBaseT input receives video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6a/7
- HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH (PD), bi-directional optical audio and Control (bi-directional IR/RS-232 pass-through)
- Integrated AVLC (Adaptive Visually Lossless Compression) allows for sources up to 18Gbps (600MHz) to be received from a compatible Transmitter with no loss of visual quality
- Selectable Audio Return Channel (ARC)/bi-directional optical audio functionality
- Supports standard 48V PoH from Receiver to Transmitter (compatible Transmitters only)
Note:
The 48V PoH function is designed for powering compatible Transmitter units only. Non-PoH Transmitters will need their own power supply. Transmitters from other brands may not be compatible.
Brand:
Cypress Technology
Product Type:
UHD+ HDMI Over HDBaseT Receiver
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Supports CEC Bypass, HDBaseT Input Receives Video, Audio and Data Over a Single CAT.5e/6/7 Cable and can Reach Distance Up to 100m/328ft at 4K When Using CAT.6a/7, Integrated AVLC (Adaptive Visually Lossless Compression) Allows for Sources Up to 18Gbps (6
IR Frequency:
30 to 50kHz
Applications:
Home Theatre, Presentation, Multimedia, Cinemas, Stores, Entertainment Centres, Video Production, Broadcast Facilities, Retail Stores, Point-Of-Sale Systems, Digital Signage
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Video Bandwidth:
10.2Gbps
Output Signal Type:
4K@60Hz 8bits YUV 4:2:0, HDR
Maximum Resolution:
4096x2160pixels@60Hz

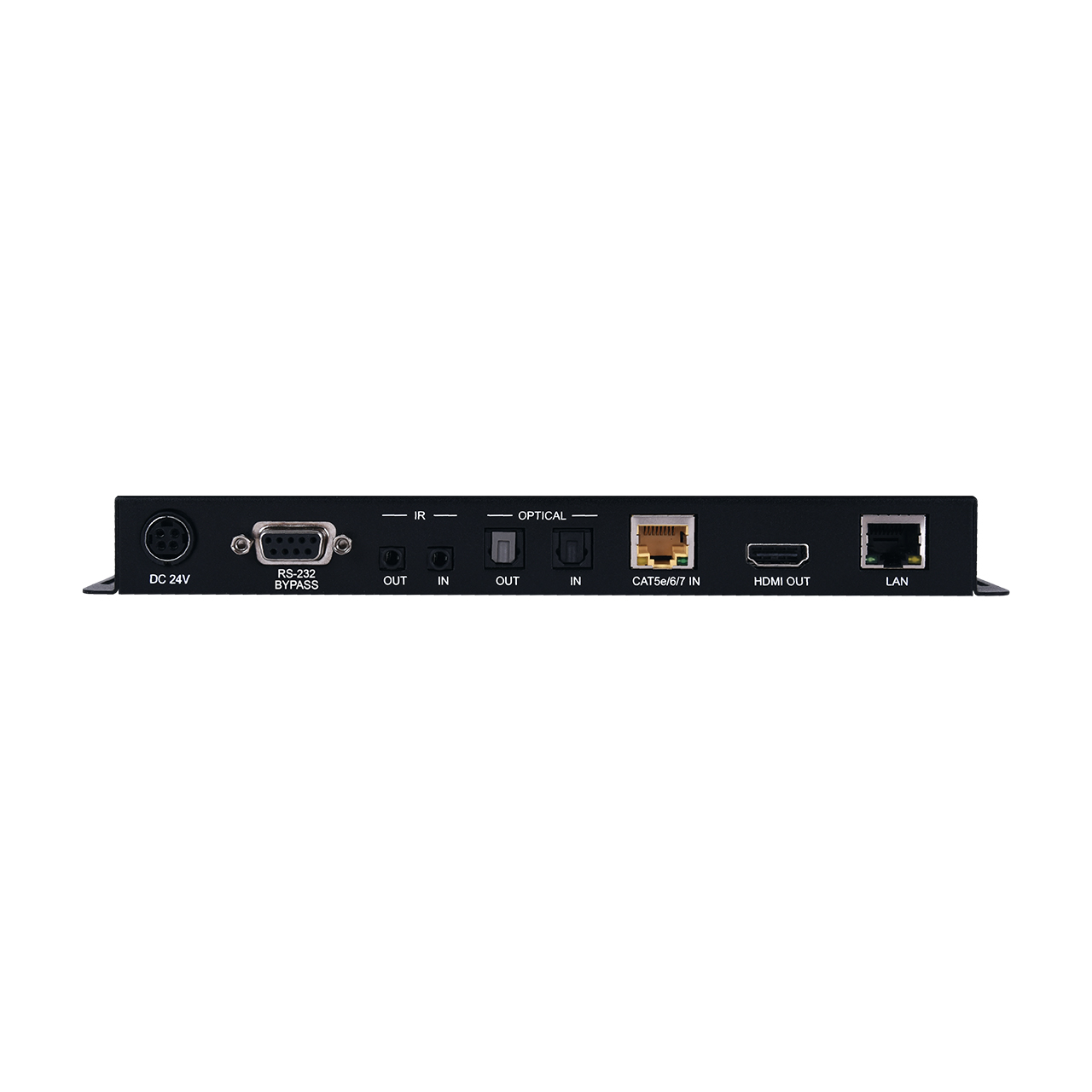

Inputs and Ports
Input Port Type:
1xHDBaseT (RJ45), 1xS/PDIF (TOSLINK)
Output Port Type:
1xHDMI-Type A, 1xS/PDIF (TOSLINK)
I/O Interface Type:
1 IR Extender (3.5mm), 1 IR Blaster (3.5mm), 1 RS-232 (DE-9), 1 LAN (RJ45)
Input Signal Type:
4K@60Hz 8bits YUV 4:2:0, HDR
Power
Current Rating:
2.7A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
11.5cm
Height:
10.8cm
Weight:
660g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
