CH-2603RX HDMI/HDBaseT/USB to HDMI Receiver
Please sign in so that we can notify you about a reply

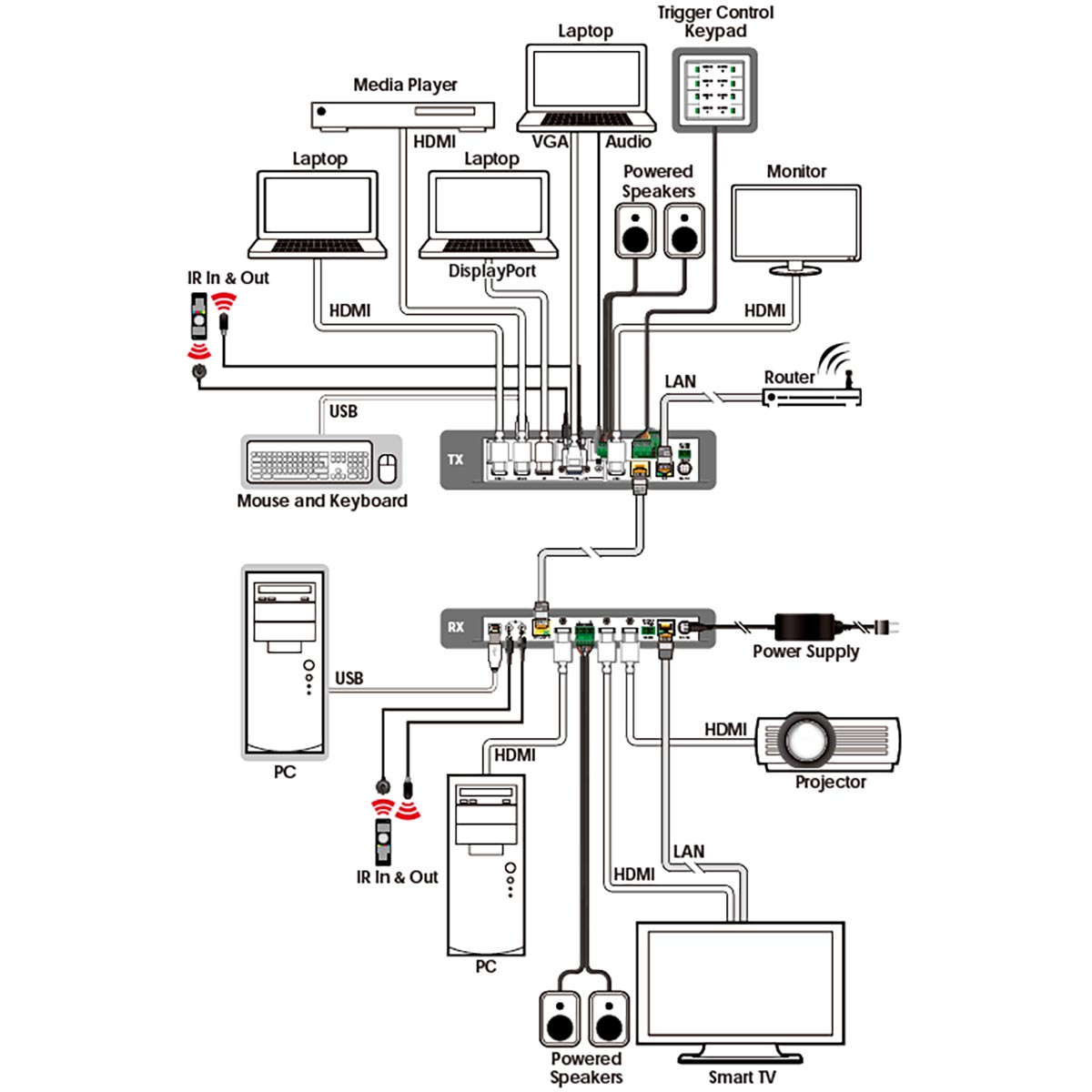

This HDBaseT 2.0 Receiver is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. With a 2 by 2 matrix arrangement of HDBaseT & HDMI inputs and dual HDMI outputs this Receiver can handle a variety of source routing scenarios. The HDMI input and outputs support resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit) while the HDBaseT input supports resolutions up to a maximum of 4K@60Hz (YUV 4:2:0, 8-bit). A balanced analog stereo audio breakout is also provided (LPCM 2.0 sources only) allowing for professional local powered speakers to be easily added to the system. The HDBaseT input not only supports video and audio but also bi-directional Ethernet, RS-232, USB, and IR.When paired with this unit’s standard Transmitter, up to 3 switchable USB 2.0 host (Type B) connections are available (2 on the Transmitter, 1 on the Receiver) which connect to 6 USB 2.0 (Type A) device ports (3 on the Transmitter, 3 on the Receiver) for a multi-source, bi- irectional, and highly flexible KVM configuration (Note: Only 1 USB host may be active at a time).This Receiver (PSE) can provide PoH (Power over HDBaseT) power to the connected HDBaseT Transmitter (PD) (compatible Transmitters only), allowing for greater flexibility within different installation scenarios. This unit is controllable via front-panel controls, WebGUI, Telnet, and RS-232.
Features
- 2×2 matrix switching (both HDMI outputs are independent)
- Supported HDBaseT features: HD video and audio, 100BaseT Ethernet, PoH, and control (bi-directional IR/RS-232/USB pass-through)
- Balanced analog stereo audio breakout

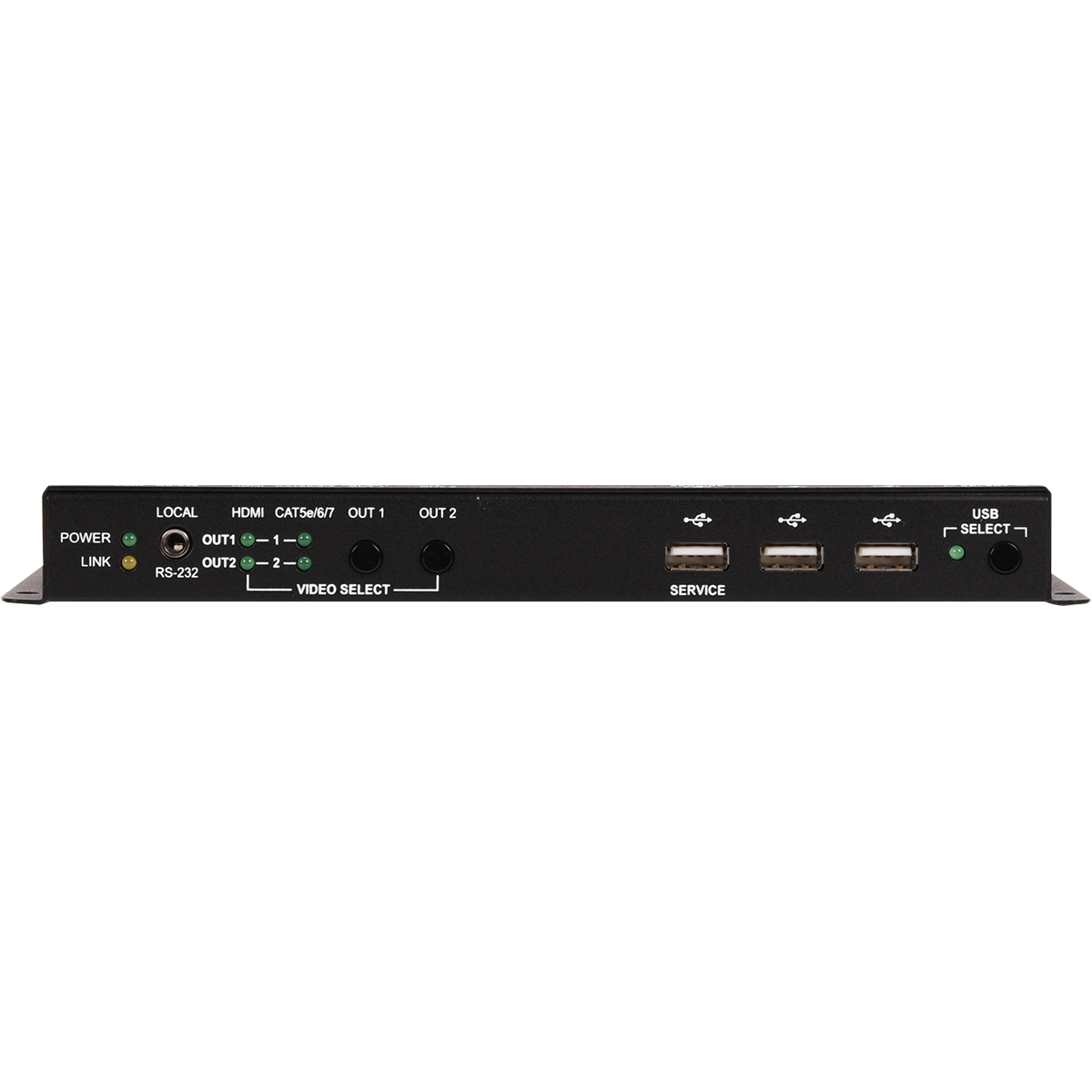

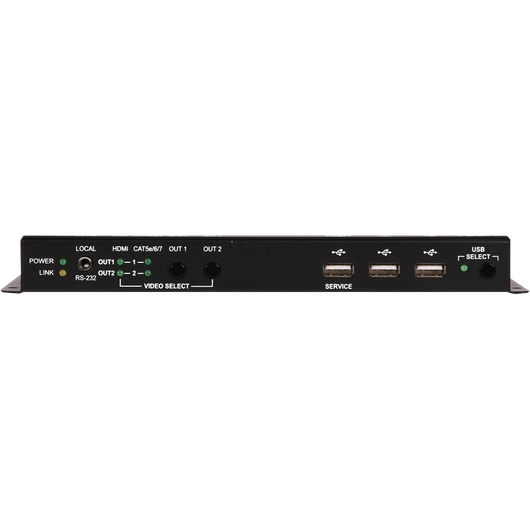

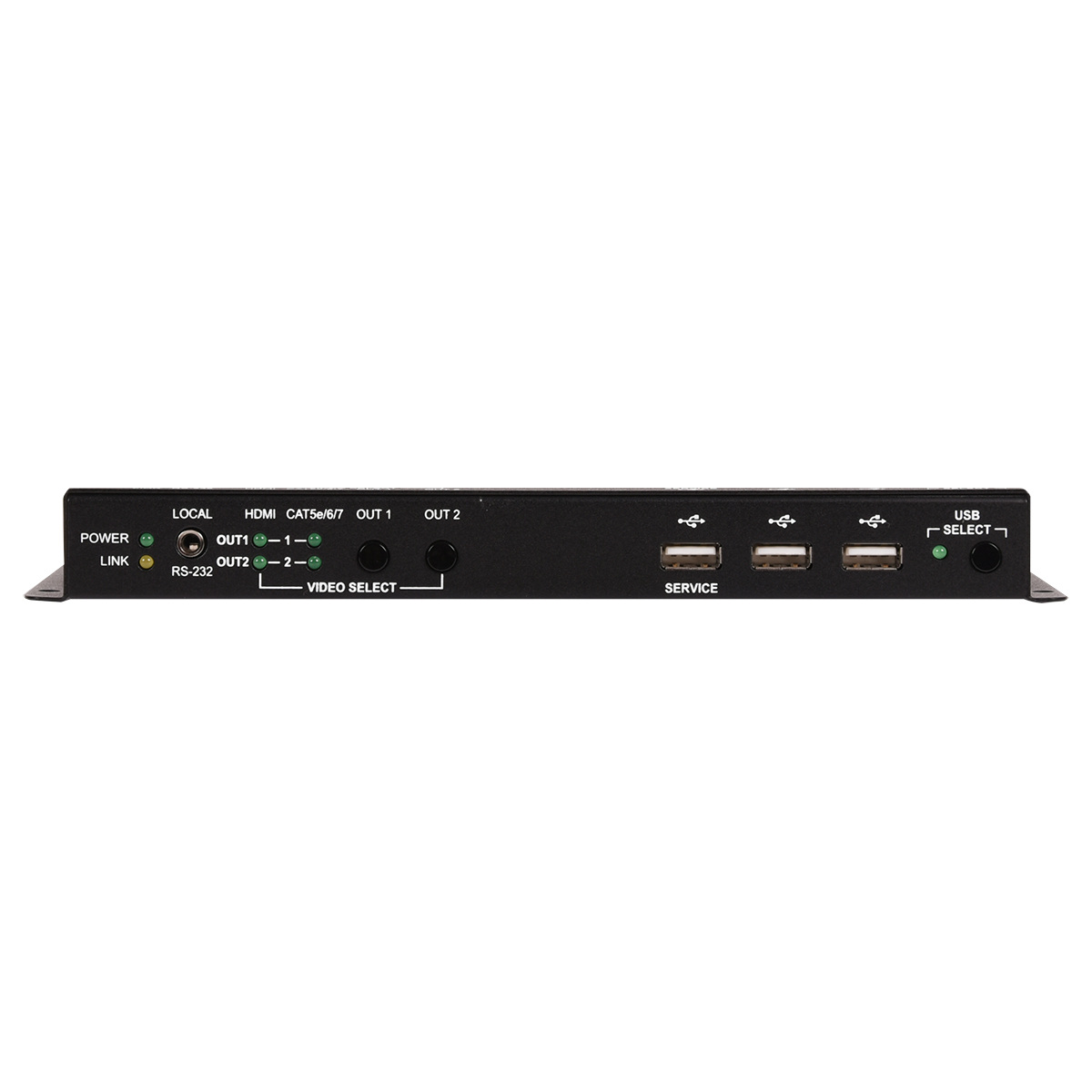

- Flexible USB host selection using front panel buttons
- Multiple USB hosts may be connected at once (up to 3 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
- Supports providing PoH power from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)
Brand:
Cypress Technology
Product Type:
HDMI/HDBaseT/USB to HDMI Receiver
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
2x2 Matrix Switching (Both HDMI Output are Independent), Balanced Analog Stereo Audio Breakout, Flexible USB Host Selection Using Front Panel Button, Multiple USB Hosts may be Connected at Once (up to 3 total, Between the Tx and a Compatible Rx Unit) with
IR Frequency:
30 to 50kHz
Applications:
Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Maximum Audio Level:
1VRMS
Output Signal Type:
HDMI 4K@60Hz 8bits YUV 4:4:4
Maximum Resolution:
4096x2160pixels@60Hz (HDMI), 4096x2160pixels@60Hz YUV 4:2:0 (HDBT), 4096x2160pixels@60Hz (HDMI)
Inputs and Ports
Input Port Type:
1xHDMI -Type A, 1xHDBaseT (RJ45)
Output Port Type:
2xHDMI-Type A, 1xBalanced Stereo (5-Pin Terminal Block)
I/O Interface Type:
1 LAN (RJ45), 1 RS-232 (3.5mm)
Input Signal Type:
YUV 4:2:0, 8bits
Power
Current Rating:
3.75A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
16.7cm
Height:
4.4cm
Weight:
928g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
