CH-2540RX UHD+ HDMI over HDBaseT Receiver with Amplifier
Please sign in so that we can notify you about a reply

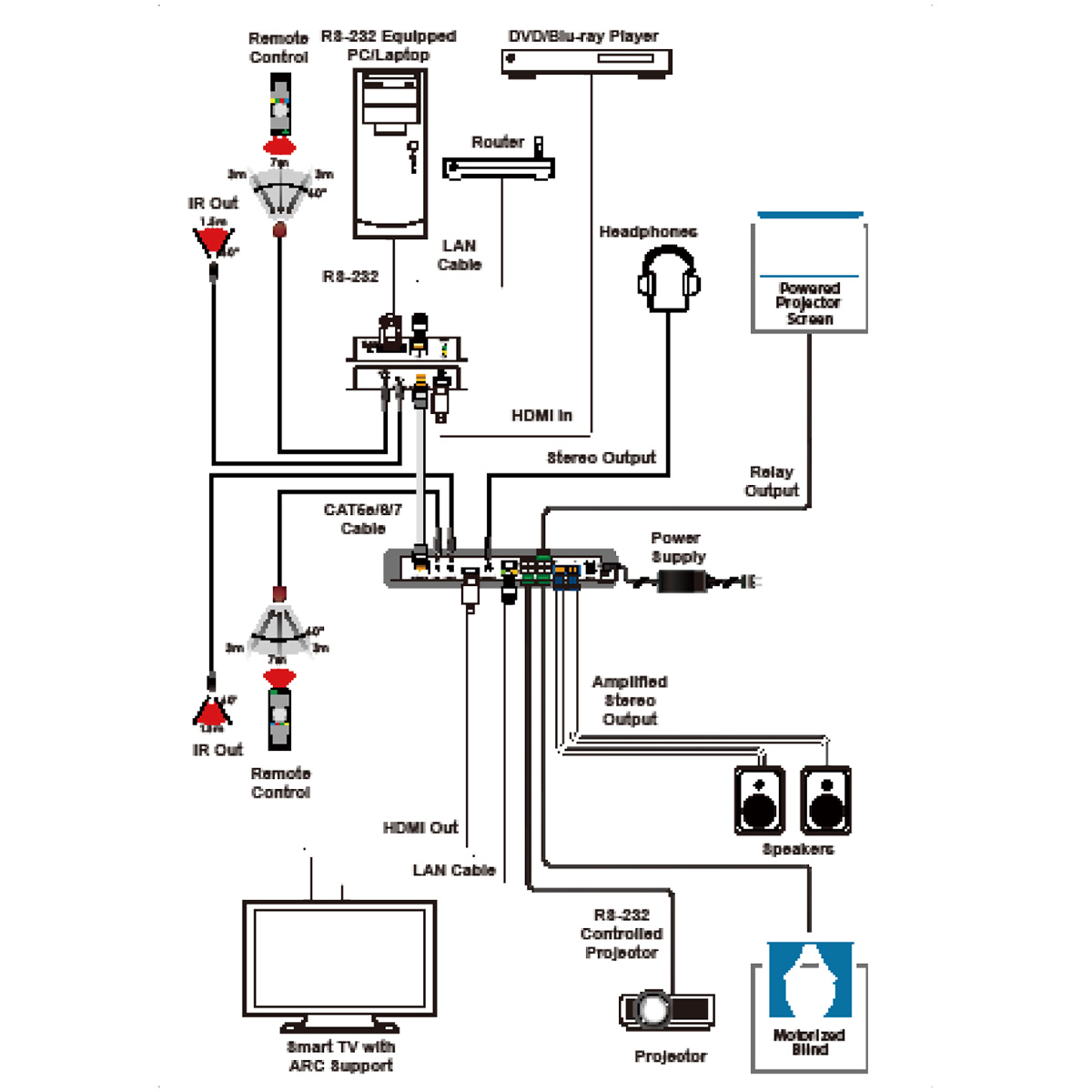

This UHD+ HDMI over HDBaseT Receiver with Amplifier is a 2 by 1 switch with standard HDMI and HDBaseT inputs and an HDMI output as well as amplified stereo audio output. The integrated headphone mini-jack and class D stereo amplifier with 20 watts of power per channel provide easy ways to extract audio from the current selected source (LPCM 2.0 sources only) for local playback, offering a flexible sound experience with volume control. Additionally, the automatic switching function allow this receiver to provide friendly user experience and is ideal for use in residential or commercial point to point applications that require long HDBaseT signal transmission distances such as home theaters, conference rooms, huddle rooms, or lecture halls.
Features
- Supports Deep Color input and output up to 12-bit at 1080p60
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (HDMI bypass only)
- Supports CEC bypass
- Comprehensive EDID and HDCP management
- HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, PoH (PSE) and Control (bi-directional IR/RS-232 pass-through)
- HDBaseT input receives video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6A/7
Brand:
Cypress Technology
Product Type:
UHD+ HDMI Over HDBaseT Receiver
Specifications
Maximum Operating Temperature:
+40°C
Number of Channels:
Special Features:
Supports Deep Color Input and Output Up to 12bits at 1080p60, Supports 10bits and 12bits HDR (High Dynamic Range) Input/Output (HDMI Bypass Only), Supports CEC Bypass, Comprehensive EDID and HDCP Management, HDBaseT Input Receives Video, Audio and Data Ov
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.x
Maximum Audio Level:
2VRMS
Output Signal Type:
4K@60Hz 8bits YUV 4:4:4
Baud Rate:
Up to 115200bps
Maximum Resolution:
4096x2160pixels@60Hz

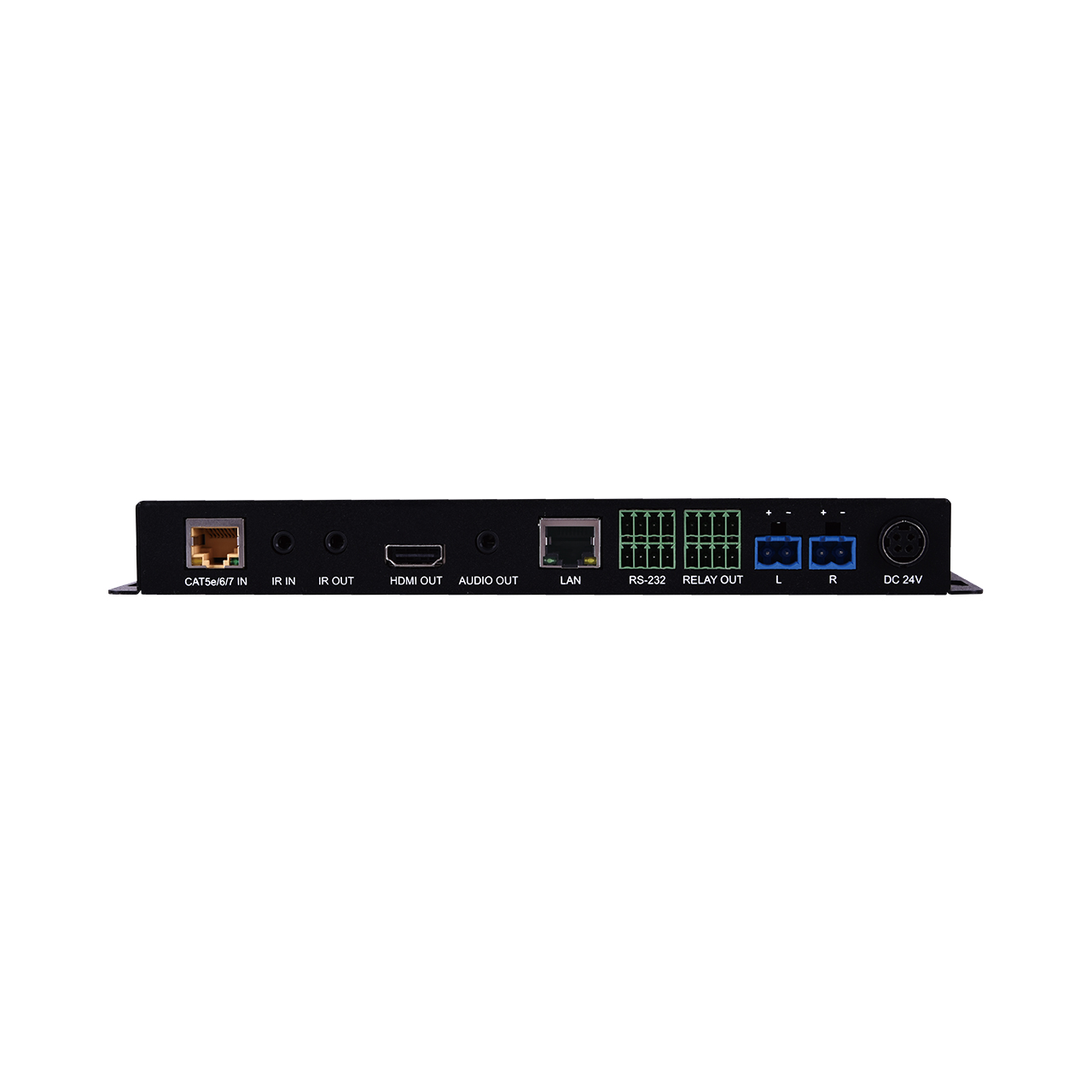

Inputs and Ports
Input Port Type:
1xHDMI -Type A, 1xHDBaseT (RJ45)
Output Port Type:
1xHDMI-Type A, 1x3.5mm Stereo Audio, 1xStereo Audio (2x2-Pin Term. Block)
I/O Interface Type:
1 RS-232 (4-Pin Terminal Block), 1 LAN (RJ45)
Input Signal Type:
HDMI 4K@60Hz 8bits YUV 4:4:4, HDMI 4K@60Hz 8bits YUV 4:2:4
Power
Current Rating:
3.75A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
11.2cm
Height:
2.5cm
Weight:
679g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
