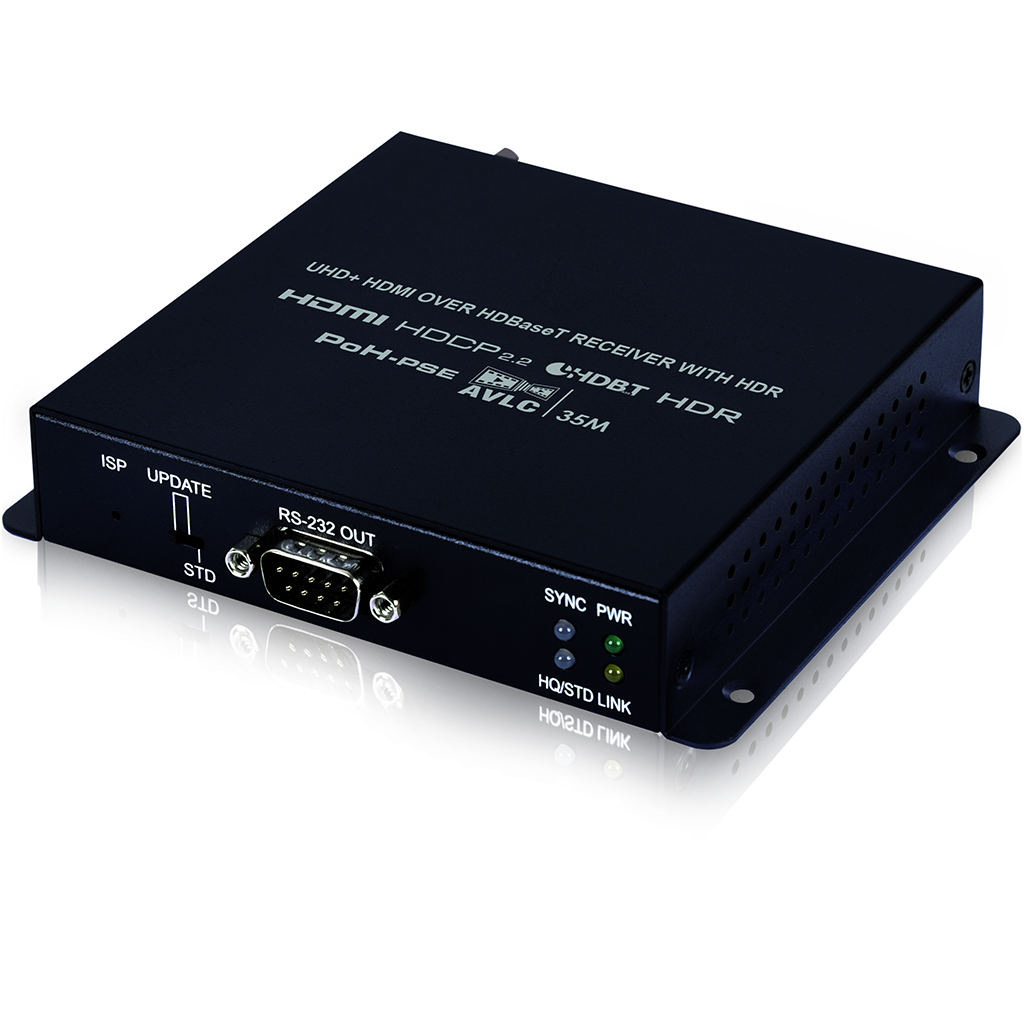

CH-2527RXPLV UHD+ HDMI over HDBaseT Receiver with HDR
Please sign in so that we can notify you about a reply
This Receiver is a great solution for extending UHD video and audio as well as control via a single run of Cat.5e/6/7 cable over distances up to 35 meters. This Receiver complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed. Multiple data and control interfaces are also provided, including IR and RS-232 connections. This Receiver (PSE) can provide 48V PoH (Power over HDBaseT) to a compatible Transmitter (PD), allowing for greater flexibility within different installation scenarios.
Features- HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant
- Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
- Supports Deep Color input and output up to 12-bit
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
- Supports CEC bypass Simultaneous reception of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 60m/197ft at 1080p and 35m/115ft at 4K@60 4:2:0 HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (bidirectional IR/RS-232 pass-through) Support for compatible AVLC (Adaptive Visually Lossless Compression) Transmitters, allowing for the output of HDMI sources that were originally beyond 10.2Gbps (340MHz) and up to 18Gbps (600MHz) with no loss of visual quality
- Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)
