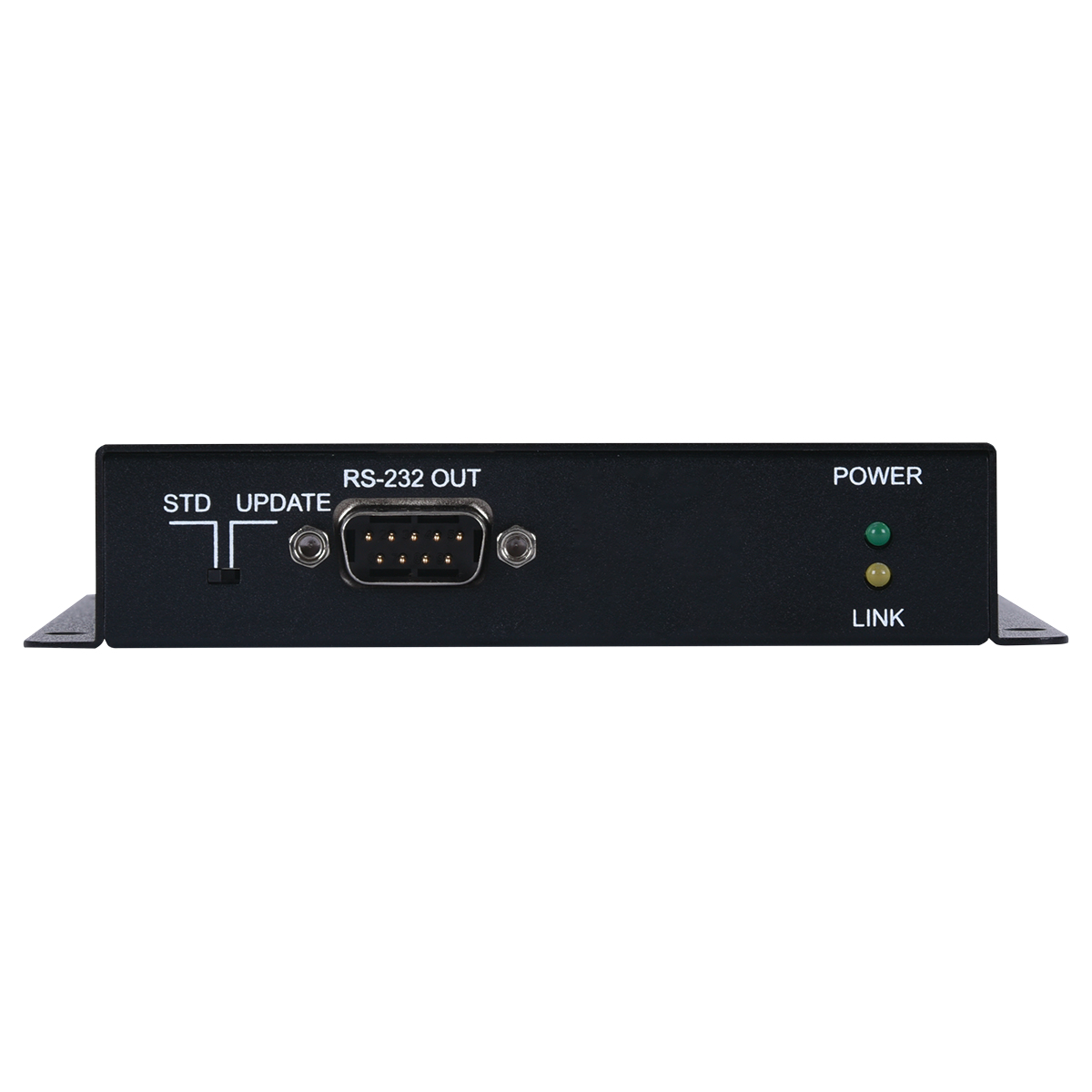

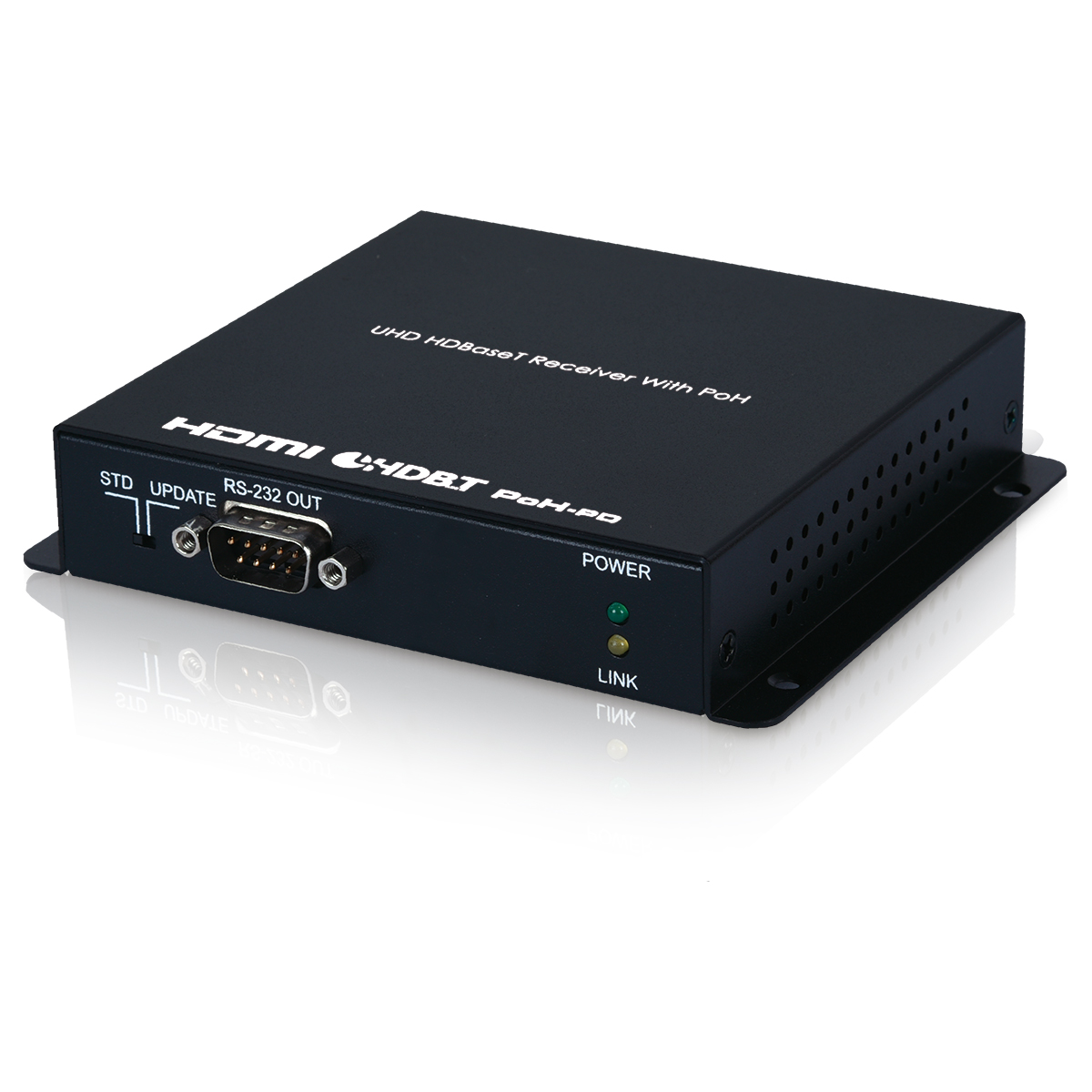

CH-2527RXPL UHD HDMI over HDBaseT Receiver with PoH
Please sign in so that we can notify you about a reply
This transmitter and receiver set is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The Transmitter (PD) is powered by 48V PoH (Power over HDBaseT) provided by the Receiver (PSE), allowing for greater flexibility within different installation scenarios.
Features- HDMI with 3D & 4K support
- Supports CEC bypass
- Simultaneous transmission of uncompressed video, audio and data over a single 70m/230ft Cat.5e/6/7 cable at 1080p60 and 35m/115ft at 4K
- HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
- Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)
Brand:
Cypress Technology
Specifications
Product Type:
UHD HDMI Over HDBaseT Receiver with PoH
Maximum Operating Temperature:
+40°C
Special Features:
HDMI with 3D and 4K Support, Supports CEC Bypass, HDBaseT Feature Support: HD Video and Audio, 48V PoH, and Control (Bidirectional IR/RS-232 Pass-Through)
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Video Bandwidth:
10.2Gbps
Output Signal Type:
4K@60Hz 8bits YUV 4:2:0
Maximum Resolution:
4096x2160pixels@60Hz YUV 4:2:0

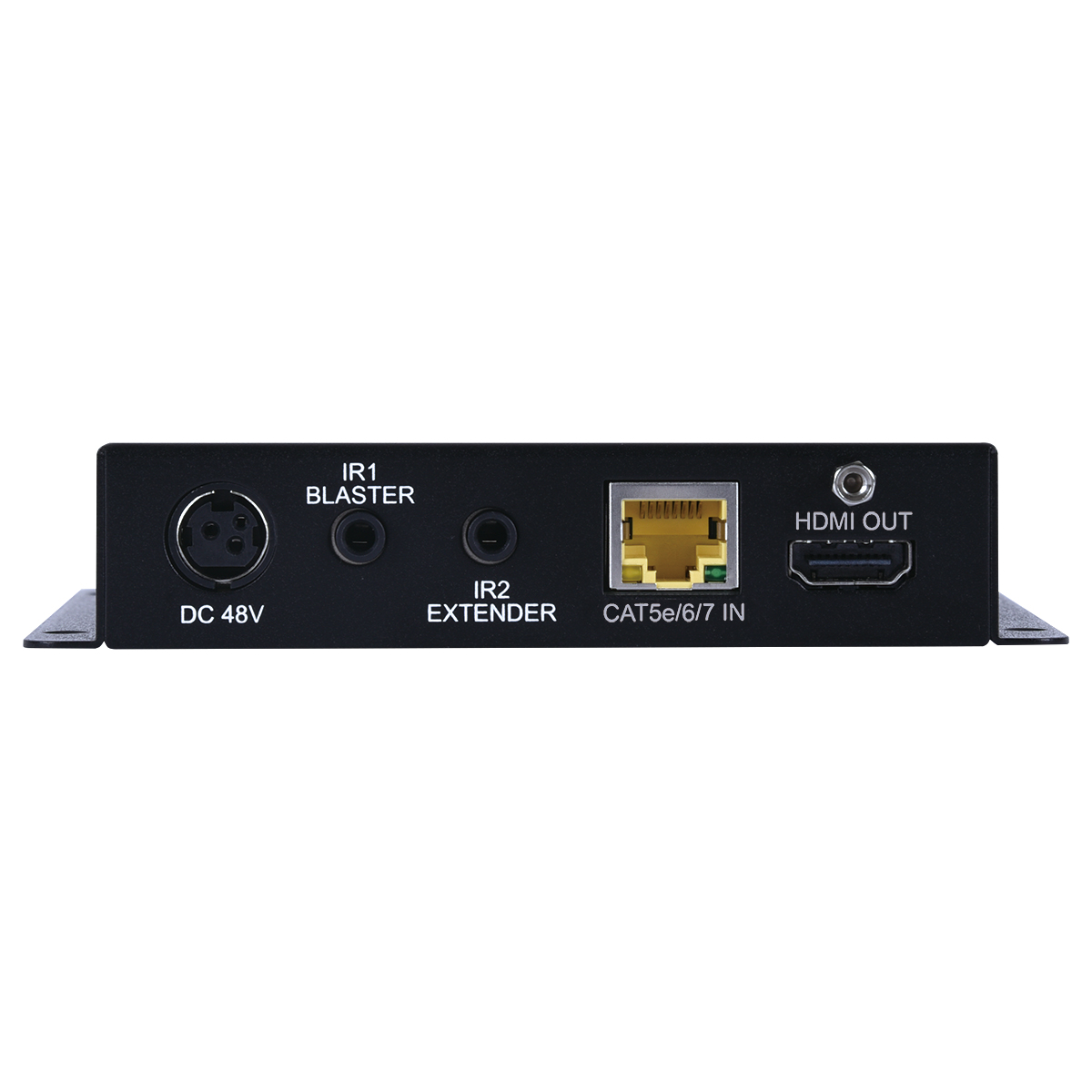

Inputs and Ports
Input Port Type:
1xCAT5e/6/7, 1xOptical, 1xIR Extender
Output Port Type:
HDMI-Type A
I/O Interface Type:
Bi-Directional IR/RS-232 Pass-Through
Input Signal Type:
4K@60Hz 8bits YUV 4:2:0
Power
Current Rating:
0.83A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.8cm
Depth:
11.7cm
Height:
2.5cm
Weight:
366g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
