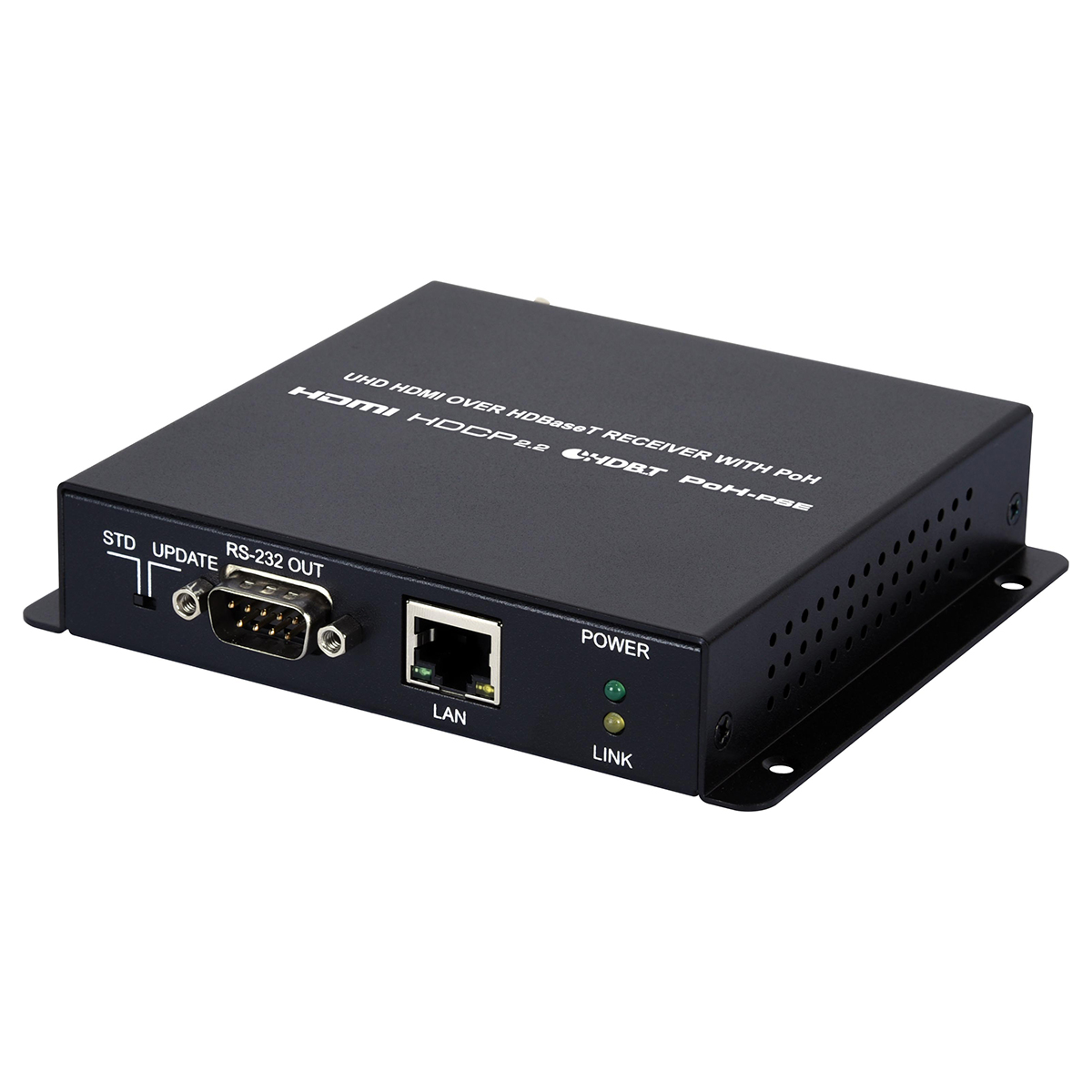

CH-2527RX UHD HDMI over HDBaseT Receiver with PoH
Please sign in so that we can notify you about a reply
This transmitter and receiver set is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 meters. Multiple data and control interfaces are provided, including IR, RS-232 and LAN connections. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The Transmitter (PD) is powered by 48V PoH (Power over HDBaseT) provided by the Receiver (PSE), allowing for greater flexibility within different installation scenarios.
Features
- HDMI with 3D & 4K support, DVI 1.0 compatible
- Supports resolutions up to 4K@50/60Hz (4:2:0, 8-bit)
- Supports CEC bypass
- Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat.5e/6/7 cable at 1080p60 and 70m/230ft at 4K
- HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
- Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)
Notes:
- The 48V PoH function is designed to power compatible Transmitter units only. Non-PoH Transmitters will need their own power supply. Other brands of Transmitter may not be compatible.
- The use of “Premium High Speed HDMI” cables is highly recommended for displaying 3D and 4K content and compatible display equipment is required.
Brand:
Cypress Technology
Product Type:
UHD HDMI Over HDBaseT Receiver with PoH
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
HDMI with 3D and 4K Support, DVI 1.0 Compatible, Supports CEC BypassL, Simultaneous Transmission of Uncompressed Video, Audio and Data Over a Single 100m/328ft CAT.5e/6/7 Cable at 1080p60 and 70m/230ft at 4K
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Video Bandwidth:
10.2Gbps
Output Signal Type:
4K@60Hz YUV 4:2:0
Maximum Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Inputs and Ports
Input Port Type:
HDBaseT (RJ45)
Output Port Type:
HDMI-Type A
I/O Interface Type:
1xLAN (RJ45)
Input Signal Type:
4K@60Hz YUV 4:2:0
Power
Current Rating:
0.83A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.8cm
Depth:
11.7cm
Height:
2.5cm
Weight:
366g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
