CH-1610RXPL UHD HDMI/USB to HDBaseT Receiver
Please sign in so that we can notify you about a reply
The HDMI over single CAT5e/6/7 Receiver set can send uncompressed audio/video over a single run of CAT5e/6/7 cable at a distance up to 35 meter. Multi-control interfaces are available which includes IR, RS-232 and USB connection. This extender complies with advanced protocols of HDCP2.2 and HDMI 2.0, as well as supporting the legacy HDCP 1.x standards.
Features
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI HDBaseT 2.0 compatible HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 35m
- Supports UHD resolutions up to 3840×2160@60Hz (4:2:0, 8-bit) & 4096×2160@60Hz (4:2:0, 8-bit)
- Supports 16-bit Deep Color up to 1080p@60Hz
- Supports standard 48V from Transmitter (PSE) to Receiver (PD)
Brand:
Cypress Technology
Specifications
Product Type:
UHD HDMI/USB to HDBaseT Receiver
Maximum Operating Temperature:
+50°C
Number of Channels:
Special Features:
Supports Pass-Through of Audio Formats Including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream Over HDMI, HDBaseT 2.0 Compatible, Simultaneous Transmission of Uncompressed Data Over a Single CAT5e/6/7 Cable Up to 35m, Supports UHD Resolutions Up to 3840x21
Applications:
Household Entertainment Sharing and Control, Lecture Hall/Classroom Display and Control, Meeting Room Presentation and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.2
Output Signal Type:
4K@60Hz, YUV 4:2:0
Maximum Resolution:
4096x2160pixels@60Hz YUV 4:2:0

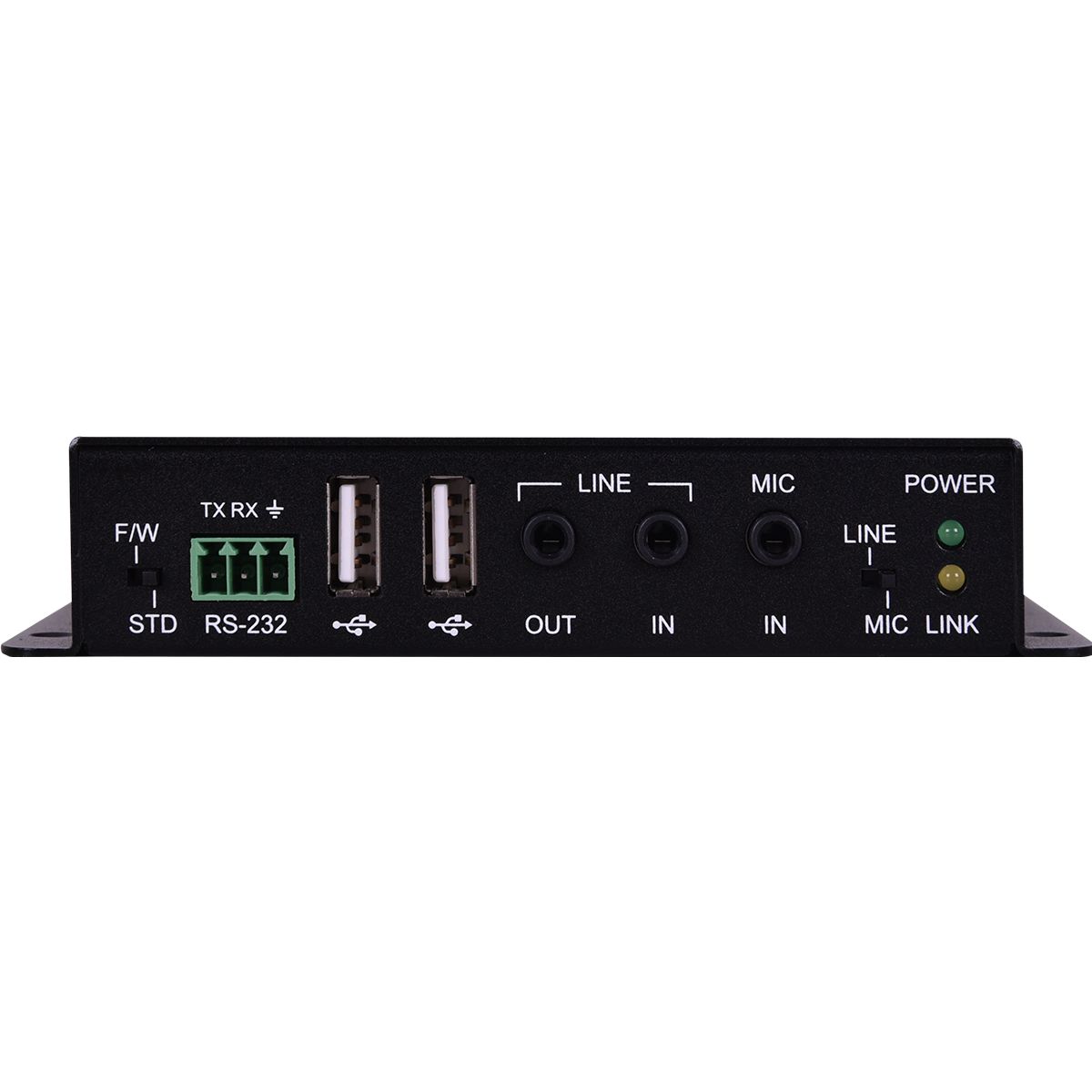

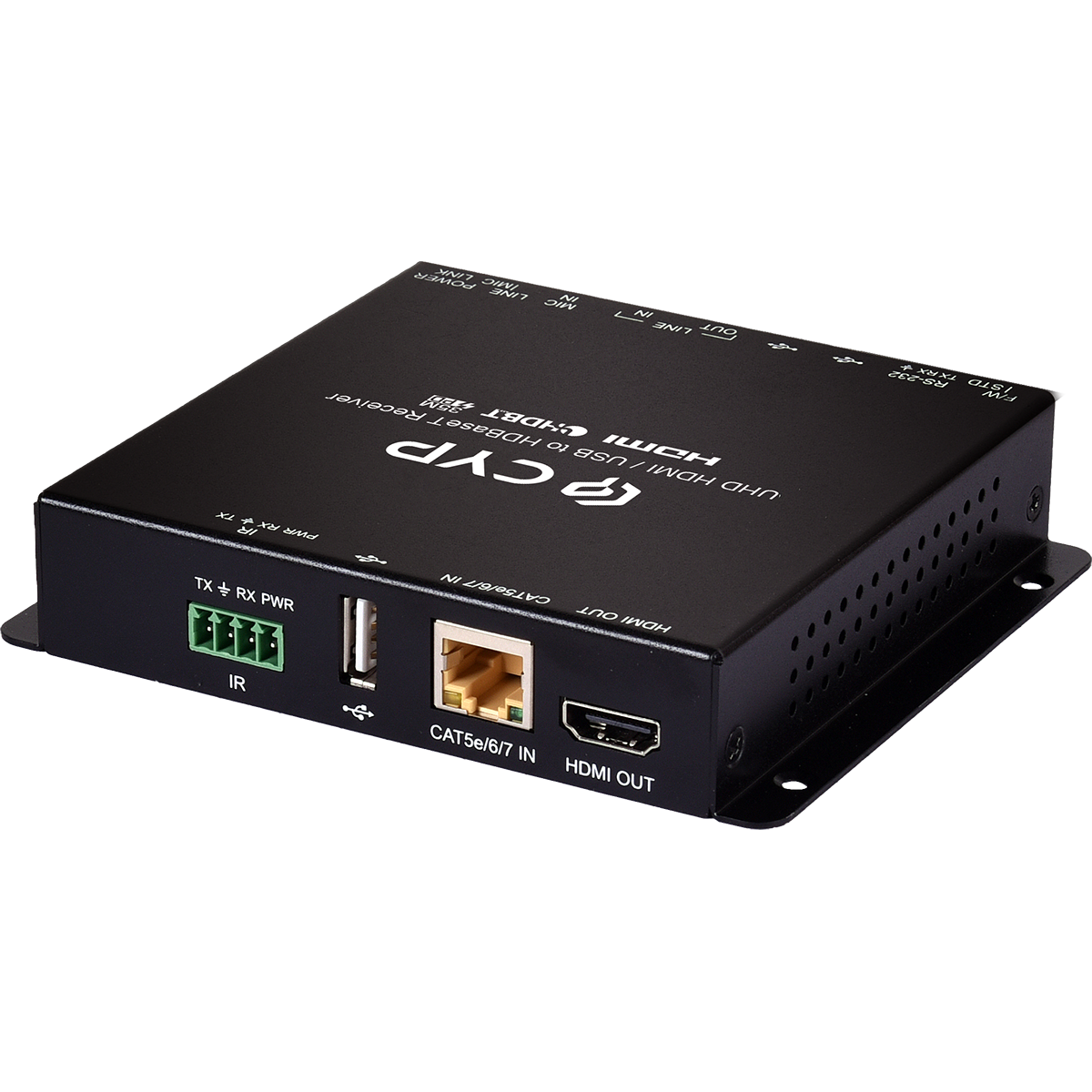

Inputs and Ports
Input Port Type:
1xStereo Audio Input, 1xMicrophone Input, 1xHDBaseT (RJ45)
Output Port Type:
1xHDMI-Type A, 1x Stereo Audio Output
I/O Interface Type:
1xIR In/Out (4-Pin Terminal Block), 1xRS-232 (3-Pin Terminal Block), 3xUSB 2.0-Type A
Input Signal Type:
4K@60Hz YUV 4:2:0
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.8cm
Depth:
11.1cm
Height:
10.8cm
Weight:
392g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
