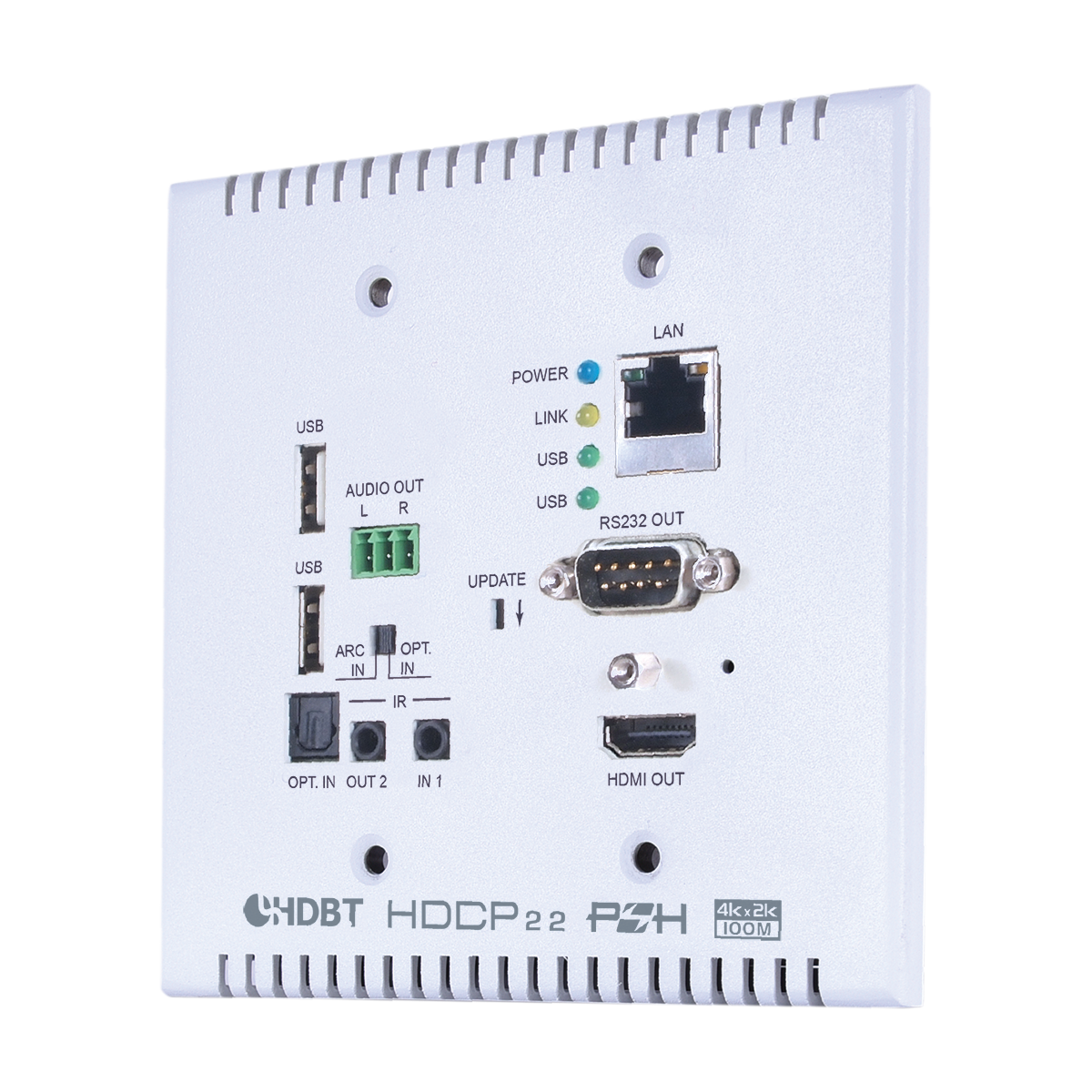

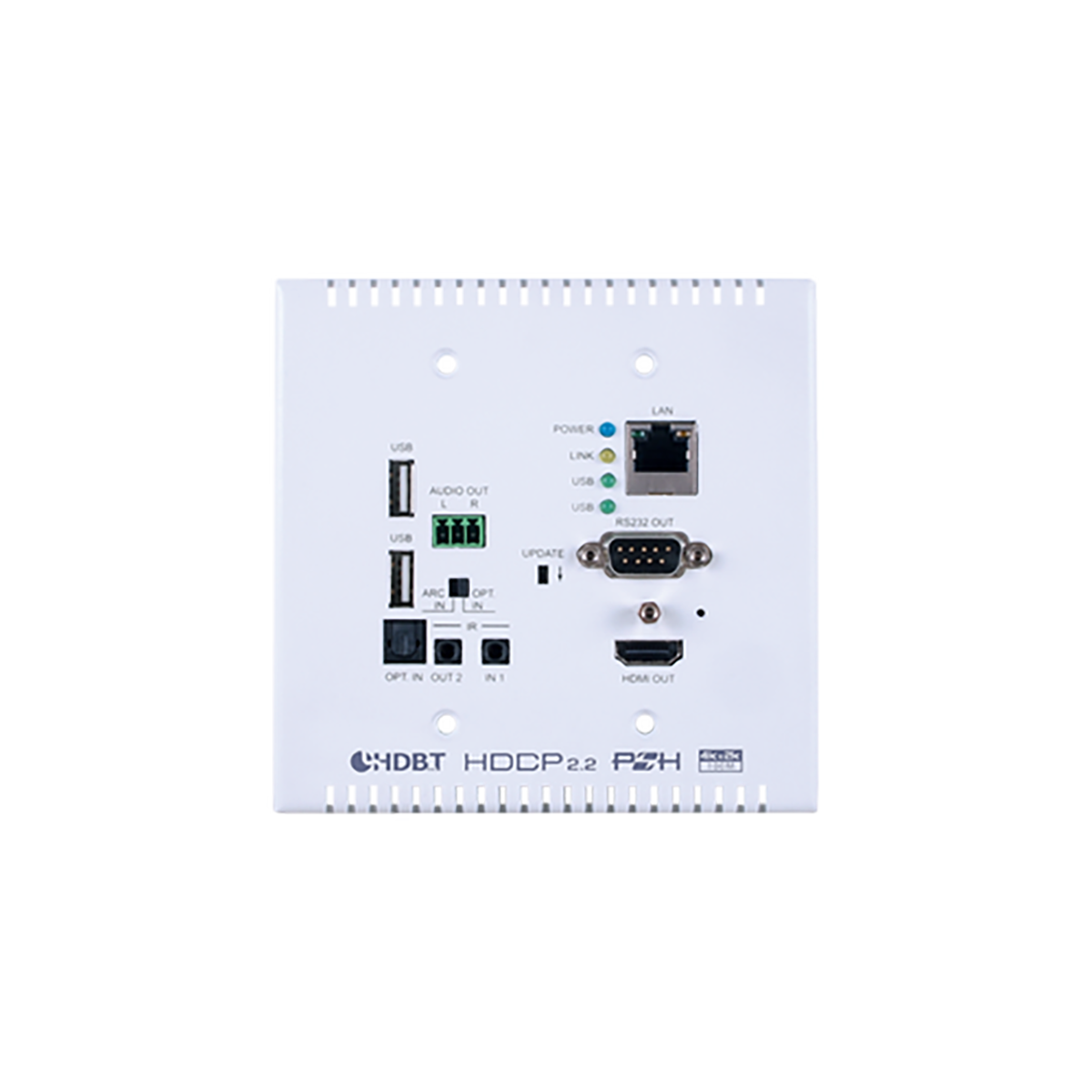

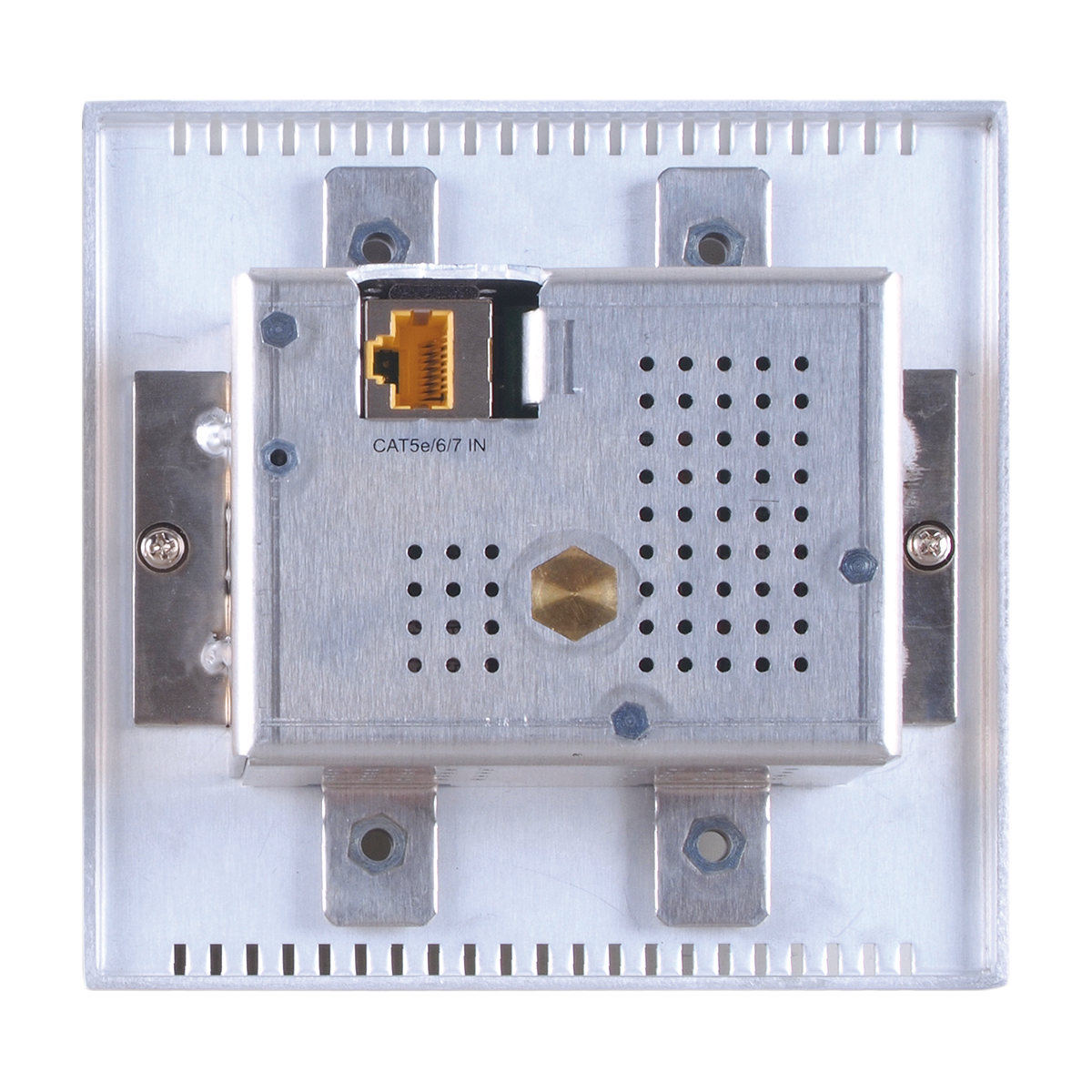

CH-1602RXWPUS 4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR, RS-232, PoH (PD), LAN, USB/KVM & ARC (2 Gang US)
Please sign in so that we can notify you about a reply
This HDMI and Audio over Single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video along with controls, IP and USB data over a single run of CAT5e/6/7 cable up to 100m. It has the added benefit of control through the built-in RS-232 and IR ports. With LAN serving connection and external digital and analog audio capability that gives users the convenience of additional audio connection. This system also allows the connection of any USB host, enabling a USB connection to up to 2 USB ports, giving the Receiver the ability to act like a USB hub. The 48V PoH design can power the Receiver (PD) from the Transmitter (PSE), eliminating the need for a separate power supply for the Receiver.
Features
- Supports HDBaseT 2.0 specification transmitting 4K@30 or 4K@60 YUV420 video signal over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft
- Receiver features 2 USB 2.0 ports
- HDMI (with 3D & 4K2K@60 YUV420 support), HDCP 2.2 and DVI compatible
- HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, Power over HDBaseT (PoH) and Control (Bidirectional IR/RS-232 passthrough)
- Supports passthrough of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD & DTS-HD Master Audio
- Supports 10/100 Ethernet network connection?Supports external analog and digital audio transmission?Supports ARC function from HDMI out to both HDMI in and optical output
- Supports RS-232 baud rate from 110~115200bps
- US 2 gang wall-plate design and installation friendly
Brand:
Cypress Technology
Product Type:
HDMI Over HDBaseT Wallplate Receiver with IR, RS-232, PoH
Specifications
Maximum Operating Temperature:
+40°C
IR Frequency:
30 to 50kHz
Applications:
48V PoE from Transmitter (PSE) to Receiver (PD), Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDCP Compliance Type:
2.2
Video Bandwidth:
10.2Gbps
Baud Rate:
Up to 115200bps
Inputs and Ports
Input Port Type:
1xCAT5e/6/7, 1xOptical, 1xIR Extender
Output Port Type:
1xHDMI, 2xUSB, 1xL/R (Terminal Block), 1xLAN, 1xIR Blaster, 1xRS-232
I/O Interface Type:
IR/RS-232
Input Signal Type:
YUV 420
Power
Current Rating:
0.83A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.5cm
Depth:
4.1cm
Height:
3.6cm
Weight:
264g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
