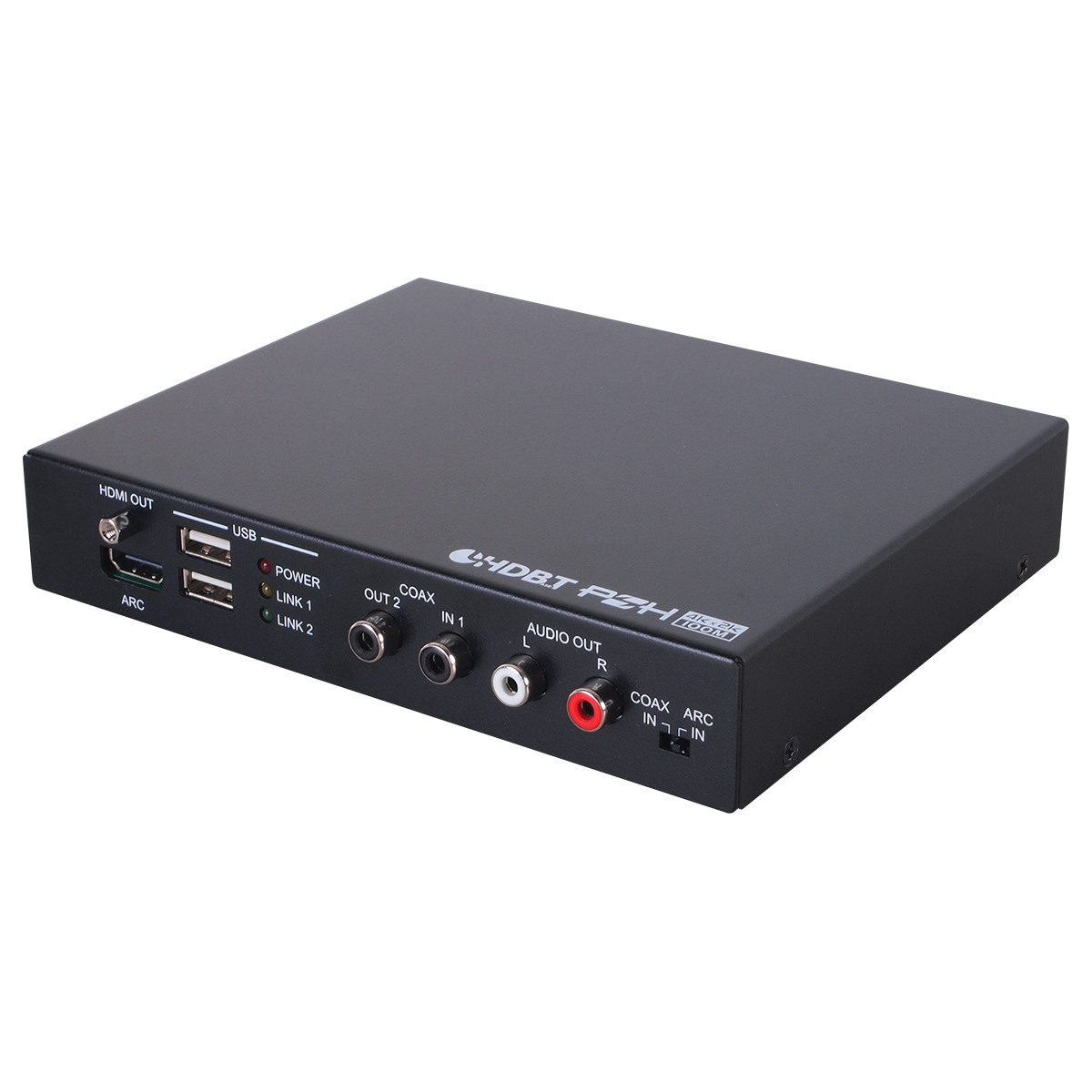

CH-1601RX HDMI/Audio over CAT5e/6/7 Receiver
Please sign in so that we can notify you about a reply
This HDMI and Audio over Single CAT5e/6/7 Receiver set can receive uncompressed audio/video along with controls, IP and USB data over a single run of CAT5e/6/7 cable up to 100m. It has the added benefit of control through the built-in RS-232 and IR ports and a bidirectional LAN serving connection. There is a bidirectional digital audio capability that gives users the convenience of an additional audio connection. This system also enabling a USB connection to up to 2 USB ports, giving the ability to act like a USB hub. The 48V PoE design can power the Receiver (PD) from the Transmitter (PSE), eliminating the need for a separate power supply for the Receiver.
Features
- Supports HDBaseT 2.0 specification supporting over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft
- Features 2 USB 2.0 ports
- HDMI (with 3D & 4Kx2K support), HDCP and DVI compliant
- HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, PoE and Control (Bidirectional IR/RS-232 passthrough)
- Supports pass-through of audio formats: LPCM2/5.1/7.1CH, Dolby Digital 2~5.1Ch, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio
- Supports coaxial cable up to 1 meter with sampling rate up to 48kHz
- Supports 10/100 Ethernet network connection
- LAN and external digital audio capability
- Supports RS-232 baud rate up to 115200bps
Brand:
Cypress Technology
Product Type:
HDMI and Audio Over Single CAT5e/6/7 Receiver
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Supports HDBaseT 2.0 Specification Supporting Over a Single CAT6/7 Cable Up to 100m/328ft and CAT5e Cable Up to 90m/295ft, Features 2 USB 2.0 Ports, HDMI (with 3D and 4Kx2K Support), HDCP and DVI Compliant, Supports Pass-Through of Audio Formats: LPCM2/5.
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment Extending and Control, Lecture Room Display and Control, Show Room Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Output Signal Type:
4K@60Hz YUV 4:2:0
Baud Rate:
Up to 115200bps
Maximum Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Inputs and Ports
Input Port Type:

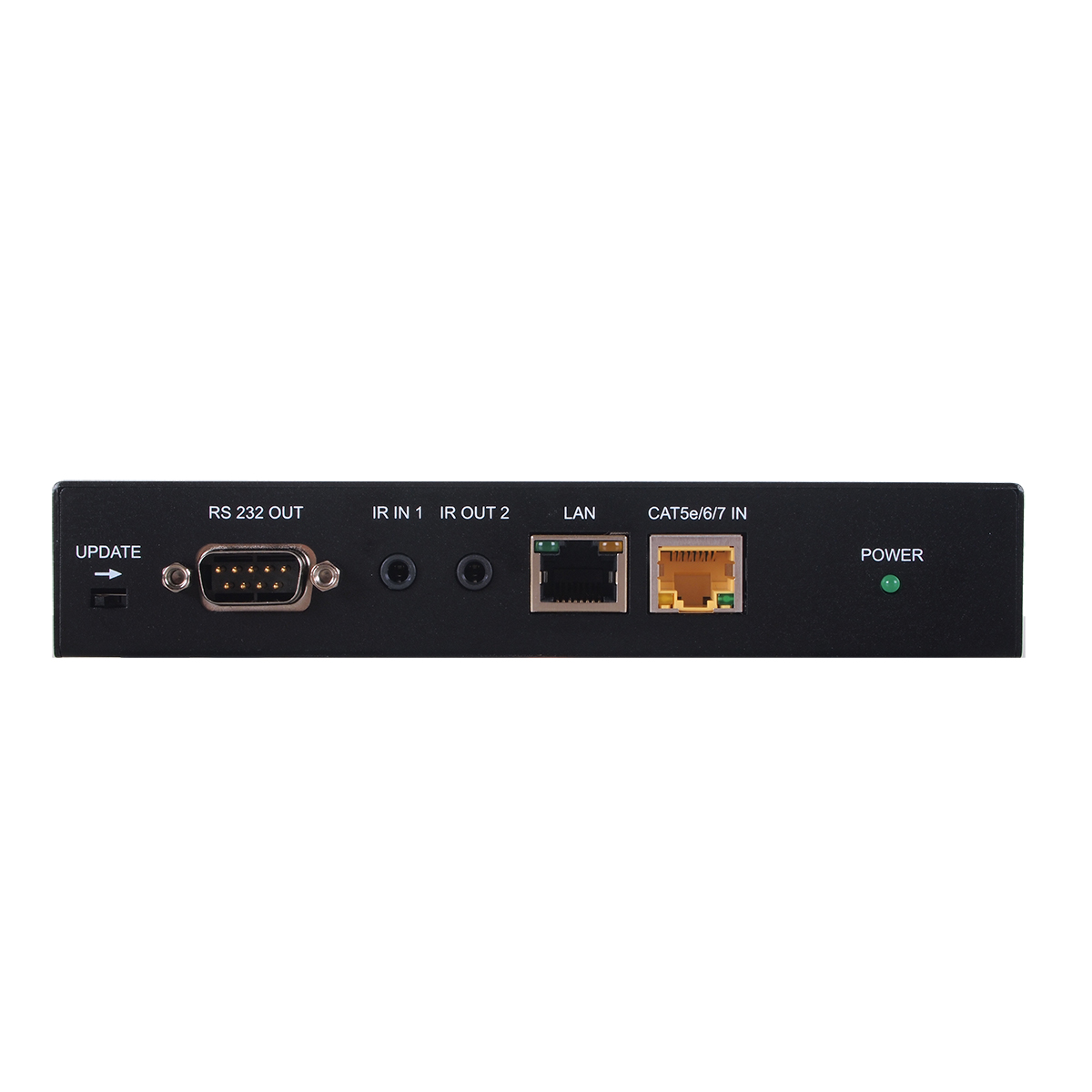

1xHDBaseT (RJ45), 1xOptical Audio (TOSLINK), 1xIR 3.5mm Extender
Output Port Type:

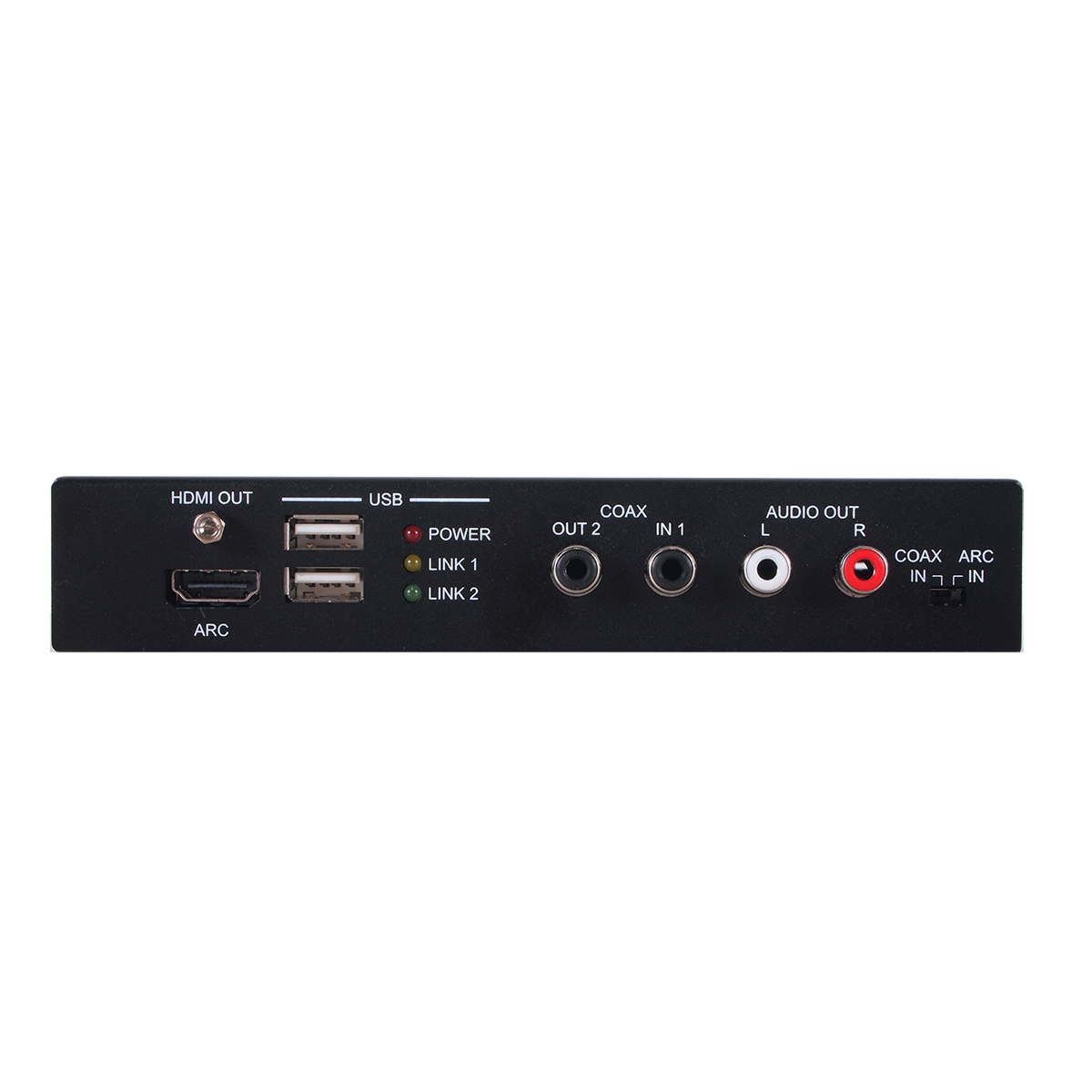

1xHDMI-Type A, 1xRS-232 (DB-9), 1xLAN (RJ45), 1xCoaxial, 1xIR, 2xUSB
I/O Interface Type:
IR/RS-232
Input Signal Type:
4K@60Hz YUV 4:2:0
Connectivity
Ethernet Speed:
100Mbps
Power
Current Rating:
0.83A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
16cm
Depth:
14.1cm
Height:
3cm
Weight:
618g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
