CH-1529RXPLV UHD+ HDMI over HDBaseT Receiver with HDR/OAR
Please sign in so that we can notify you about a reply

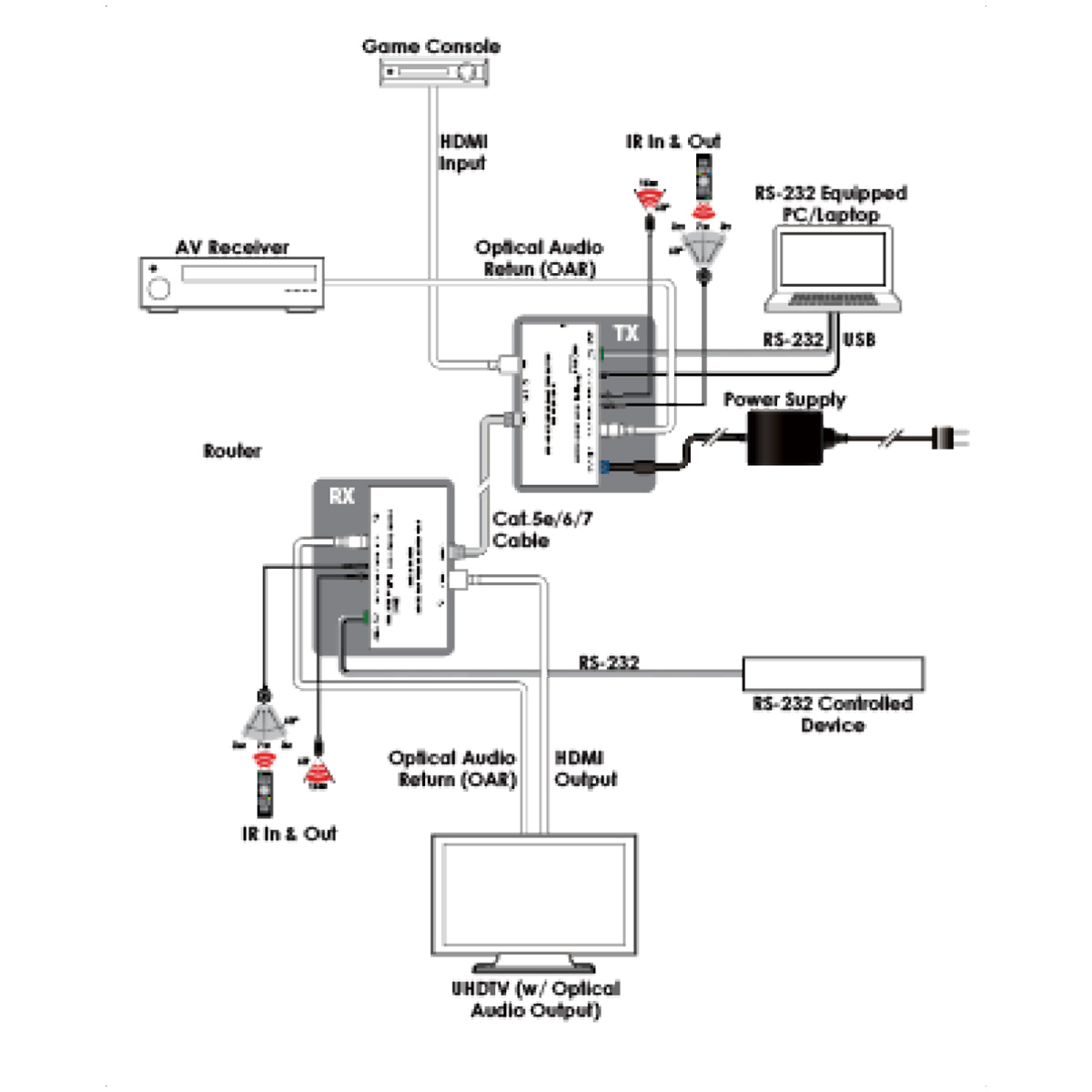

This HDMI over single Cat.5e/6/7 Receiver is a great solution for extending HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. This Receiver complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Transmitter. Beyond video, data, and control this unit also contains useful audio features. The Optical Audio Return (OAR) feature supports transmitting optical audio back to a compatible Transmitter for local playback. Rounding out the feature set is automatic TMDS re-clocking support. This Receiver (PD) is powered by 48V PoH (Power over HDBaseT) from a compatible Transmitter (PSE), allowing for flexibility within different installation scenarios.
Features
- HDMI with HDR, 3D & 4K@60Hz support
- Supports Deep Color input and output up to 12-bit
- Supports CEC bypass
- Simultaneous reception of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 70m/230ft at 1080p60 and 35m/115ft at 4K
- HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
- Support for compatible AVLC (Adaptive Visually Lossless Compression) Transmitters, allowing for the output of HDMI sources that were originally beyond 10.2Gbps (340MHz) and up to 18Gbps (600MHz) with no loss of visual quality
- Supports the Optical Audio Return (OAR) function to transmit optical audio from the Receiver to a compatible Transmitter
- Performs TMDS re-clocking and signal re-generation for improved signal integrity
- Ultra-thin wall plate design (16mm thickness) for convenient installation
- Powered by standard 48V PoH from Transmitter (PSE) to Receiver (PD) (compatible Transmitters only)
Brand:
Cypress Technology
Product Type:
HDMI Over Single CAT.5e/6/7 Receiver
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Supports Deep Color Input and Output Up to 12bits, Supports CEC Bypass, Support for Compatible AVLC (Adaptive Visually Lossless Compression) Transmitters, Allowing for the Output of HDMI Sources that Were Originally Beyond 10.2Gbps (340MHz) and Up to 18Gb
IR Frequency:
30 to 50kHz
Applications:
48V PoE from Transmitter (PSE) to Receiver (PD), Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Video Bandwidth:
10.2Gbps
Output Signal Type:
4K@60Hz 8bits YUV 4:4:4, HDR
Maximum Resolution:
4096x2160pixels@60Hz
Inputs and Ports
Input Port Type:
1xHDBaseT (RJ45), 1xS/PDIF (TOSLINK)
Output Port Type:
HDMI-Type A
I/O Interface Type:
USB Flash Drive
Input Signal Type:
4K@60Hz 8bits YUV 4:4:4, HDR
Power
Current Rating:
0.83A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
16.3cm
Depth:
8.1cm
Height:
7.8cm
Weight:
200g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
