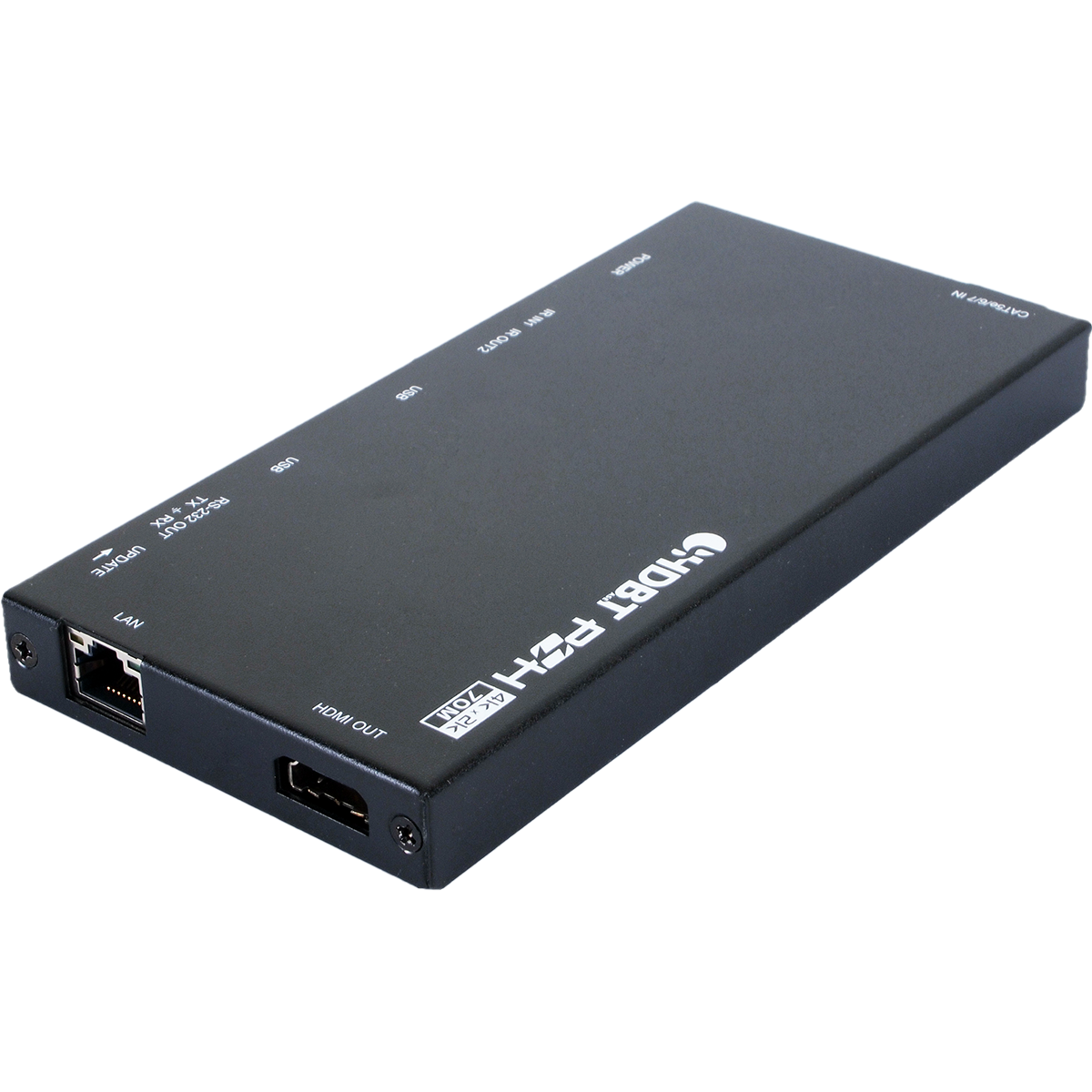

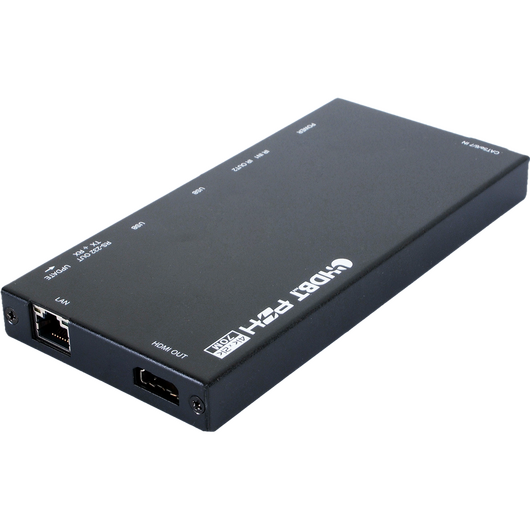

CH-1528RX 4K60 (4:2:0) HDMI over HDBaseT Slimline Receiver with IR, RS-232, PoH (PD), LAN & USB/KVM
Please sign in so that we can notify you about a reply
The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefit of control through the built-in RS-232 and IR ports, USB and bidirectional LAN serving connection. The Receiver (PD) can be powered by the PoH 48V function of the Transmitter (PSE), allowing for greater flexibility in installations.
Features
- HDMI with 3D, 4K2K support, HDMI & DVI Compliant
- Supports CEC bypass
- Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K2K
- 5Play™ convergence: HDMI, LAN, PoH & Control (IR & RS-2232)
- Supports resolution up to 4K2K@50/60 (YUV420) and 21:9
- Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD)
- Supports USB 2.0 keyboard and mouse
- Ultra-thin wall plate design with friendly installation
Brand:
Cypress Technology
Product Type:
HDMI Over Single CAT5e/6/7 Transmitter and Receiver
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
HDMI with 3D, 4K2K Support, HDMI and DVI Compliant, Supports CEC Bypass, Supports USB 2.0 Keyboard and Mouse
IR Frequency:
30 to 50kHz
Applications:
48V PoE from Transmitter (PSE) to Receiver (PD), Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0
Video Bandwidth:
10.2Gbps
Maximum Resolution:
408 to 4K2K@50Hz/60 (YUV 420)
Inputs and Ports
Input Port Type:

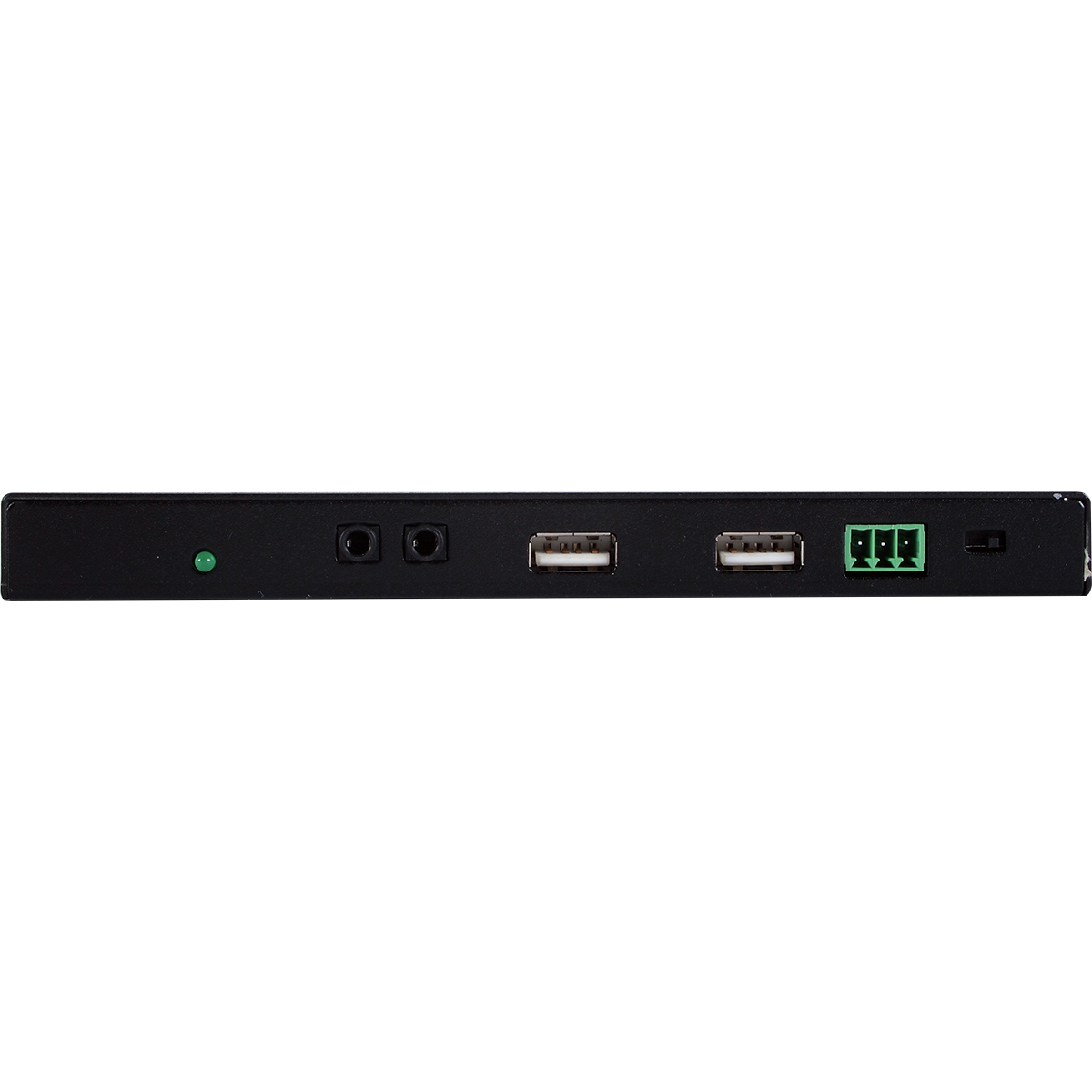

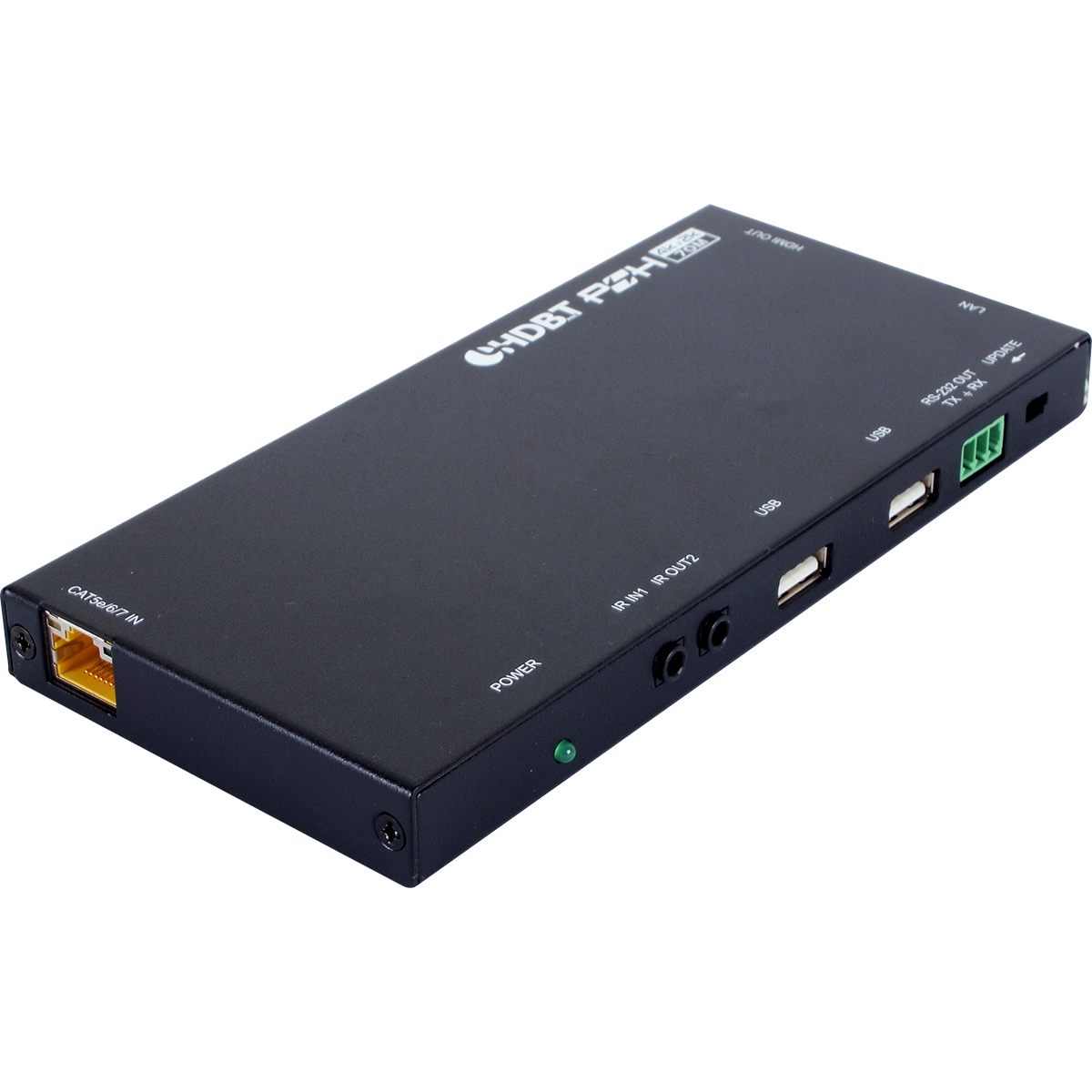

1xCAT5e/6/7, 1xIR, 2xUSB
Output Port Type:
1xHDMI, 1xIR, 1xRS-232, 1xLAN
Input Signal Type:
YUV 420
Power
Current Rating:
0.83A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
7.8cm
Depth:
16.3cm
Height:
1.6cm
Weight:
334g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
