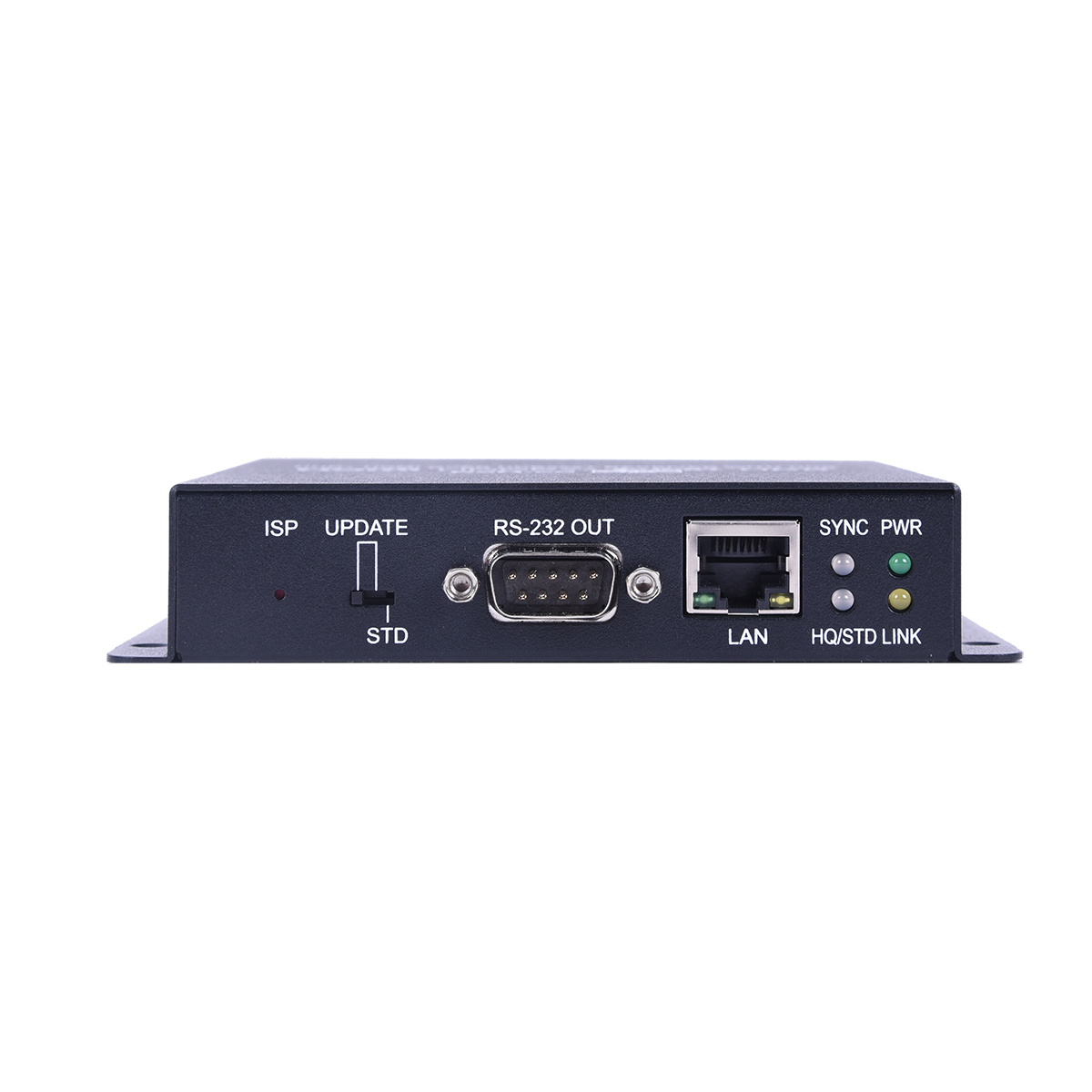

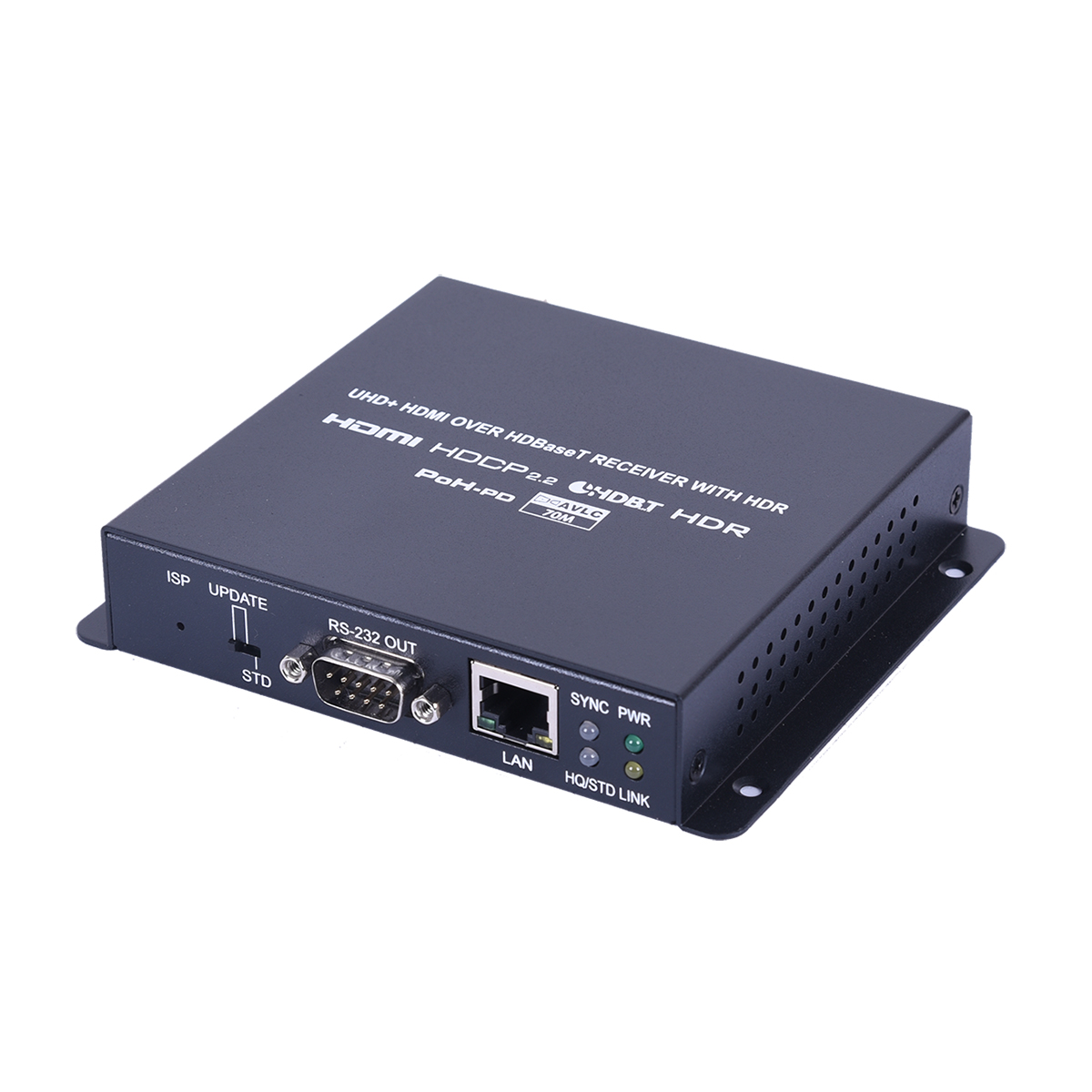

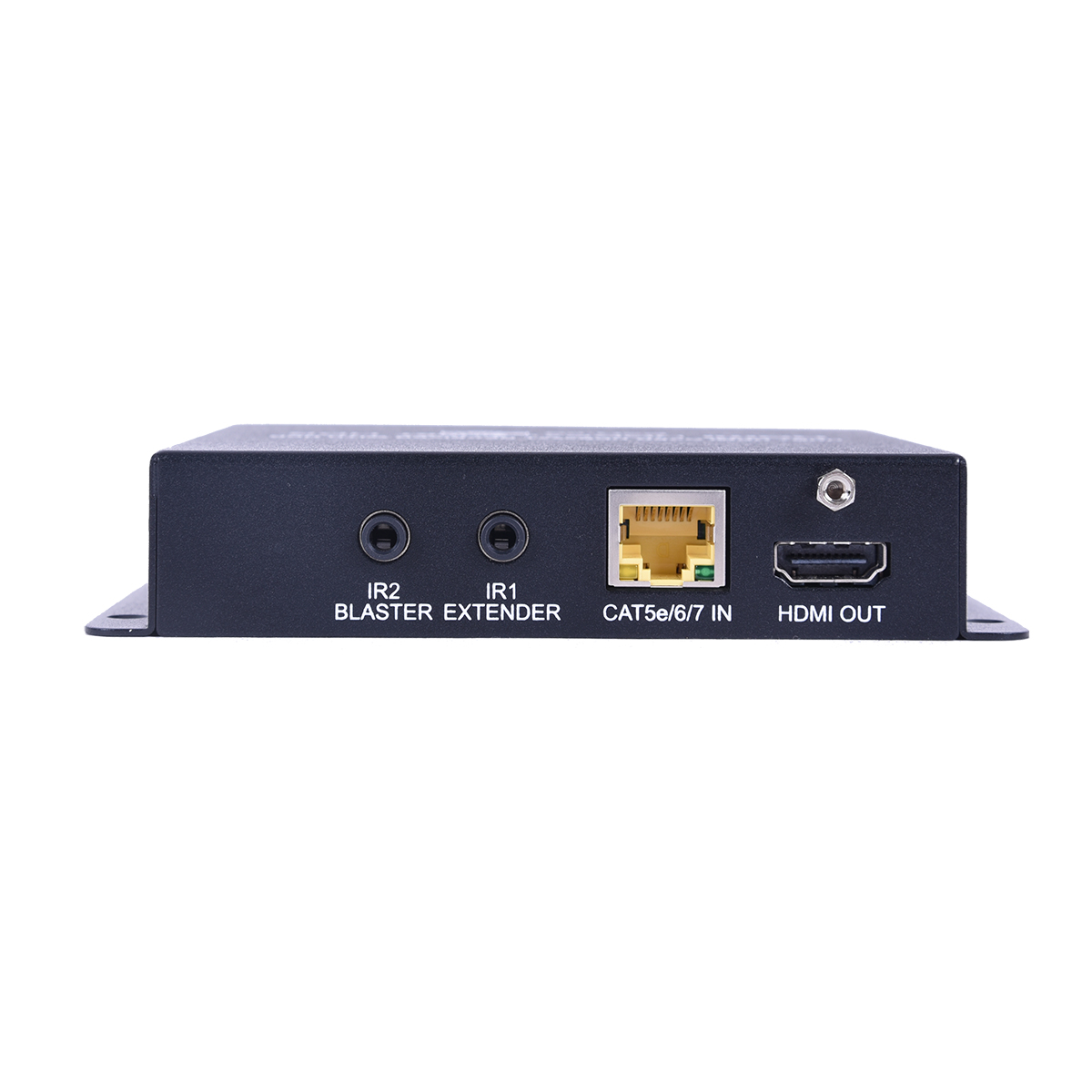

CH-1527RXV UHD+ HDMI over HDBaseT Receiver with HDR
Please sign in so that we can notify you about a reply
This transmitter and receiver set is a great solution for extending UHD video and audio as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances up to 100 meters. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed. Multiple data and control interfaces are also provided, including IR, RS-232 and LAN connections. The Receiver (PD) is powered by 48V PoH (Power over HDBaseT) provided by the Transmitter (PSE), allowing for greater flexibility within different installation scenarios.
Features
- HDMI with HDR, 3D & 4K@60Hz support
- Supports Deep Color input and output up to 12-bit
- Supports CEC bypass Simultaneous transmission of video, audio and data over a single Cat.5e/6/7 cable up to 100m (328ft) at 1080p and 70m (246ft) at 4K
- Supported HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Control (Bidirectional IR/RS-232 pass-through)
- Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for support of sources up to 18Gbps (600MHz) with no loss of visual quality
- The AVLC function allows manual selection between High Quality (Full bandwidth) mode and Standard mode (Lower bandwidth, useful for longer cable runs with 4K sources)
- Supports standard IEEE 802.3 AT 48V PoH from Transmitter (PSE) to Receiver (PD) (compatible Receivers only)
