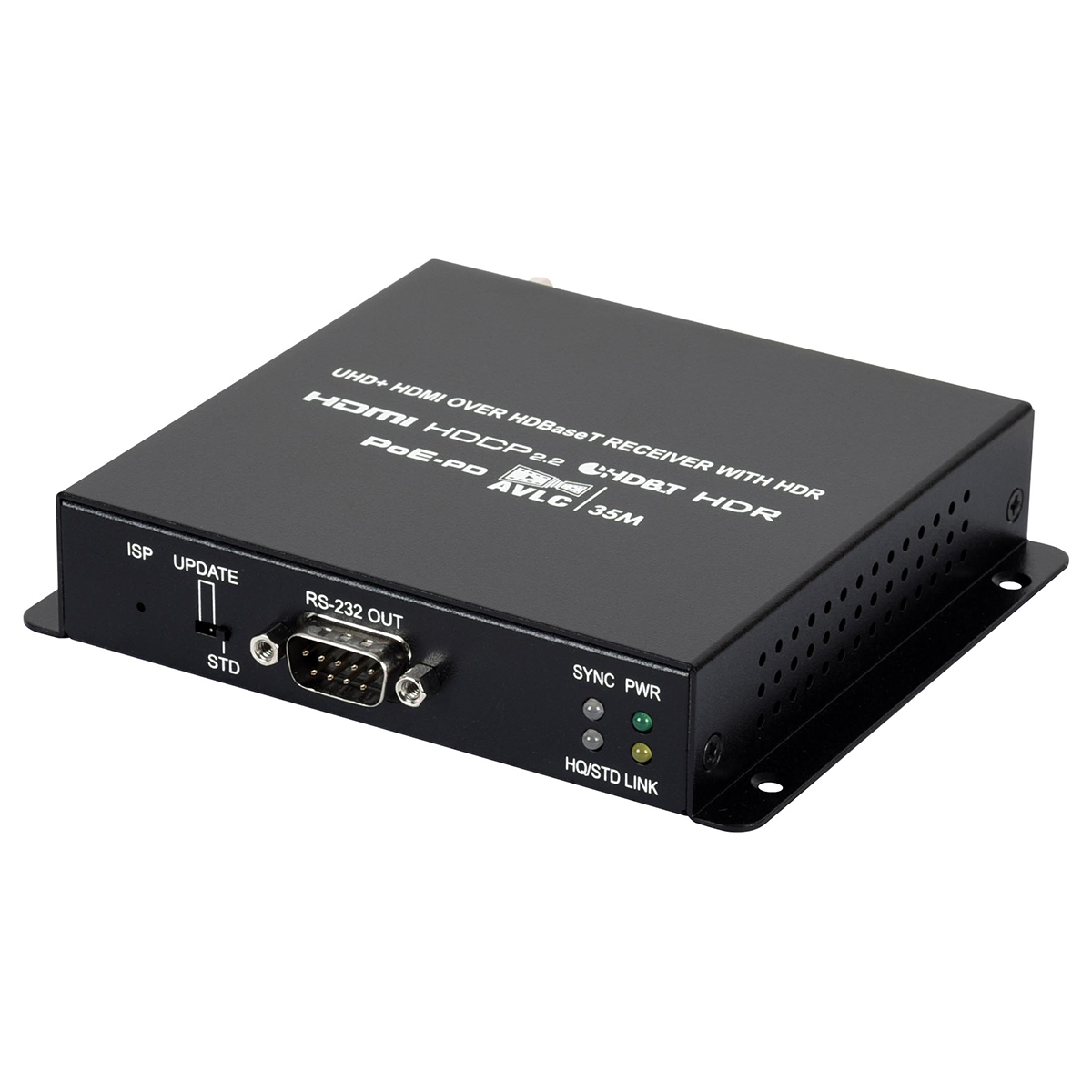

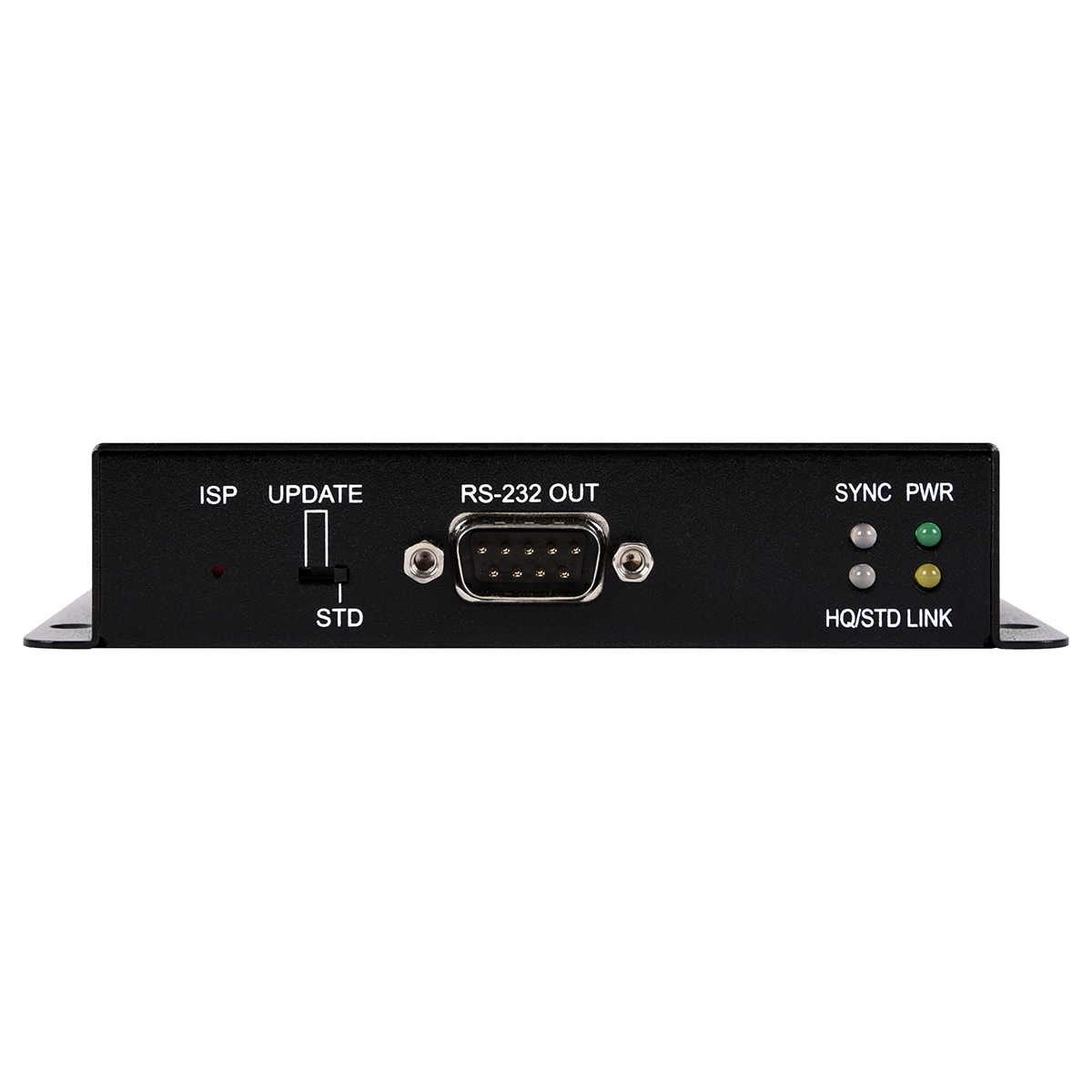

CH-1527RXPLV UHD+ HDMI over HDBaseT Receiver with HDR
Please sign in so that we can notify you about a reply
This transmitter and receiver set is a great solution for extending UHD video and audio as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances up to 70 meters. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12- bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed.
Features
- HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
- Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
- Supports output resolutions up to 4K@50/60Hz (4:4:4, 8-bit)
- Supports 10-bit and 12-bit HDR bypass
- Supports CEC bypass Simultaneous transmission of video, audio and data over a single Cat.5e/6/7 cable up to 70m (230ft) at 1080p and 35m (115ft) at 4K
- Supported HDBaseT feature set: HD Video & Audio, 48V PoH, and Control (Bi-directional IR/RS-232 pass-through)
- Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for support of sources up to 18Gbps (600MHz) with no loss of visual quality
- The AVLC function allows manual selection between High Quality (Full bandwidth) mode and Standard mode (Lower bandwidth, useful for longer cable runs with 4K sources)
- Supports standard IEEE 802.3 AT 48V PoH from Transmitter (PSE) to Receiver (PD) (compatible Receivers only)
Brand:
Cypress Technology
Specifications
Product Type:
UHD+ HDMI Over HDBaseT Receiver
Maximum Operating Temperature:
+40°C
Special Features:
Supports 10bits and 12bits HDR Bypass, Supports CEC Bypass, Supports Standard IEEE 802.3 AT 48V PoH From Transmitter (PSE) to Receiver (PD)
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Video Bandwidth:
10.2Gbps
Output Signal Type:
4K@60Hz 8bits YUV 4:4:4, HDR
Maximum Resolution:
4096x2160pixels@60Hz

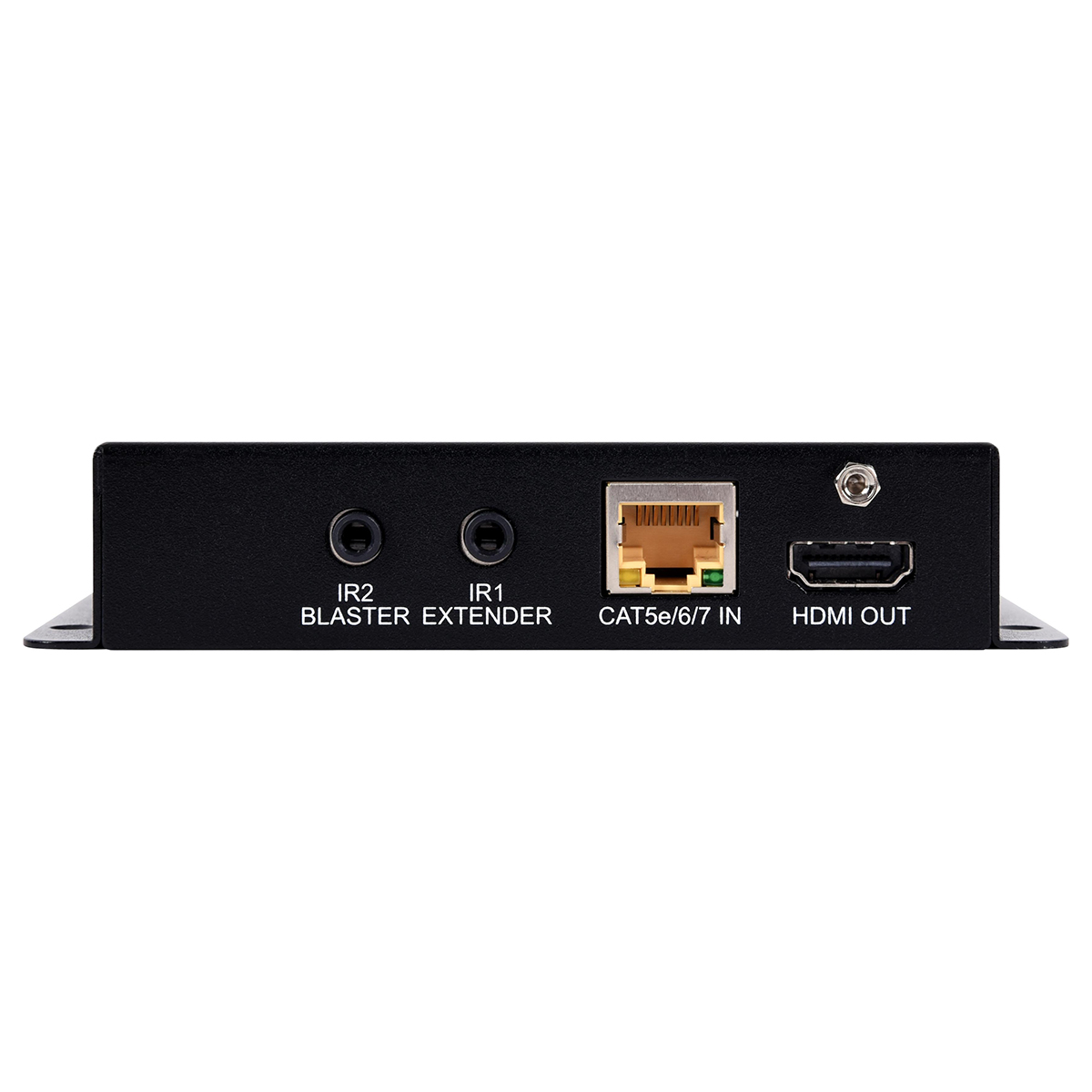

Inputs and Ports
Input Port Type:
1xCAT5e/6/7 (RJ45)
Output Port Type:
HDMI-Type A
I/O Interface Type:
PC Update, WebGUI
Input Signal Type:
4K@60Hz 8bits YUV 4:4:4, HDR
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.8cm
Depth:
11.7cm
Height:
10.8cm
Weight:
385g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
