CH-1527RXPL UHD HDMI over HDBaseT Receiver with PoH
Please sign in so that we can notify you about a reply

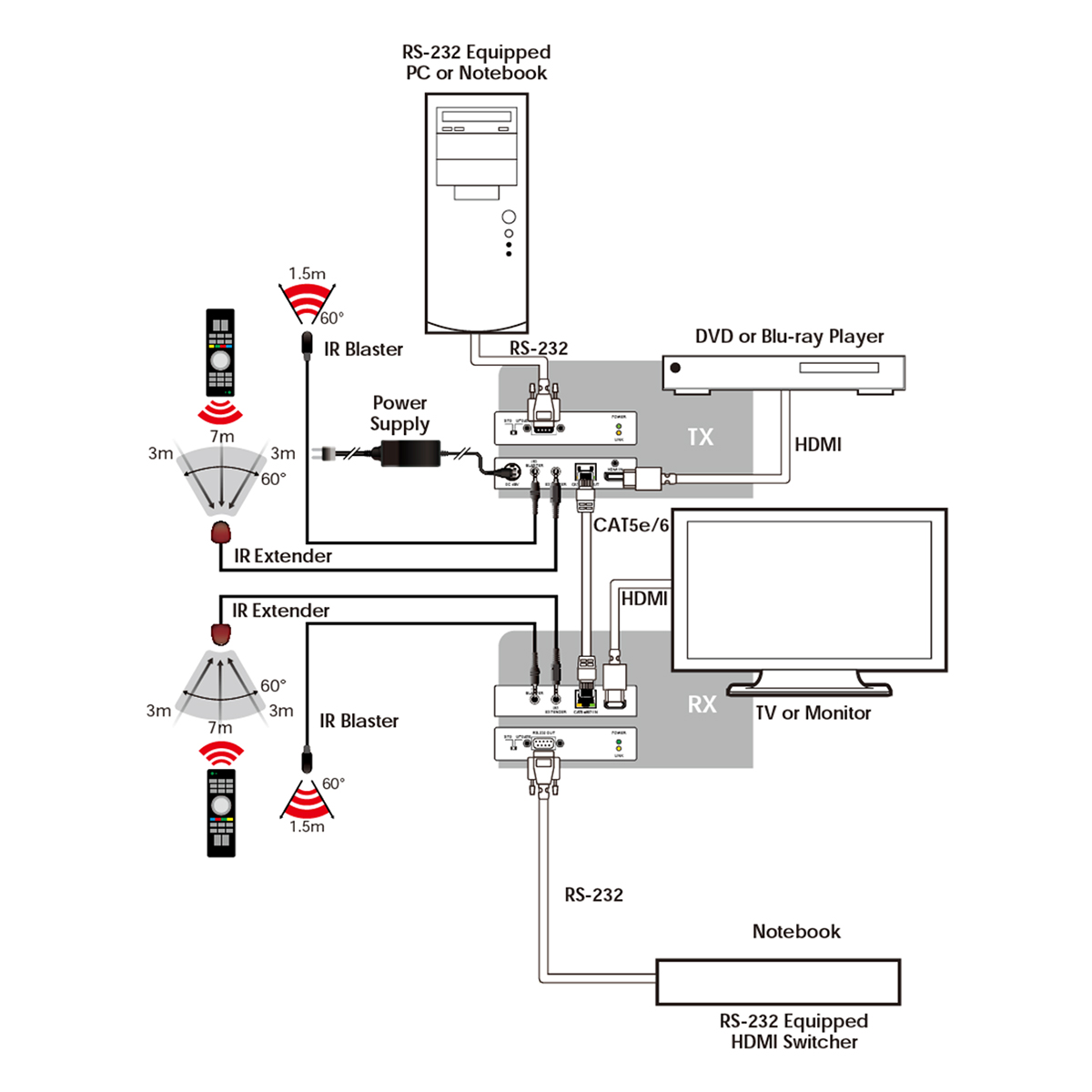

The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 60 meter. It has the added benefit of control through the builtin RS-232 and IR ports. The Receiver (PD) can be powered by the PoE 48V function of the Transmitter (PSE), allowing for greater flexibility in installations.
Features
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- RS-232 with baud rate up to 115200/sec
- Supports wide range of IR frequency from 30~50kHz
- HDMI with 3D, 4K2K support, HDMI & DVI Compliant
- Supports CEC bypass
- Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 60m
- 4Play™ convergence: HDMI, PoE & Control (IR & RS-2232)
- Supports resolution up to 4K2K@50/60 & YUV_420 and 21:9
- Supports standard 48V from Transmitter (PSE) to Receiver (PD)
Brand:
Cypress Technology
Product Type:
UHD HDMI Over HDBaseT Receiver with PoH
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Supports Pass-Through of Audio Formats Including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream Over HDMI, Supports CEC bypass, Supports Standard 48V From Transmitter (PSE) to Receiver (PD)
IR Frequency:
30 to 50kHz
Applications:
48V PoE from Transmitter (PSE) to Receiver (PD), Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Output Signal Type:
4K@60Hz 8bits YUV 4:2:0
Baud Rate:
Up to 115200bps
Maximum Resolution:
4096x2160pixels@60Hz YUV 4:2:0

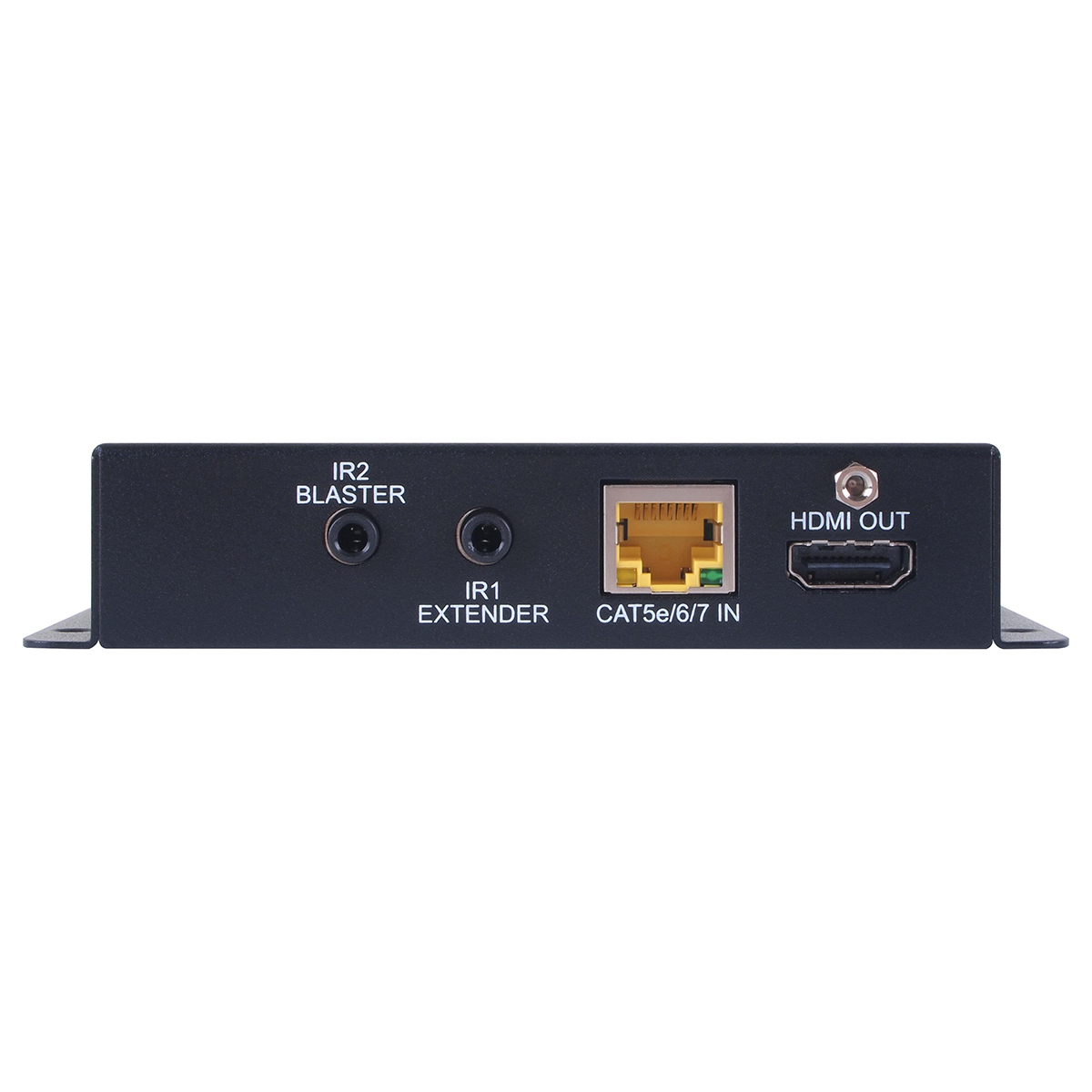

Inputs and Ports
Input Port Type:
1xHDBase T (RJ45), 1xIR 3.5mm Blaster
Output Port Type:
1xHDMI-Type A, 1xIR 3.5mm Extender, 1xRS-232 (DE-9)
I/O Interface Type:
RS-232
Input Signal Type:
4K@60Hz YUV 4:2:0
Power
Current Rating:
0.83A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
10.8cm
Depth:
11.6cm
Height:
10.8cm
Weight:
366g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
