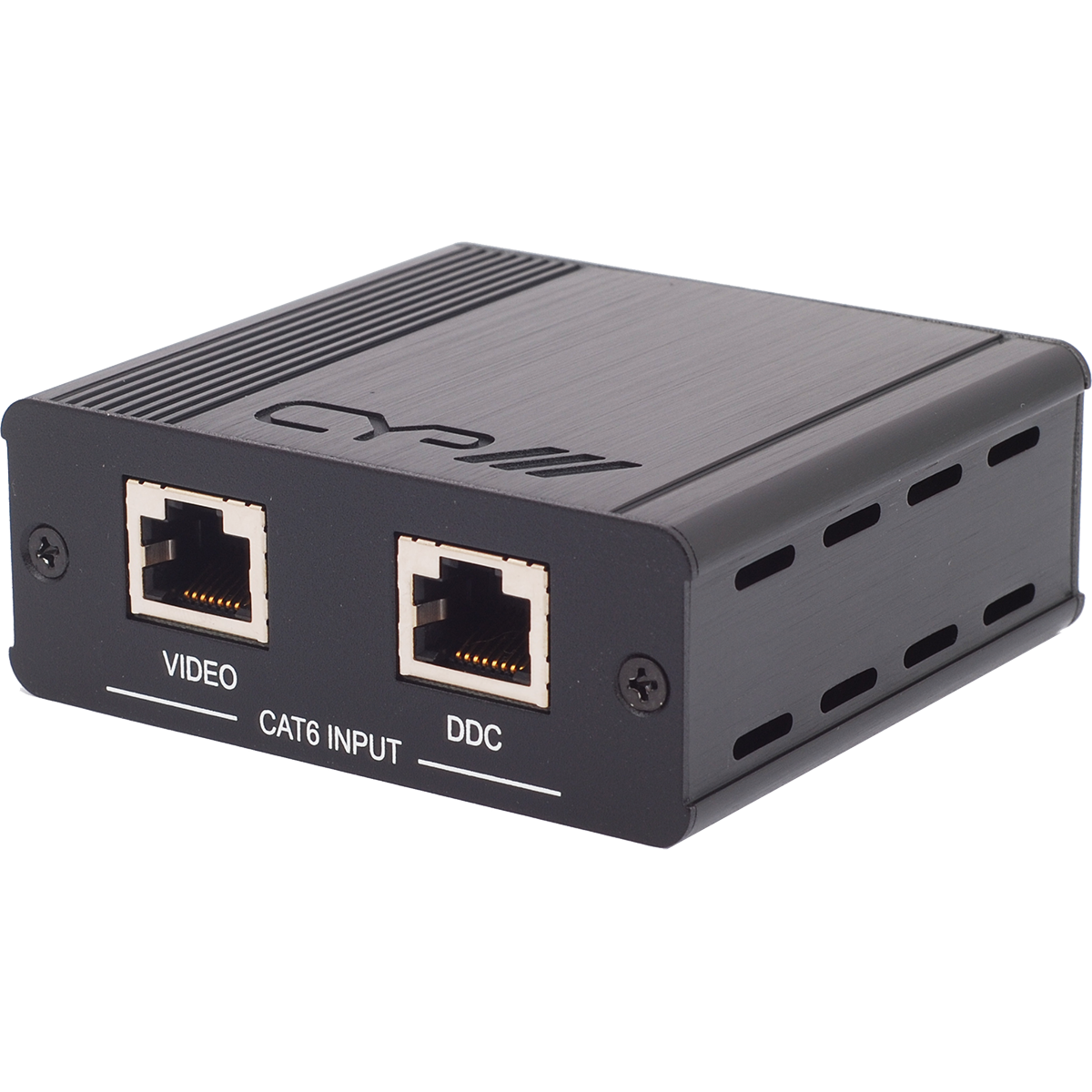

CH-1106RXN HDMI over Dual CAT6/7 Receiver
Please sign in so that we can notify you about a reply
This HDMI over CAT6/7 Transmitter and Receiver Set with IR Source Control can extend HDMI signals over dual CAT6/7 cabling up to 45m. It has the added benefit of allowing the control of a source device with your existing Remote Control with the included IR Extender and Blaster cables.
Features
- HDMI, HDCP 1.1 and DVI 1.0 compliant
- Supports high definition digital video and lossless, compressed digital audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio)
- Supports dual CAT6/7 cables for Video/Audio and data/DDC transmission
- Equalizes and recovers incoming TMDS data before re-transmitting it in optimum quality
- Supports CEC bypass and x.v.YCC
- Includes an IR Extender and Blaster
- Supports a wide range of IR frequencies, from 30kHz to 50kHz
- Supports transmission of 1080p@8-bit resolution signals up to 45 meters over dual CAT6/7 cables
- Supports HDMI input cable length of up to 6 meters and output cable length of 10 meters at 1080p@8-bit resolution
- Supports connection to a repeater or another transmitter and receiver set to extend the HDMI signal
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over Dual CAT6/7 Receiver
Maximum Operating Temperature:
+40°C
Special Features:
Supports Dual CAT6/7 Cables for Video/Audio and Data/DDC Transmission, Equalizes and Recovers Incoming TMDS Data Before Re-Transmitting it in Optimum Quality, Supports CEC Bypass and x.v.YCC, Includes an IR Extender and Blaster, Supports Transmission of 1
IR Frequency:
30 to 50kHz
Applications:
Showroom Display/Control, Home Entertainment Systems, Commercial Display, Lecture Room Display/Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
IR Extender, Blaster
Inputs and Ports
Input Port Type:

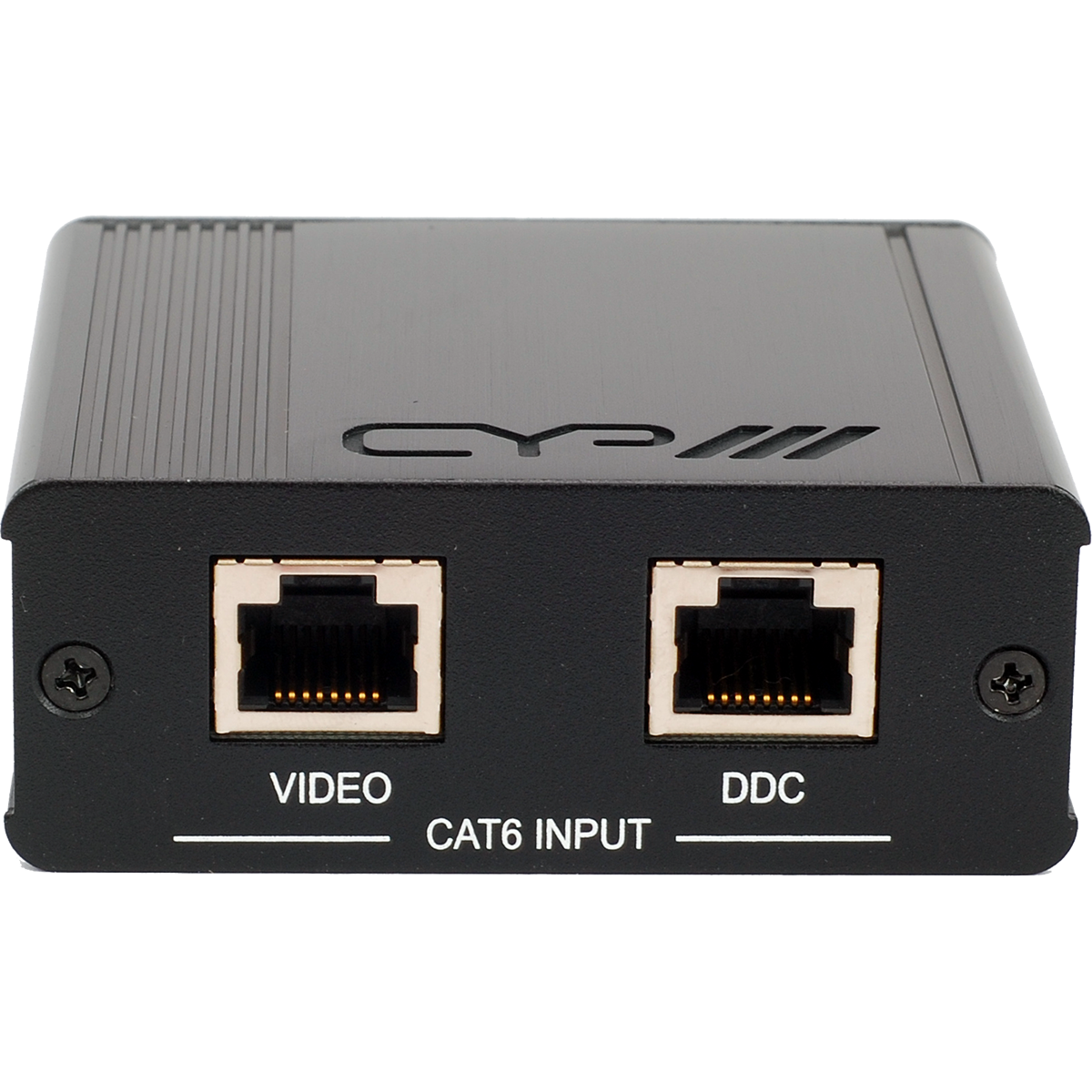

1xCAT6 (Video), 1xCAT6 (DDC)
Input Signal Type:
4K@60Hz 8bits YUV 4:4:4
Power
Current Rating:
1A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
7.85cm
Depth:
7.2cm
Height:
3cm
Weight:
140g
Other

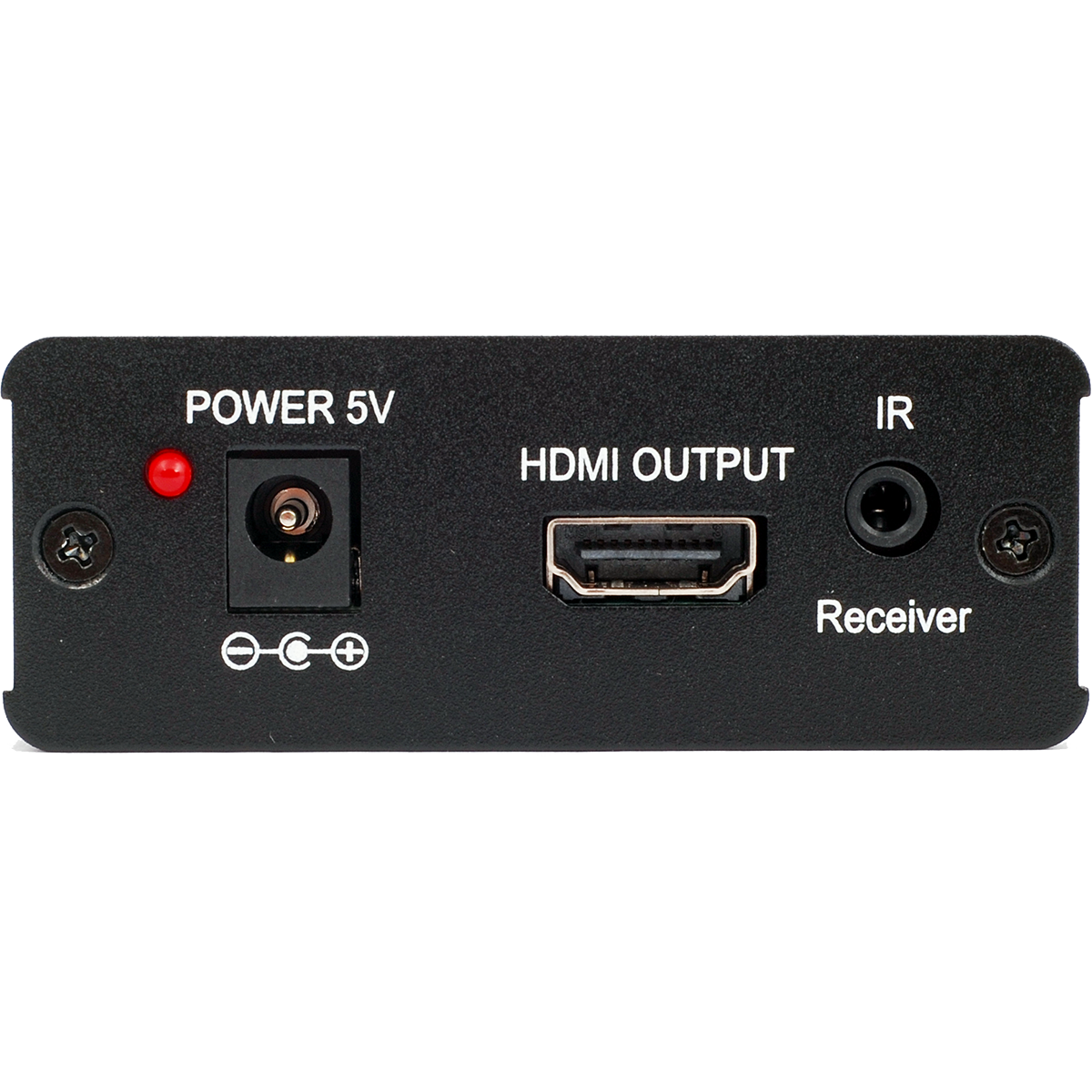

Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
