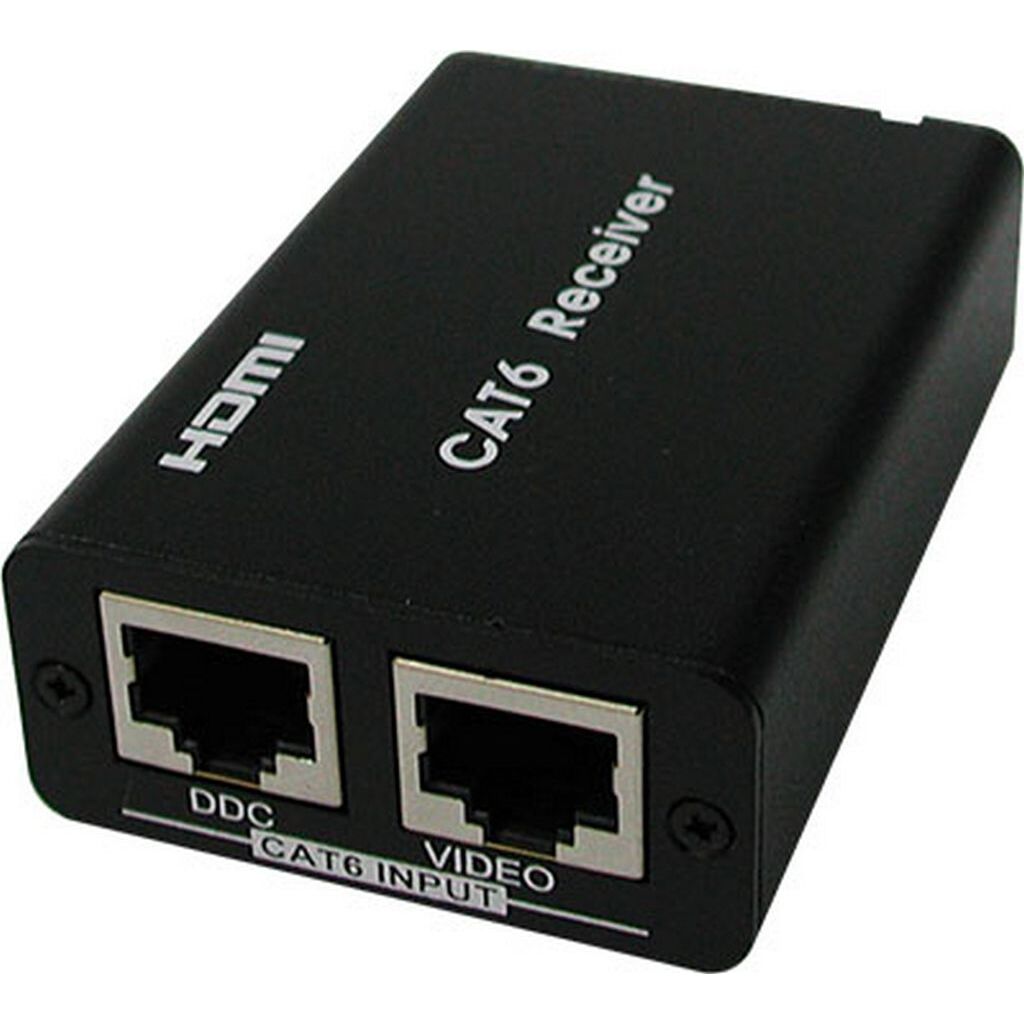

CH-1103RX HDMI Over CAT6 Receiver
Please sign in so that we can notify you about a reply
HDMI signal receiver made of two twisted pairs. CH-1103RX – HDMI signal receiver made of two twisted pairs. Receives signals from the transmitter in a format suitable for transmission over a twisted pair cable from two inputs (video and DDC signals), performs reverse conversion, equalization and restoration, and then outputs it to one HDMI output. Video bandwidth up to 225 MHz. Complies with HDCP requirements.
Features- Complies with HDMI 1.3, DVI 1.1, HDCP 1.1 specifications
- Two twisted pair inputs: one for receiving video, the second for receiving DDC (Display Data Channel) signals
- Supports various types of CAT6 cables
- Performs signal restoration
- Supports Deep Color and xvYCC color space
- Supported audio formats: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Supports high definition video transmission
- 1080p 8-bit color transmission distance up to 45m input/15m output, 12-bit color depth up to 15m input/output
- Transparent to CEC control protocol signals
- Powered via HDMI cable, does not require an additional power source (subject to connection to equipment that supports this function)
- Made in a lightweight, mini-sized body
Brand:
Cypress Technology
Product Type:
HDMI Over CAT6 Receiver
Specifications
Maximum Operating Temperature:
40°C
Special Features:
Supports Various Type of CAT-6 Cables, Dolby TrueHD, Dolby Digital Plus and DTS-HD, Master Audio
Minimum Operating Temperature:
0°C
Includes:
Operation Manual
Performance
HDMI Compliance Type:
1.3
HDCP Compliance Type:
1.1
Video Bandwidth:
225MHz
Maximum Resolution:
1080Pixel
Inputs and Ports
Input Port Type:
1xCAT-6 for Video, 1xCAT6 for DDC
Output Port Type:
1xCAT5e/6, 1xHDMI
Power
Current Rating:
2.6A
Dimensions
Width:
5cm
Depth:
6.2cm
Height:
2.3cm
Weight:
96g
Other
Voltage Rating:
5V
