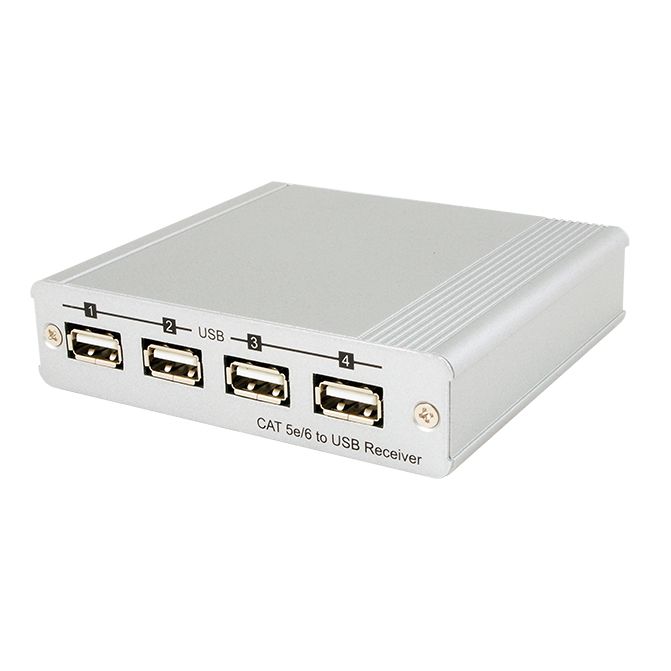

CA-USBS100R USB over Single CAT5e/6/7 Receiver
Please sign in so that we can notify you about a reply
Brand:
Cypress Technology
Product Type:
USB 2.0 Signal Receiver
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Operates at USB 2.0 (High Speed) Host Controllers, True Plug and Play Without any Driver Installation, CAT5e/6 Cable Distance is Up to 100m, LED Indicator for Easy Viewing
Applications:
USB Extension Over CAT5/6 up to 100m or 200m Through Hub, Control Devices From Far Away, Host Device Information Sharing and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C

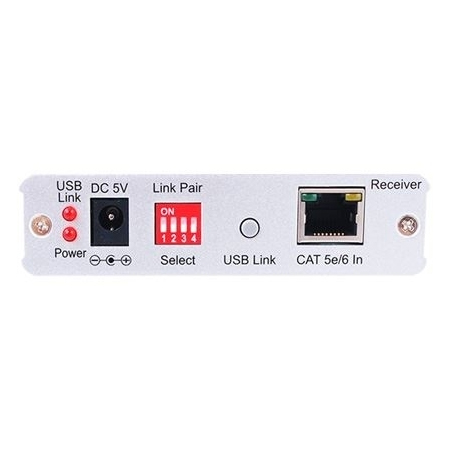

Inputs and Ports
Input Port Type:
Twisted Pair, RJ45 Connector (Female)

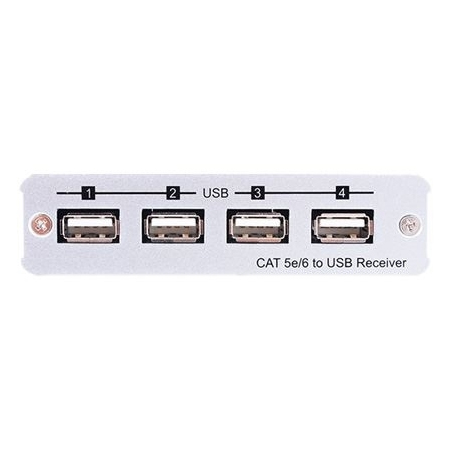

Output Port Type:
USB, Type A
Input Signal Type:
USB 2.0
Power
Current Rating:
3A
ESD Protection Rating:
±10kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
10.2cm
Depth:
9cm
Height:
2.5cm
Weight:
206g
Other
Voltage Rating:
5V
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
