CA-DVI100R DVI over CAT5 Transmitter
Please sign in so that we can notify you about a reply
The DVI transmitter and receiver over CAT 5 is a pair of devices that are able to extend your DVI signal up to a distance of 100m. Not only can these devices transfer HD quality signals but they can also send analog/digital audio signals with their coaxial and L/R audio ports. This extender is the best way for extending high resolution digital displays using CAT5 cables.
Features- Compatible with HDMI 1.2, and DVI 1.0
- Supports Equalizer and Gain adjustment
- Has high definition input/output up to 1080P/WUXGA
- Easy to install and operate
- Connects CAT 5 to DVI without any signal loss even after transferring 100 meters
- Not compatible with HDCP Sources
- The Transmitter includes a built-in EDID
- Supports both Coaxial and Stereo external sound
Brand:
Cypress Technology
Specifications
Product Type:
DVI Over Dual CAT5e/6/7 Receiver
Maximum Operating Temperature:
+70°C
Applications:
Display a DVI Signal in a Distant Room, Transferring Analog/Digital Audio up to 100m’s Away
Minimum Operating Temperature:
0°C
Inputs and Ports
Input Port Type:

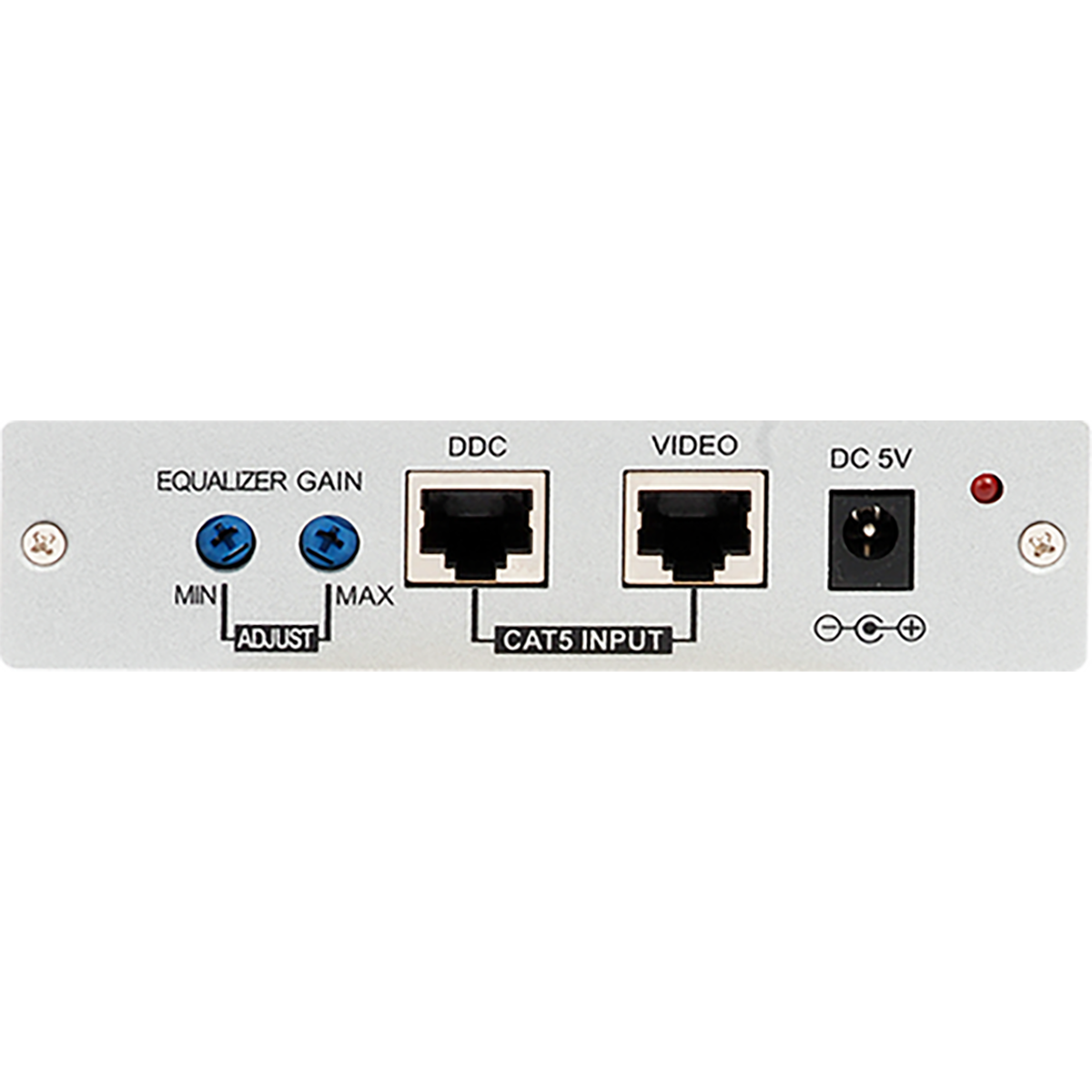

2xCAT5 RJ45 8 pin
Output Port Type:

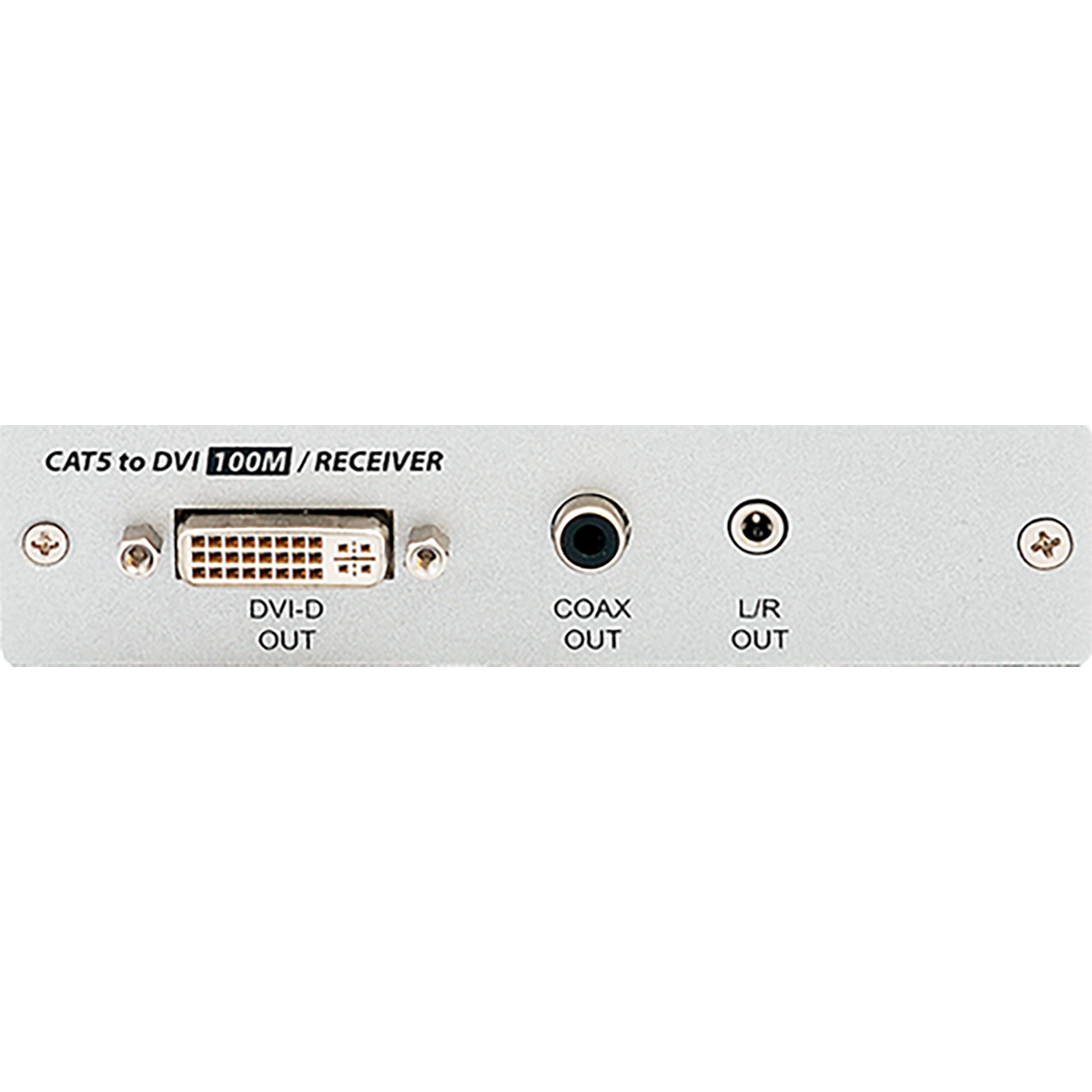

1xDVI-I Female Port, 1xCoaxial, 1xL/R Audio
Power
Current Rating:
2.6A
Dimensions
Width:
12.5cm
Depth:
12.5cm
Height:
13cm
Weight:
700g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
