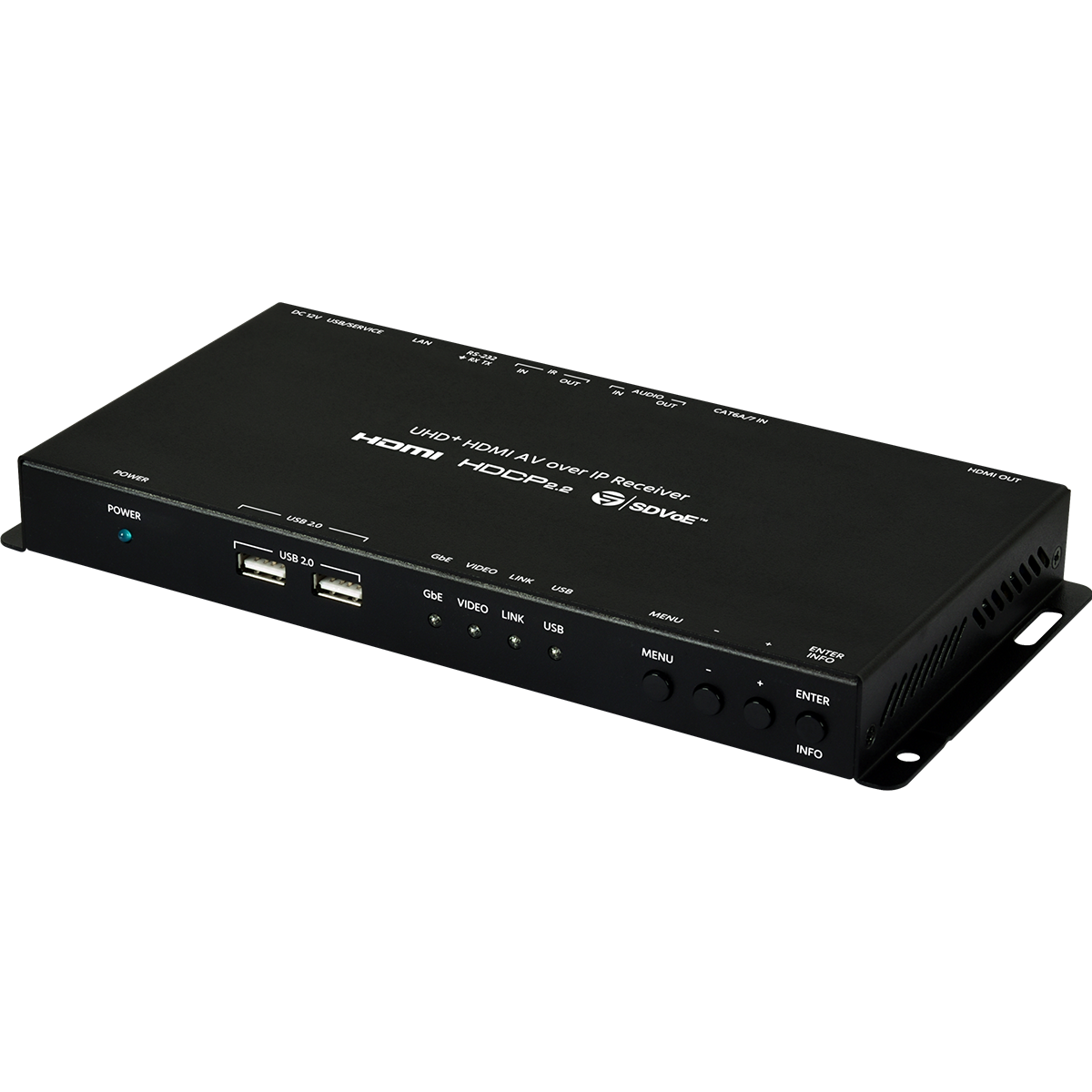

AVIP-P5104R-B1C UHD+ HDMI AV over IP Receiver
Please sign in so that we can notify you about a reply

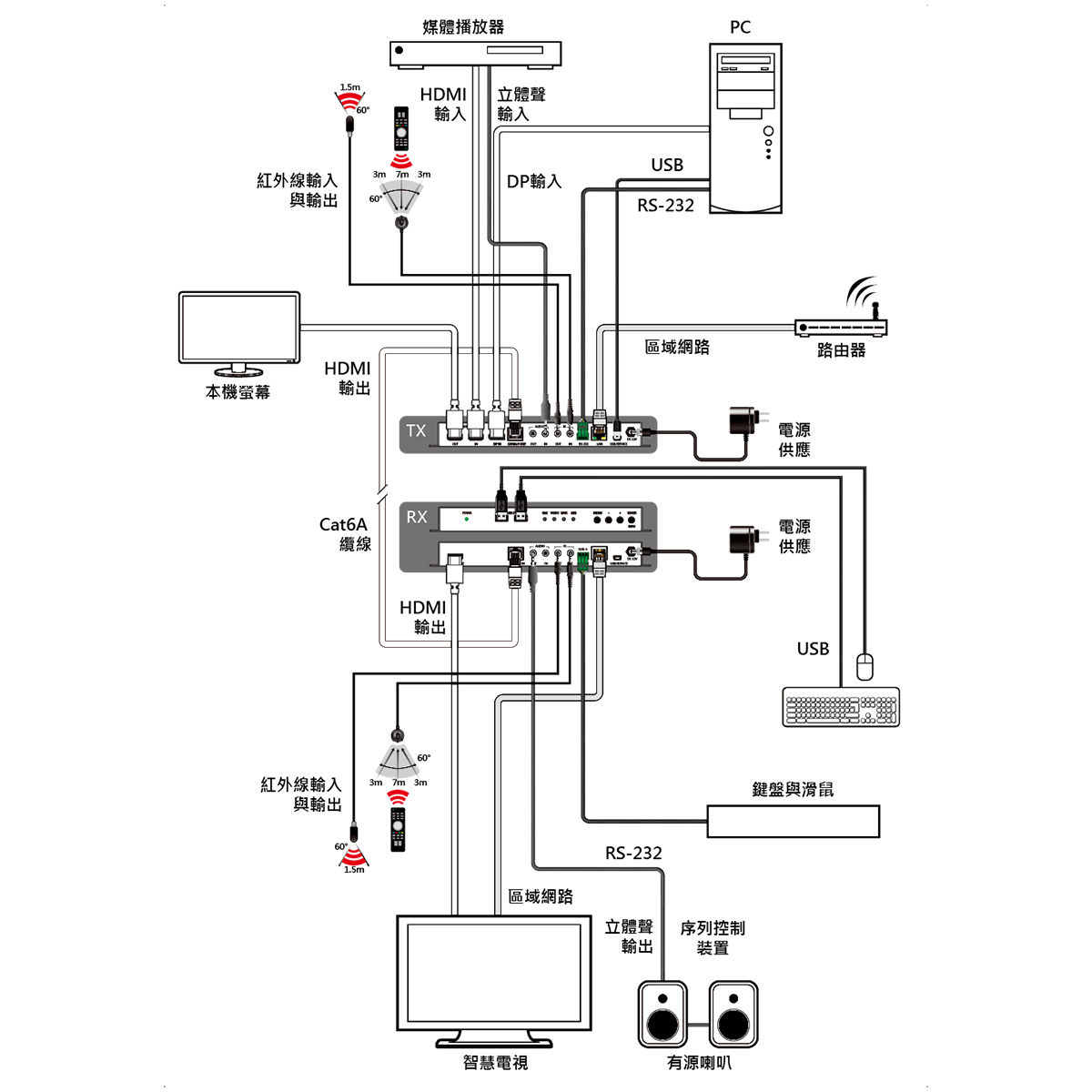

This Receiver is designed for high-quality, IP routable, AV extension with minimum latency. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams and data. The use of high quality 10 Gigabit Ethernet ports and Cat.6A or better cable allows for point-to-point transmission of the video signal up to 100m. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and Ethernet. When combined with the optional IP Master Controller or control software, the functionality of the Receiver expands exponentially. Multiple Transmitters and Receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations.
Features
- HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant

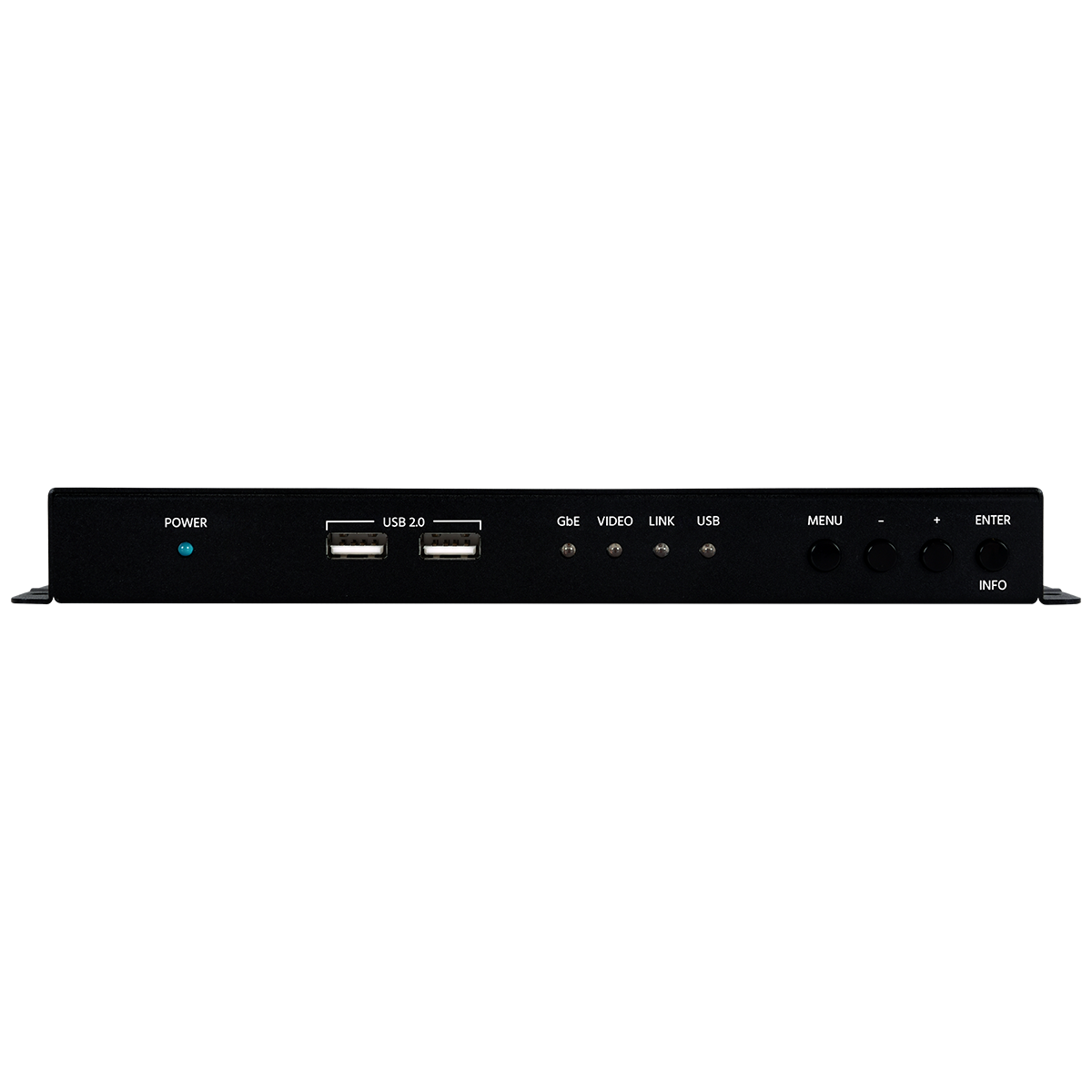

- 2 USB 2.0 (Type A) ports and 1 USB 2.0 (Mini B) port
- Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional IP Master Controller/control software)
Brand:
Cypress Technology
Product Type:
UHD+ HDMI AV Over IP Receiver
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
2 USB 2.0-Type a Ports and 1 USB 2.0-Mini B Port, Extension Up to 100m in Point-to-Point Mode (with CAT.6A Cable), Analog Stereo Audio Extension, Insertion and Extraction (insertion and Extraction Requires Optional Ip Master Controller/Control Software)
Applications:
Video, Audio, LAN, IR, 2 USB 2.0, Analog Stereo Audio Extension, Insertion and Extraction, Master Controller, Control Software, IR
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
IR, RS-232, USB 2.0, Ethernet
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.2
Maximum Audio Level:
1VRMS
Output Signal Type:
4K@60Hz YUV 4:4:4
Signal-to-Noise Ratio:
80dB
Maximum Resolution:
4096x2160pixels@60Hz YUV 4:4:4
Inputs and Ports
Input Port Type:
1x10 GbE LAN (RJ45)
Output Port Type:
1xHDMI-Type A, 1x3.5mm Analog Stereo
I/O Interface Type:

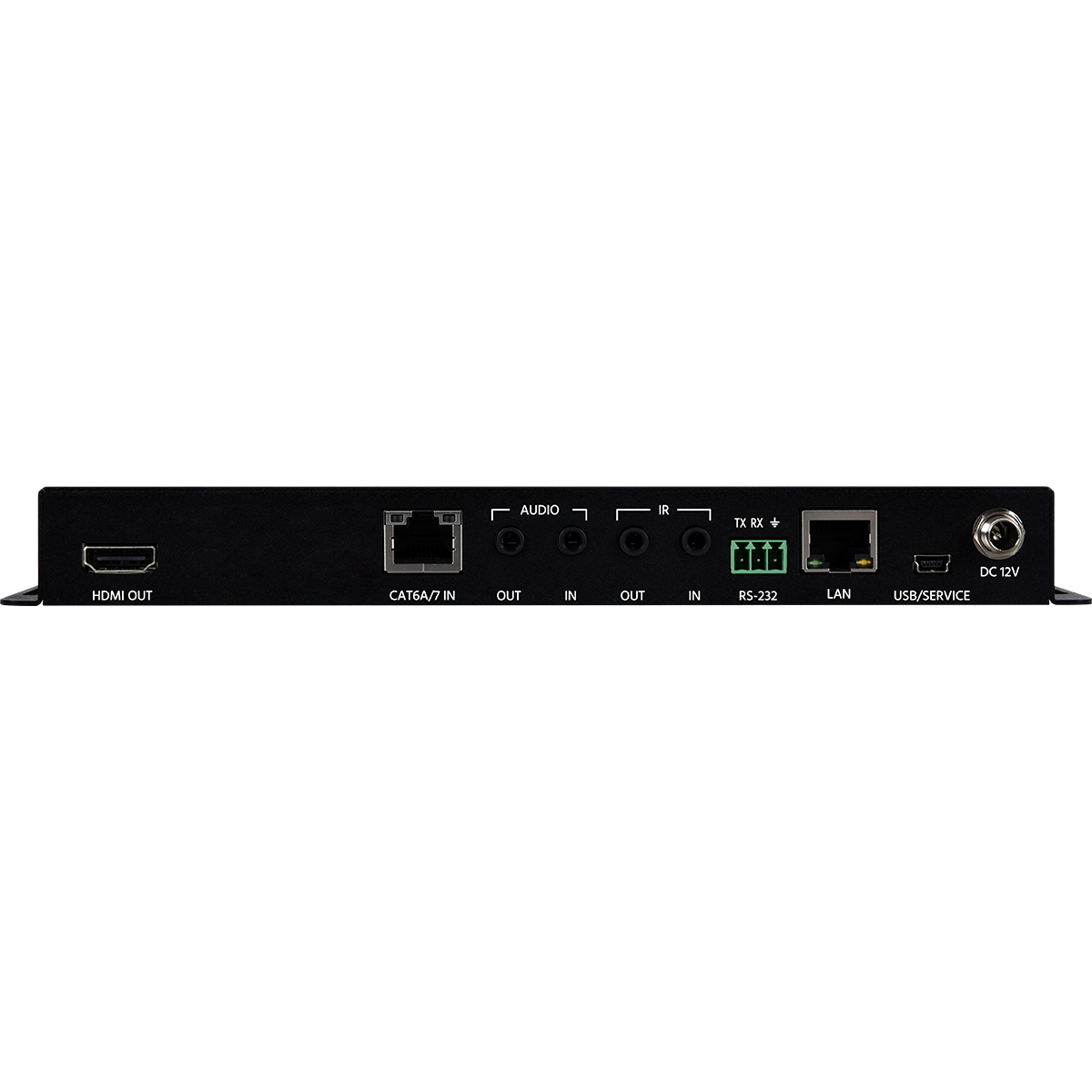

1 Ethernet (RJ45), 1 IR Extender (3.5mm), 1 IR Blaster (3.5mm), 1 RS-232 (3-Pin Terminal Block), 1 USB (Mini-B), 2 USB (Type A)
Input Signal Type:
4K@60Hz YUV 4:4:4
Power
Current Rating:
3A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
16.7cm
Height:
2.5cm
Weight:
566g
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
