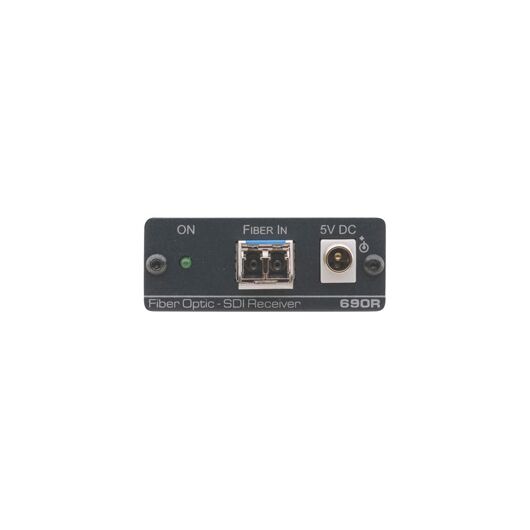

690R 2x3G SDI Receiver over Ultra-Reach SM Fiber
Please sign in so that we can notify you about a reply
The 690R is a high−performance fiber optic receiver for SDI video signals up to 3G HD−SDI. The 690T converts two 3G HD−SDI signals to single−mode fiber optic and the 690R receiver converts them back to the two original SDI formats. Compatible with the fiber optic matrix VS−88FO.
Features
- Max. Data Rate — 3Gbps.
- Inputs — 2 single–mode fiber optic on LC connectors.
- Outputs — 2 SDI on BNC connectors.
- HDTV Compatible.
- Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
- Laser Standards Compliance — IEC 60825–1, FDA 21CFR1040;Laser Class 1: Safety of laser products.
- Kramer Equalization & re‑Klocking™ Technology — Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD–SDI) & 100m (3G HD–SDI).
- System Range — Up to 10km (6.2mi).
Brand:
Kramer
Part number:
50-80039090
Product Type:
2x3G SDI Receiver
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
HDTV Compatible, Multi-Standard Operation-SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M), Laser Standards Compliance-IEC 60825-1, FDA 21CFR1040, Laser Class 1: Safety of Laser Products, System Range-Up to 10km (6.2mi)
Applications:
Home Theatre, Presentation, Multimedia, Cinemas, Stores, Entertainment Centres, Video Production, Broadcast Facilities, Retail Stores, Point-Of-Sale Systems, Digital Signage
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply
Performance
Video Bandwidth:
3Gbps
Signal-to-Noise Ratio:
84dB
Inputs and Ports
Input Port Type:
2 Single-Mode Fibre Optic on LC Connector
Output Port Type:
2xSDI on BNC Connector
I/O Interface Type:
USB 2.0
Power
Current Rating:
350mA
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
SDI, IEC, FDA
