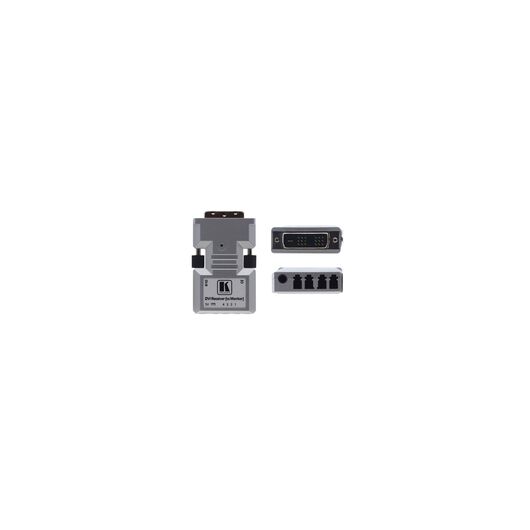

610R/US Detachable DVI Optical Receiver, US version
Please sign in so that we can notify you about a reply
The 610R is a detachable optical device for receiving DVI signals with resolutions of up to 1920x1200 at 60Hz over LC optical cable. The 610R receives fiber optic signals sent by the 610T or a Kramer digital matrix and converts them into DVI signals.
Features
- Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
- HDTV Compatible.
- Not HDCP Compliant.
- System Range — Up to 500m (1640ft).
- EDID Capture — Copies and stores the EDID from a display device (610T).
- Cable — Multimode fiber optic cable with 4 simplex or 2 duplex LC fiber connectors.
- Power — External power adapter (supplied) or 5V DC from source.
- Compact Size — Part of the Kramer TOOLS™ family of compact, high-quality and cost-effective solutions.
Brand:
Kramer
Part number:
94-095061095
Product Type:
Detachable DVI Optical Receiver
Specifications
Version:
US Version
Special Features:
Range-Up to 1640ft, EDID Capture, Multimode Fibre
Applications:
Digital Flat Panel Displays/Plasma Display Panels and Projectors for Medical Appliances/Aero and Traffic Control/Factory Facilities/Banks/Sharing Rooms and Auditoriums, Kiosks with Digital Flat Panel Displays for Information Display, LED Sign Boards in St
Humidity:
5 to 65%
Includes:
2 Power Supplies
Performance
Video Bandwidth:
4.95Gbps
Maximum Resolution:
Up to WUxGA@60Hz (1.65Gbps)
Inputs and Ports
Input Port Type:
DVI-D on a DVI-I Connector (610T), 4xLC Optical Connector for R, G, B and Clock (610R)
Output Port Type:
4xLC Optical Connector for R, G, B and Clock (610T), DVI-D on a DVI-I Connector (610R)
Power
Current Rating:
500mA
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
