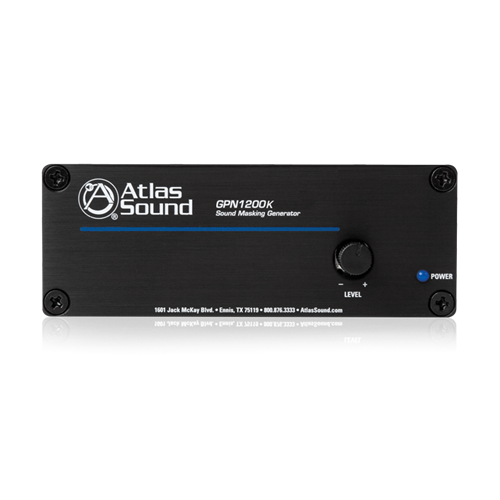

GPN1200K TSD Sound Masking Generator Kit
Please sign in so that we can notify you about a reply
The GPN1200K is a sound masking kit solution that includes the TSD-GPN1200 sound masking generator, TSD-PS24V250MA power supply, and TSD-RMK 1RU rack mount kit.
Features- TSD-GPN1200 Sound Masking Generator
- Balanced Line Output Plus 4W, 70.7V Output
- Global Input Voltage
- 1RU Height
- Supports up to 4 TSD Series Modules
- Adjustable Gain and Hi-Cut Filter

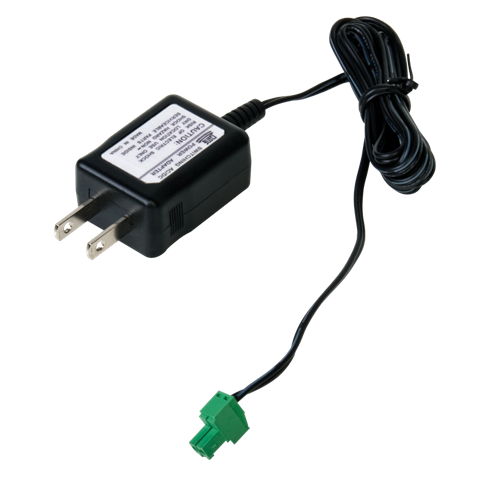

- TSD-PS24V250MA 24VDC Power Supply
- EQ & Gain Bypass for Line Output
- Black Brushed Aluminium Finish
- TSD-RMK
- Selectable Pink or White Noise Source

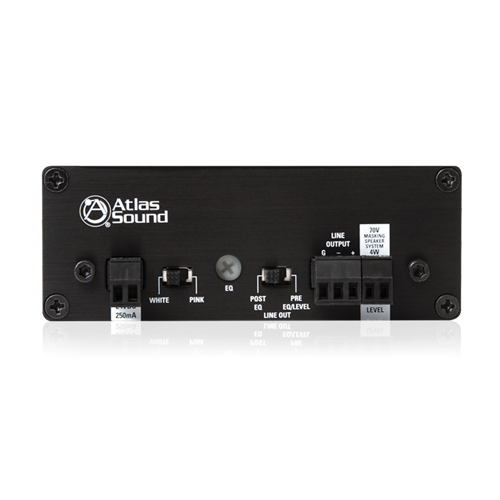

- Security Covers Included for All Rear Panel Controls
Brand:
Atlas IED
Product Type:
Sound Masking Generator
Specifications
Mounting Type:
Rack Mount
Colour:
Black
Rack Unit:
1U
Material:
Aluminium
Performance
Frequency Response:
20Hz to 20kHz
Output Power Rating:
4W
Inputs and Ports
Connector Type:
3 Position Captive Screw
Input Type:
Balanced Line
Power
Operating Voltage:
70.7V
Output Impedance Rating:
300Ω (Balanced), 150Ω (Unbalanced)
Power Consumption:
2.4W
Dimensions
Width:
10.1cm
Depth:
7cm
Height:
3.9cm
Weight:
0.1kg
No reviews found
