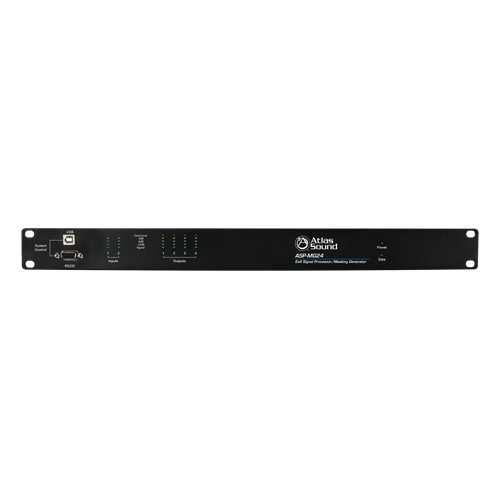

ASP-MG24 Sound Masking Processor / Speaker Controller
Please sign in so that we can notify you about a reply
The ASP-MG24 advances sound masking control to a whole new level while providing the secondary benefit of speaker processing for the most popular AtlasIED speaker systems.
The ASP-MG24 is 1RU, 2 input with 4 masking generators x 4 output DSP configurable by a very intuitive set-up GUI. Four inputs are tied to independent white/pink noise generators with adjustable power up ramp, allows occupant acclimation in the event of power loss to system. Two additional inputs are available for mic or line sources to allow paging and/or music sources to be blended with the masking sources to any of the 4 outputs.
Dedicated 1/3 octave filter sets are available for each of the 4 generator outputs, 8 band parametric EQ blocks along with dynamic control is available for each of the two mic/line inputs. Any mix of all 6 inputs may be easily matrixed to the 4 output DSP blocks for additional parametric equalization, delay, and limiting (if required).
Factoring in all features, a very complex 4 zone sound masking system can be easily configured with 2 external music or page sources. For speaker control functionality, the ASP-MG24 may be configured in 2 input x 4 output mode for stereo full range. Other configurations include full range plus sub operation with AtlasIED FAP ceiling speakers, SM series surface mount speakers, or AH series stadium horns for complete control of crossover types, equalization, delay, and dynamic control.
Computer interface is simplified by USB & RS-232 connection (no hard to use USB to Serial adapter required!). External UL listed international voltage power supply is included.
Features
- 4 Separate Masking Channels with 1/3rd Octave Tuning Capability
- The ASP-MG24 DSP Architecture is Equally Suited for Complex Masking Systems and for Control of Atlas Sound Full Range Speakers and/or Subwoofers
- The Intuitive ASP-MG24 Set-Up GUI is Designed to Simplify Even Complex Setups that Utilize Multiple Sources Plus Masking in the Same Zone
Brand:
Atlas IED
Product Type:
Sound Masking Processor
Specifications
Terminal Type:
USB, RS-232, Ethernet
Mounting Type:
Rack Mount
Colour:
Black
Rack Unit:
1U
Performance
Frequency Response:
20Hz to 20kHz
Inputs and Ports
Connector Type:
Plug-In Euro, Phoenix
Input Type:
Mic/Line-Level
Power
Operating Voltage:
115V
Output Impedance Rating:
50Ω
Power Consumption:
<21W
Dimensions
Width:
48.3cm
Depth:
20.3cm
Height:
4.4cm
Weight:
6kg
Shipping Weight:
5.9kg
Other
Standards Met:
CE Marked, ULC/UL Listed
Warranty:
1yr
