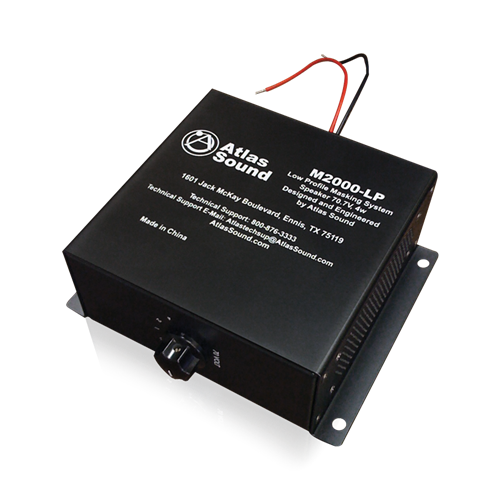

M2000-LP Dual 2" x 4" Sound Masking Speaker System with 70V Transformer

The M2000-LP sound masking speaker assembly is designed to accurately reproduce the required spectrum of masking signal into small plenum spaces. The innovative square enclosure ensures accurate sound masking frequency response. Specially designed 2" x 4" cone speakers (2) are included in the package. A high efficiency 70.7V internal transformer is coupled to an external tap selector switch for easy system tuning.To meet most any local code requirement, the M2000-LP includes an innovative cover containing both knockouts and a strain relief. This system will allow the use of rigid or flexible conduit (if required) and easily accommodates "through" connections on the removable plate. UL 2043 listed for use in air handling spaces.

Features
  • Pre-Assembled Unit Includes Two 2" x 4" Paper Cone Speakers
  • Built in 70.7V Transformer with Taps Available from .25 - 4 Watts Adjustable via a Front Mounted Switch Includes an Off Setting
  • Romex® Clamp Input with Two 18-Gauge Leads Color Coded in Red
  • & Black
  • UL Listed for Use in Air Handling Spaces (UL 2043)
  • UL1480 Listed
Brand:
Atlas IED
Product Type:
Dual Sound Masking Speaker System
Specifications
Colour:
Black
Special Features:
Romex™ Clamp Input with Two 18-gauge Leads Color Coded in Red & Black
Power Rating:
Transformer Taps : 0.25 to 4W
Includes:
5x10cm Paper Cone Speakers, Off Setting
Dimensions
Width:
19.1cm
Depth:
17.8cm
Height:
6.7cm
Weight:
1.4kg
Other
Voltage Rating:
70.7V
Standards Met:
UL Listed 2043

M2000-LP 1 (ATS003063B-M2000-LP-Datasheet.pdf, 595 Kb) [Download]

M2000-LP 2 (ATS003296A-M2000-LP.INST.pdf, 237 Kb) [Download]
