M1000R-W 8" Dual Cone Sound Masking Speaker with 4-Watt 70V Transformer and Enclosure - White and Round

Write a review
M1000R-W
Atlas IED
Log in to see price Add to wish list Add to Project

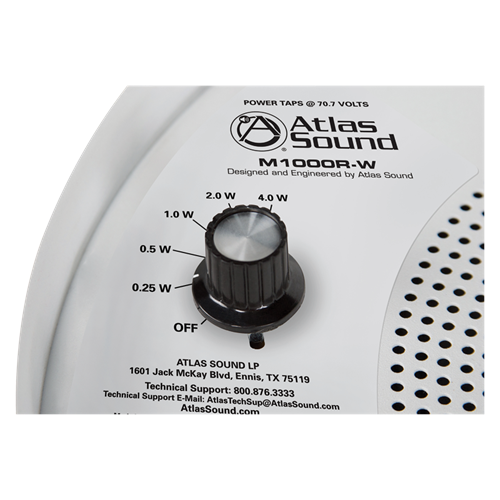

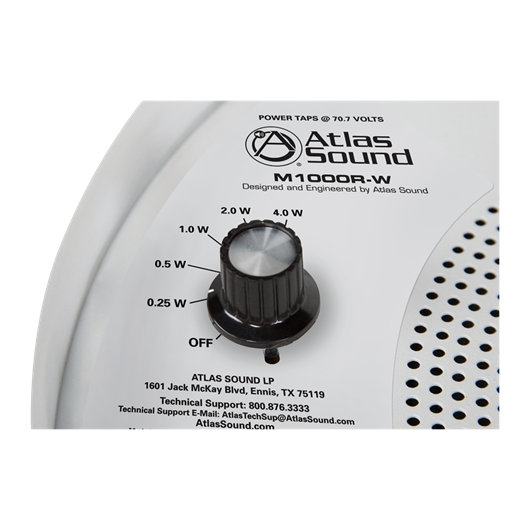

The M1000R-W is a perfect solution for contemporary office spaces with open ceiling designs where sound masking is used to enhance speech privacy. The sleek round design and low gloss white finish will blend in nicely with painted ductwork, lighting and other devices suspended overhead.A high efficient 8" paper cone transducer coupled with a low insertion loss 70.7V transformer are factory assembled into the 382 in3 round enclosure. System level tuning is easily achieved via an external tap selector switch that includes settings for .25, .5, 1, 2 & 4 watts plus an OFF position. Installation is made easy via the included 78" (2m) suspension chain system that allows quick mounting and height adjustment of the M1000R-W. An integral wire strain relief strategically located on the top of the enclosure allows for secure speaker cable termination.

Features
  • Sleek, Round Appearance Designed for Mounting in Open Plenum Areas Where Speakers May be Visible

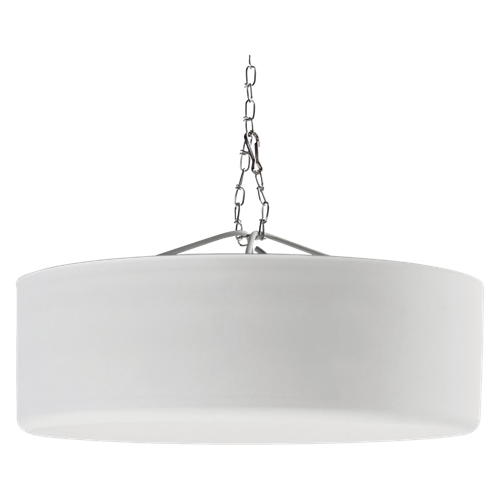

  • Balanced Enclosure Design to Ensure Level Orientation When Suspended (78" (2m) Suspension Chain Included)
  • Fully Assembled Package Includes 8" Transducer with High Quality Line Matching Transformer
  • 0.25 to 4 Watt (@70.7V) Power Selection (Plus OFF) via External Switch
  • 382in3 (6.26L) Enclosure Volume for Accurate Low Frequency Masking Spectrum Reproduction

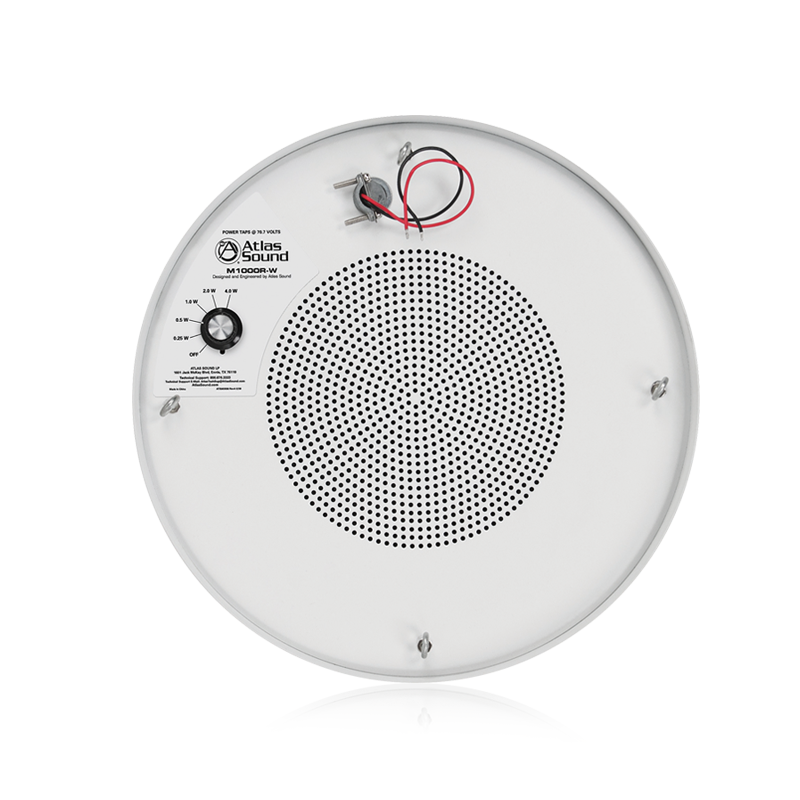

  • Strain Relief to Facilitate Input Termination
  • Tested and Approved to UL2043 Standard for Use in Air Handling (Plenum) Spaces
  • White Finish to Blend in with Almost Any Ceiling Decor
  • Safety Listed to UL 1480 & UL 2043
Brand:
Atlas IED
Product Type:
Dual Sound Masking Speaker
Specifications
Driver Type:
Dual Cone
Mounting Type:
Hanger Assembly
Colour:
White
Special Features:
Sleek and Round Appearance Design
Power Rating:
Transformer Taps : 0.25 to 4W
Includes:
8in Transducer with High Quality Line Matching Transformer, Suspension Chain
Performance
Frequency Rating:
100Hz to 10kHz
Other
Voltage Rating:
70.7V
Standards Met:
UL Listed 1480, UL Listed 2043

M1000R-W 1 (ATS003761A-M1000R-W-Datasheet.pdf, 566 Kb) [Download]

M1000R-W 2 (ATS001449F-M1000-Install-Sheet.pdf, 423 Kb) [Download]
