VS-611DT 4x1 4K HDR HDMI Auto Switcher
Please sign in so that we can notify you about a reply

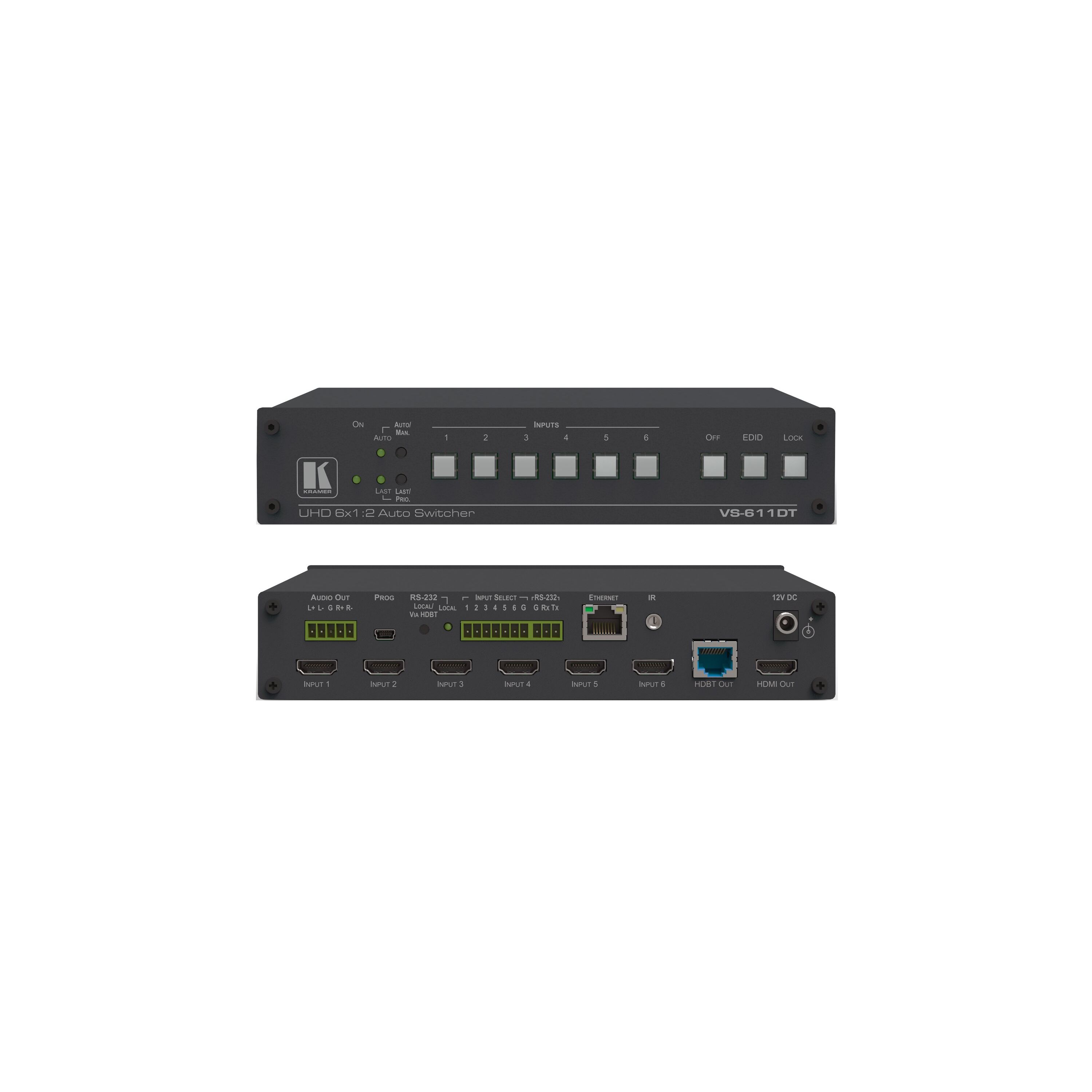

VS−611DT is a high−performance automatic switcher for HDMI video signals with resolution up to 4K@60Hz (4:2:0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher−priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI 4K@60Hz (4:2:0) outputs.
Features
- Max. Data Rate — 8.91Gbps (2.97Gbps per graphic channel).
- Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
- HDTV Compatible.
- HDCP Compliant — Works with sources that support HDCP repeater mode.
- HDMI Support — Deep Color, Ethernet, ARC, 7.1 PCM.
- Customized Audio Output — De–embed the audio from the HDMI input and route it to the balanced stereo audio line out, or de–embed HDMI ARC from the output and route it to the balanced stereo audio line out.
- Features Kramer reKlocking™ Technology — Rebuilds the digital signal to travel longer distances.
- Step–in Master Support.
- Auto–Power Off — When no HDMI input for 30 seconds (selectable).
- Automatic Input Detection & Selection.
- HDCP On/Off Switching.
- EDID Configuration Options.
- Selectable Switching — Manual or fast auto–switching according to last connected or preset priority.
- Full HDBaseT Certification — Including bidirectional RS–232, Ethernet, IR and POE.
- HDBaseT Extended Reach — Up to 100m at 4K@60Hz (4:2:0).
- POE Source for HDBaseT Receivers.
- Contact Closure — For remote manual switching override.
- Firmware Upgrade — Over mini–USB, RS–232 or RJ–45 Web page.
- Varied Control Options — Front panel keyboard, HDBaseT Ethernet, RS–232 local and over HDBaseT, IR.
- Built–in Web Server.
- Software Support — For Protocol 3000, K–Router Plus, EDID Designer, K–Upload.
Brand:
Kramer
Part number:
20-00611090
Specifications
Product Type:
HDMI Auto Switcher
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDTV Compatible HDMI Support, Customized Audio Output, Step-in Master Support, Auto-Power Off, Automatic Input Detection & Selection, HDCP On/Off Switching, EDID Configuration Options, Selectable Switching, Full HDBaseT Certification, HDBaseT Extended Rea
Applications:
Mid-Sized Meeting/Conference Rooms, Mid to Large Sized Lecture Room
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter
Performance
Maximum Resolution:
4K@60Hz (4:2:0)
Inputs and Ports
Video Input Type:
HDMI Connector
USB Type:
Mini A
Power
Current Rating:
750mA
Dimensions
Width:
21.46cm
Depth:
16.3cm
Height:
4.3cm
Weight:
1kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
CE, ISO 9001 Certified, ISO 14001, OHSAS 18001
