VS-211HDXL 2x1:2 SDI Auto Switcher
Please sign in so that we can notify you about a reply

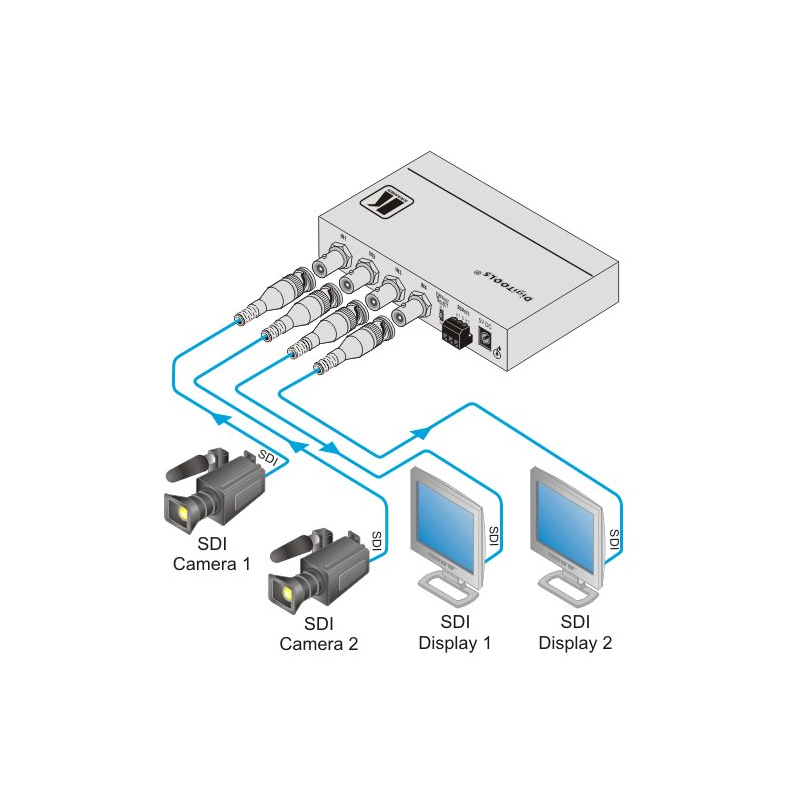

The VS−211HDxl is a high−performance automatic switcher for 3G HD−SDI video signals. When configured as a standby switcher, it switches to the secondary input when the primary input is lost.
Features
- Max. Data Rate — 3Gbps.
- Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) & 3G HD–SDI (SMPTE 424M).
- HDTV Compatible.

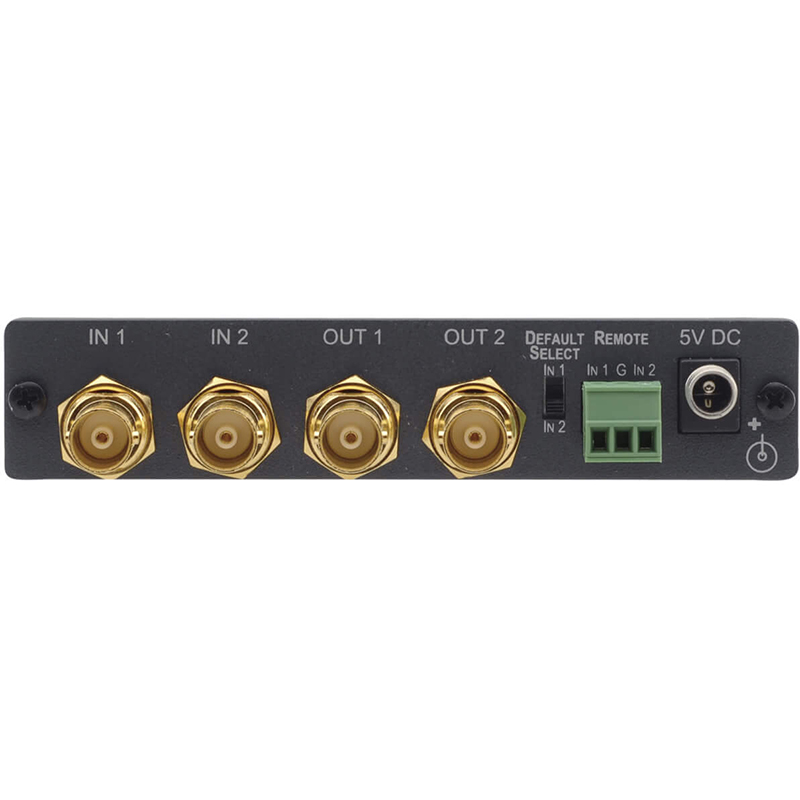

- Control — Contact closure or automatic switching.
- Automatic Standby Switching — Switches from the secondary input to the primary input when a primary signal is detected.
- Primary Input — Selectable.

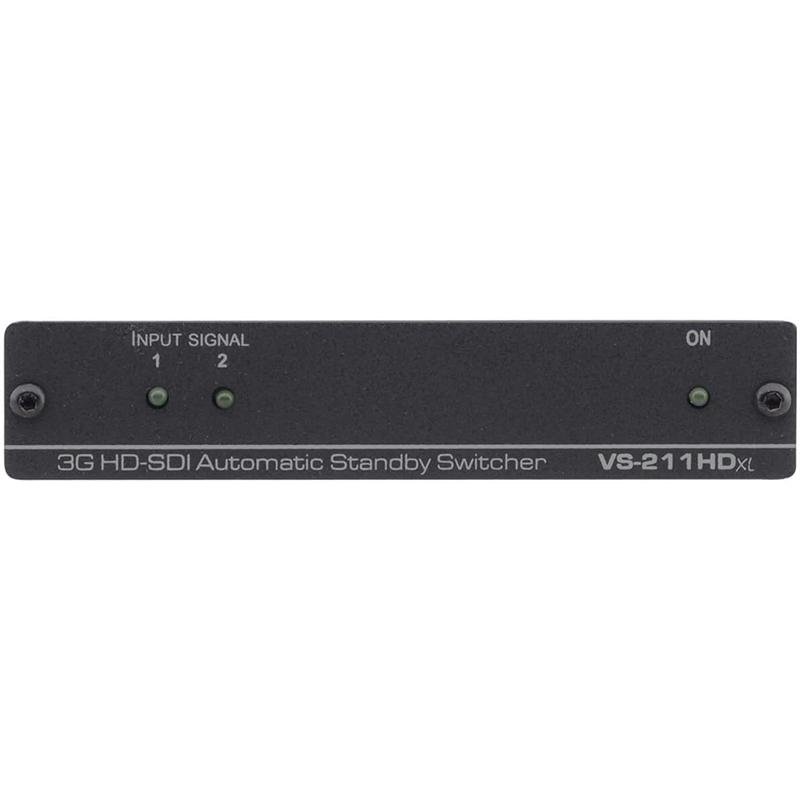

- Active Input LED Indicators.

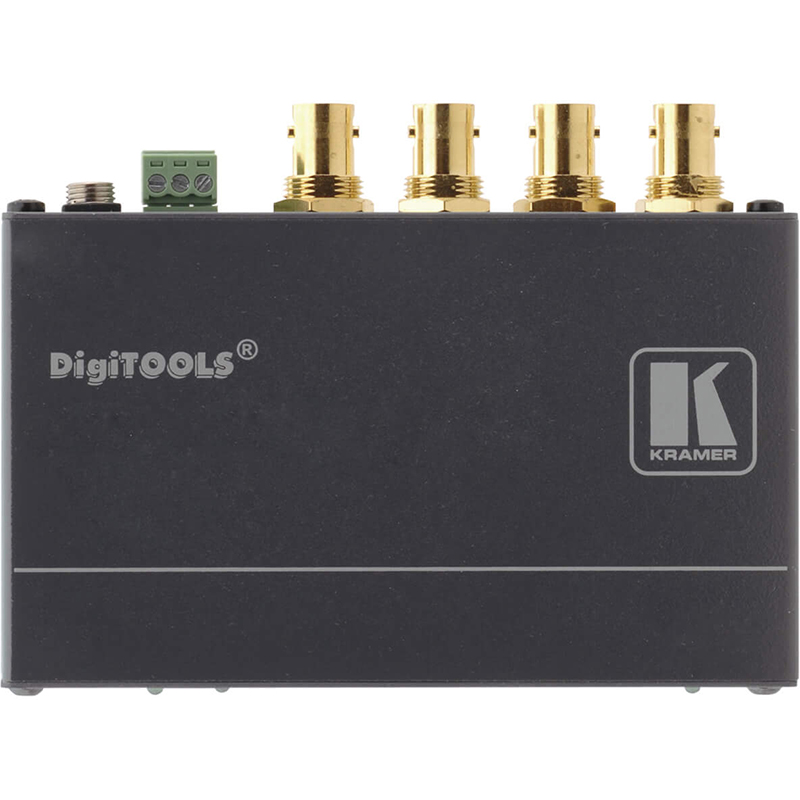

- Compact DigiTOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-70818090
Specifications
Product Type:
SDI Auto Switcher
Colour:
Black
Special Features:
High-Performance, Max. Data Rate-3Gbps, Multi-Standard Operation, HDTV Compatible, Automatic Switching, Automatic Standby Switching, Selectable Primary Input, Active Input LED Indicators, Compact DigiTOOLS™
Applications:
Backup Switching for Broadcast, Post Production
Includes:
Power Supply, Mounting Bracket
Performance
Output Level Type:
800mVpp/75Ω
Inputs and Ports
Video Input Type:
3G HD-SD
Power
Output Impedance Rating:
75Ω
Current Rating:
400mA
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE, ISO 9001 Certified
