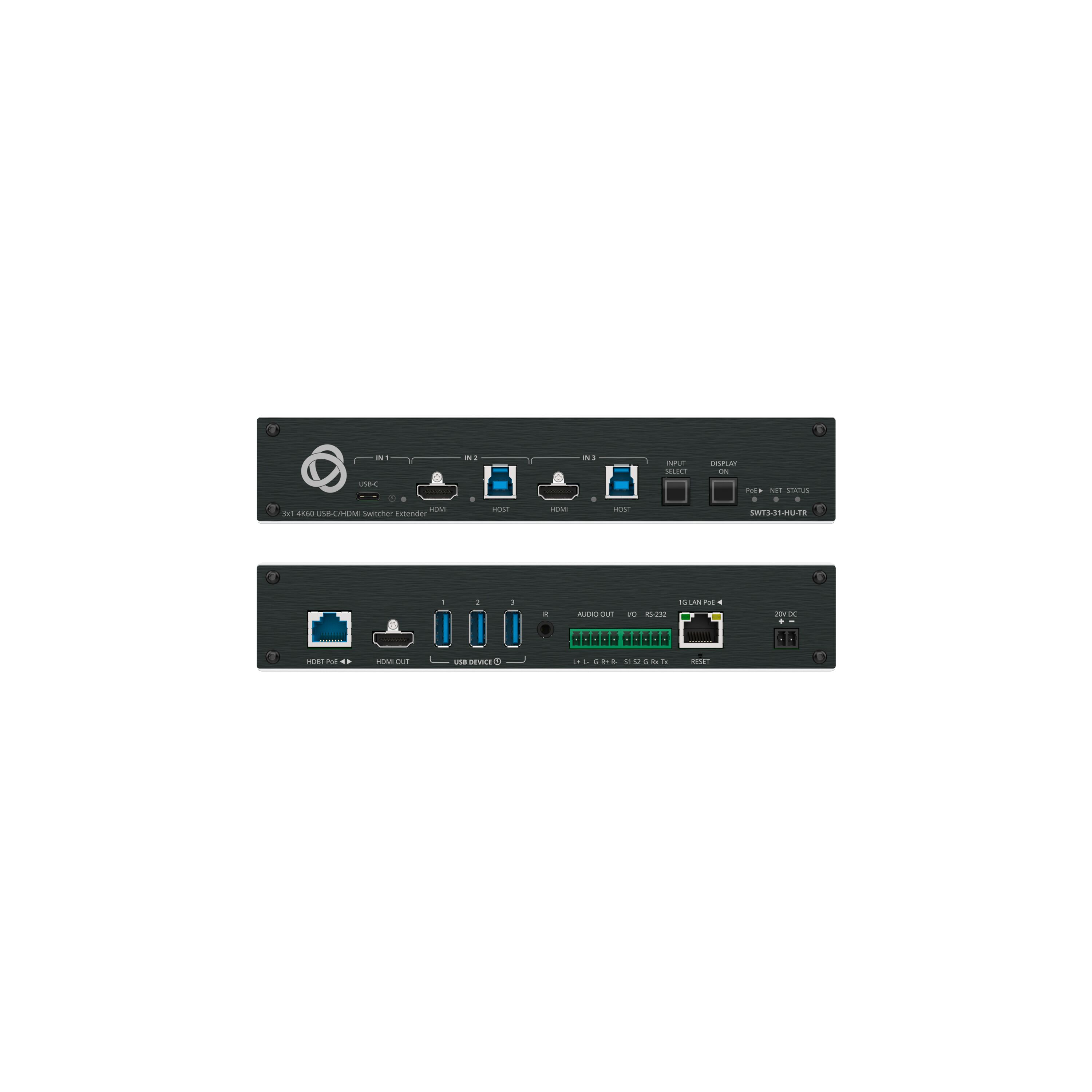

SWT3-31-HU-TR 3x1 4K60 USB–C/HDMI Switcher Extender
Please sign in so that we can notify you about a reply
SWT3 31 HU TR is a high-performance auto-switcher with one USB-C and two HDMI/USB inputs, HDMI output and extended-range HDBaseT 3.0, flexibly set for transmit (output) or receive (input) link, for extension of 4K60Hz (4:4:4) HDMI, USB 2.0, Ethernet, RS-232, IR and power signals over twisted pair cable. The local and remote connected USB peripherals, such as a room camera and microphone, are switchable for use of the switcher active USB host, for convenient hybrid meeting operation with both room and online participants.
Features- Hybrid-meeting Collaborative Switching
- BYOD Ease and Convenience
- High Performance Standard Extender
- HDMI Signal Switching
- Flexible USB Switching and Extension
- HDMI Mirroring
- I-EDIDPro Kramer Intelligent EDID Processing
- Multi-Channel Audio Transmission
- Audio De-Embedding
- Auto Switcher Ease of Use
- Easy Online Meeting System Integrated Connectivity
- Display On/Off Operation
- Simple Control
- Built-In Intelligent Control Gateway
- Ethernet Extension
- Bidirectional RS-232 Extension
- Bidirectional Infrared Extension
- Secured Network Connection
- Comprehensive Management
- Easy and Elegant Installation
Brand:
Kramer
Part number:
50-80588090
Product Type:
USB-C/HDMI Switcher Extender
Specifications
USB Port Receiver:
USB 3.2 Type-A
USB Port Transmitter:
USB 3.2 Type-C & Type-B
Maximum Operating Temperature:
+40°C
Special Features:
Hybrid-Meeting Collaborative Switching, BYOD Ease and Convenience, High Performance Standard Extender, HDMI Signal Switching, HDMI Mirroring, I-EDIDPro Kramer Intelligent EDID Processing, Multi–Channel Audio Transmission, Audio De-Embedding
Maximum Cable Length:
100m
Applications:
Enterprise and Education Hybrid Meeting Rooms and Classrooms, Hybrid User Connection Element in Advanced Hybrid Meeting Solutions
Material:
Aluminium
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
20V Power Adapter and Cord, USB-C Multi-Signal Cable
Inputs and Ports
Input Port Type:
1xDP Alt Mode & PD 3.0 USB-C, 2xHDMI, 1xHDBT 2-Way PoE
Output Port Type:
1xHDBT 2-Way PoE, 1xHDMI, 1xBalanced Stereo Audio Line
Power
Current Rating:
6A
Dimensions
Width:
21.46cm
Depth:
16.3cm
Height:
4.36cm
Weight:
0.9kg
Shipping Weight:
1.7kg
Other
Voltage Rating:
20V DC
Standards Met:
CE, UL, RoHs, WEEE
